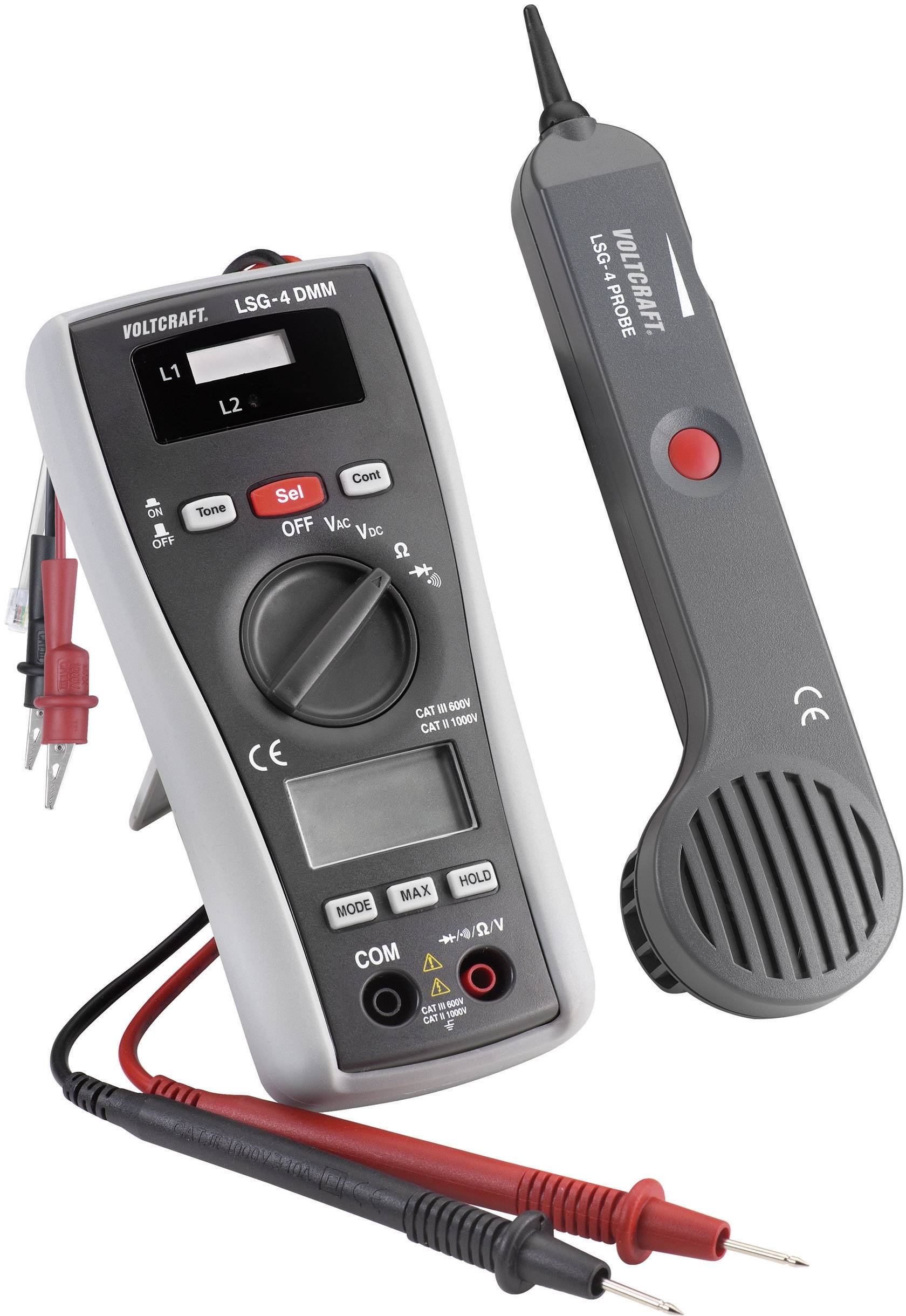

VOLTCRAFT LSG-4 Cable locator, signal tracer, continuity tester, multimeter
EAN:
Part number:
Item no:
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Highlights & Details
Multimeter with cable tester LSG-4 DMM
- Adjustable sensitivity
- Multimeter with all Standard Functions
Technical specifications
- Multimeter: CAT III 600 V
- Measuring range voltage AC: 1 mV - 600 V, DC: 0.1 mV - 600 V
- Measuring range resistance: 0.1 Ω - 20 MΩ
- Product type
Cable locator, signal tracer, continuity tester, multimeter
- Max. cable length
400 m
- Dim
(W x H) 67 mm x 154 mm
- Width
67 mm
- Height
154 mm
- Type
LSG-4
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2181313 VOLTCRAFT LSG-4 Cable locator, signal tracer, continuity tester, multimeter
User & Safety Instructions 2181313 VOLTCRAFT LSG-4 Cable locator, signal tracer, continuity tester, multimeter
Warranty Terms
Warranty Terms 2181313 VOLTCRAFT LSG-4 Cable locator, signal tracer, continuity tester, multimeter
Description
Save the cables and conductors with the LSG-4 DMM The LSG-4 uses a high-frequency tone generator which modulates a HF signal on the test cable. It also includes a highly sensitive inductive receiver, which can detect cables up to 15 cm inside a wall. This allows you to track cable layouts precisely. the Signal of the sound generator can be feeded alternatively via a RJ11 connector or via an alligator clip in the conductor that has to be measured Furthermore, the device is available with various functions of a Multimeter No need to buy an extra device. The rubber protection makes the LSG-4 DMM suitable for construction site use.
Features
- Sound signal switch-able (period/pulse)
- continuity and voltage tester on the searching conductor
- Measuring functions V/AC, V/DC, Ω, audio continuity tester and Diode test
- Max and Hold Function.
Scope of delivery
- LSG-4 DMM
- Receiver probe
- 2 Micro Batteries (AAA)
- 2 x 9 V Block
- 1 set of measuring leads
- operating instructions
