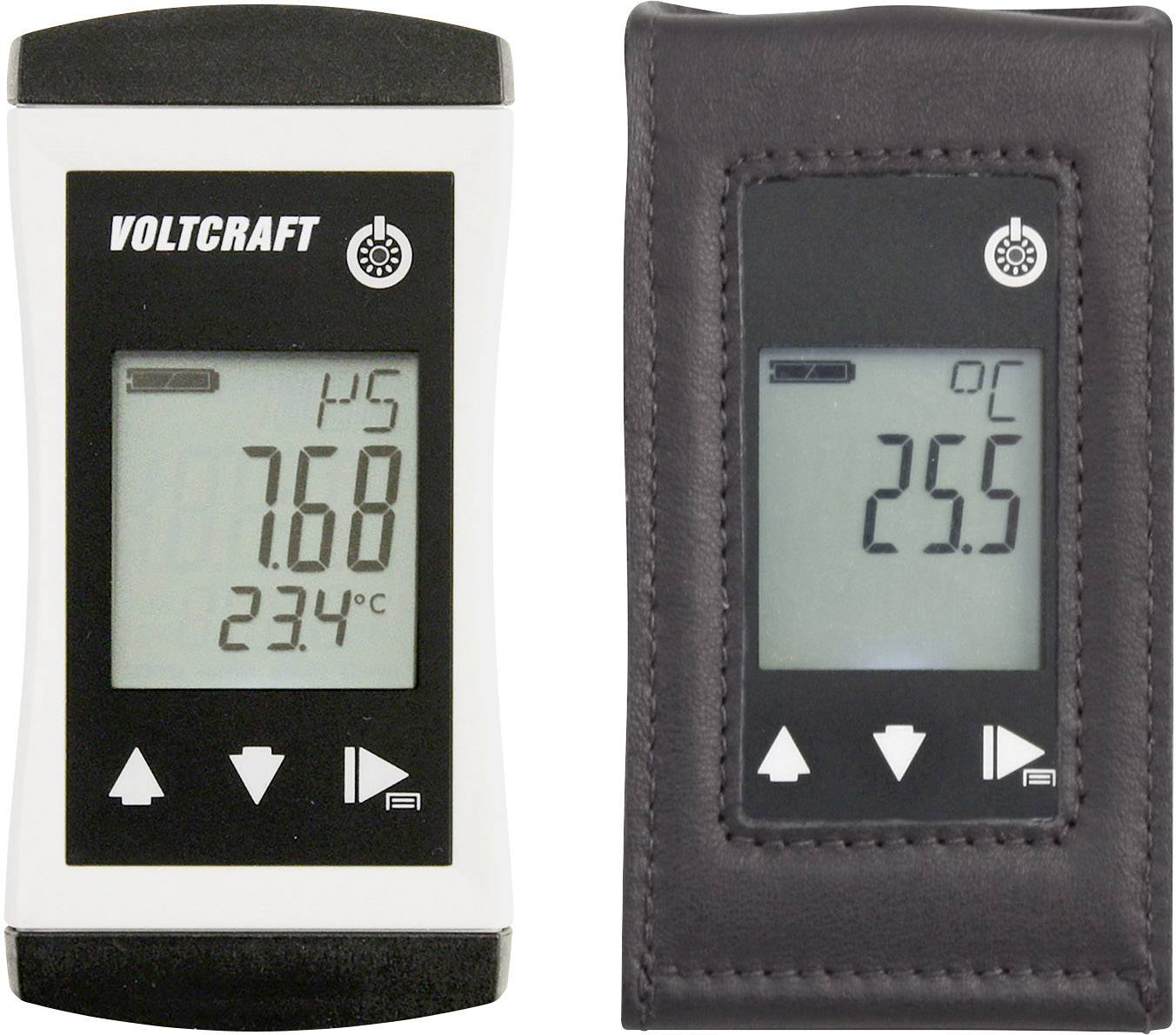

Two digital thermometers. On the left, one reads 7.68 and 23.4°C, on the right, another shows 25.5°C. Both devices have black casings, with one in a protective sleeve.

Silver-coloured sensor with a black grip area and cable, likely for laboratory or measurement technology applications.

A digital measuring device with the inscription 'Voltcraft'. The display shows 7.60, 23.4°C and a battery status symbol.

Conductivity Meter LWT-110 by Voltcraft, displays temperature range from -5 to +105 °C and conductivity from 0-100 µS/cm.

Small portable speaker in a black leather case, visible from the front.

1/6

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

High-resolution conductance measuring device LWT-110 for ultra-pure water including device protection bag TG-400

Watertight to IP67 standard
With high-quality stainless steel measuring cell
Fast measurement value determination

Technical specifications

Specific resistance: 0.0100..2.000MOhm*cm; 0.010..2.000MOhm*cm; 0.01..20.00MOhm*cm
Temperature compensation: Off:deactivated; NLF: Non-linear, according to EN 27888; LIN: Linear with adjustable coefficient; NaCl- solutions according to EN 60746-3
Reference temperatures 20 and 25 °C.
Measuring cell: 2-pin Measuring cell, Ø 12 mm (stainless steel 1.4404, 1.4435), cable 1.2 m.
Range of application Measuring cell: -5..+80 °C (short-term 100 °C)
Display: 3-line with battery status display, background lighting, protected by break-proof disc, overhead display at the push of a button
Environment display device: -20..+50 °C, 0..95 % r.h.
Protection class: IP67
RoHS compliant

Product type: Conductivity tester

Reading type: Conductivity
Resistance

Accuracy: Conductivity: Type. ±1% of MW. ±0.5 % FS
Temperature: ±0.3 °C

Display: LCD
Digital
Numeric

: Manufacturer's standards (with certificate)

Automatic temperature compensation: Yes (built-in)

Operating temperature: -20 … +50 °C

Dim: (L x W x H) 28 x 54 x 108 mm

Weight: 230 g

Conductivity reading range: 0.001 - 100.0 µS/cm

Conductivity reading range (max.): 100.0 µS/cm

Conductivity reading range (min): 0.001 µS/cm

Temperature reading range: -5.0 up to +105.0 °C

Temperature reading range (max.): +105.0 °C

Temperature reading range (min.): -5.0 °C

Width: 54 mm

Height: 108 mm

Length: 28 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1991115 VOLTCRAFT LWT-110 + TG-400 Conductivity tester Conductivity, Resistance

Warranty Terms

Warranty Terms 1991115 VOLTCRAFT LWT-110 + TG-400 Conductivity tester Conductivity, Resistance

Description

The LWT-110 impresses with its ergonomic design, dust and water-proof design according to IP67 and the illuminated display. The compact conductivity meter VOLTCRAFT LWT-110 has a specialized measuring cell for highest resolution pure/ultrapure water applications.
Applications include reverse osmosis and similar filters, laboratories, quality assurance, service.
