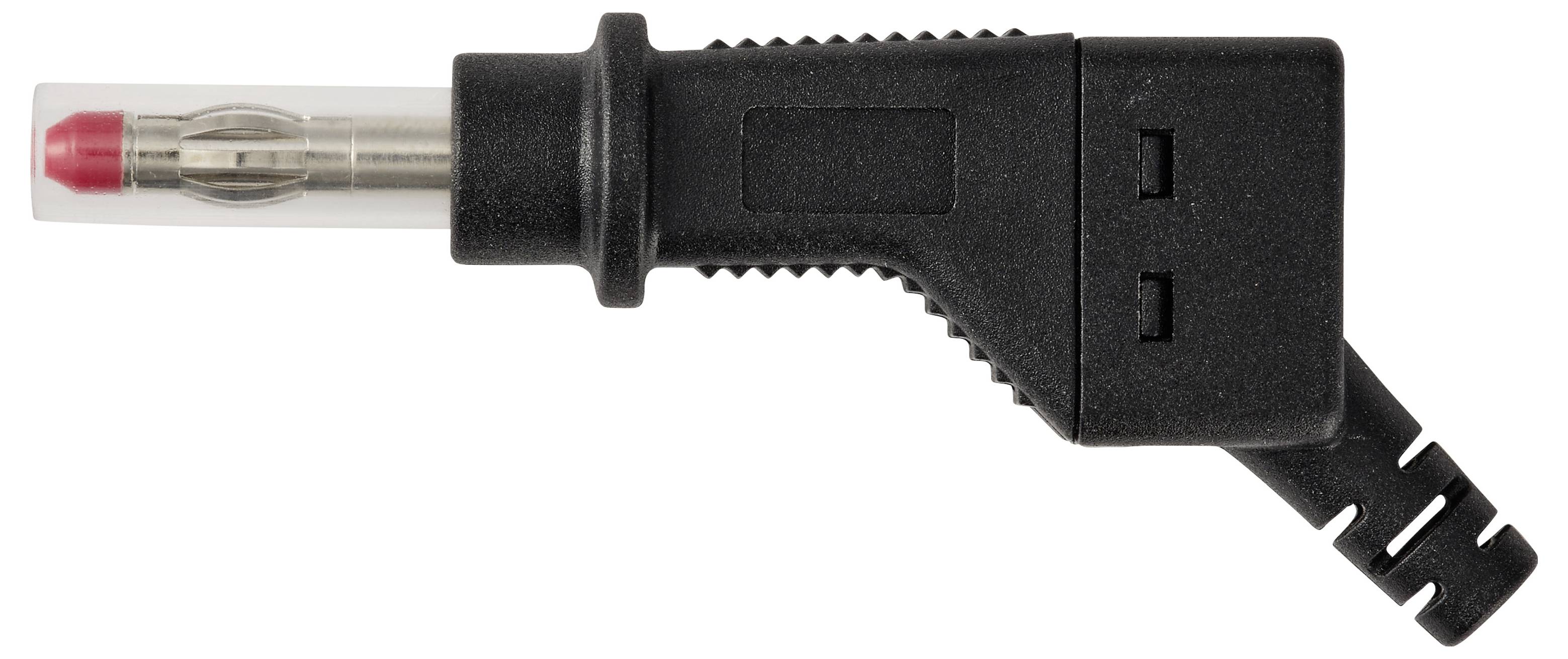

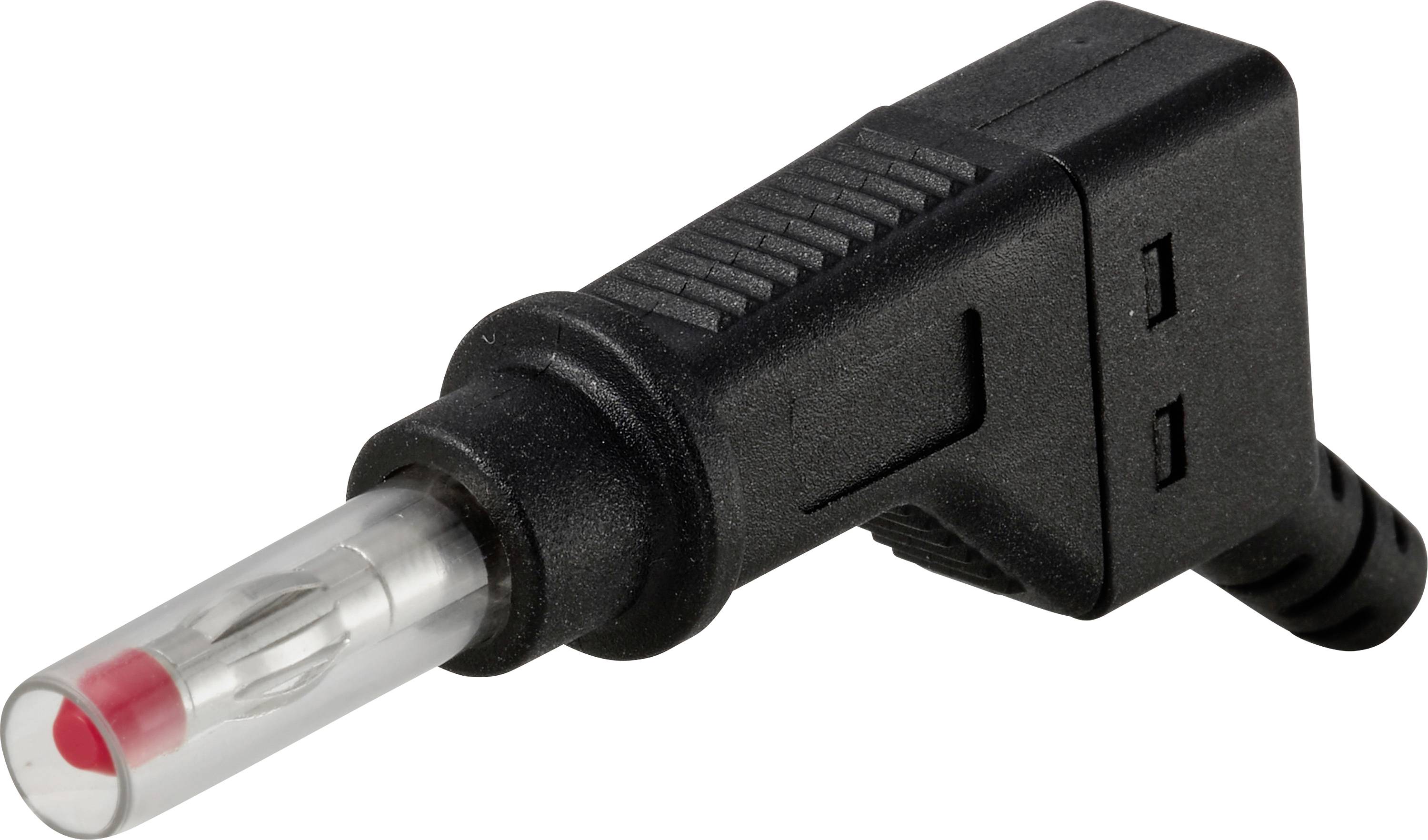

VOLTCRAFT MP-10 schwarz Jack plug Plug, straight Pin diameter: 4 mm Black 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Jack plug
Connector type
Plug, straight
Pin Ø
4 mm
Connection
4 mm plug
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
VOLTCRAFT MP-10 schwarz Laboratory Plug, Black, 32 A, Sliding Sleeve, Stackable
- CAT II 1000V / CAT III 600V
- Nominal voltage: 1000 V
- Rated current: 32 A
- Stackable 4mm insulated plug
Our service for you
Technical specifications
- Packaging type
Bulk
- Product type
Jack plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
4 mm plug
- Factory colour
Black
- Insulation type
Partially insulated
- Manufacturer part #
VC-18856450
- Type
MP-10 schwarz
- Dim
(Ø x L) 4 mm x 61.5 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA
- Contact material
Copper nickel-plated
- Dimensions
4 mm
- Nominal voltage
1000 V
- Length
61.5 mm
- (Ø)
4 mm
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3771290 VOLTCRAFT MP-10 schwarz Jack plug Plug, straight Pin diameter: 4 mm Black 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3771290 VOLTCRAFT MP-10 schwarz Jack plug Plug, straight Pin diameter: 4 mm Black 1 pc(s) Bulk
Warranty Terms
Warranty Terms 3771290 VOLTCRAFT MP-10 schwarz Jack plug Plug, straight Pin diameter: 4 mm Black 1 pc(s) Bulk
Description

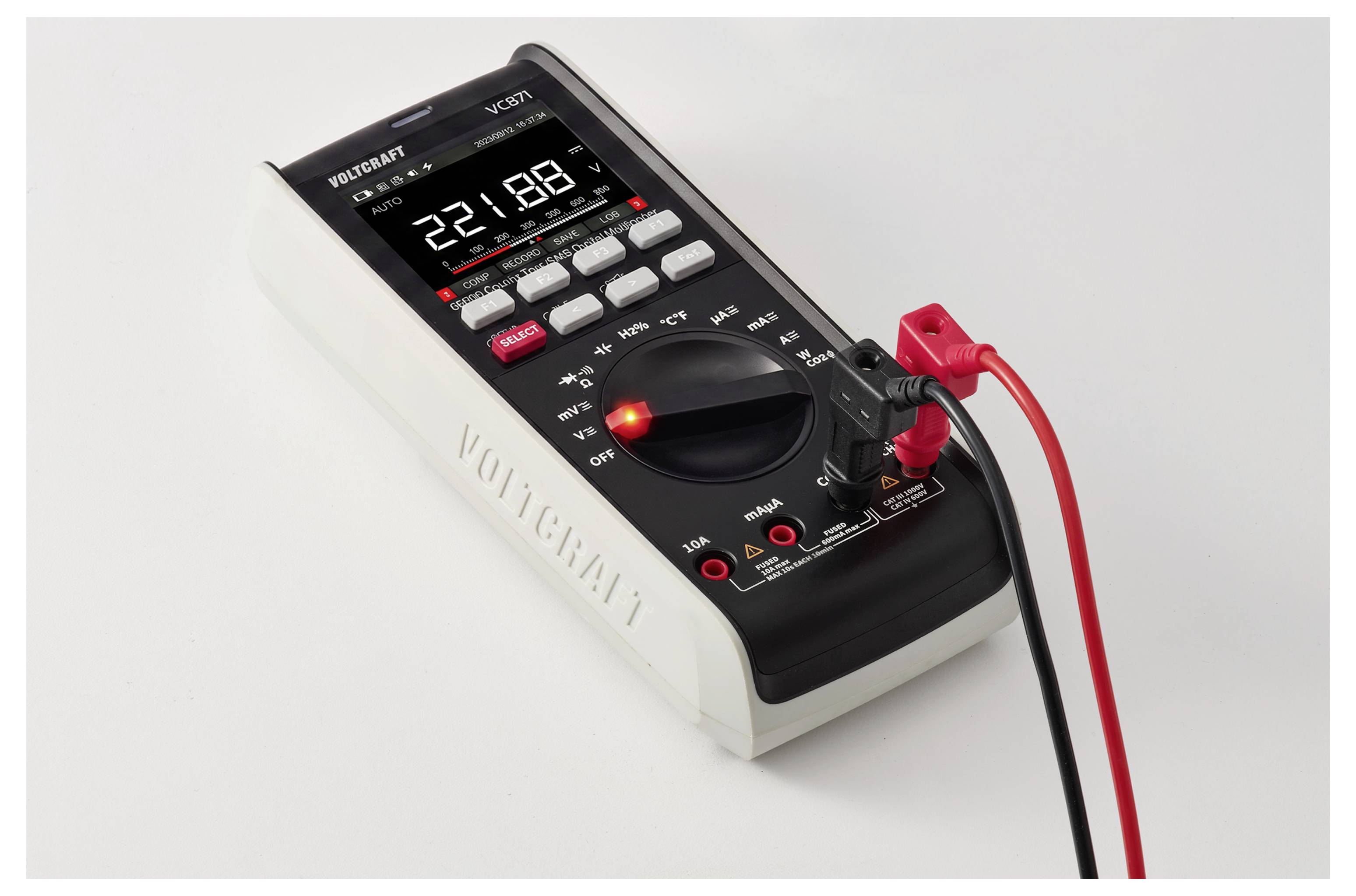

The black VOLTCRAFT MP-10 laboratory plug enables the reliable setup of measuring circuits in professional environments. The straight 4 mm plug is designed for 32 A and 1000 V and meets the requirements of the categories CAT II (1000 V) and CAT III (600 V).
Expandable connection

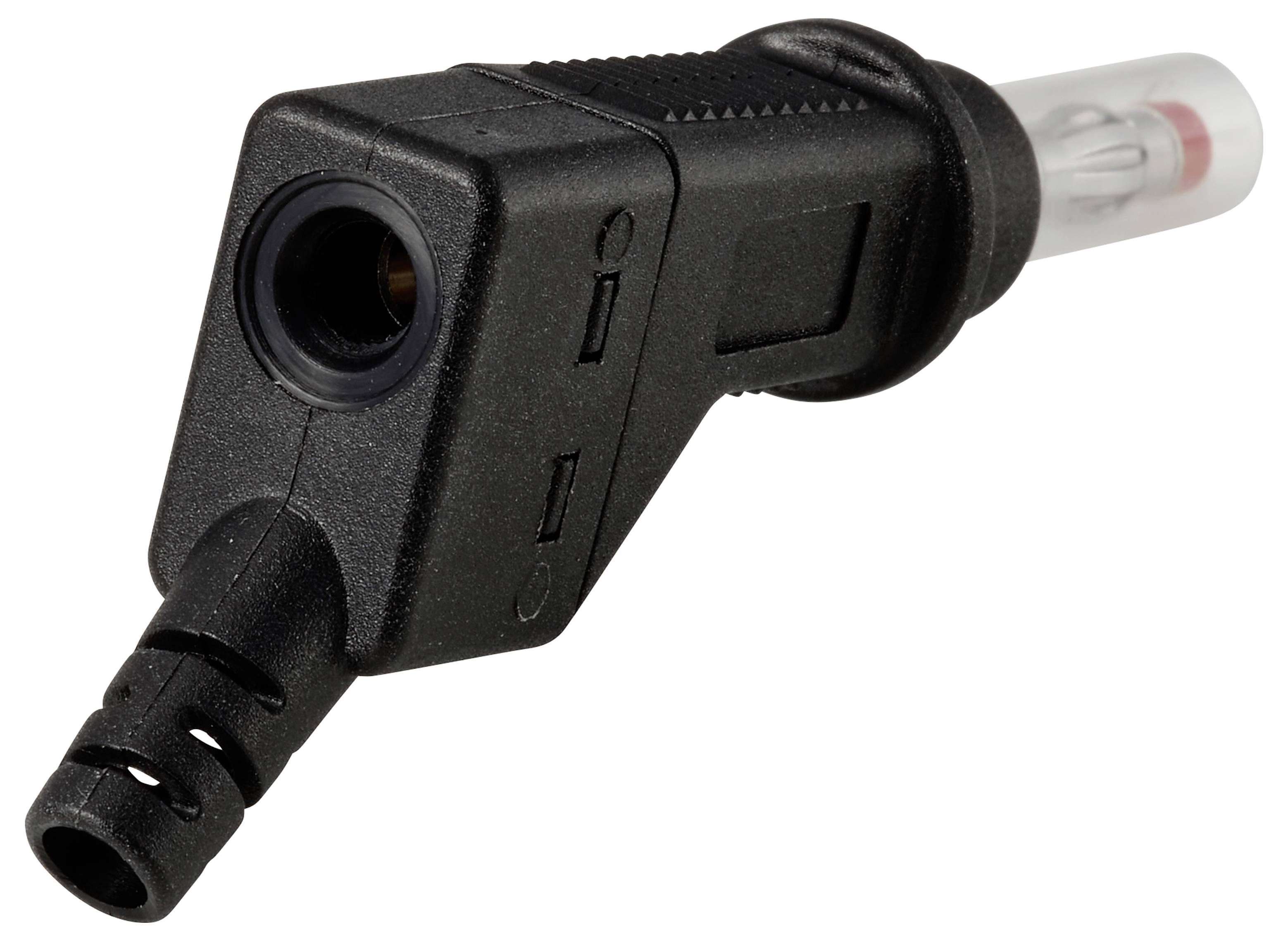

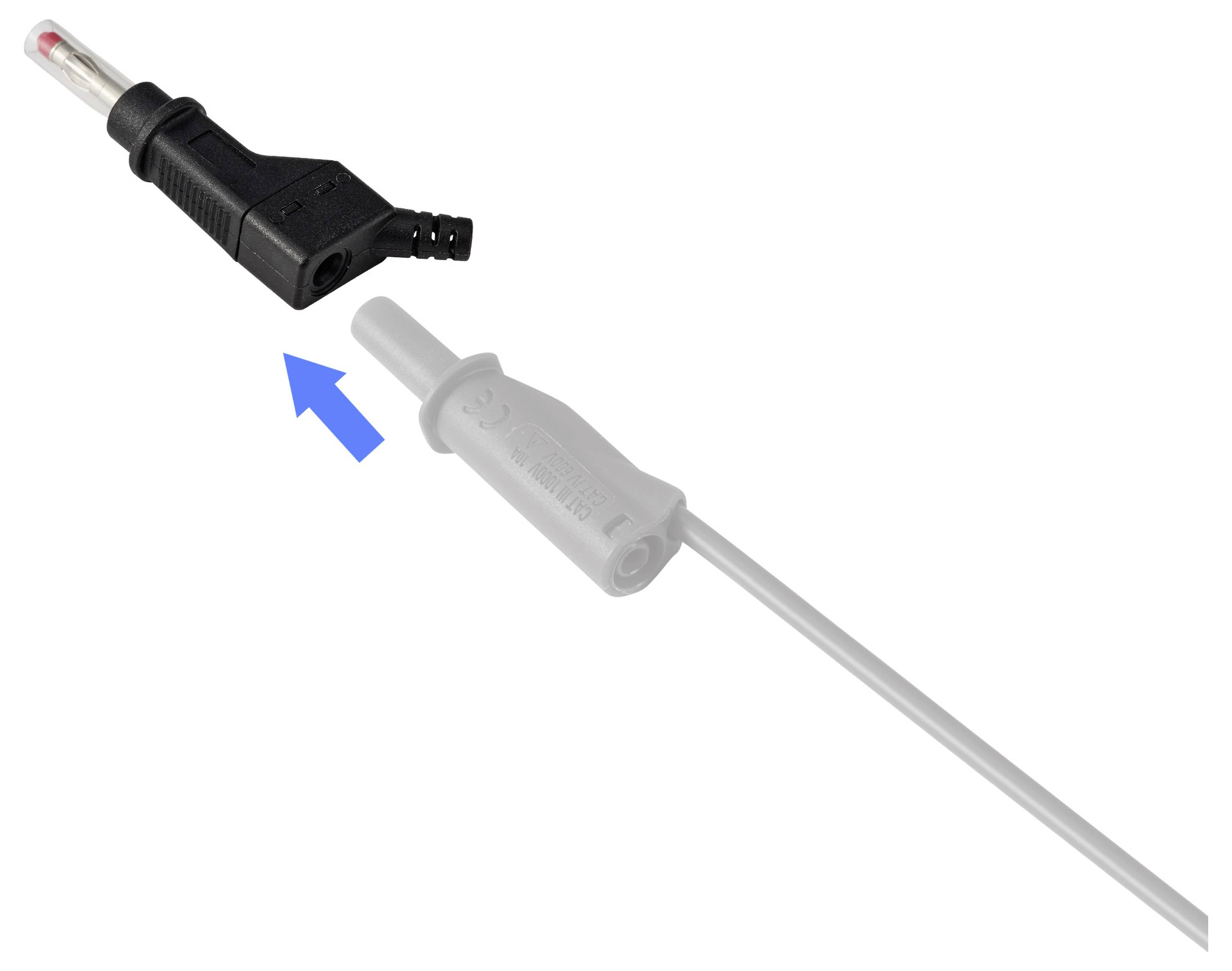

Additional test leads can be plugged directly into the connector thanks to the stackable design. This allows the distribution points to be realized flexibly without the need for additional components.
Solid contact

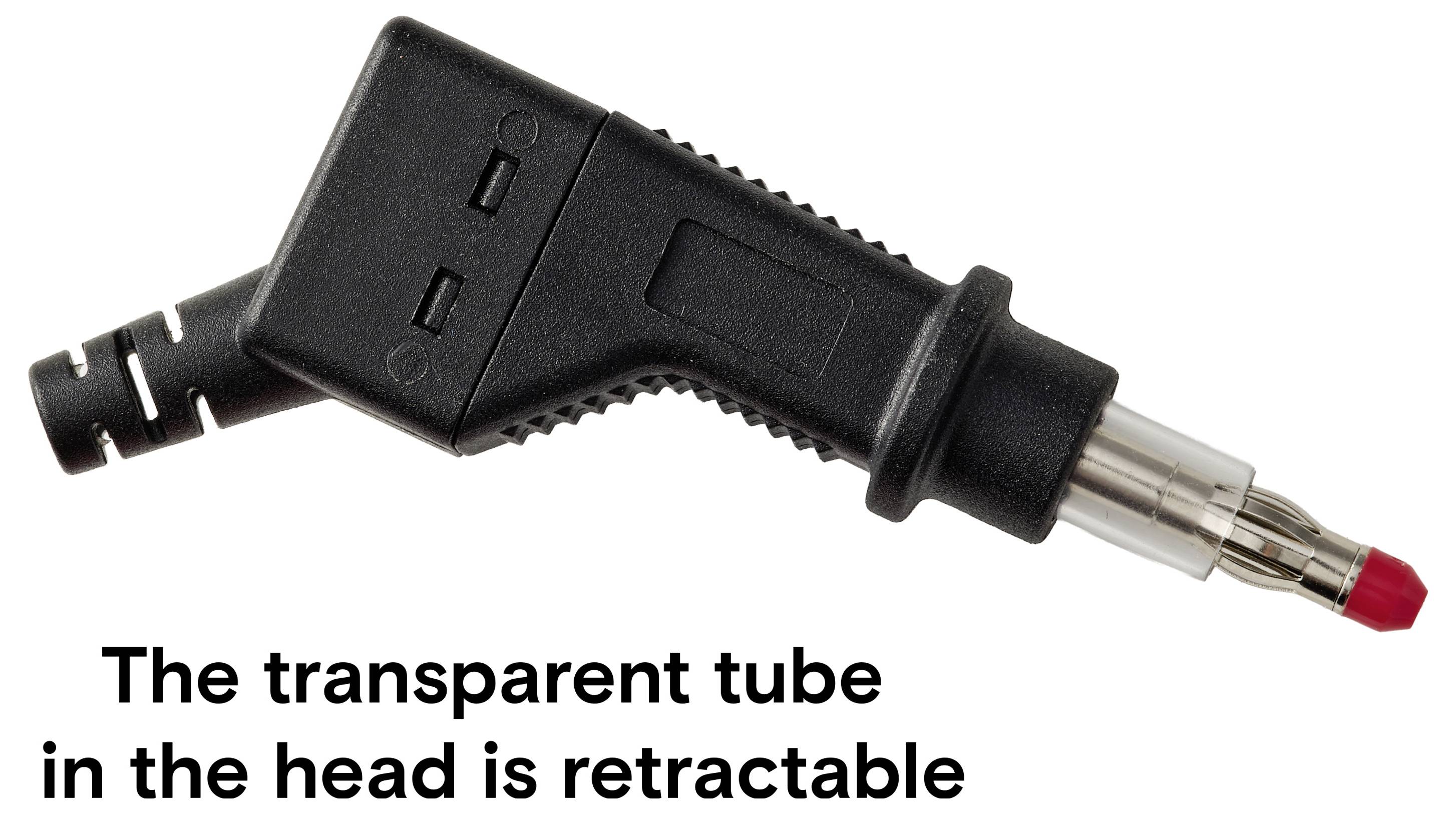

The nickel-plated copper contacts provide adequate conductivity for the measuring insert. The PA material casing is part-insulated and has a sliding sleeve for easy handling.
This text is machine translated.
