Buy VOLTCRAFT MSB-501 Test lead kit Banana jack 4 mm Banana jack 4 mm 25.00 cm 12 pc(s)

Seven coloured banana plugs with crocodile clips: black, red, blue, yellow, white, green and orange. For electrical connections.

Two red banana plugs with grey handles and long cables, used for electrical connections in laboratory environments.

Two blue measuring leads with angled plugs, suitable for electrical testing and measurements.

Two grey measuring leads with black ends, each with a plug at one end. Suitable for electrical measurements.

Two grey connectors with blue ends are connected by a blue cable.

A digital multimeter is being used. One hand holds a test lead and connects it to the device. It measures voltage and current.

Yellow measuring cable pair with grey connectors, commonly used for electrical measurements or tests in technical applications.

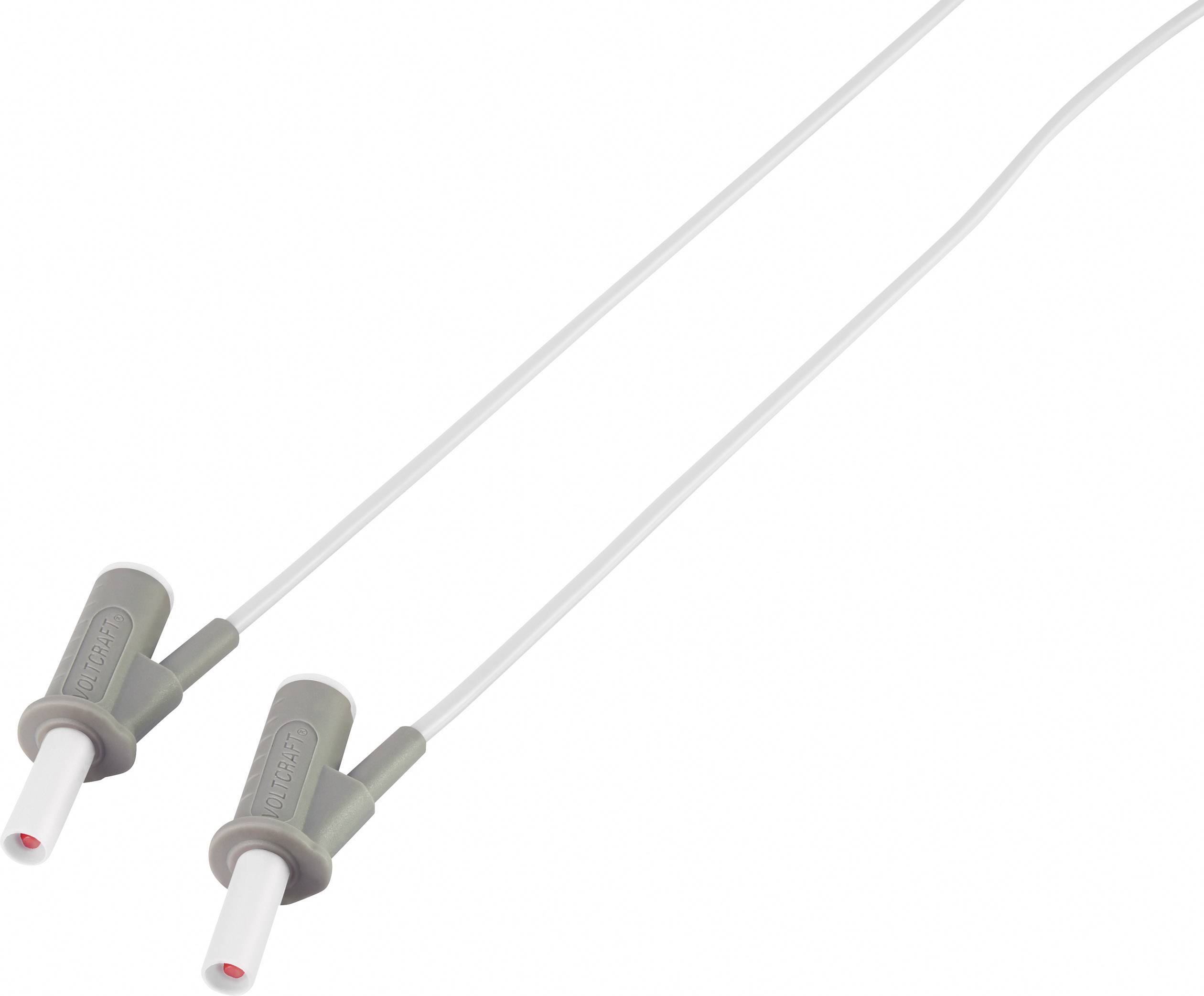

Two grey electrical cables with white ends and red tips, used as test probes.

Two green measuring leads with grey connectors for electrical tests. They each have an insulated plug.

Two red test leads with grey protective casing and connectors.

A multimeter in measuring mode; one hand is holding a red test lead to the connection. Electronic components are visible in the background.

Two blue cables with grey plugs pointing in opposite directions, against a white background.

A person is using a digital multimeter on a table. The scale shows various measuring ranges. A blue cable is connected.

Two brown banana plugs with black cables on a white background, which could potentially form an electrical connection.

A multimeter set to measure alternating current; one hand is holding a test probe connected to a socket.

Two yellow Fluke SureGrip silicone test leads with grey connectors, used for safe and precise electronic measurements.

A person is holding a measuring device plugged into the 10A socket of a multimeter. The multimeter displays various measuring modes.

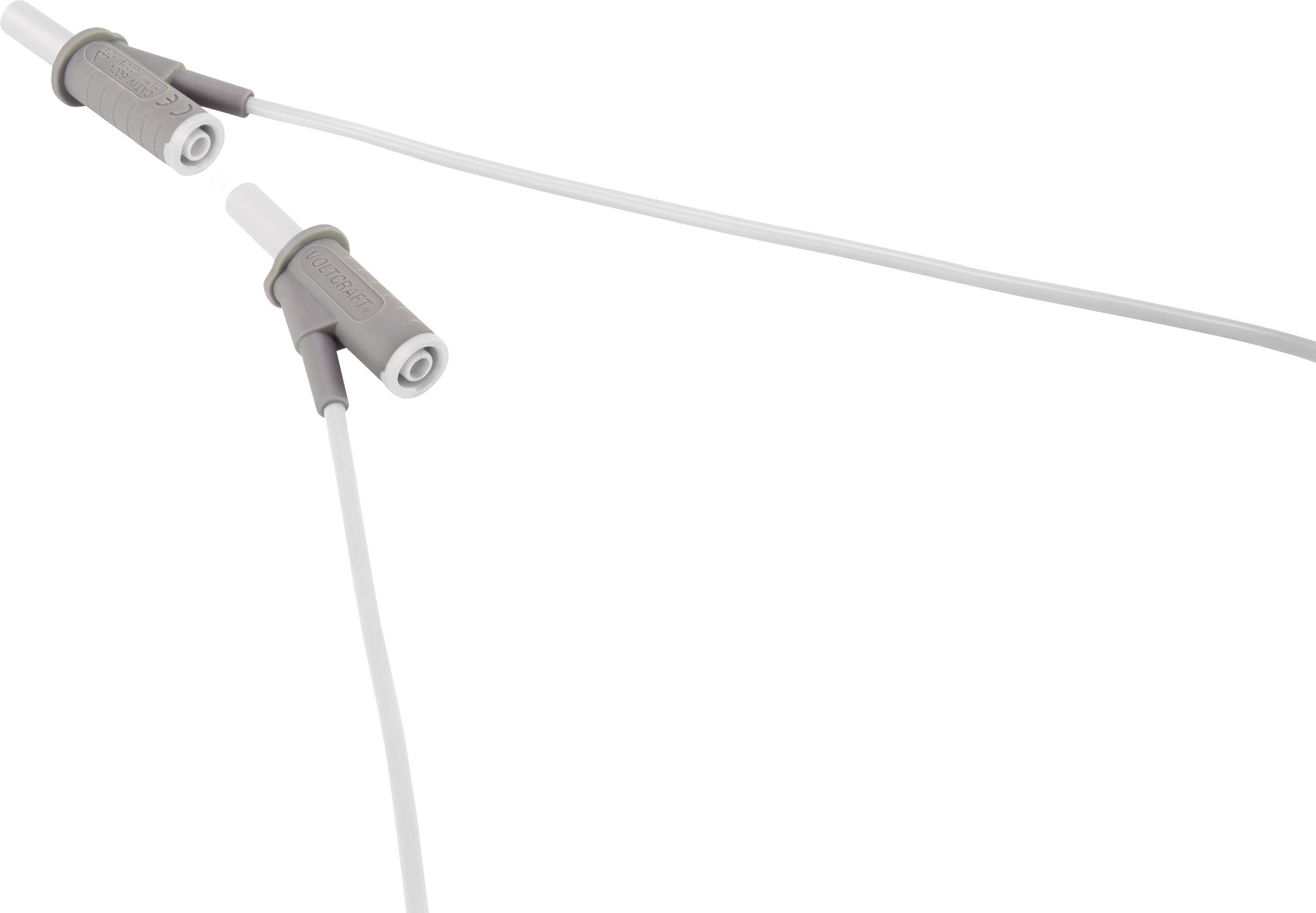

Two grey electrical terminals with long white cables extending to the left and upwards.

A multimeter is used to measure electric current. One hand holds a test lead and inserts it into the '10A' socket of the device.

Two grey plugs with green cables are connected to each other, on a white background.

'A hand is holding a green measuring cable connected to a digital multimeter. The multimeter displays various measurement ranges.'

1/21

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Highly flexible test leads MSB-501 SET 0.25 m 1000 V, 600 V10 A

Stackable
Highly flexible
Heat-resistant silicone insulation
Cable insulation with wear indicator
6 x 2 test leads in black, red, blue, yellow, green and white

Technical specifications

Product type: Test lead kit

Type A: Banana jack 4 mm

Type B: Banana jack 4 mm

Cable length: 25.00 cm

Nominal voltage: 1000 V
600 V

Nominal current: 10 A

Nominal current - rounded value: 10 A

Reading category: CAT III
CAT IV

Type: MSB-501

Documents & Downloads

Datasheet

Datasheet 2150541 VOLTCRAFT MSB-501 Test lead kit Banana jack 4 mm Banana jack 4 mm 25.00 cm 12 pc(s)

User & Safety Instructions

User & Safety Instructions 2150541 VOLTCRAFT MSB-501 Test lead kit Banana jack 4 mm Banana jack 4 mm 25.00 cm 12 pc(s)

Warranty Terms

Warranty Terms 2150541 VOLTCRAFT MSB-501 Test lead kit Banana jack 4 mm Banana jack 4 mm 25.00 cm 12 pc(s)

Description

Voltcraft MSB-501 safety test leads have been specially developed for electrical connections, and for use in test labs, industry and trade. The leads come with a 10A current rating, and a nominal voltage rating of 1000 V/AC and 1000 V/DC. Matching nominal CAT IV voltage ratings are 600 V/AC and 1000 V/DC, respectively.

Extremely flexible
The used materials are extremely flexible. Unlike cheaper and stiffer cables, Voltcraft MSB-501 leads don't tend to suffer from a bad case of cable spaghetti.

Higher tensile strength
Highly tear-resistant plastic fibres increase the tensile strength and thus product durability.

Heat-resistant
The leads come with a heat-resistant silicone jacket that prevents damage caused by contact with hot soldering irons.

Safe use
The leads feature two layers of insulation, each in a different colour. Damage to the outer jacket reveals a white layer. This acts as a reliable indicator of the cable being no longer fit for purpose. For safety reasons, all damaged test leads need to be replaced immediately.

Reliable contact
The nickel-plated hardened contacts of the 4 mm safety banana jacks ensure a large number of mating cycles.

This text is machine translated.
