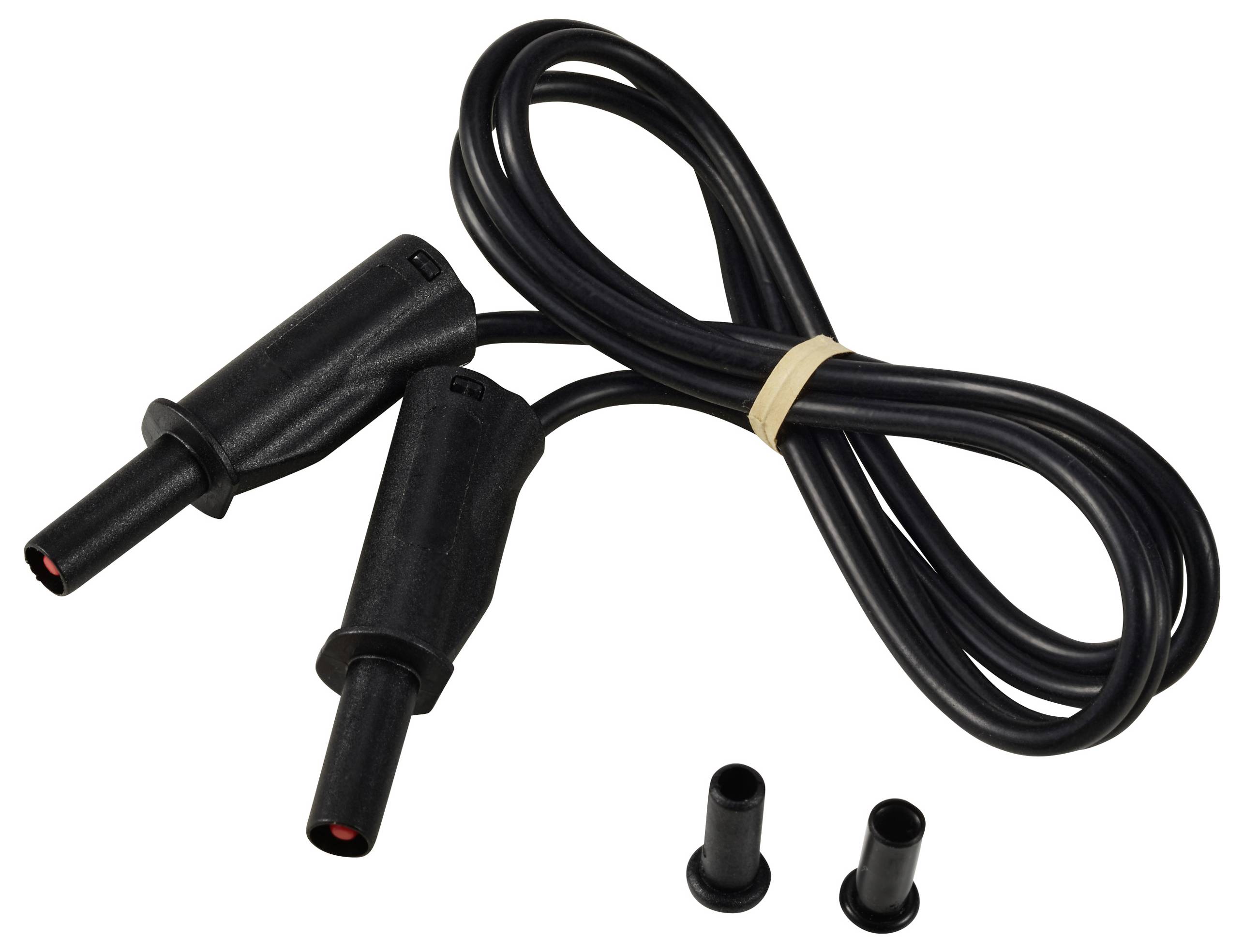

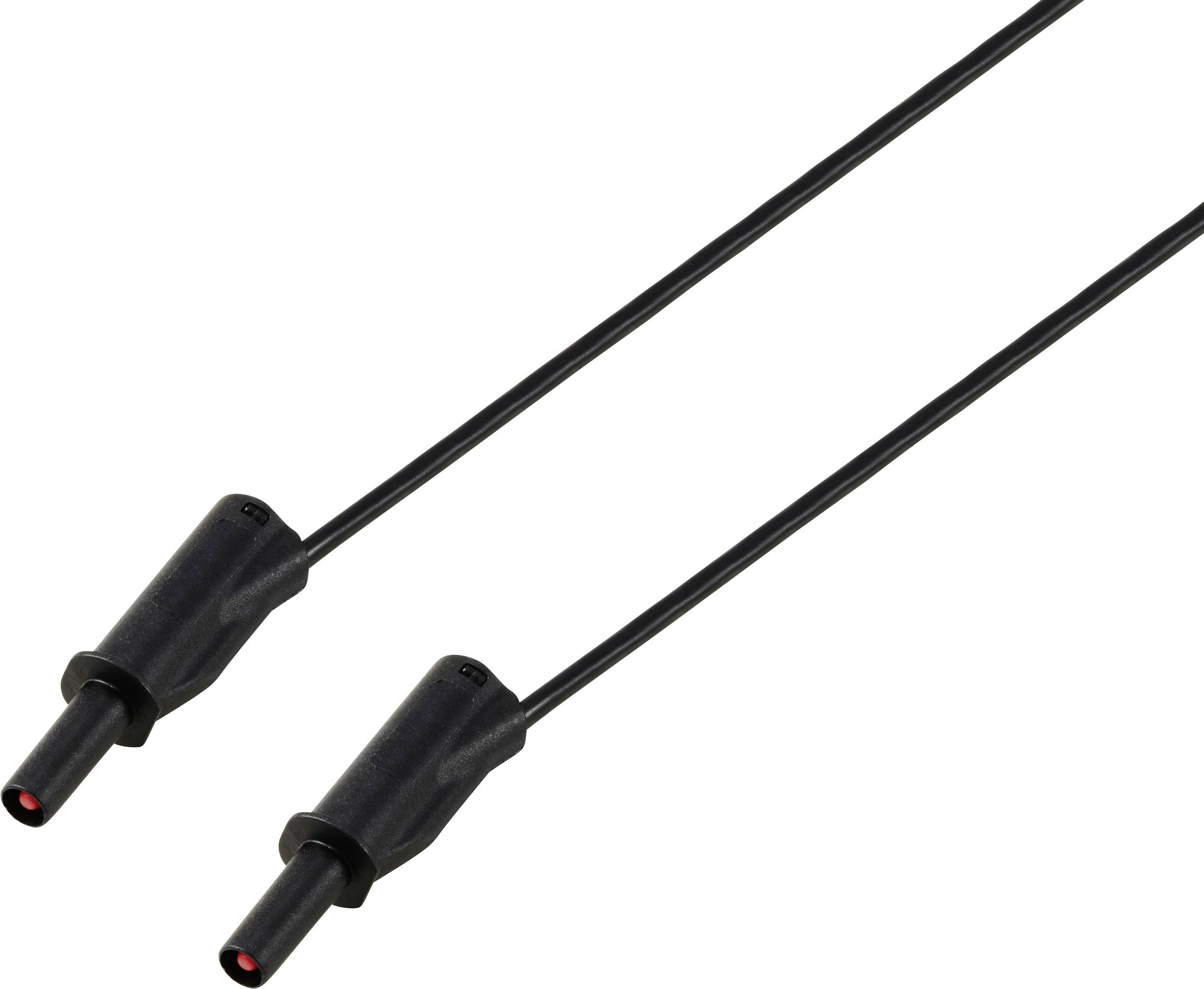

VOLTCRAFT MSB-532 Test lead 1 m 4mm black 2.5mm² CAT IV 600V 32 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Highlights & Details
Test lead Black 1 m CAT IV 600 V, CAT III 1000 V 32 A
- CAT IV 600 V, CAT III 1000 V 32 A

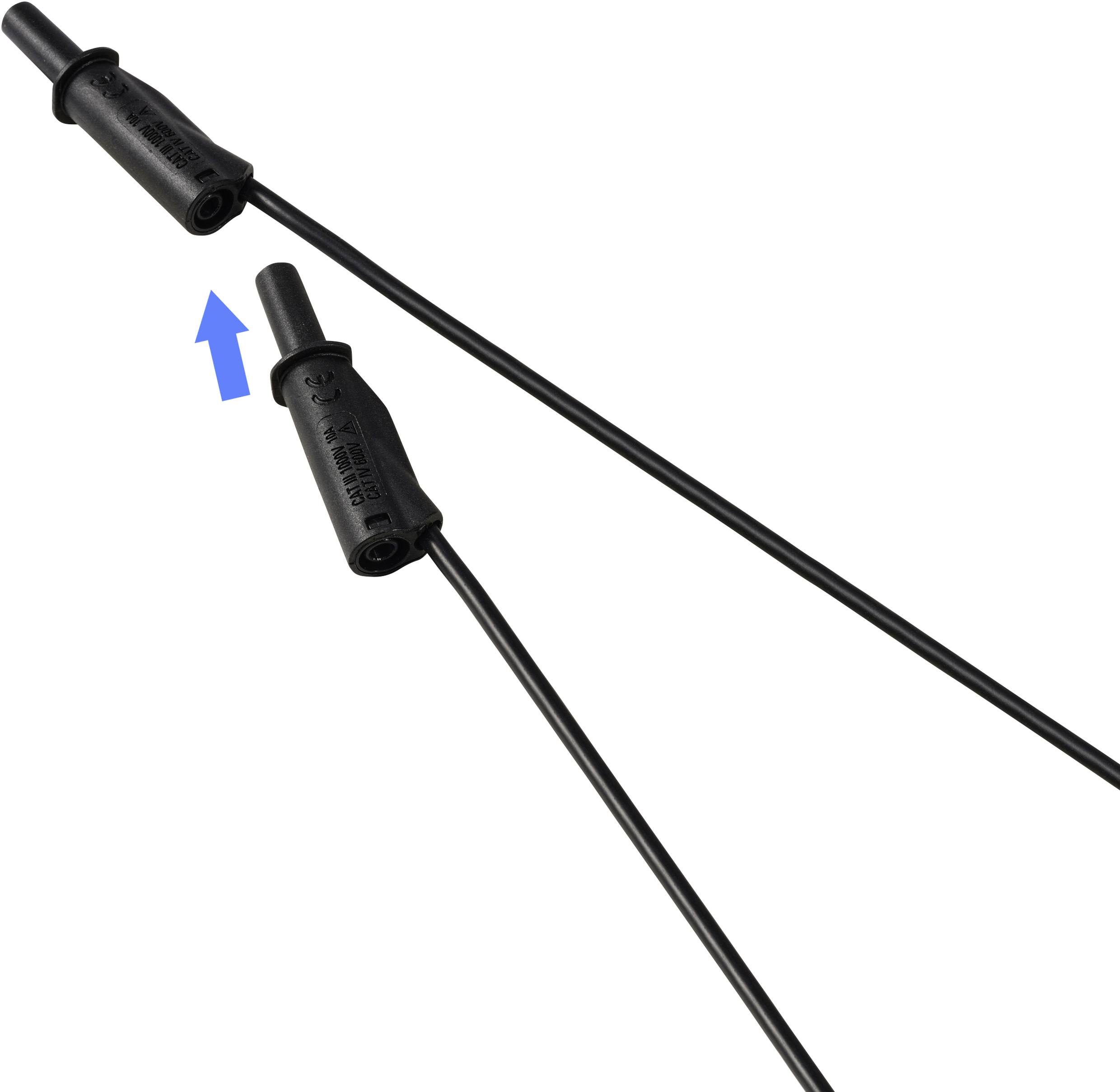

- Stackable
- Highly flexible
- Heat-resistant silicone insulation
Technical specifications
- Product type
Safety test lead
- Type A
4 mm safety plug
- Type B
4 mm safety plug
- Cable length
1 m
- Factory colour
Black
- Plug features
Insulated
- Material
PA
PP
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
1000 V
- Diameter/connectortype
4 mm
- Temperature range
-10 ~50 °C
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Jack diameter
4 mm
- Contact material
Beryllium / copper
- Reading category
CAT IV 600 V
CAT III 1000 V
- Type
MSB-532
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3366591 VOLTCRAFT MSB-532 Test lead 1 m 4mm black 2.5mm² CAT IV 600V 32 A
User & Safety Instructions
User & Safety Instructions 3366591 VOLTCRAFT MSB-532 Test lead 1 m 4mm black 2.5mm² CAT IV 600V 32 A
Warranty Terms
Warranty Terms 3366591 VOLTCRAFT MSB-532 Test lead 1 m 4mm black 2.5mm² CAT IV 600V 32 A
Description
Contact-proof measuring lead according to IEC 61010 with stackable 4 mm safety plug. Highly flexible, double insulated stranded wire with wear indicator by 2-colored insulation. The test lead can also be used in the power range for PV, E-Drive and e-mobility when the CAT IV approval is required. A high safety reserve through CAT III 1000 V 32 A for universal measuring task in the laboratory
