Buy VOLTCRAFT NPS-134 USB Laptop PSU 134.5 W 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC, 20

Black, rectangular device with the print 'Voltcraft NPS-134 USB'. Beneath it, a blue indicator light and a control dial with symbols.

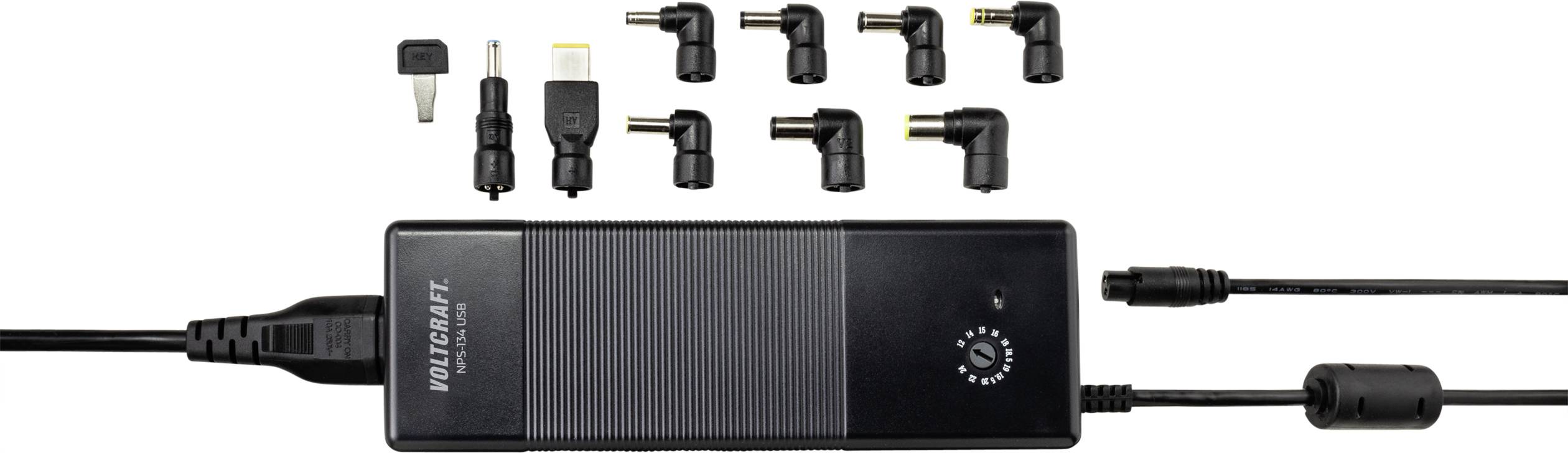

Voltage adapter with multiple interchangeable connectors and adjustable settings, suitable for various devices.

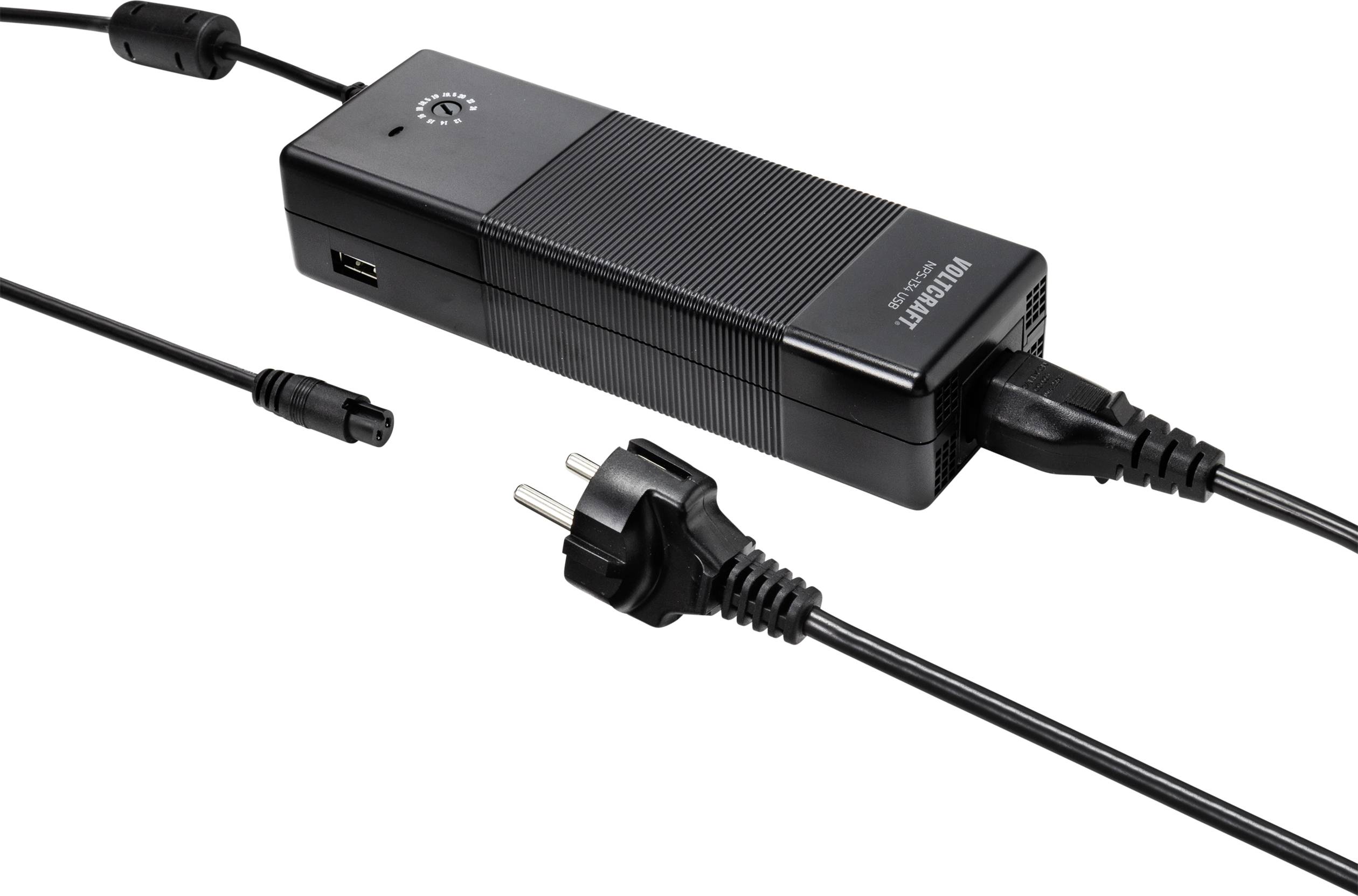

Black power supply with two cables; one with EU plug, the other with a round connector. A USB port is available on the side.

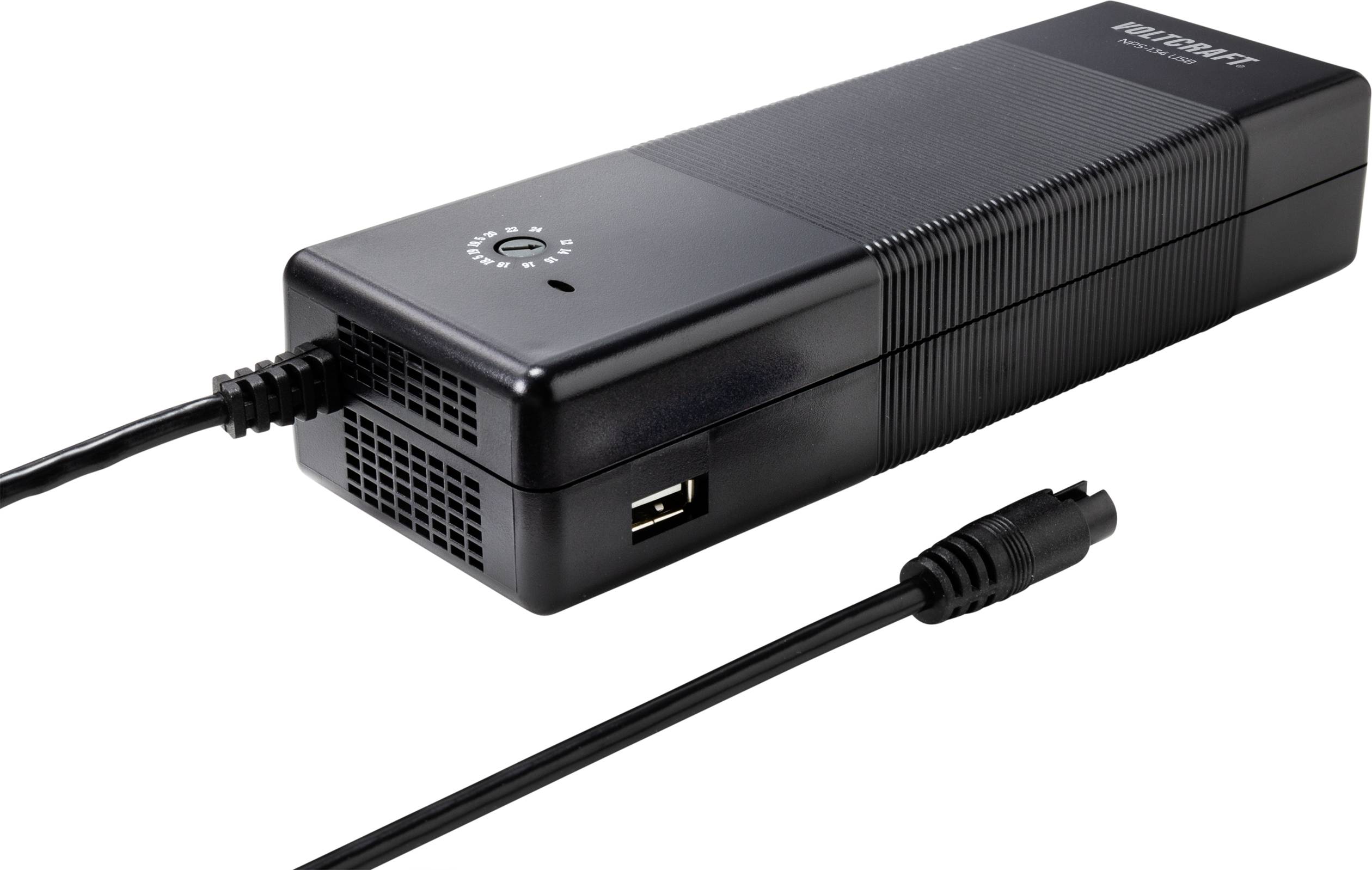

Black laptop power adapter with USB port, ventilation slots, and power cable. Suitable for mobile use and power supply.

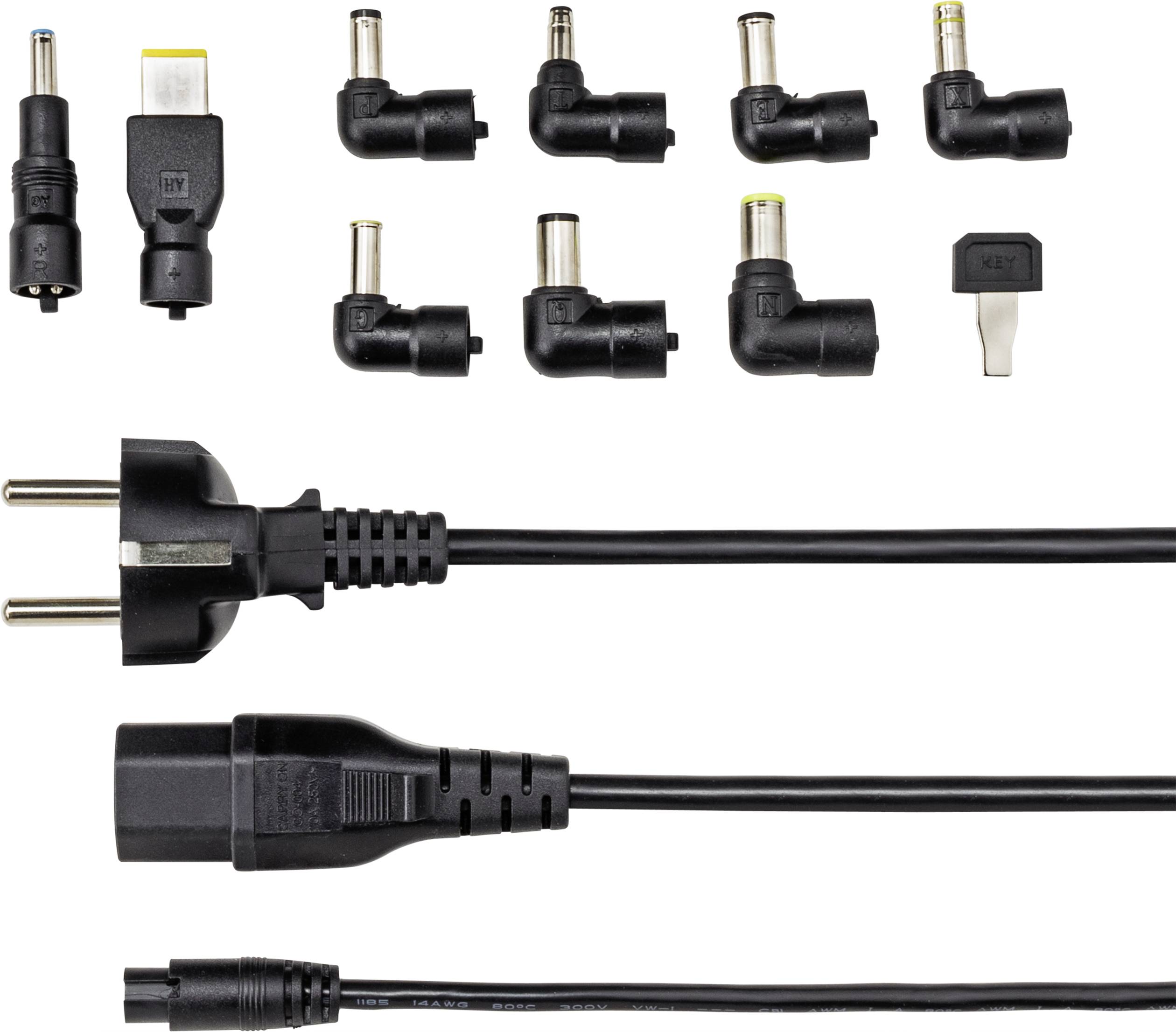

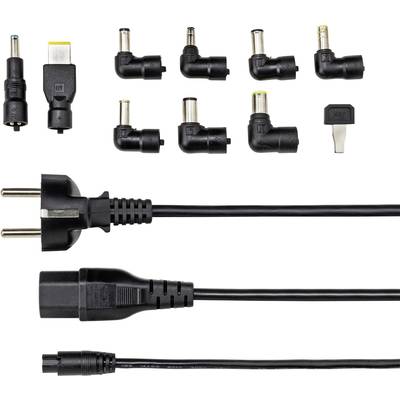

Various network adapters and plug attachments in different shapes and sizes, with longer cables and plugs for power supply below.

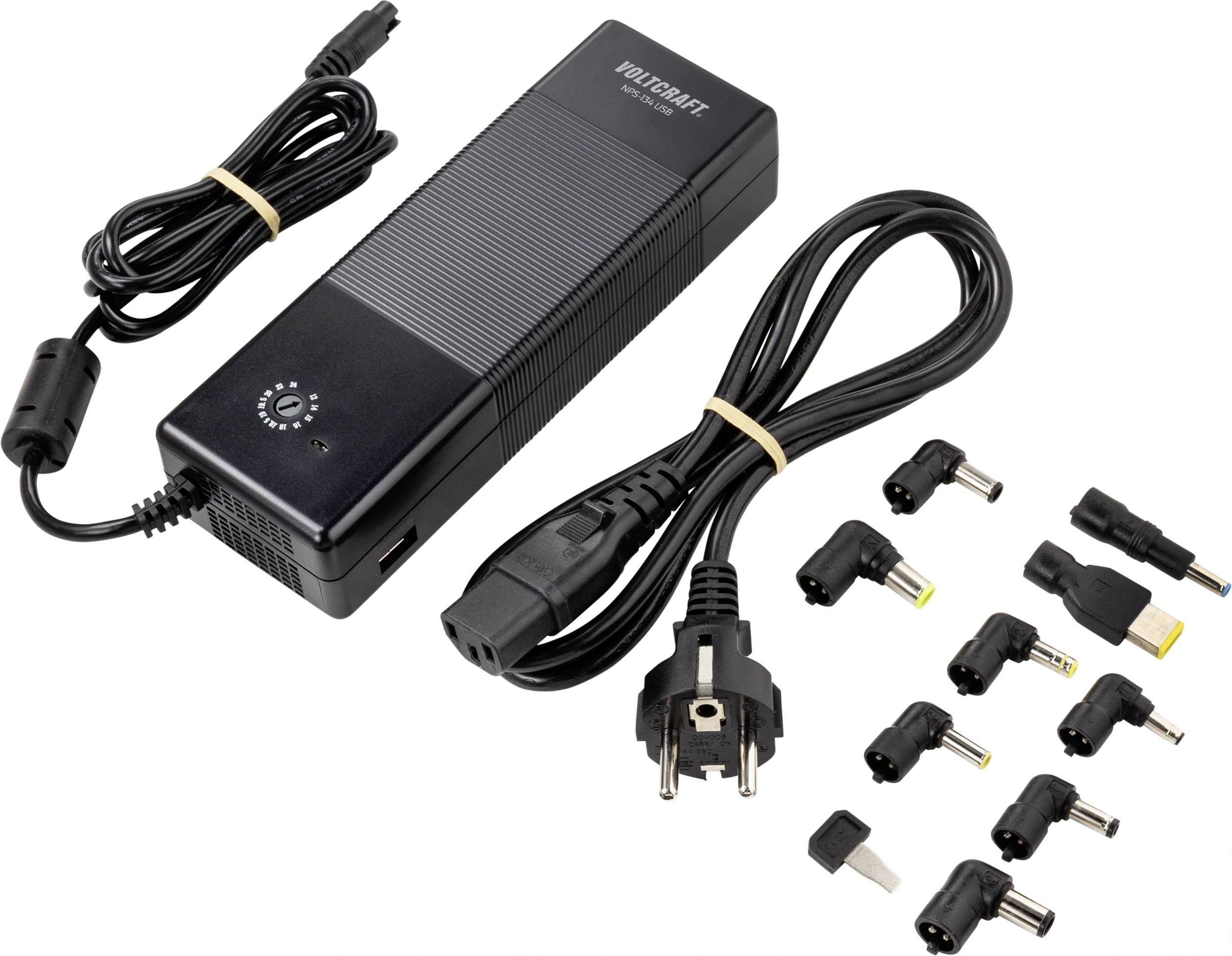

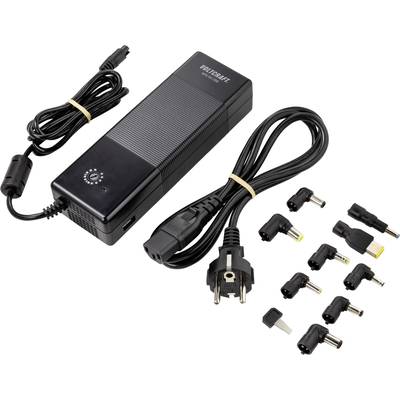

Universal laptop power supply with various detachable adapter heads; shows voltage adjustment options and power cable.

1/6

Our service for you

Fast track dispatch on Wed, 29 Jul

407 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Highlights & Details

NPS-134 USB Universal Notebook Power Supply

12 - 24 V DC / 8.5 A
134.5 W Power
Used at: Mains socket
Input voltage range 100-240 V AC
Suited for notebooks from Acer, Compaq, Dell, Fujitsu Siemens, Gateway, HP, IBM, Panasonic, Sony, Toshiba, Samsung, Winbook, Lenovo

Technical specifications

Product type: Laptop PSU

Type: NPS-134 USB

for brands: Acer
Compaq
Dell
Fujitsu Siemens
Gateway
HP
IBM
Panasonic
Sony
Toshiba
Samsung
Winbook
Lenovo
Show more

Output: 4.5/0.6 coaxial connector
Lenovo 11x4.6/6.6x3.3 connector
5.5/2.5 coaxial connector
4.75/1.7 coaxial connector
6.5/1.4 coaxial connector
5.0/1.0 coaxial connector
5.5/1.7 coaxial connector
7.9/0.9 coaxial connector
7.4/0.6 coaxial connector

: 134.5 W

Input voltage: 100 - 240 V AC

No. of outputs: 2 x

Output voltage: 12 V DC
14 V DC
15 V DC
16 V DC
18 V DC
18.5 V DC
19 V DC
19.5 V DC
20 V DC
22 V DC
24 V DC
Show more

Output voltage range: 12 - 24 V DC

Output current (max.) - rounded: 8.5 A

Max. output current: 8.5 A

Dim: (L x W x H) 189.8 x 64 x 39.5 mm

Length: 189.8 mm

Width: 64 mm

Height: 39.5 mm

Weight: 854.2 g

Factory colour: Black

Used at: Mains socket

PSU features: Adjustable voltage output

EuP Status: Level VI

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266533 VOLTCRAFT NPS-134 USB Laptop PSU 134.5 W 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC, 20

Conformity certificate

Conformity certificate 2266533 VOLTCRAFT NPS-134 USB Laptop PSU 134.5 W 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC, 20

Warranty Terms

Warranty Terms 2266533 VOLTCRAFT NPS-134 USB Laptop PSU 134.5 W 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC, 20

Description

Features

Stabilised DC-output voltage 12 V (8,5 A), 14/15 V (7,0 A), 16/18 V (6,5 A), 18.5/19/19.5/20 V (6 A), 22/24 V (5,5 A)
USB-output: 5 V/DC 0.5 A
Short-circuit and overload protection
Pole-reversal protected output connector.
High degree of efficiency and low current consumption
1.5 m long DC-connection cable.

Scope of delivery

9 hollow plugs (outer-/inner-Ø in mm) 6.5/1.4; 5.0/1.0; 5.5/2.5; 4.75/1.7; 5.5/1.7; 7.9/0.9; 7.4/0.6; 4.5/0.6; 11.0/1.0
Power adapter
EURO POWER CABLE
User manual.
