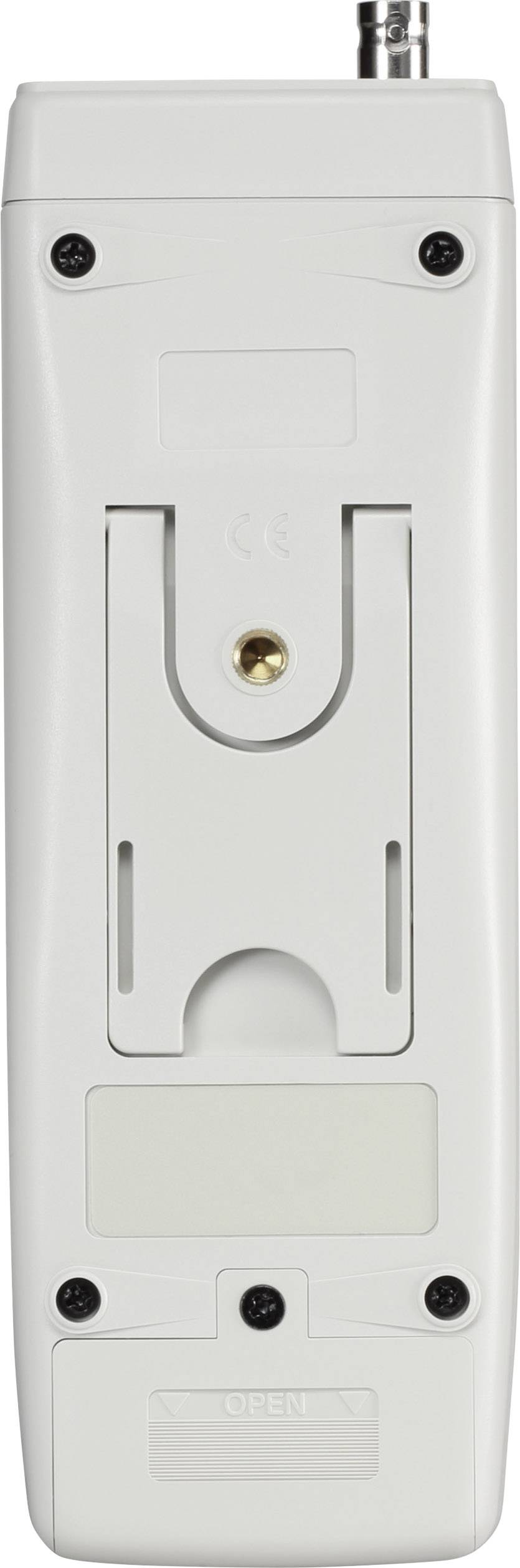

Back of a white electronic device with a connection at the top and recesses for mounting, four screws in the corners.

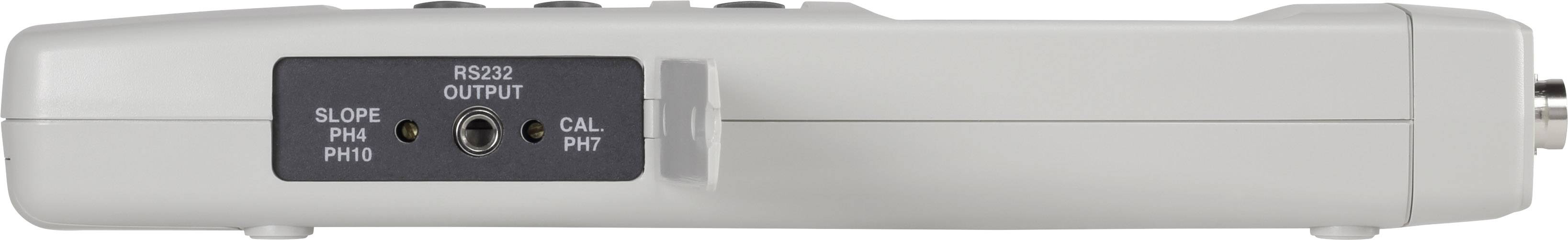

Back of an electrical device with an RS-232 output socket and the labels 'SLOPE PIN: PH10' and 'CAL PIN'.

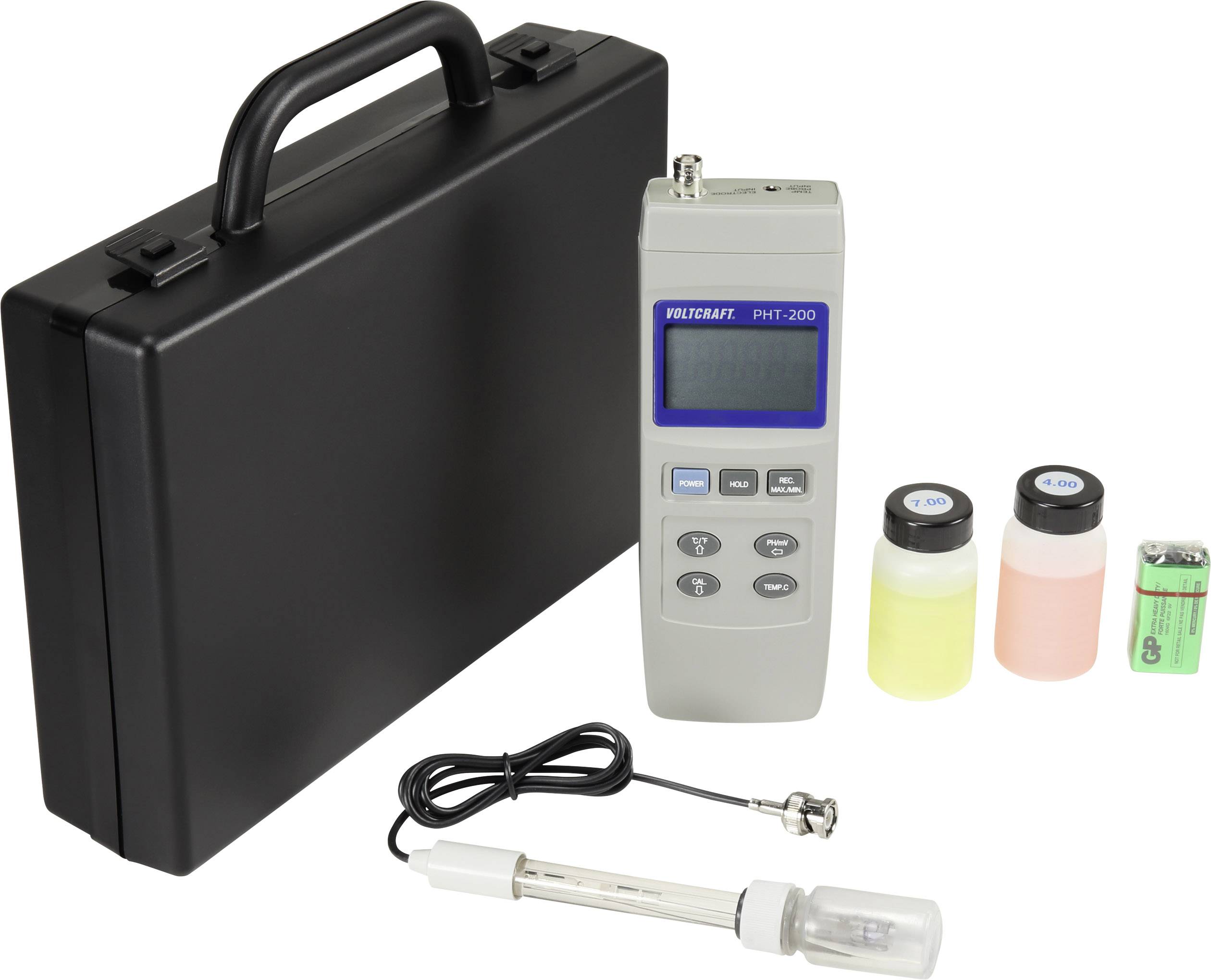

Portable pH Meter Kit with digital measuring device, electrodes, two calibration solutions and a battery, presented in a carry case.

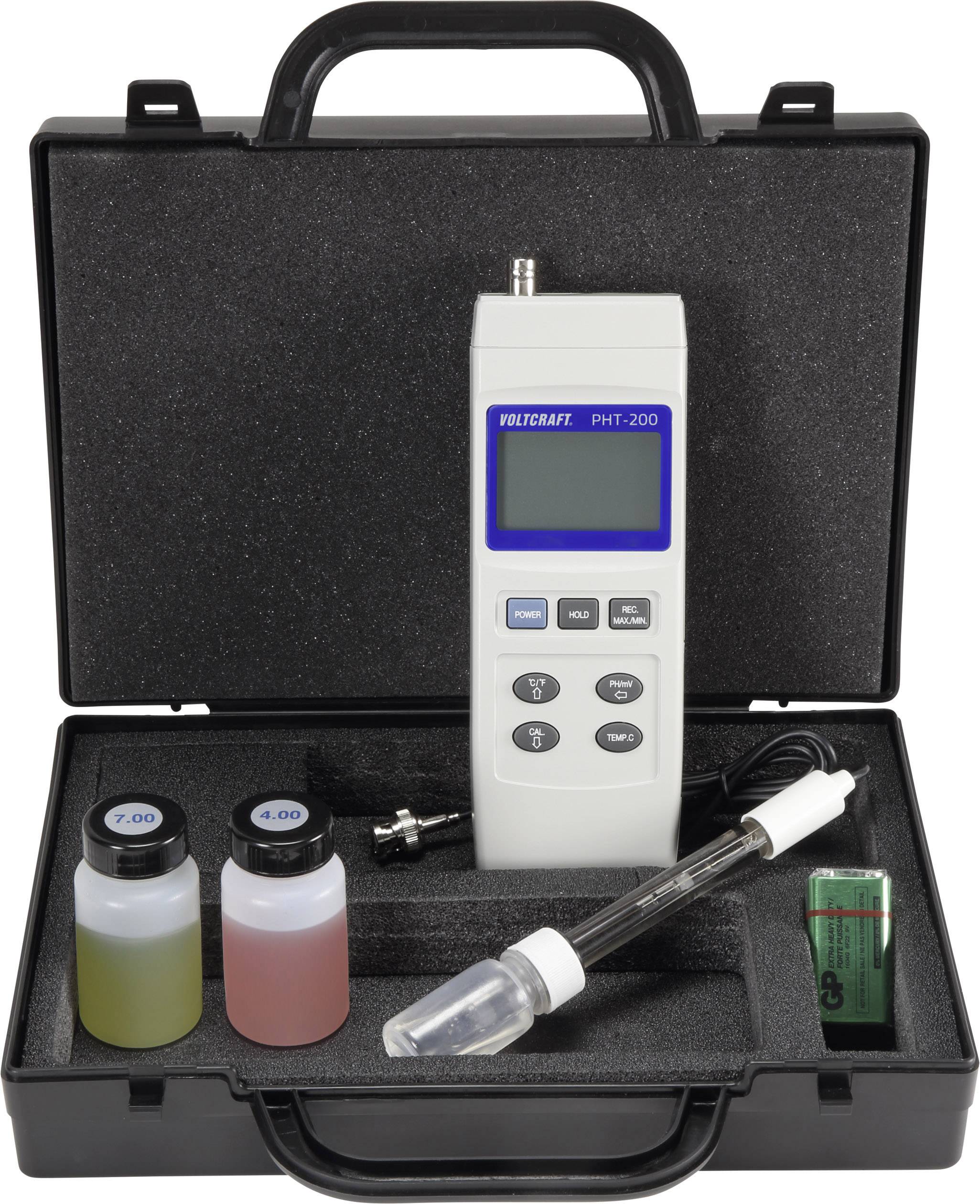

An open case containing a digital pH metre and calibration solutions. The metre features a display and several function buttons.

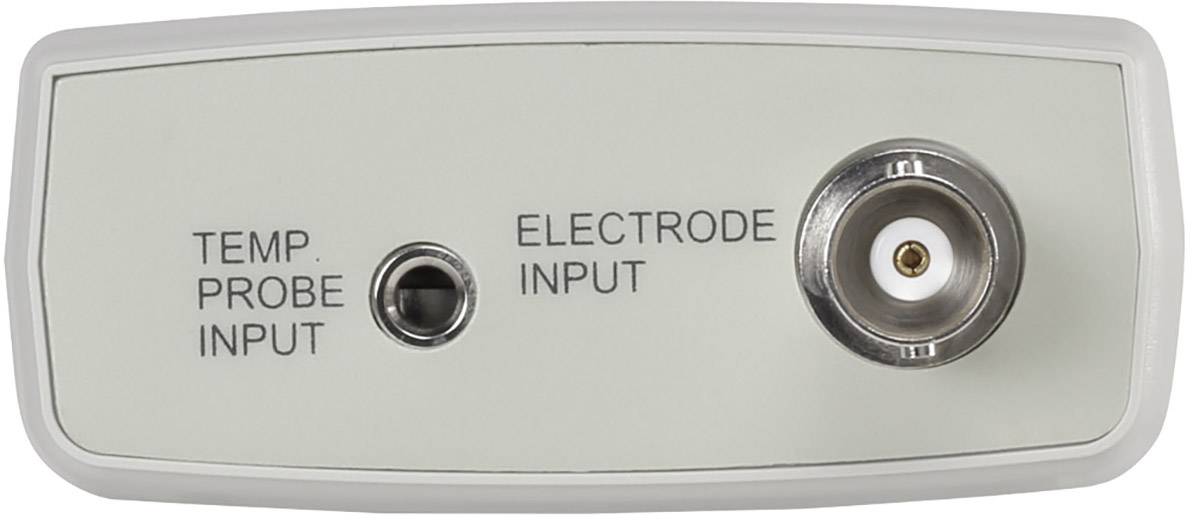

A device with connections: on the left 'TEMP. PROBE INPUT' for temperature probe and on the right 'ELECTRODE INPUT' for electrode.

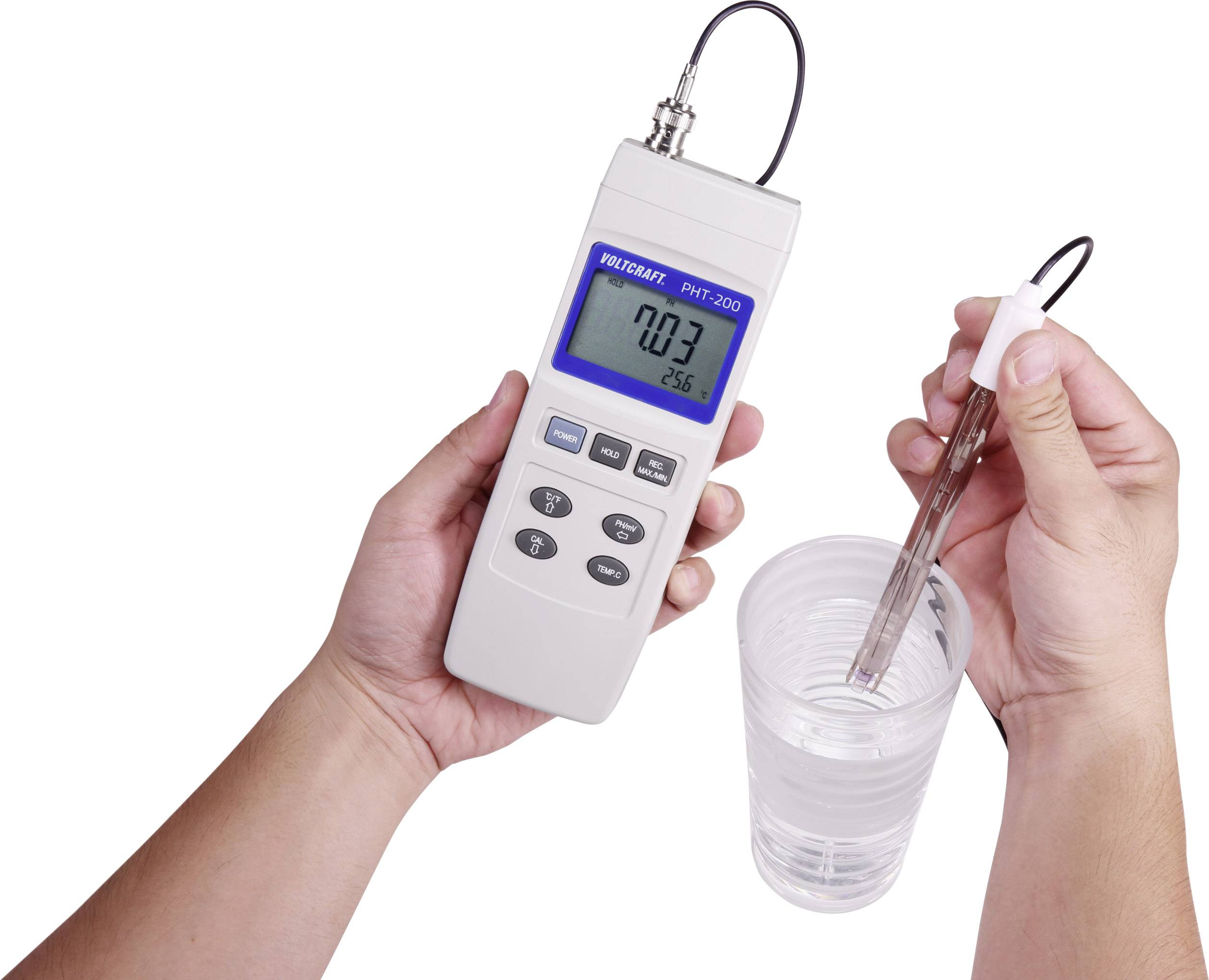

A person is holding a digital measuring device with a probe in a glass of water. The display shows '0.03' and '25.6'.

1/9

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PHT-200 pH meter

pH reading range 0 - 14 pH
Resolution (details) 0.01

Technical specifications

Measuring range mV: -1999 to 1999 mV
Accuracy mV: ± 0.5%.

Product type: Multi tester

Reading type: pH
ORP

Accuracy: ± (0.02 pH + 2 d)

Display: Digital

: Manufacturer's standards (no certificate)

Automatic temperature compensation: Yes

Operating temperature: 0 ~ 50 °C

Resolution: 0.01

Power supply (details): 9 V

Dim: (L x W x H) 68 x 30 x 195 mm

Weight: 250 g

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 30 mm

Height: 195 mm

Length: 68 mm

Interfaces: RS232

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1666058 VOLTCRAFT PHT-200 Multi tester pH, ORP

User & Safety Instructions

User & Safety Instructions 1666058 VOLTCRAFT PHT-200 Multi tester pH, ORP

Conformity certificate

Conformity certificate 1666058 VOLTCRAFT PHT-200 Multi tester pH, ORP

Security datasheet

Security datasheet 1666058 VOLTCRAFT PHT-200 Multi tester pH, ORP

Warranty Terms

Warranty Terms 1666058 VOLTCRAFT PHT-200 Multi tester pH, ORP

Signal word

GHS / P Statements

P 302+350: SKIN CONTACT: Wash gently with soap and water
P 305+351: CONTACT WITH EYES: Rinse cautiously with water for several minutes
P 337+313: If eye irritation persists: seek medical advice
P 280: Wear protective gloves/protective clothing/eye protection/face protection
P 406: Store in a non-corrosive/… container with non-corrosive lining

Description

The VOLTCRAFT PHT-200 is a measuring device for the determination of pH and Redox potential. Also ion selective measurements can be carried out on the basis of voltage measurements. The new pH meter offers all functions and features for day-to-day routine use in the laboratory, Water Monitoring, aquariums, photography, paper industry, electroplating, quality control, School & University are necessary. Thanks to the integrated temperature sensor, the benefits of automatic temperature compensation for all measurement results.
