VOLTCRAFT PL-120 T2 Thermometer -200 - +1372 °C Sensor type K, J
EAN:
Part number:
Item no:
190 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 50.41 / piece)
€
Highlights & Details

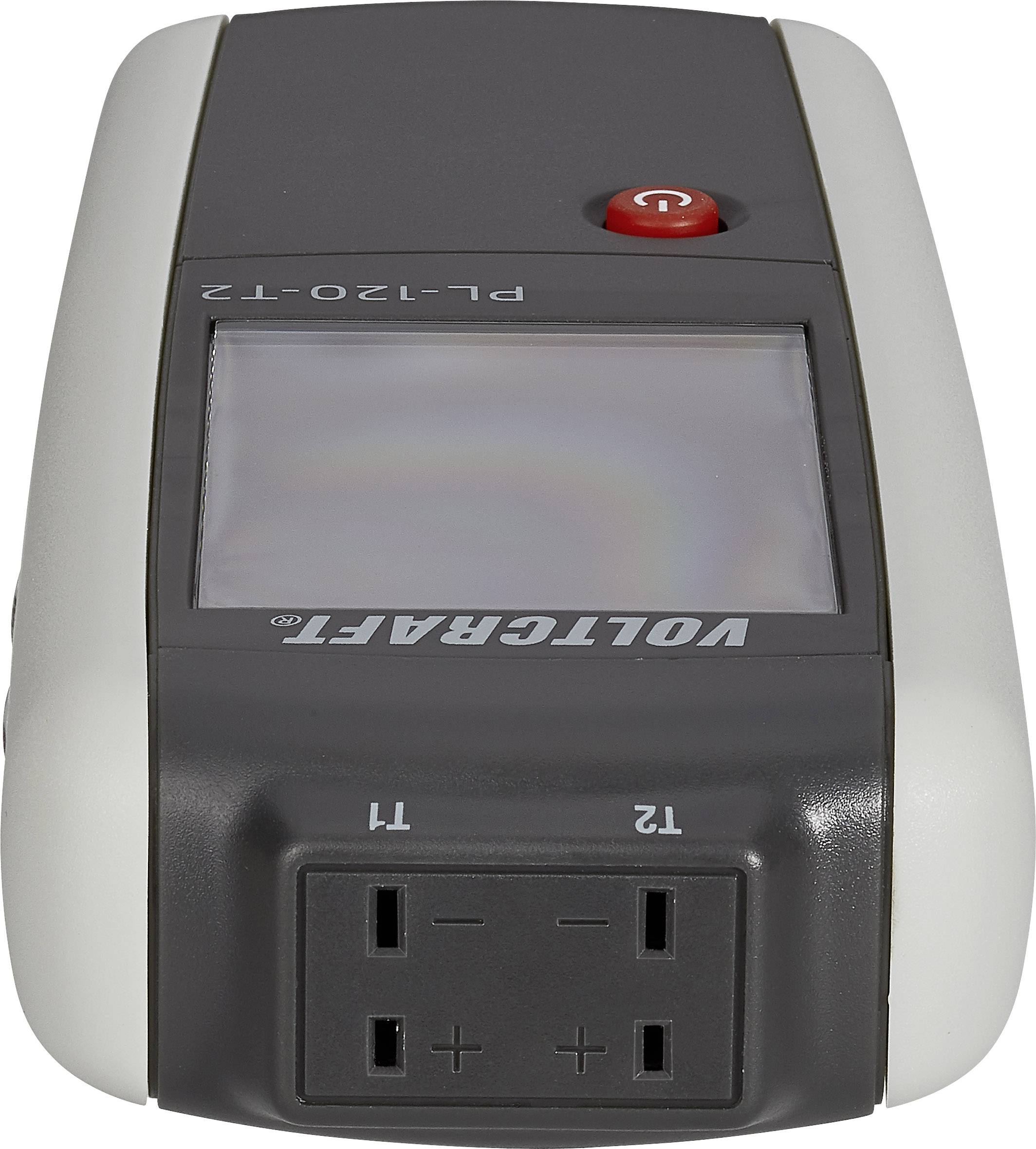

VOLTCRAFT PL-120 T2 Thermometer -200 - +1372 °C Sensor type K, J
- 2-channel
- For K-/J type thermo-elements
- MAX/MIN/AVG with timestamp
Technical specifications
- Temperature sensor measurement range: K-type: -200 to +1372 °C/J-type: -210 to +1100 °C.
- Dim
(L x W x H) 162 x 62 x 28 mm
- Height
28 mm
- Length
162 mm
- Width
62 mm
- Calibration range
2 channels
Manufacturer's standards (no certificate)
- Sensor version
detachable
- Sensor type
K
J
- Type
PL-120 T2
- Type
2-channel
- Basic accuracy
0.3 %
- Accuracy ± °C
1 °C
- Resolution (temperature)
0.1 °C
- Basic accuracy
±(0.3% + 1ºC)
- Power supply (details)
3 micro batteries (AAA)
- Temperature range
K-type: -200 to +1372°C/J-Typ: -210 to +1100 °C
- Power supply
AAA battery (3x)
- Max. temperature
+1372 °C
- Min. temperature
-200 °C
- Weight
184 g
- Product type
Thermometer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123402 VOLTCRAFT PL-120 T2 Thermometer -200 - +1372 °C Sensor type K, J
Conformity certificate
Conformity certificate 123402 VOLTCRAFT PL-120 T2 Thermometer -200 - +1372 °C Sensor type K, J
Warranty Terms
Warranty Terms 123402 VOLTCRAFT PL-120 T2 Thermometer -200 - +1372 °C Sensor type K, J
Description

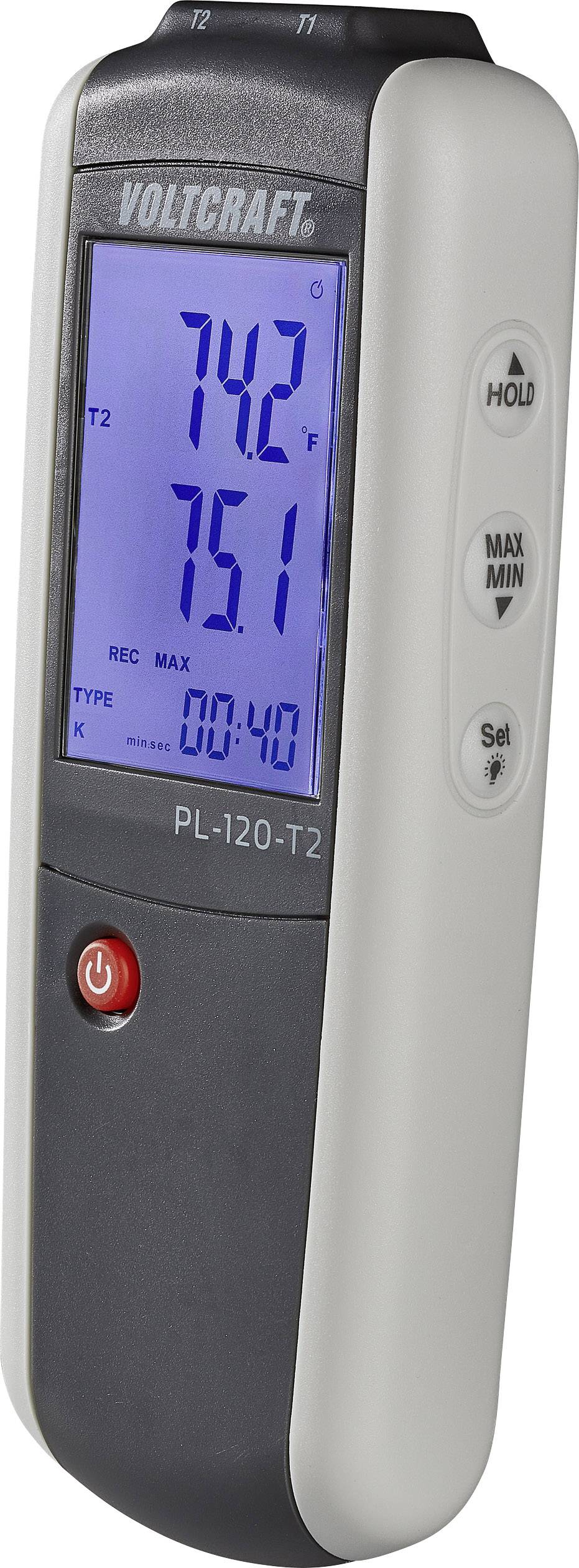

Robust thermometer for thermo-elements. The large illuminated display and the function keys arranged on the sides enable an ergonomic usage. The measured values are shown with the measurement time.
Features
- Temperature display in °C, °F or °K
- Auto Power Off function
- Differential measurement (T1-T2).
Scope of delivery
- 2x K-type wire feelers
- 3 batteries AAA
- User manual.
