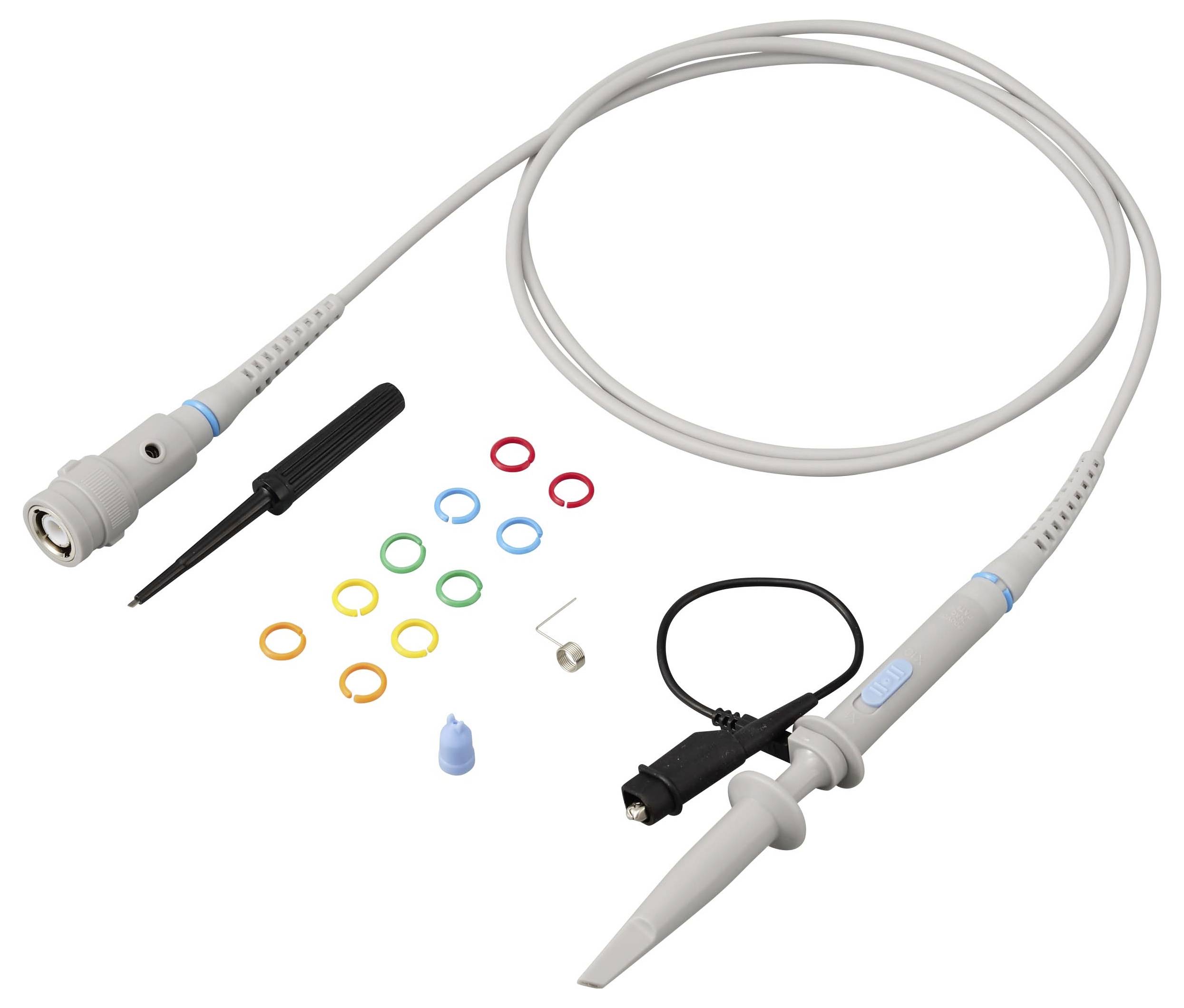

Buy VOLTCRAFT PP-410 Probe Insulated, Straight 100 MHz 1:1, 10:1 600 V

Electrosurgical handpiece with interchangeable colored loop tips, a protective cap, and accessory connectors shown on a white background.

A set of interchangeable dental/electronic tool attachments and handles arranged on a white background, including colored O-rings, tips, and two gray handheld instruments.

Medical endoscope with cable and tip attachments, shown with colored O-rings and small accessory parts on a white background.

Hand using a test probe on a circuit board connected to an oscilloscope displaying signal traces, indicating electronic diagnostics.

1/4

Our service for you

Datasheet (PDF)

Dispatches on Fri, 13 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT PP-410 Probe 100 MHz 10:1 10 MΩ 14.5–17.5 pF 600 V 1.3 m

Attenuation: 1:10
Input resistance: 1 MΩ:10 MΩ
Input capacitance: 1X: 85 pF - 115 pF, 10X: 14.5 pF - 17.5 pF
System bandwidth: 1X: 6 MHz, 10X: 100 MHz
Compensation range: 10X: 5 pF - 30 pF
Maximum working input voltage: 1X: ≤ 200 V pk, 10X: ≤ 600 V pk
Safety: IEC-61010 CAT II 1X: 150 V AC, 10X: 300 V AC

Technical specifications

Product type: Probe

Bandwidth: 100 MHz

Divider voltage ratio: 1:1
10:1

Nominal voltage: 600 V

Input capacity: 17.5 pF

: Manufacturer's standards (no certificate)

Weight: 55 g

Cable length: 1.3 m

Reading category: CAT II 600 V

Plug features: Insulated
Straight

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3804135 VOLTCRAFT PP-410 Probe Insulated, Straight 100 MHz 1:1, 10:1 600 V

User & Safety Instructions

User & Safety Instructions 3804135 VOLTCRAFT PP-410 Probe Insulated, Straight 100 MHz 1:1, 10:1 600 V

Warranty Terms

Warranty Terms 3804135 VOLTCRAFT PP-410 Probe Insulated, Straight 100 MHz 1:1, 10:1 600 V

Description

The VOLTCRAFT PP-410 probe is tailored for professional use in industrial measurement and test technology. The factory-calibrated (no certificate) model supports a bandwidth of up to 100 MHz in 10X mode for precise signal analysis.

Switchable measurement ranges
The probe offers switchable attenuation levels 1:1 and 10:1. This gives the user the option of measuring different signal strengths, whereby in the 10X mode input voltages of up to 600 V pk are covered.

Safety in the measurement routine
Equipped with a 1.3 meter long cable and an insulated straight plug, the device meets the measurement category CAT II (600 V in 10X mode). This ensures compliance with important safety guidelines for recurring test routines.

Practical features

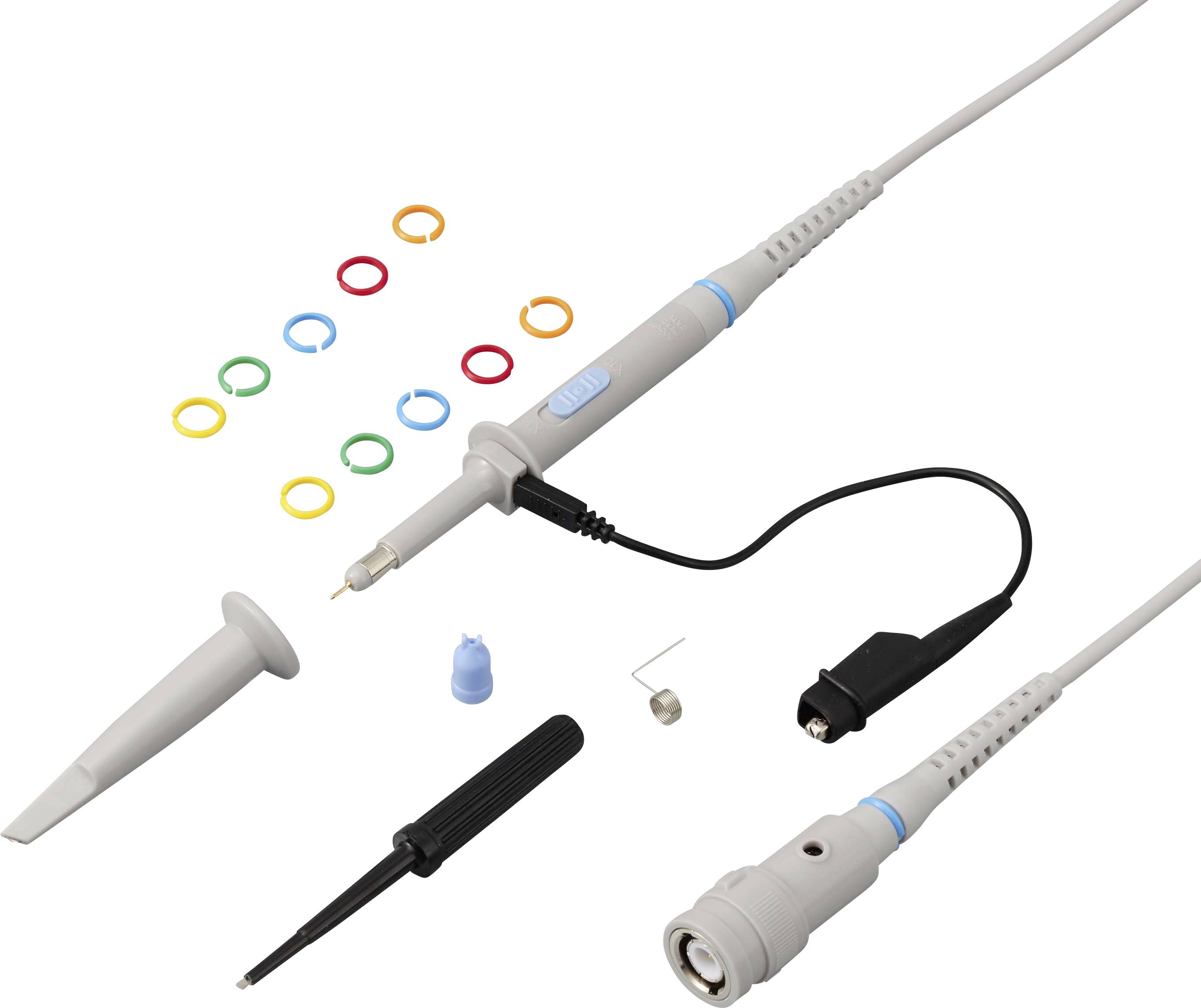

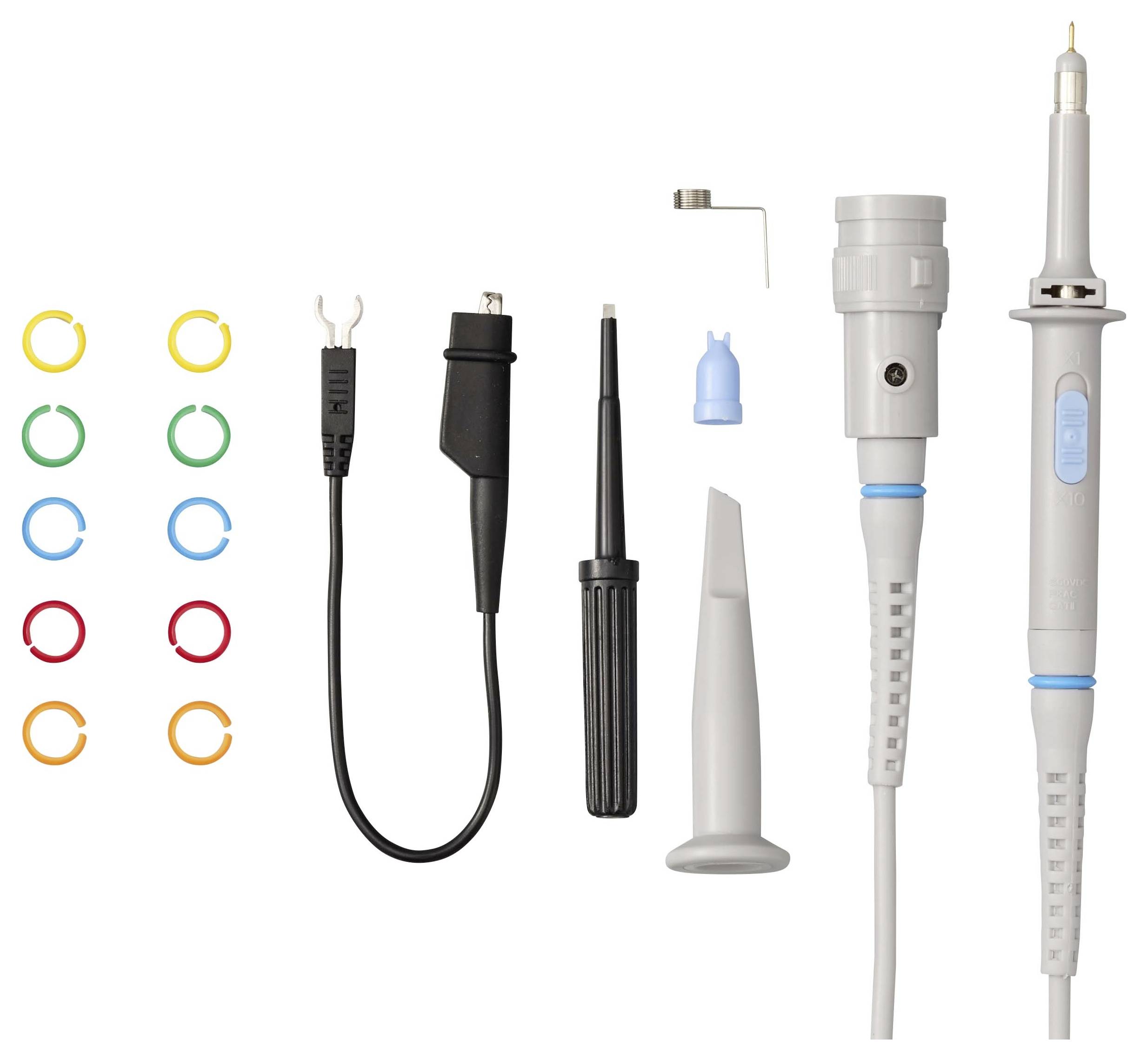

The compensation range (5 to 30 pF) can be set precisely using the supplied tool. The hook tip, the earth cable with alligator clip, an IC tip as well as ten colored marking rings ensure secure contact and easy channel allocation.
