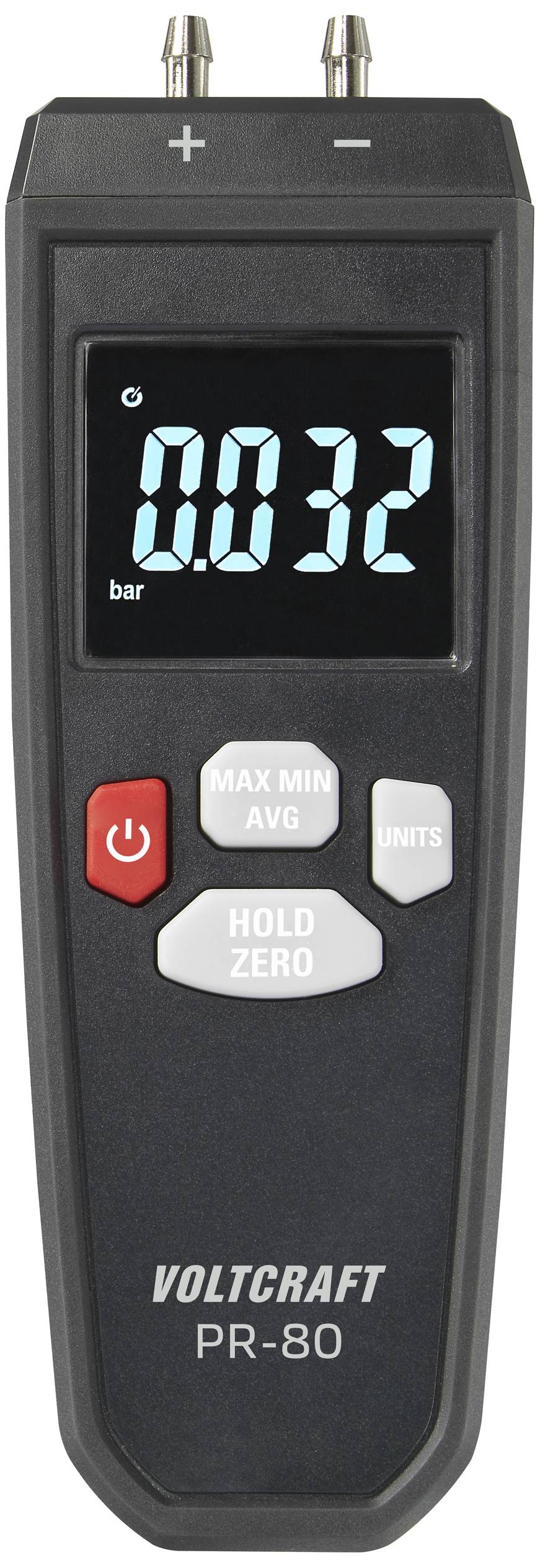

Digital Pressure Gauge PR-80 by Voltcraft with LCD Display, showing pressure in Bar. Operation buttons for Max/Min/Avg, Hold/Zero and Units.

Digital Pressure Gauge PR-80 by Voltcraft with LCD Display, showing pressure in Bar. Operation buttons for Max/Min/Avg, Hold/Zero and Units.

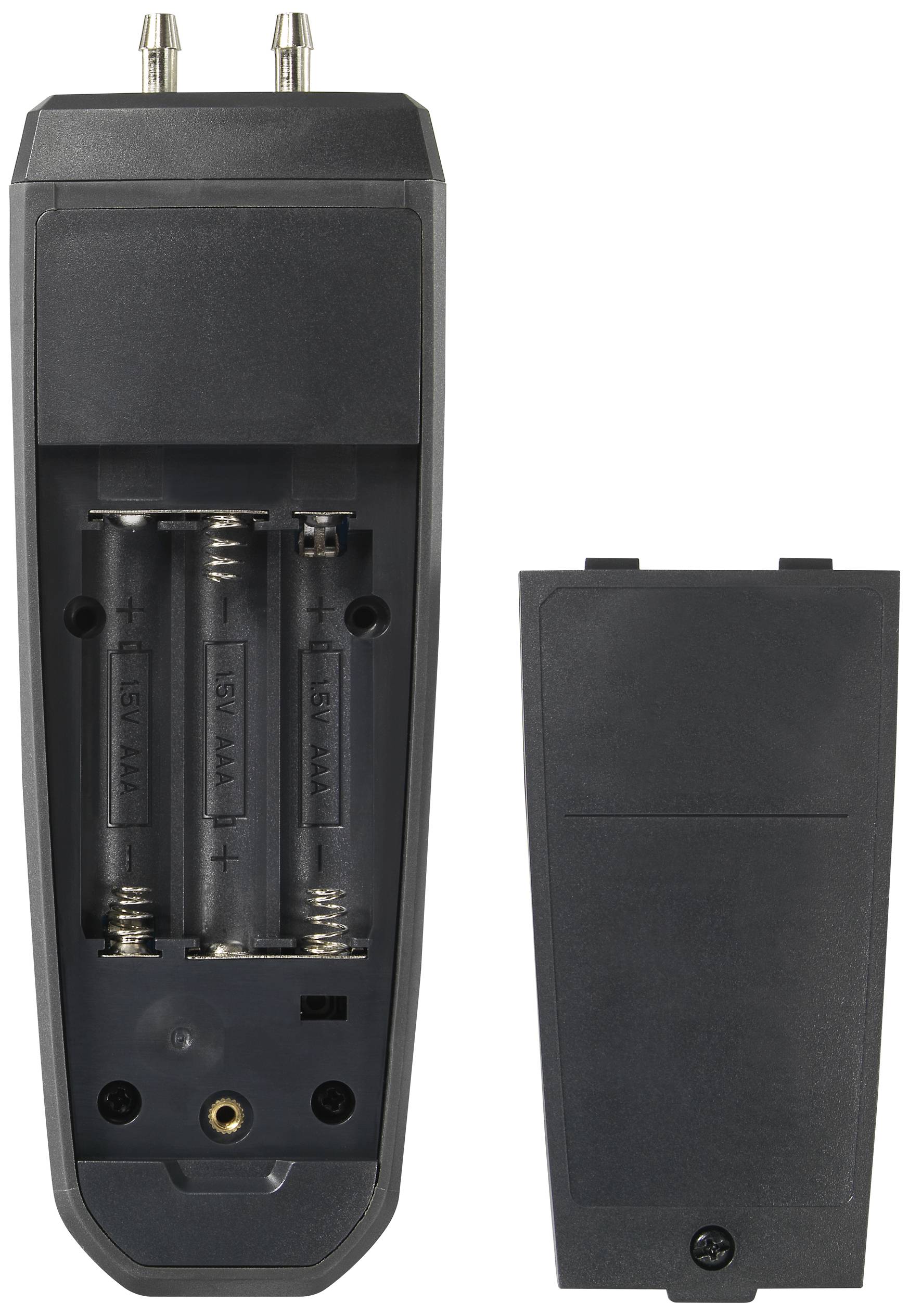

Black remote control without batteries, back panel open, battery compartment visible.

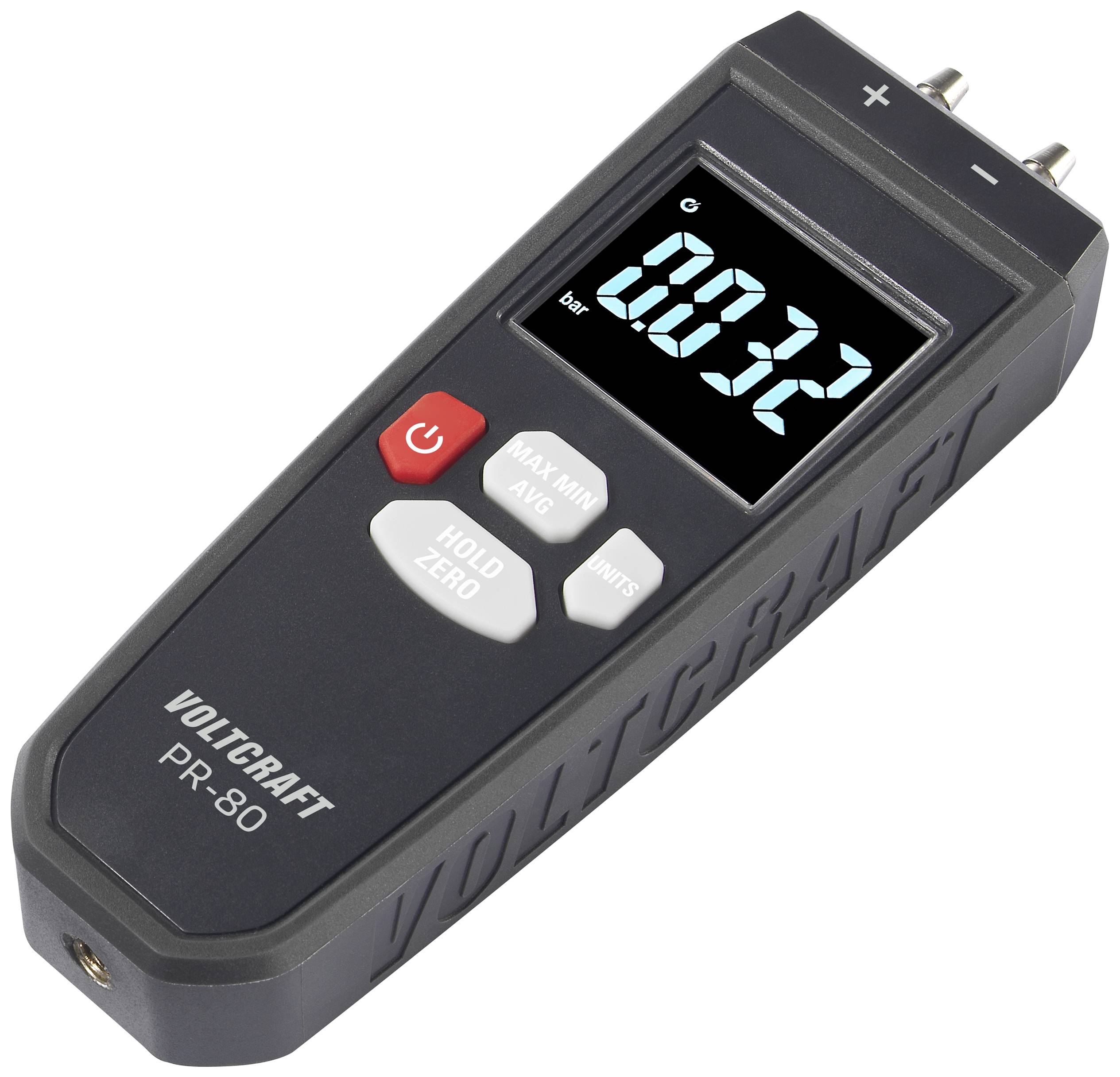

Voltcraft PR-80 device for measuring voltage differences. Displays the value '0.032' on the screen, with buttons for Max/Min, Hold, Zero.

Battery resistance tester by Voltcraft with a black protective case, two test leads, and three green batteries on a white background.

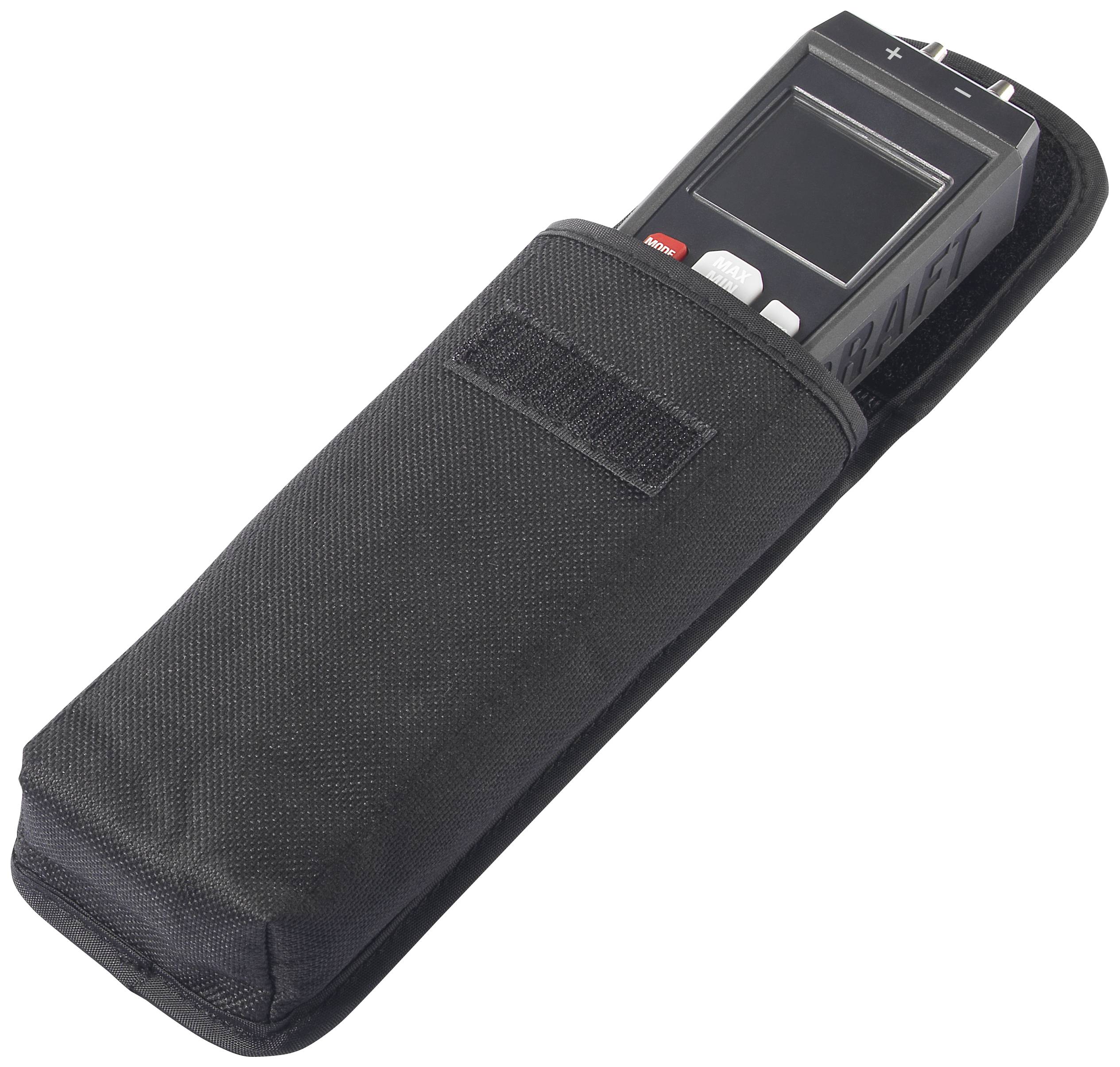

An electronic device in a black protective case, partially visible. The device has a display and buttons on the front.

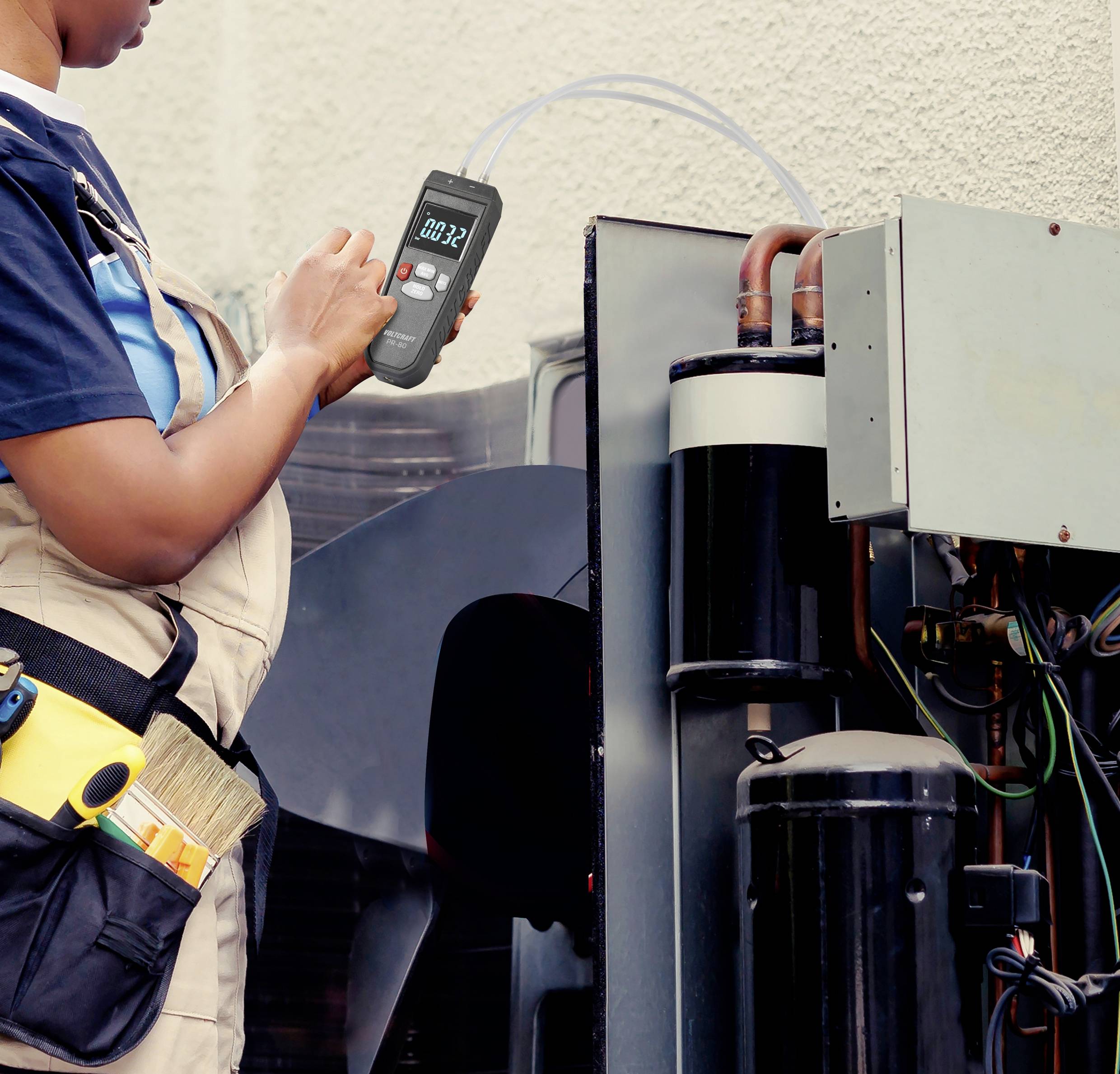

A person is checking the air pressure on an air conditioning unit with a measuring device. They are wearing a tool bag.

1/6

VOLTCRAFT

Our service for you

Datasheet (PDF)

English

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PR-80 pressure meter

Measuring range: ±0.137 bar
11 measuring units
Large LCD display (35 x 30 mm)

Technical specifications

Power supply (details): 4.5 V DC

Product type: Differential pressure gauge

Power consumption: 42 mA

Unit of measurement: Air pressure

Operating voltage: 4.5 V DC

Pneumatic connection: The 4mm pagoda connector can use a silicone tube with an inner diameter of 4mm and an outer diameter of 6mm

Reading range: -2.000 - 2.000 psi

Reading range - air pressure: -0.137 - 0.137 bar

Pick-up time (details): 0.5 sec

: Manufacturer's standards (no certificate)

Display range: bar, ozin2, psi, inHg@0℃ , mbar, mmHg@0℃, kPa, kg/cm², inH2O, ftH2O, cmH2O

Basic accuracy: 0.3 %

Nominal temperature: 23

Sensor: Differential pressure

Temp.: 0 - 50 ºC

: IP54

Dim: (L x W x H) 48 x 27 x 144 mm

Weight: 115 g

Resolution: 0.001 bar, 0.01 oz/in², 0.001 psi, 0.001 inHg, 0.1 mbar (mbar==hpa), 0.1 mmHg, 0.1 mbar, 0.01 kPa, 0.001 kg/cm², 0.01 inH2O, 0.001 ftH2O, 0.1 cmH2O

Accuracy: 0.3 %

Width: 27 mm

Height: 144 mm

Length: 48 mm

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

English

Datasheet 2620274 VOLTCRAFT PR-80 Differential pressure gauge Air pressure

User & Safety Instructions

User & Safety Instructions 2620274 VOLTCRAFT PR-80 Differential pressure gauge Air pressure

Warranty Terms

Warranty Terms 2620274 VOLTCRAFT PR-80 Differential pressure gauge Air pressure

Description

The fast, simple and precise differential pressure gauge from VOLTCRAFT has an accuracy of 0.3 %.

This text is machine translated.

Features

Unit: bar, oz/in², psi, inHg@0°C, mbar, mmHg@0°C, kPa, kg/cm², inH₂O@20°C, ftH₂O@20°C, cmH₂O@20°C
Min / Max / Average function
Data hold function
Auto power off function
Low battery indicator
Drop-proof to 1 metre
IP54

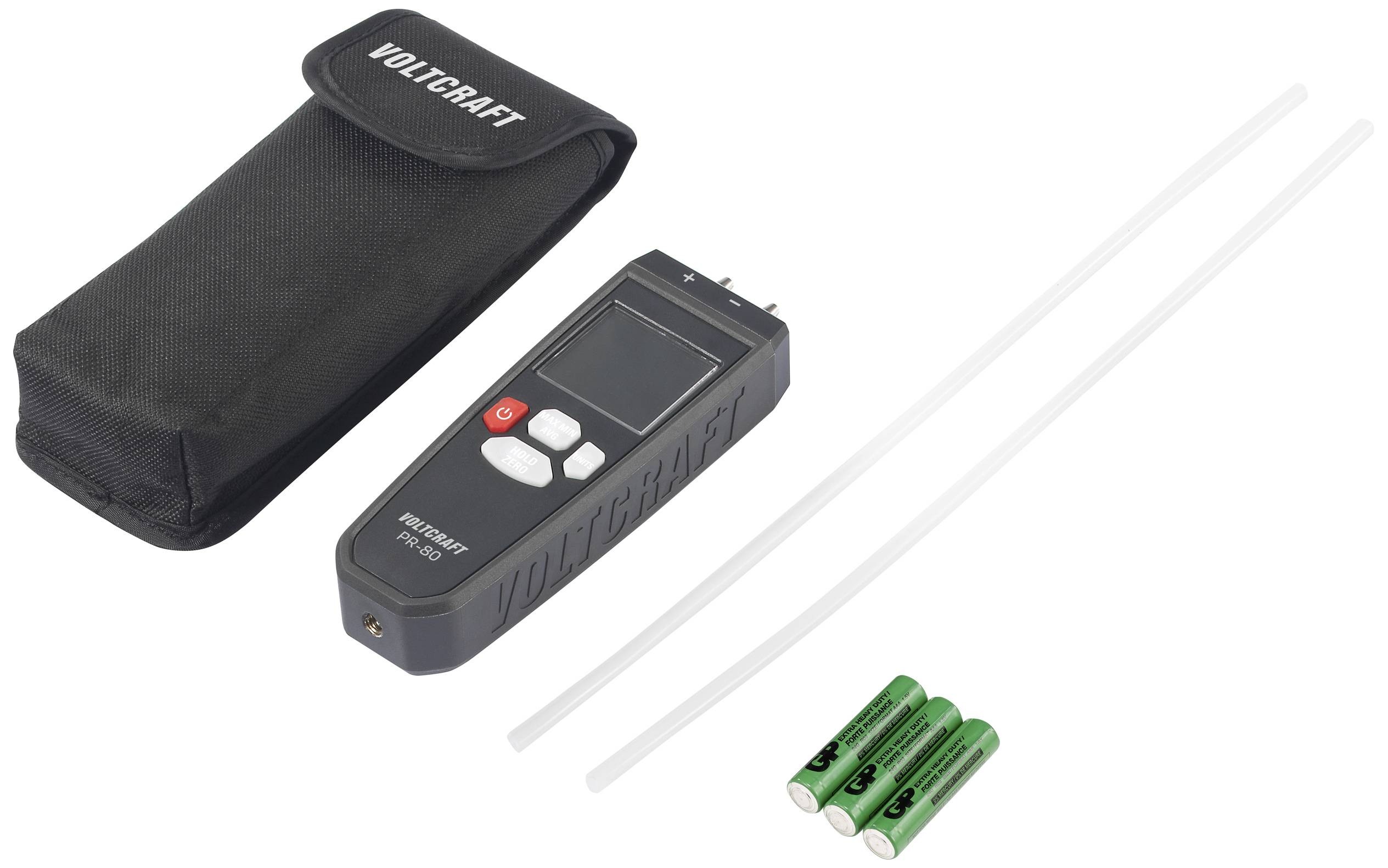

Scope of delivery

Meter
3x AAA batteries
2x Hoses (300 mm each)
Carrying bag
User manual
