VOLTCRAFT PTM-100 Thermometer -200 - 450 °C Sensor type Pt1000 IP65
EAN:
Part number:
Item no:
6 Piece(s)
Sales and shipping:
Number
Total (€ 100.83 / piece)
€
Only 6 Piece(s) available
Highlights & Details
VOLTCRAFT PTM-100 Thermometer -200 - 450 °C Sensor type Pt1000 IP65

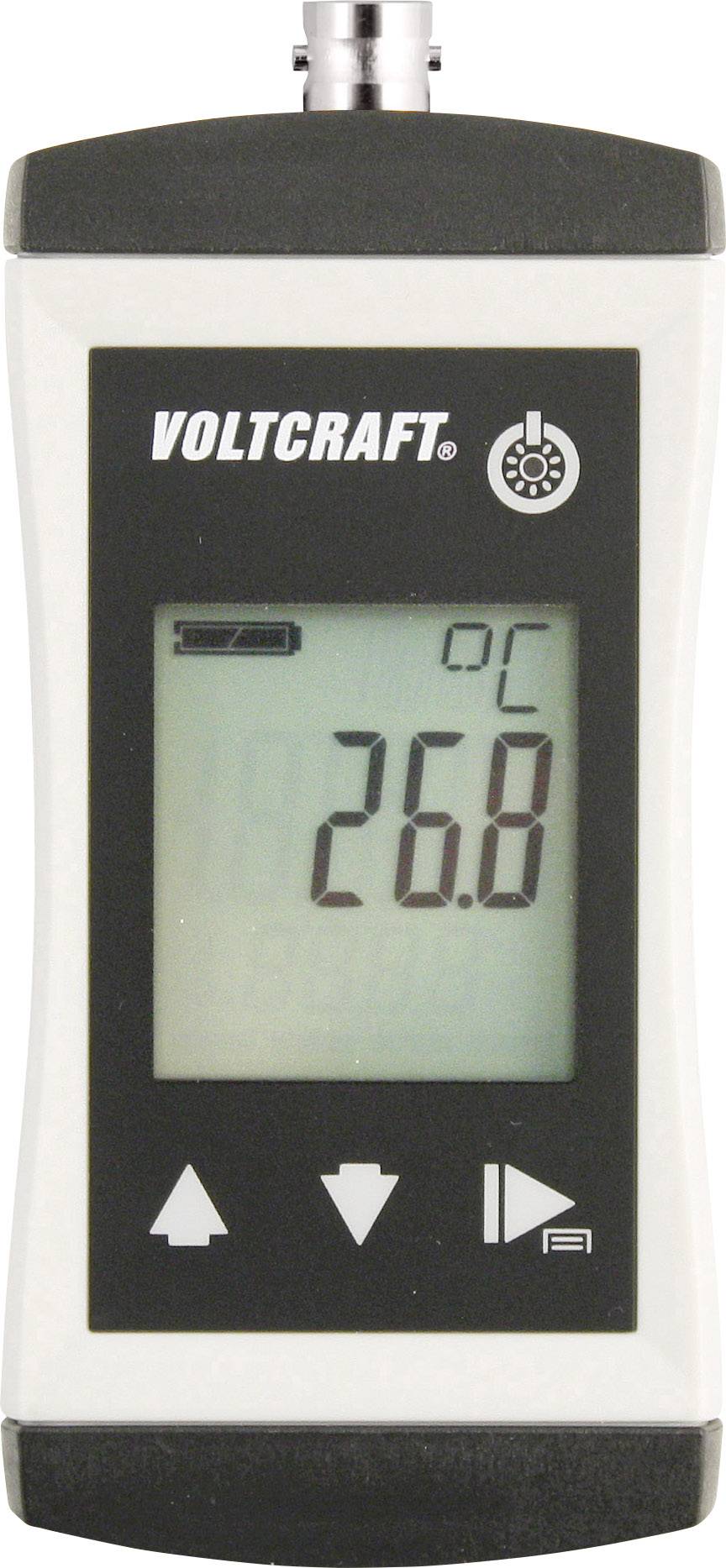

- Three-line overhead display with background lighting
- Watertight to IP65 standard
- BNC connection for sensors
Technical specifications
- Measuring input: Pt1000

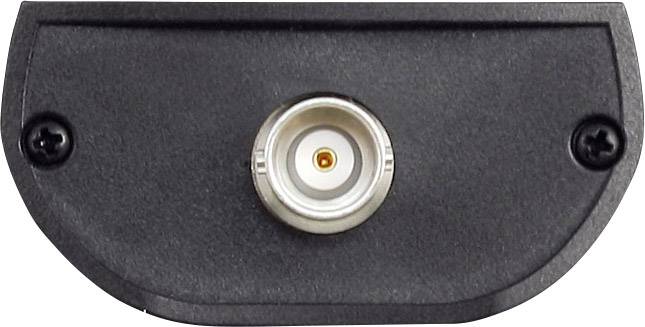

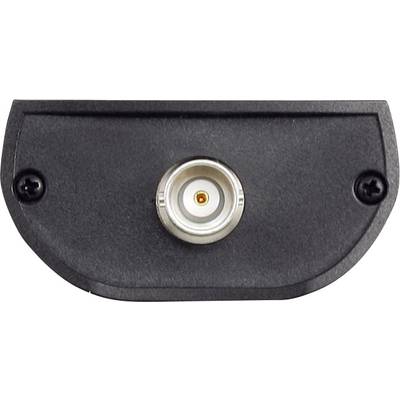

- Sensor connection: BNC connector
- Display: 3-line segment display with background lighting," can be rotated by 180°"
- Working temperature: -20 ... +50 °C
- RoHS compliant
- Dim
(L x W x H) 28 x 54 x 108 mm
- Height
108 mm
- Length
28 mm
- Width
54 mm
Manufacturer's standards (no certificate)
- Features
IP65
- Sensor version
detachable
- Sensor type
Pt1000
- Type
PTM-100
- Basic accuracy
0.1 %
- Accuracy ± °C
0.1 °C
- Resolution (temperature)
0.1 °C
- Display (details)
3-line, with backlight, protected by unbreakable disc, overhead display at the push of a button.
- Power supply
AA battery (2x), included
- Max. temperature
450 °C
- Min. temperature
-200 °C
- Weight
0.130 kg
- Product type
Thermometer
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1720714 VOLTCRAFT PTM-100 Thermometer -200 - 450 °C Sensor type Pt1000 IP65
Warranty Terms
Warranty Terms 1720714 VOLTCRAFT PTM-100 Thermometer -200 - 450 °C Sensor type Pt1000 IP65
Description
The universal thermometer PTM-100 to connect PT-1000 sensors will impress you with their ergonomic design, the dust-and waterproof design according to IP65/67 and the illuminated display. The compact thermometer is equipped with a practical BNC connection for sensors available. Perfect for the most accurate measurements in fluids and air, for the measurement of core temperatures (with insertion probe); laboratories, quality assurance, service, food,...
This text is machine translated.
This text is machine translated.
Features
- Notification
Scope of delivery
- Universal thermometer
- Batteries
- Test report
- User manual.
Hints
For temperature measurement is a suitable sensors are required. Please order separately.
