Buy VOLTCRAFT PTM-110 + TG-400 Thermometer -70 - 250 °C Sensor type Pt1000 IP65

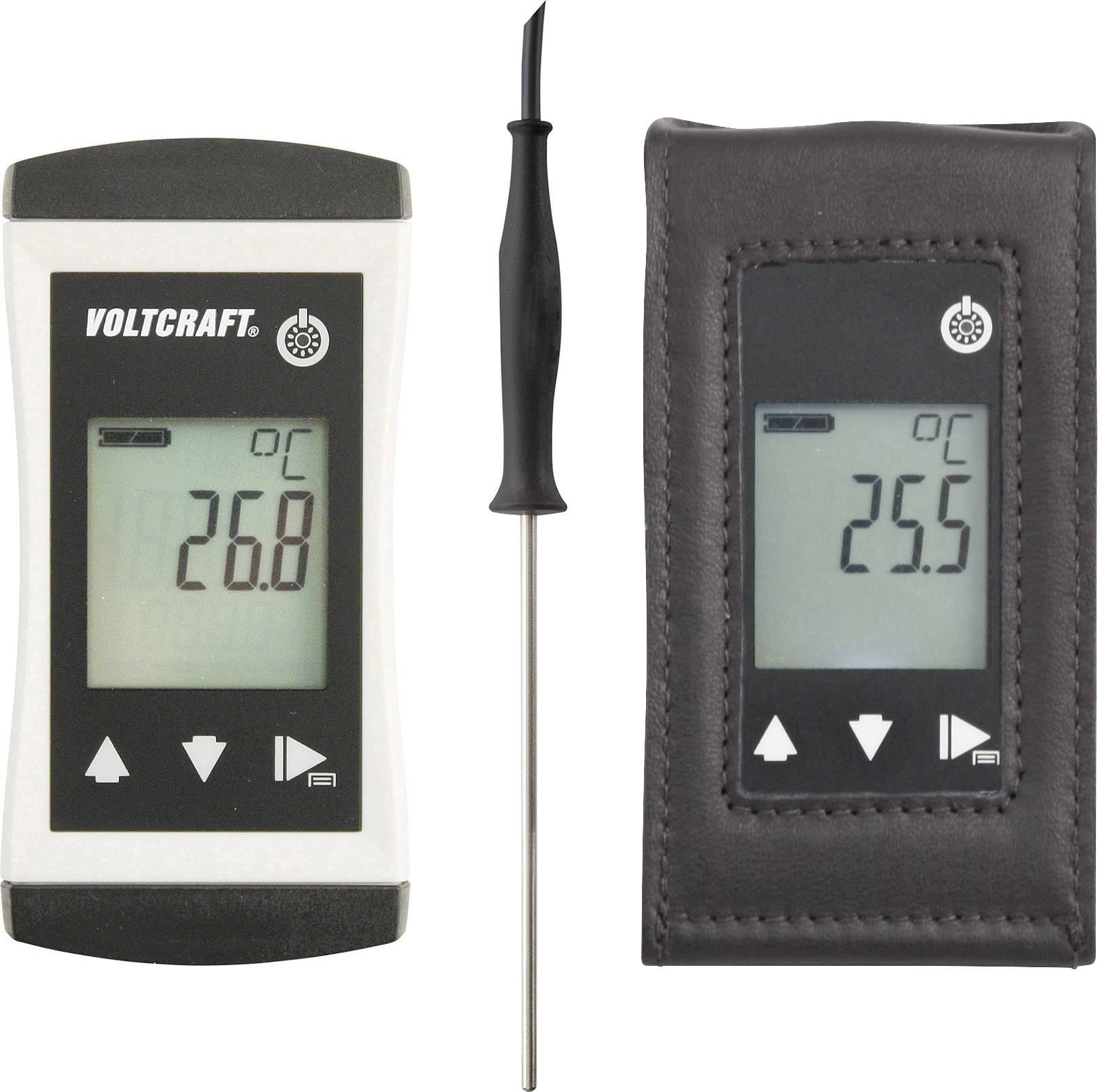

Two digital thermometers with temperature displays: the left shows '26.8 °C' and the right '25.5 °C'. A metal probe is positioned in the centre.

Digital thermometer with LCD display showing 26.8 degrees Celsius.

A hand thermometer with a digital display shows 26.8 degrees Celsius. To the right of the device is a probe tip.

A portable thermometer with the inscription 'Immersion Probe Thermometer PTM-110'. Temperature range: -70 to +250 °C.

Digital thermometer in a leather case showing 25.5 degrees Celsius. Control buttons for temperature regulation underneath.

Small portable speaker in a black leather case, visible from the front.

1/6

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Waterproof universal thermometer PTM-110 with fixed Pt1000 immersion probe (Ø 3mm) incl. protective device bag TG-400

With precise Pt1000 universal sensor (completely heat-resistant up to +250 °C)
Watertight to IP65 standard

Technical specifications

Pt1000 Universal sensor ø: 3 mm
Measuring input: Pt1000
Sensor connection: Sensor firmly connected
Working temperature: -20 ... +50 °C
RoHS compliant

Product type: Thermometer

Max. temperature: 250 °C

Basic accuracy: 0.1 %

Accuracy ± °C: 0.1 °C

Sensor type: Pt1000

: Manufacturer's standards (no certificate)

Sensor version: fitted

Dim: (L x W x H) 28 x 54 x 108 mm

Display (details): 3-line, with background lighting, protected by shatterproof disc, overhead display at the push of a button

Resolution (temperature): 0.1 °C

Features: IP65

Weight: 0.130 kg

Calibration range: Temperature

Width: 54 mm

Height: 108 mm

Length: 28 mm

Power supply: AA battery (2x), included

Min. temperature: -70 °C

Type: PTM-110 + TG-400

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1991094 VOLTCRAFT PTM-110 + TG-400 Thermometer -70 - 250 °C Sensor type Pt1000 IP65

Warranty Terms

Warranty Terms 1991094 VOLTCRAFT PTM-110 + TG-400 Thermometer -70 - 250 °C Sensor type Pt1000 IP65

Description

The PTM-110 impresses through its ergonomic design, the dust and water-protected design according to IP 65/67 and the illuminated display. The compact thermometer as a complete device including sensor with maximum overall precision.

The universal sensor can be used up to 250 °C (including handle and cable) and is characterized by compact design and a small pipe diameter. Built-in interior: High-quality Pt1000 sensors.

This text is machine translated.
