VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
EAN:
Part number:
Item no:
Datasheet (PDF)
151 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.18
€ 29.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€
Highlights & Details

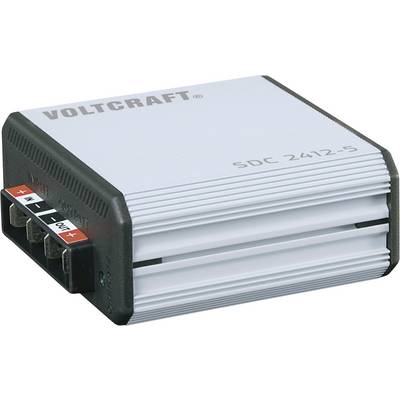

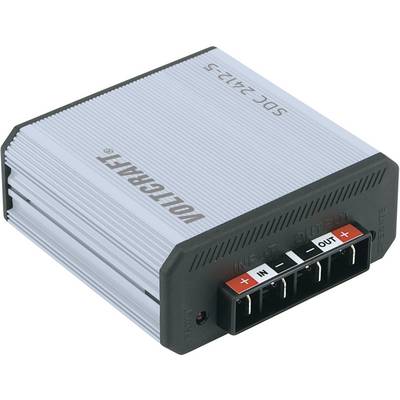

VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
- 24 V -> 12 V
Technical specifications
- Input voltage
24 V DC
- Product type
DC/DC converter
- Used at
HGV
- Output
Connectors
70 W
- Input voltage
24 V DC
- Output voltage
13.8 V DC
- Connections
6.3mm plug contacts
- Max. output current
7 A
- Output current (max.) - rounded
7 A
- Dim
(W x H x D) 75 x 32 x 77 mm
- Weight
190 g
- Content
1 pc(s)
- Width
75 mm
- Height
32 mm
- Type
SDC 2412-5
- Efficiency
>89 %
- Depth
77 mm
70 W
- Output voltage
13.8 V DC
- Output current (details)
5 A
- Type
Synchronised
- Output current (high)
7 A
Documents & Downloads
Datasheet
Datasheet 512309 VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
User & Safety Instructions
User & Safety Instructions 512309 VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
User & Safety Instructions 512309 VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
eNum certificate
eNum certificate 512309 VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
Warranty Terms
Warranty Terms 512309 VOLTCRAFT SDC 2412-5 DC/DC converter 24 V DC - 13.8 V DC/7 A 70 W
Description
The converter enables the operation of 12 V-devices at the normal 24 V on-board supply of the car.
Scope of delivery
- Mounting set
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
