VOLTCRAFT Sound level meter SL-50 DOK 130 dB (max.) 31.5 Hz - 8 kHz
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Highlights & Details
VOLTCRAFT SL-50 DOK Sound level meter with reporting function
- Large LCD display
- Sound level measurement
- Frequency: A-weighting
- "Fast / Slow" measurement intervals
- Bluetooth PDF data report
- Automatic backlight on/off function
Technical specifications
- Measuring range: 30 dB to 130 dB
- Accuracy: ±1.5 dB at 1 kHz frequency, standard sound source
- Frequency: 31.5 Hz - 8 kHz
- Resolution: 0.1 dB
- Frequency-weighted characteristic: A
- Microphone: 1/2 inch polarized capacitive microphone
- Sampling Rate: Fast 125 ms / Slow 1000 ms

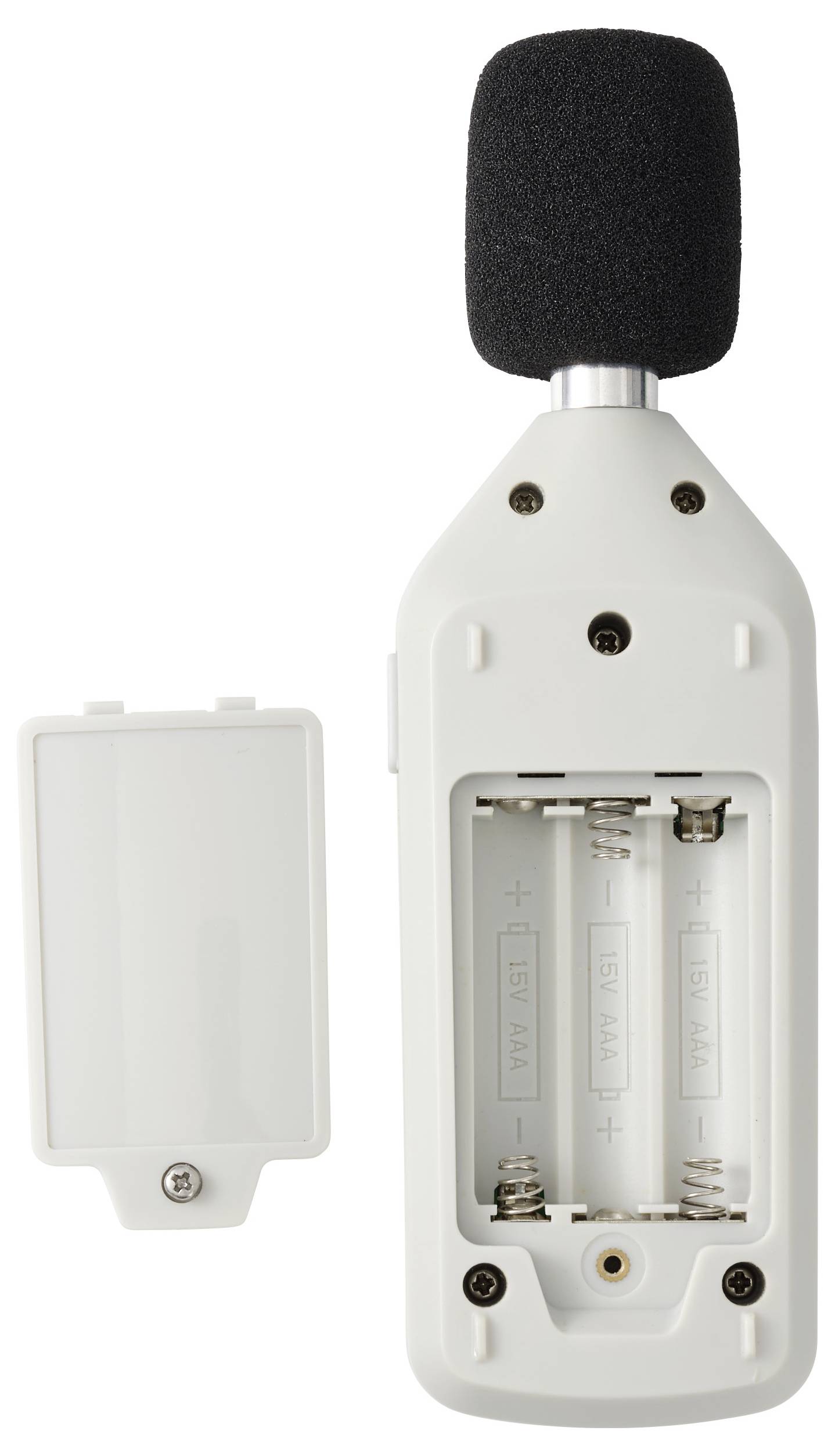

- Power: 3x 1.5 V AAA batteries
- LCD size: 32.4 x 29.4 mm
- Product type
Sound level meter
- Reading type
SPL
- SPL resolution
0.1 dB
- dB (A) SPL reading range (max.)
130 dB
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 168 x 30 x 50.9 mm
- Display
Digital
- Max. frequency
8 kHz
- Min. frequency
31.5 Hz
- Frequency range
31.5 Hz - 8 kHz
- dB (A) accuracy
1.5 dB
- Weight
100 g
- dB SPL (A) reading range
130 dB (max.)
- Width
30 mm
- Height
50.9 mm
- Length
168 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740561 VOLTCRAFT Sound level meter SL-50 DOK 130 dB (max.) 31.5 Hz - 8 kHz
Warranty Terms
Warranty Terms 3740561 VOLTCRAFT Sound level meter SL-50 DOK 130 dB (max.) 31.5 Hz - 8 kHz
Description

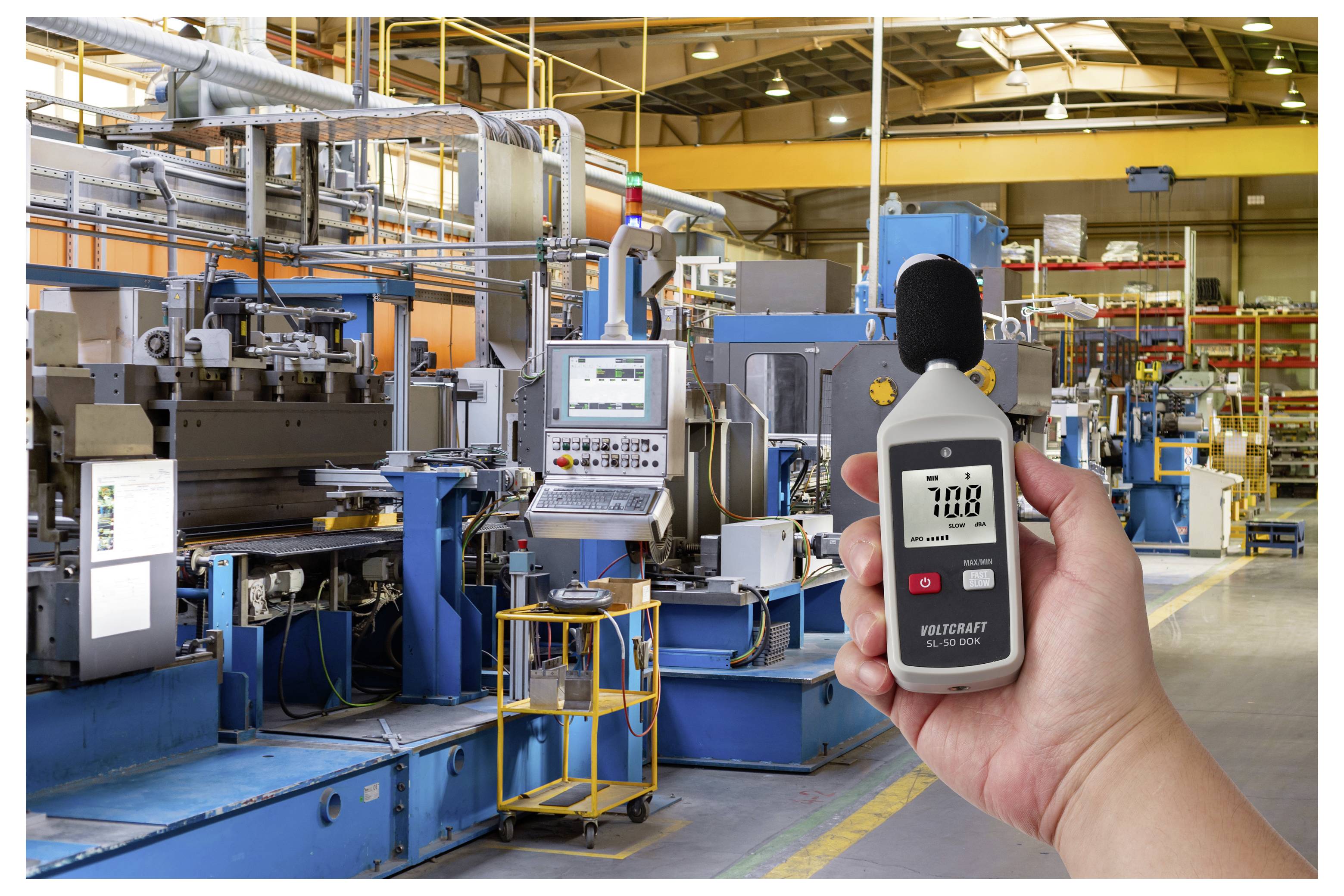

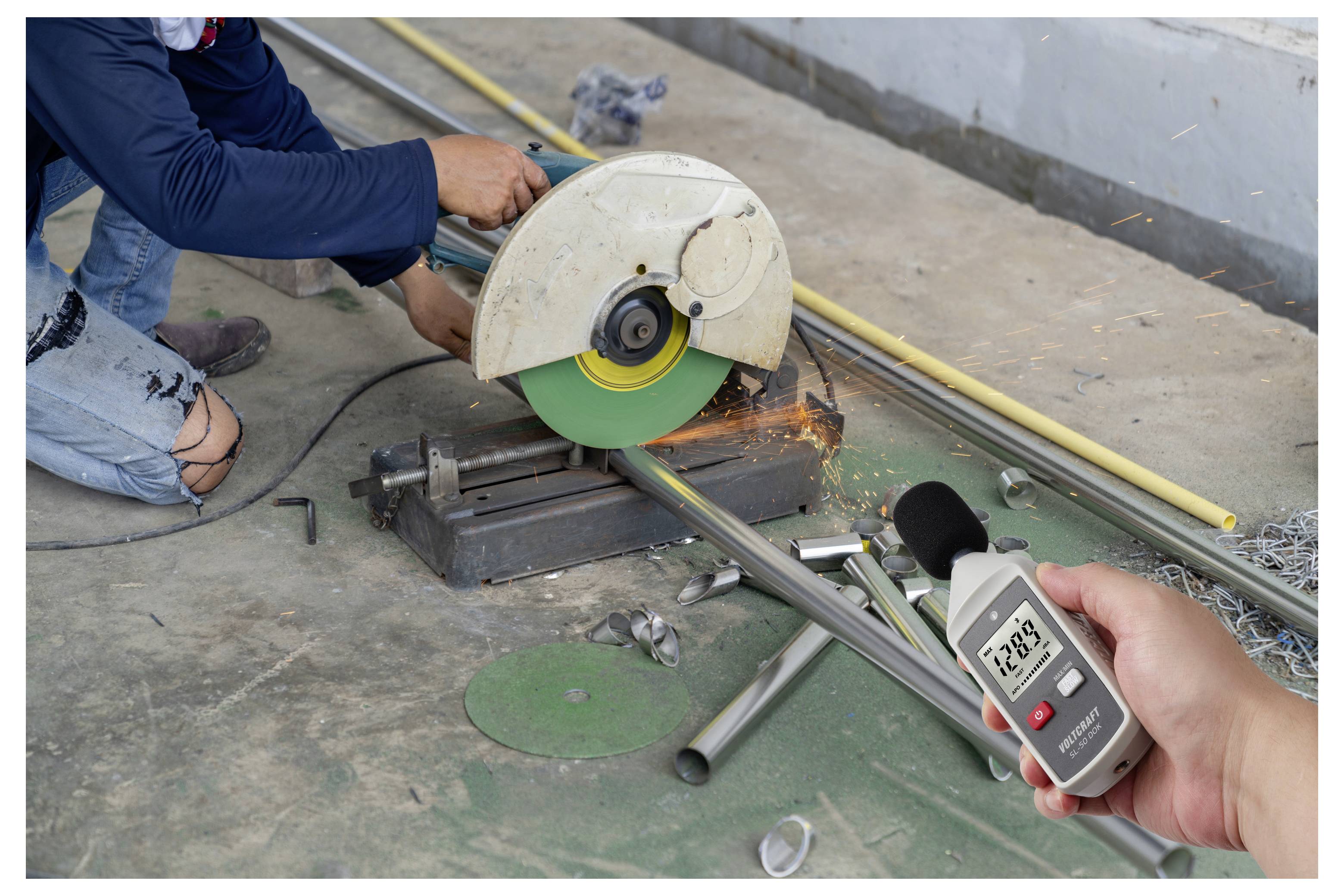

The VOLTCRAFT SL-50 DOK is a compact sound level meter for professional use in facility management. Calibrated to factory standards (no certificate) to accurately detect sound emissions via a 1/2-inch condenser microphone.
Frequency-rated noise measurement
The device measures the sound level in the range from 30 to 130 dB with an accuracy of ±1.5 dB. With selectable measurement intervals (fast 125 ms/slow 1000 ms) noise levels can be flexibly analyzed according to the A-frequency characteristic curve.
Wireless data processing

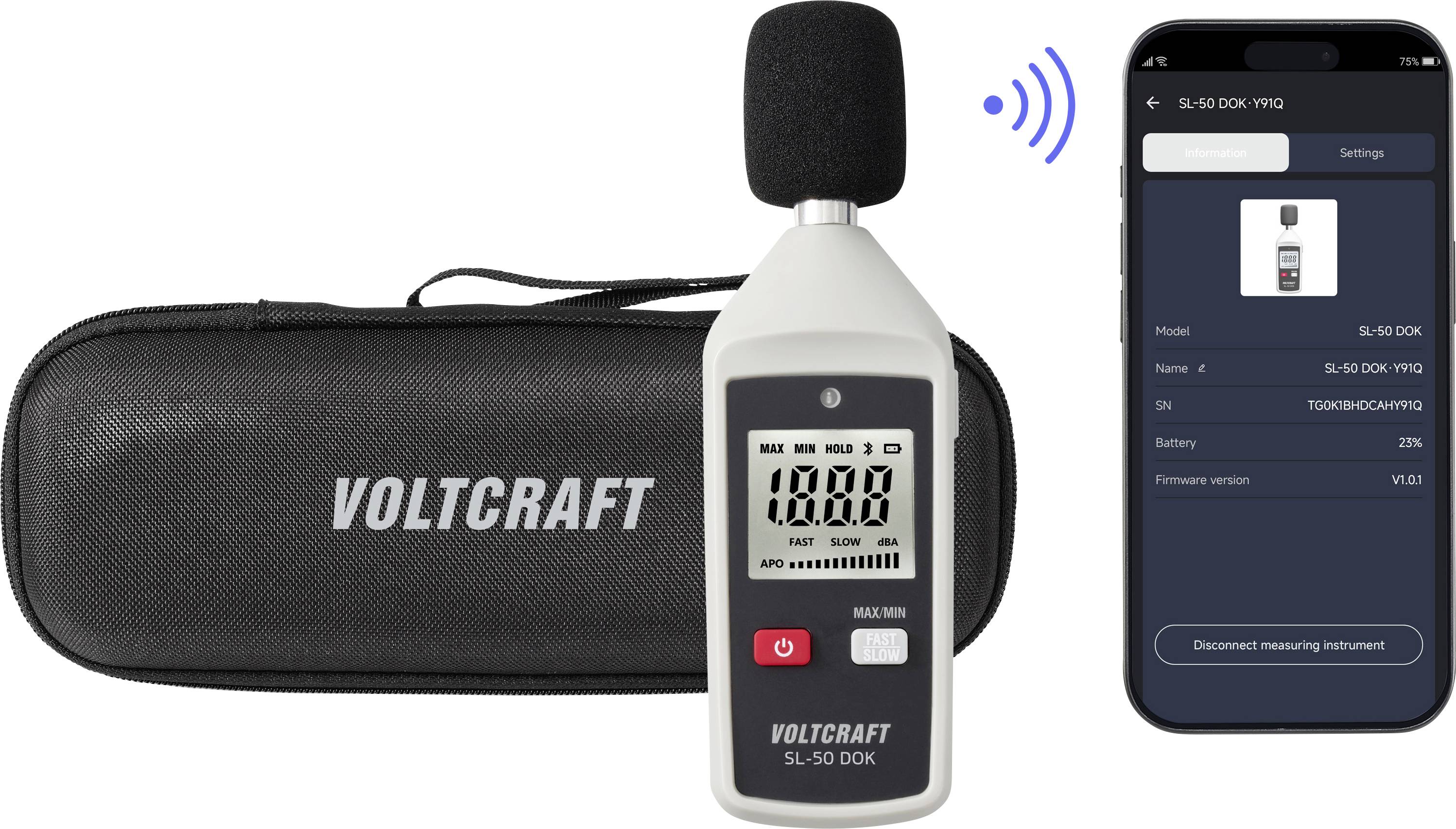

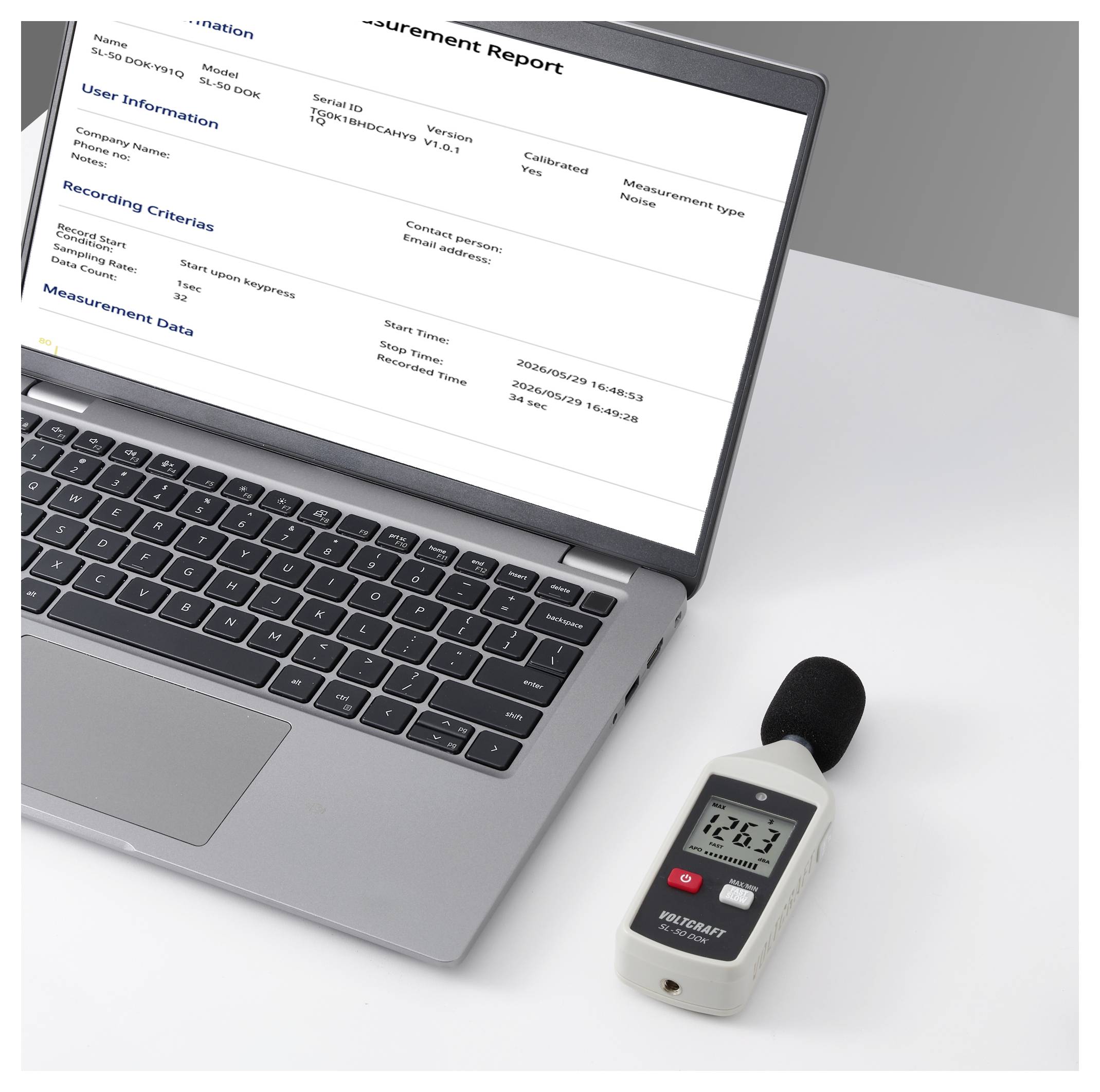

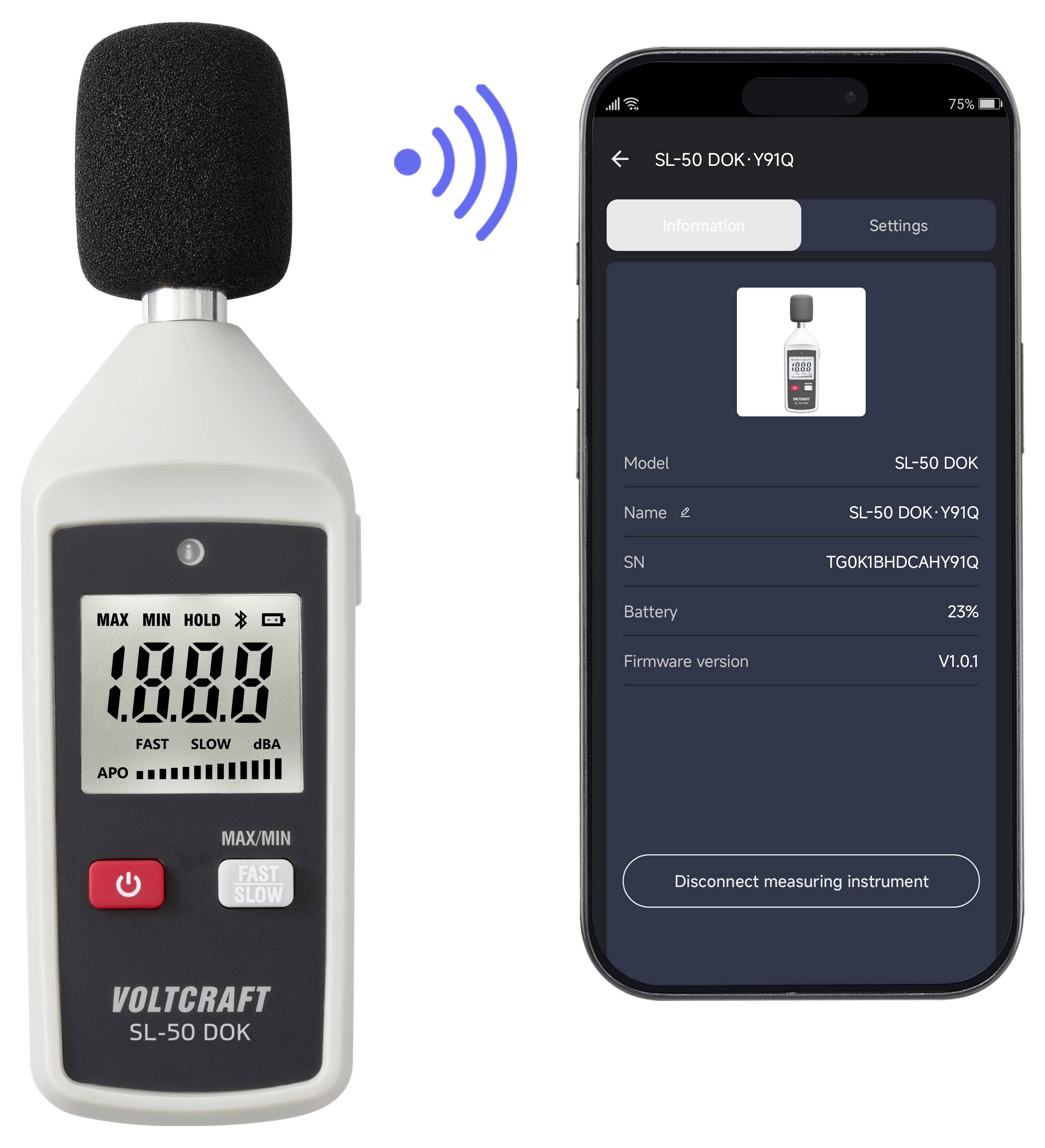

The integrated Bluetooth® technology enables a direct connection to the evaluation APP. This can be used to create professional PDF test reports to keep a clear record of noise pollution in workplaces or building complexes.
Practical analysis functions
The min./max. and data-hold functions help to hold noise peaks securely. The LCD screen provides automatic backlighting that can be switched on for darker environments, while the automatic switch-off function provides energy-saving operation after approximately five minutes.
Frequency-rated noise measurement
The device measures the sound level in the range from 30 to 130 dB with an accuracy of ±1.5 dB. With selectable measurement intervals (fast 125 ms/slow 1000 ms) noise levels can be flexibly analyzed according to the A-frequency characteristic curve.
Wireless data processing
The integrated Bluetooth® technology enables a direct connection to the evaluation APP. This can be used to create professional PDF test reports to keep a clear record of noise pollution in workplaces or building complexes.
Practical analysis functions
The min./max. and data-hold functions help to hold noise peaks securely. The LCD screen provides automatic backlighting that can be switched on for darker environments, while the automatic switch-off function provides energy-saving operation after approximately five minutes.
Features
- Over-range display: "OL"
- Min. / Max. function
- Data hold function
- Auto backlight on/off function
- Auto power off (approx. 5 mins)
- Low battery indication
- Bluetooth app for one-point PDF report generation

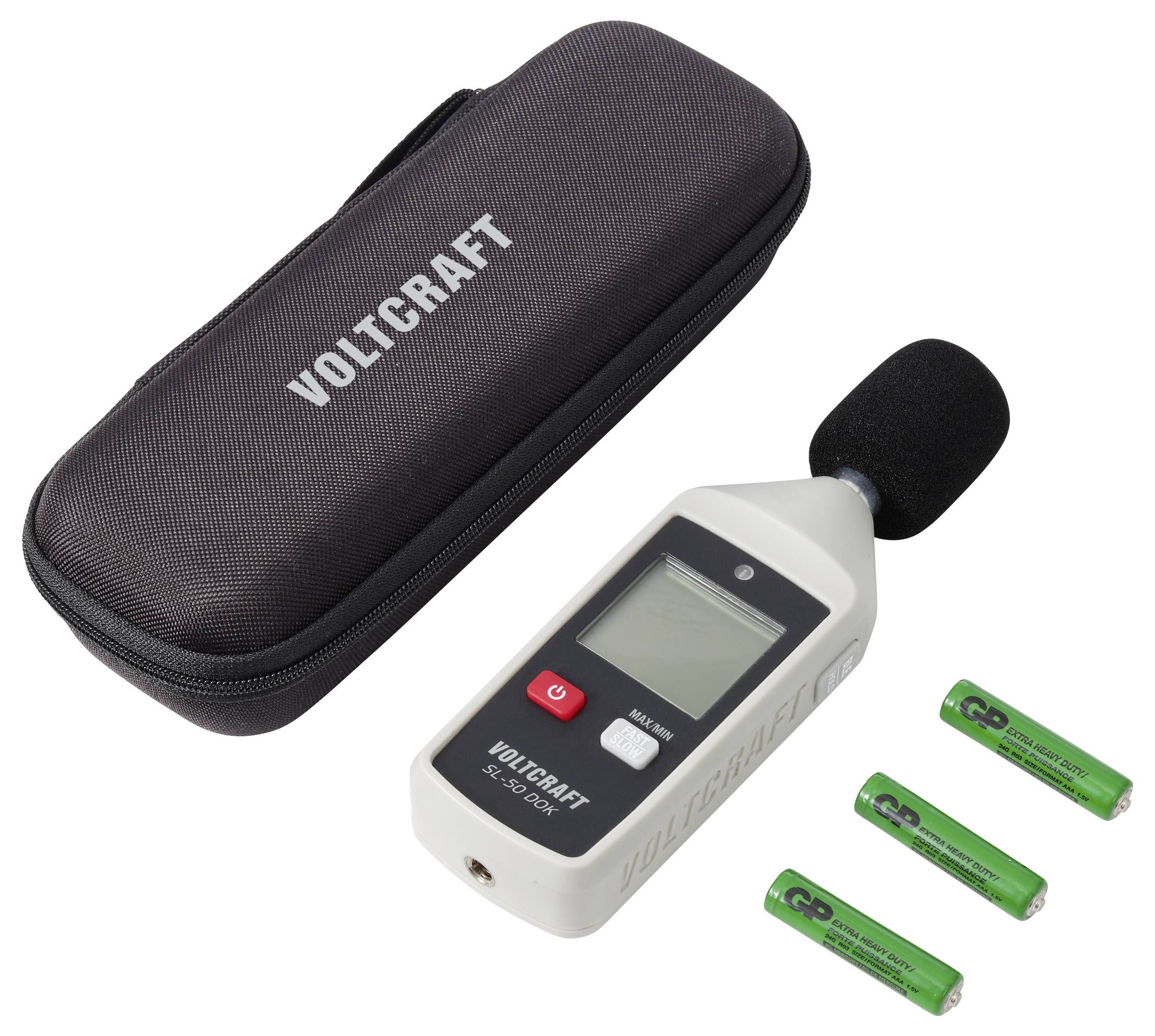

Scope of delivery
- Sound level meter
- User manual

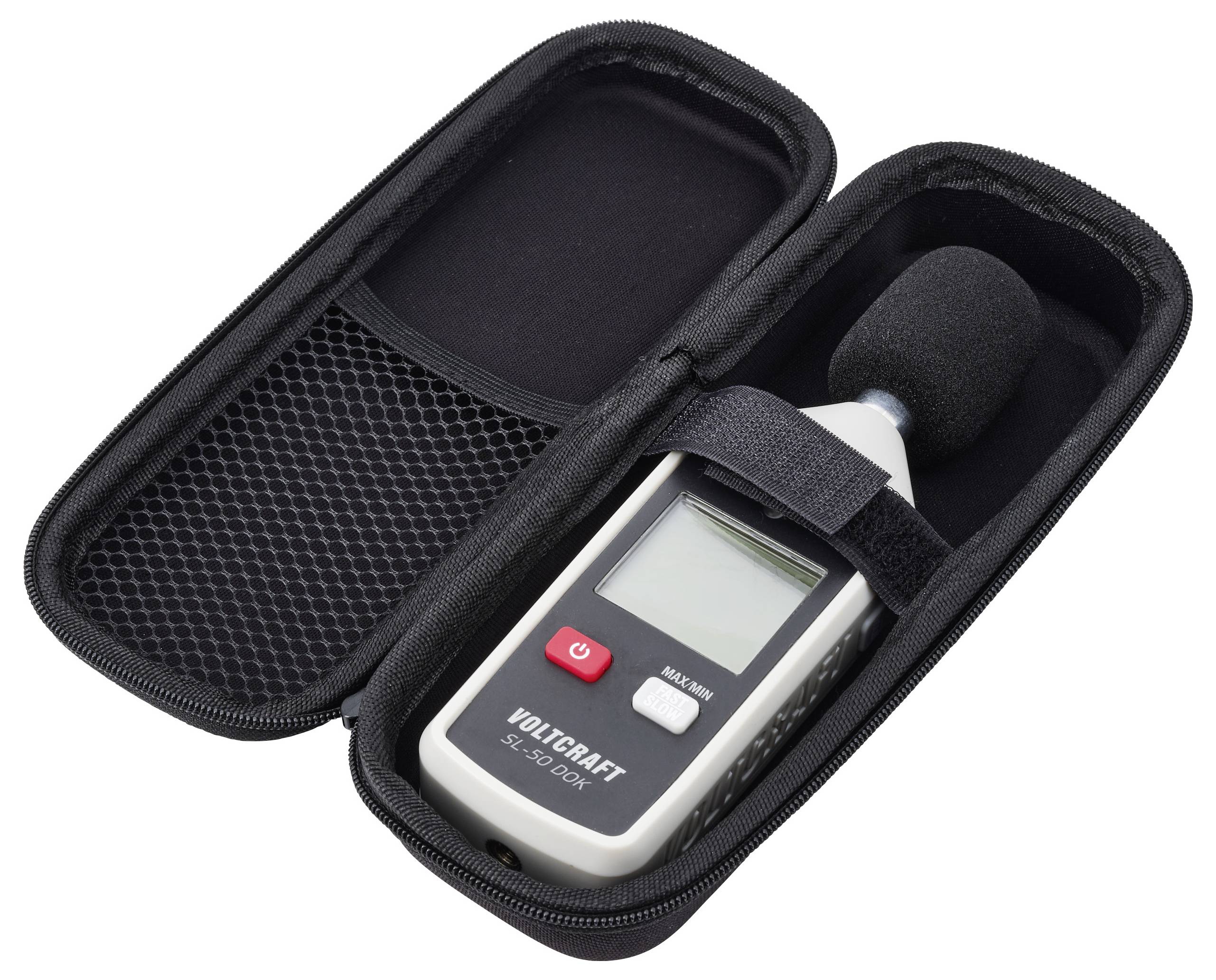

- Carrying bag
- 3x AAA batteries
