Buy VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

A regulated power supply from Voltcraft shows 14.0 volts and 0.0 amperes on the digital display. The switch is set to 'Power On'.

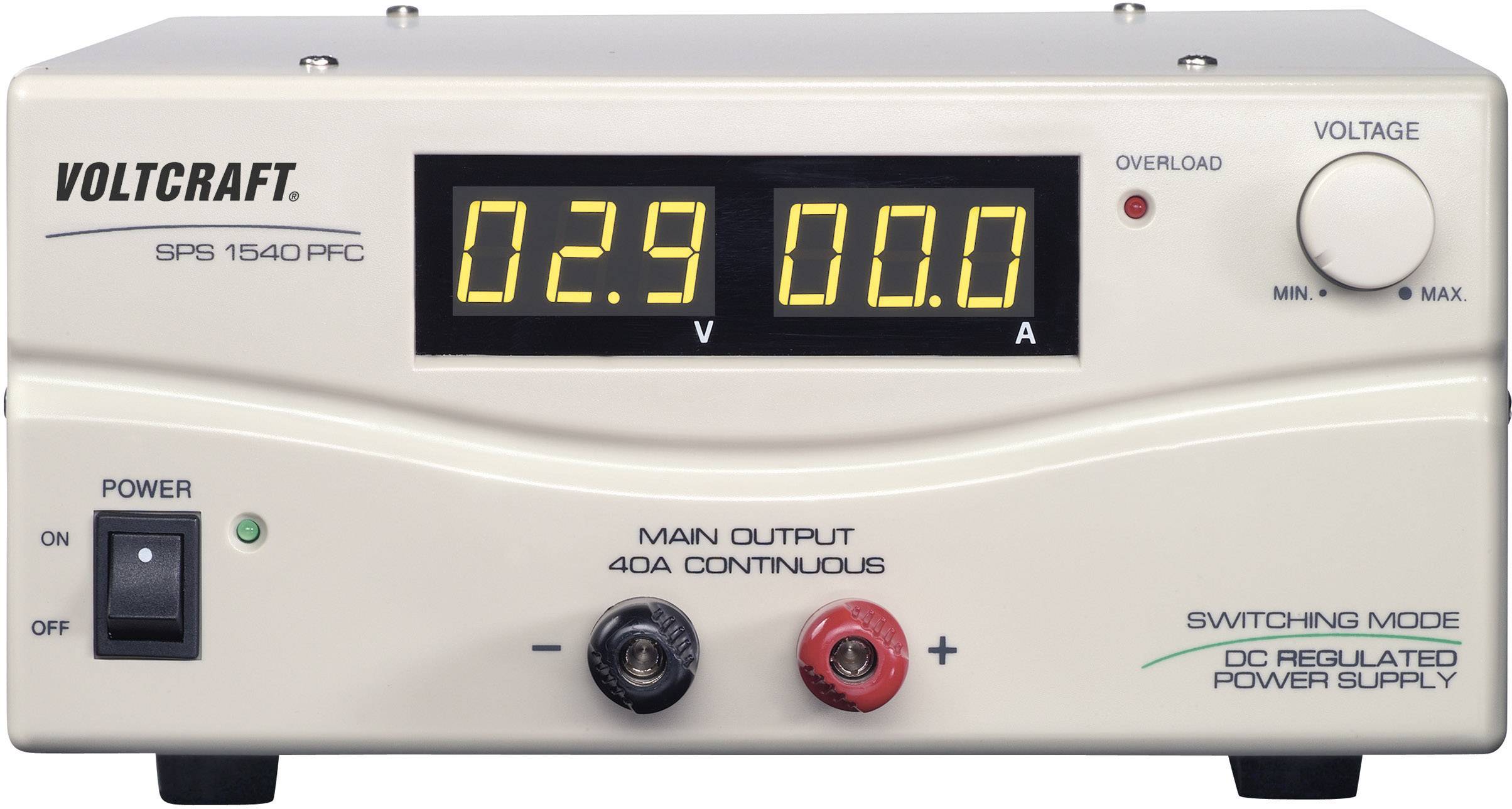

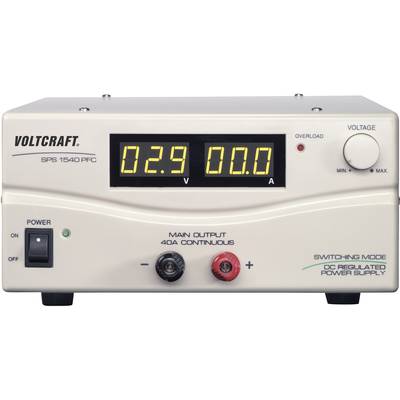

A laboratory power supply shows '0.29 V' and '0.00 A' on the digital display. Buttons for voltage adjustment and connections are visible.

White Voltcraft mains power supply SPS 1540 PFC with digital display, showing voltage and current values. Main switch located bottom left.

1/3

Our service for you

8 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 205.87 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

Outputs: 1 x
Max power: 600W
Voltage setting range: 3 - 15V
Fixed current limit: 40A
PFC (power factor correction)
Remote control function via external DC voltage
High contrast digital LCD display
PSU Technology: Switched Mode
Type: Bench

Technical specifications

Type: SPS 1540 PFC

No. of outputs: 1 x

: 600 W

Technology: SMPSU

Interfaces: Remote

Dim: (W x H x D) 220 x 110 x 310 mm

Weight: 3.5 kg

Output current 1: 40 A

Depth: 310 mm

Height: 110 mm

Width: 220 mm

: Manufacturer's standards (no certificate)

Type: Bench

Max. output current: 40 A

Output current (min.): 4 A

Output voltage (max.): 15 V DC

Output voltage (min.): 3 V DC

: 600 W

Connections: 4 mm clamping screw bushings

Inputs: IEC C14

Type: Switched Mode

Input voltage: 230 V AC

Output voltage 1: 3 - 15 V

Product type: Bench PSU (adjustable voltage)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 511569 VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

Information

Information 511569 VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

Conformity certificate

Conformity certificate 511569 VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

Warranty Terms

Warranty Terms 511569 VOLTCRAFT SPS 1540 PFC Bench PSU (adjustable voltage) 3 - 15 V DC 4 - 40 A 600 W Remote No. of outputs 1 x

Description

Voltcraft's SPS 1540 PFC DC bench power supply features primary switched mode technology, giving it conveniently compact dimensions at 220 x 110 x 310 mm. The PSU has integrated Power Factor Correction (PFC), which suppresses harmonic waves that arise from switched mode regulation.
