VOLTCRAFT TOPS-3363N Bench PSU (adjustable voltage) 0.8 - 36 0.1 - 3 A 100 W fanless No. of outputs 3 x
EAN:
Part number:
Item no:
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
14-day return policy included
Highlights & Details
Switching Mode Triple Output Power Supply 0.8-36 V, 3 A, Max. 100 W
- Number of outputs 3 x
- Output 1 (4 mm safety sockets): 0.8 - 36 V/DC / 0.1 - 3 A
- Output 2 (USB-C® socket): 5 V/DC, 3 A; 9 V/DC, 2 A; 12 V/DC, 1.6 A
- Output 3 (USB-A socket): 5 V/DC / max. 2 A
Technical specifications
- Input voltage: 220-240 V/AC, 50/60 Hz
- Full load input current (230 V/AC): 0.88 A
- Display: 4 digit LCD
- USB power outputs: 1x USB-C® and 1x USB-A
- Control behaviour with load change 10 to 90 % 70 mV 50 mA
- Control behaviour with mains change ±10% 25 mV 20 mA
- Dimensions (W x H x D) 71 x 165 x 265 mm
- Type
TOPS-3363N
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
3 x
100 W
- Interfaces
USB-C
- Features
fanless
- Dim
(L x W x H) 265 x 71 x 165 mm
Manufacturer's standards (no certificate)
- Input voltage
220 V AC
240 V AC
- Weight
2 kg
- Connections
4 mm safety jack
- Output
4 mm socket
- Output voltage (max.)
36 V DC
- Output voltage (min.)
0.8 V DC
- Output voltage 2 (max.)
12 V DC
- Output voltage 2 (min.)
5 V DC
- Output voltage 3 (max.)
5 V DC
- Output voltage 3 (min.)
5 V DC
- Max. output current
3 A
- Output current (min.)
0.1 A
- Output current 2 (max.)
3 A
- Output current 2 (min.)
1.6 A
- Output current 3 (max.)
2 A

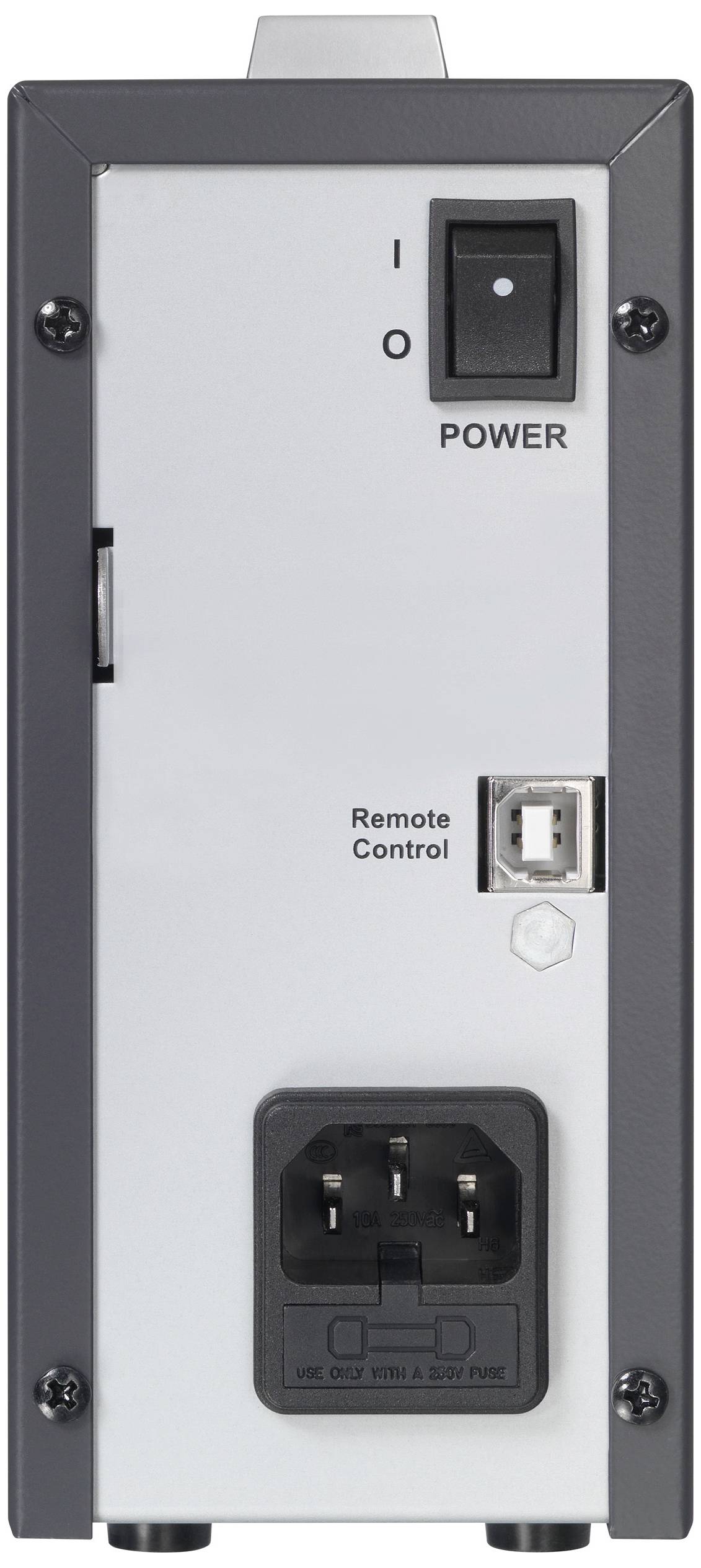

- Inputs
IEC socket
- Mains control
Software (MCU)
- Width
71 mm
- Height
165 mm
- Length
265 mm
- Residual ripple
<100 mVpp
- Max. temperature
40 °C
- Min. temperature
5 °C
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089718 VOLTCRAFT TOPS-3363N Bench PSU (adjustable voltage) 0.8 - 36 0.1 - 3 A 100 W fanless No. of outputs 3 x
User & Safety Instructions 3089718 VOLTCRAFT TOPS-3363N Bench PSU (adjustable voltage) 0.8 - 36 0.1 - 3 A 100 W fanless No. of outputs 3 x
Warranty Terms
Warranty Terms 3089718 VOLTCRAFT TOPS-3363N Bench PSU (adjustable voltage) 0.8 - 36 0.1 - 3 A 100 W fanless No. of outputs 3 x
Download
Download 3089718 VOLTCRAFT TOPS-3363N Bench PSU (adjustable voltage) 0.8 - 36 0.1 - 3 A 100 W fanless No. of outputs 3 x
Description

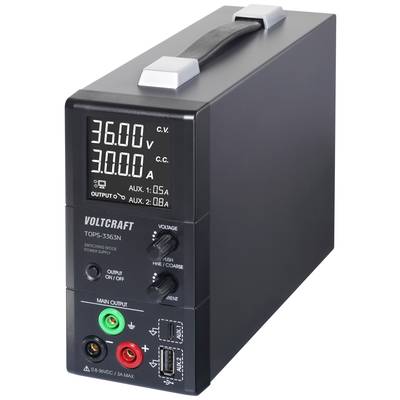

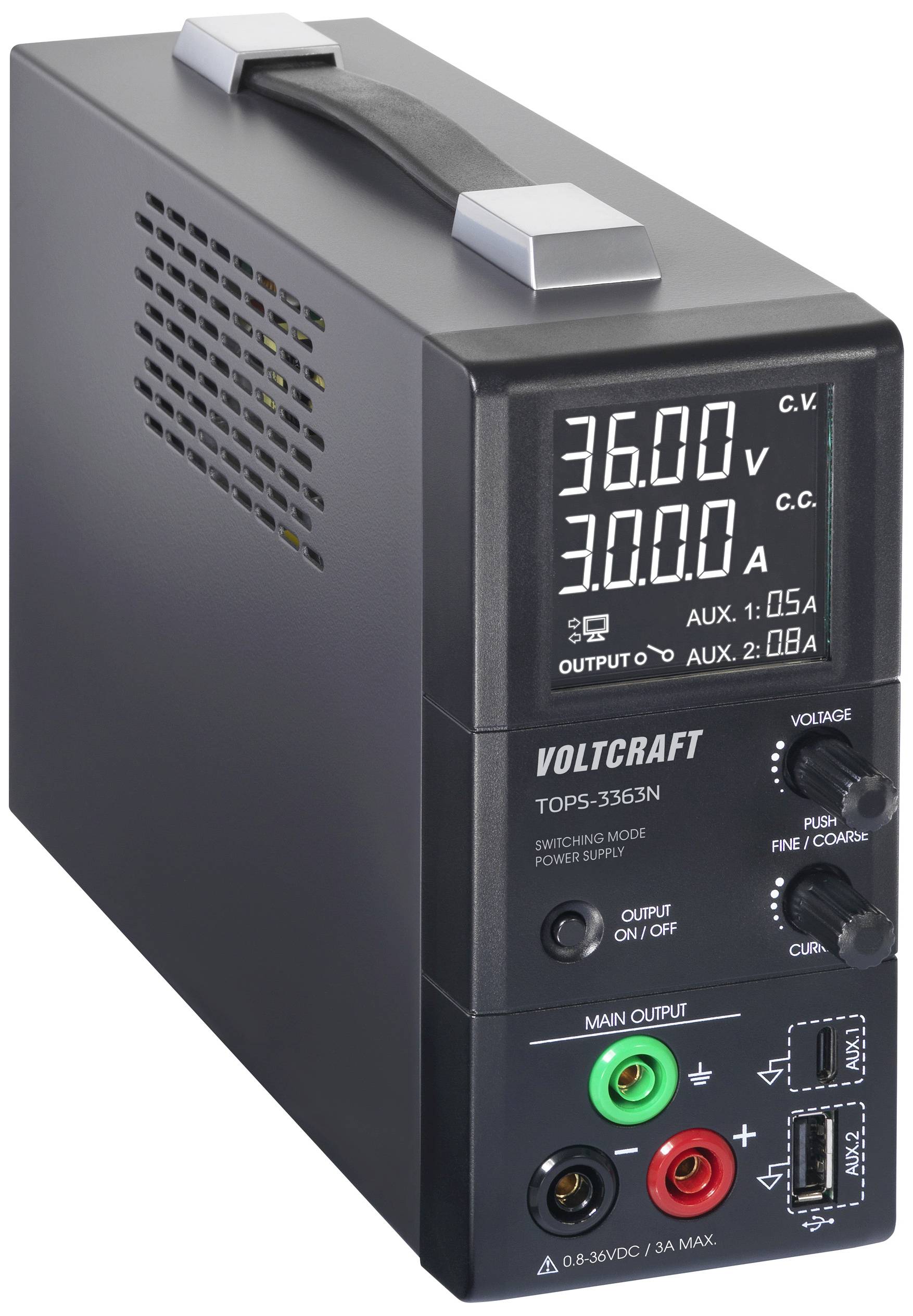

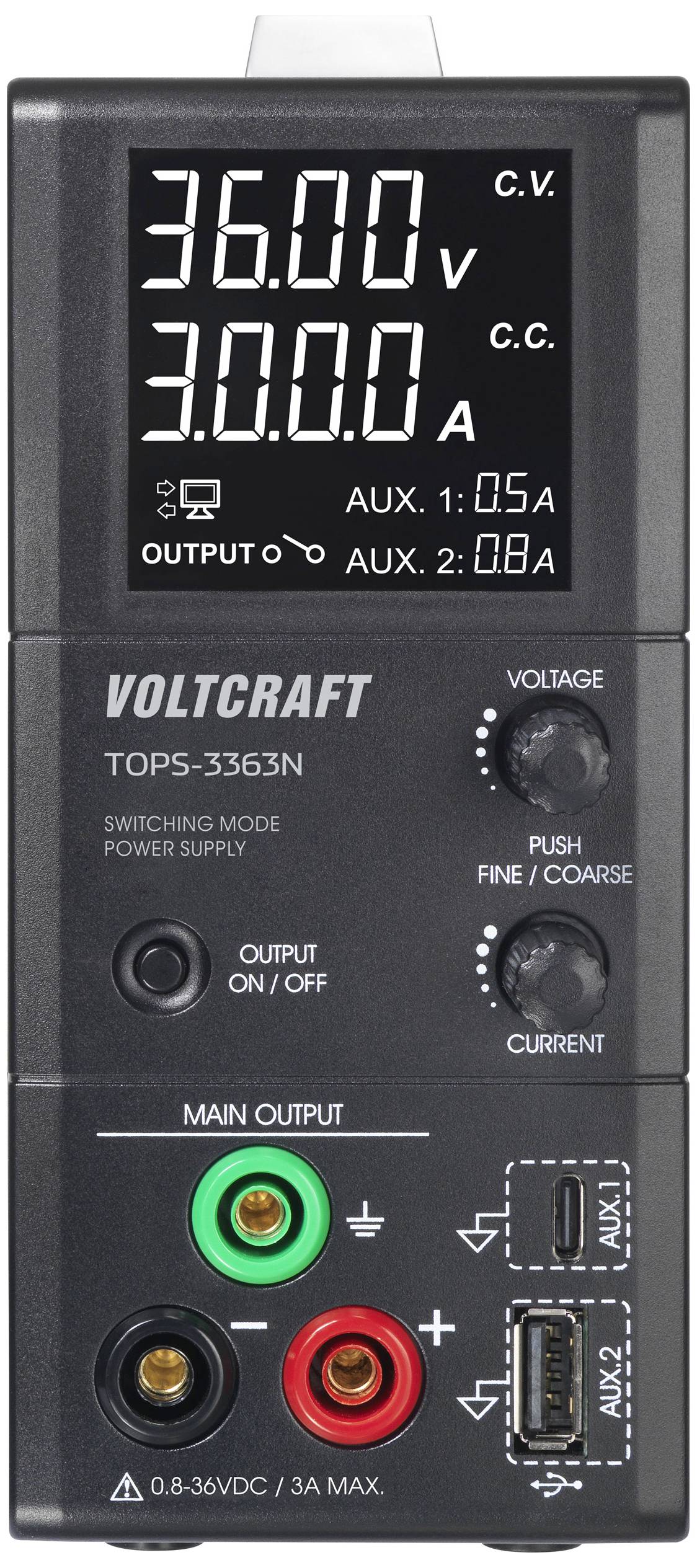

The laboratory power supply provides a controllable DC-output voltage and an additional 2 USB-outputs. The screen displays amperage and voltage readings for the adjustable output. Moreover, the output current values at both USB ports are shown. Enables precise voltage and amperage settings. Pressing the dials changes the cursor position while turning gradually changes the selected value. The DC outputs can be disabled by pressing a button. The laboratory power supply has an output voltage of 0.8 - 36 V/DC.
This text is machine translated.
This text is machine translated.
Features
- Open circuit current limiting function
- Automatic cross over CV and CC mode
- 4 digit display of Volt and Amp readings for main output
- Two auxiliary USB outputs
- 2 digit display of Amp meter readings for auxiliary USB outputs
- Coarse & fine voltage and current controls
- Compact slim tower housing
- Collapsible handle
- Output power on/off switch at front panel
- Tracking OVP (output over voltage protection)
- Short circuit, overload and over temperature protection
- Power factor correction (PFC) Passive
- Power factor (passive PFC) >0.68
- Rotary encoder control

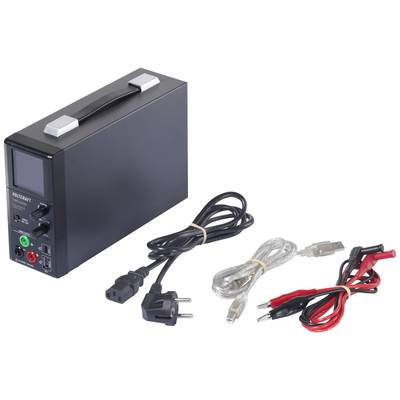

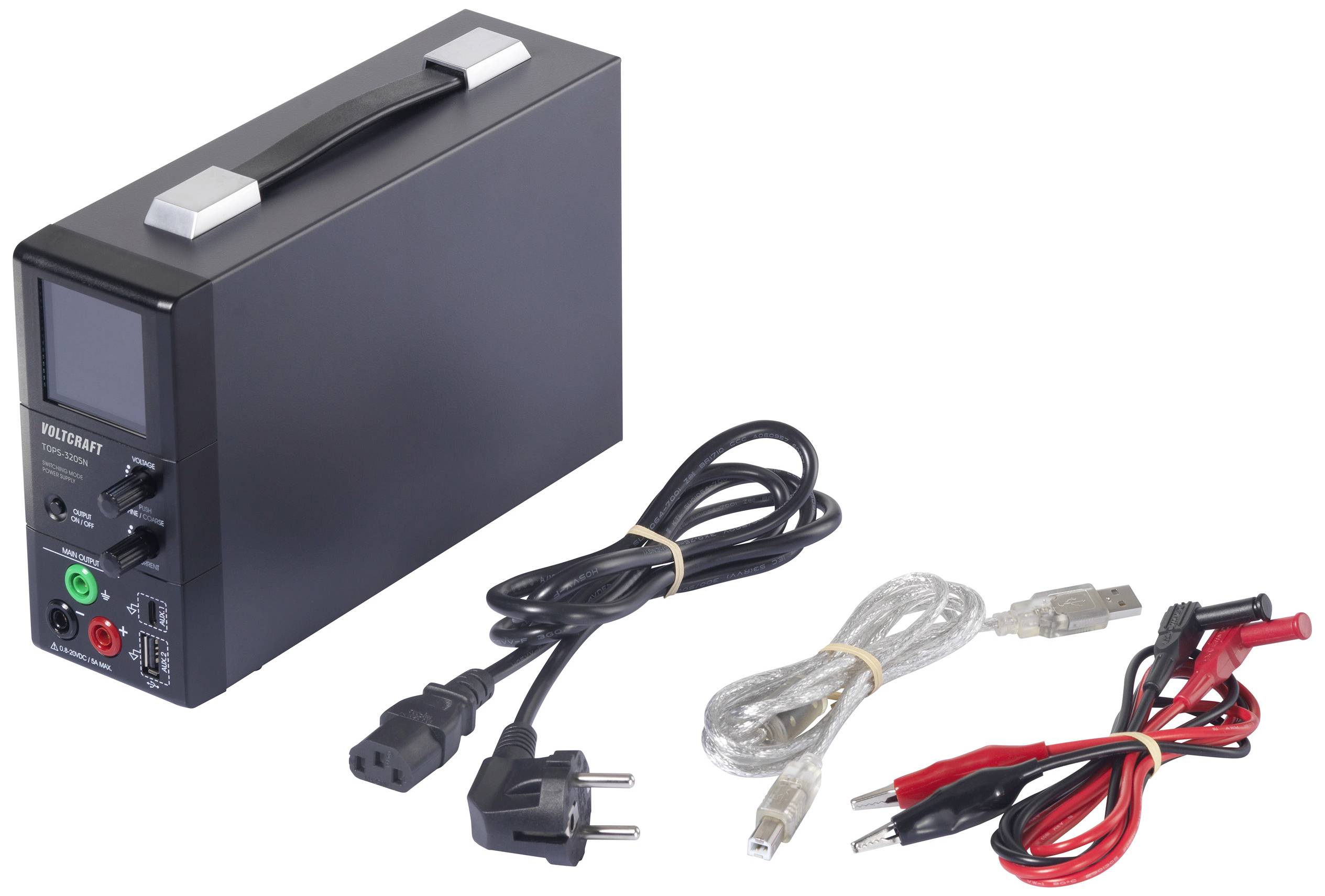

Scope of delivery
- Main unit
- Output cable with integrated safety plug and crocodile clips
- USB cable
- AC Power cord
- Manual
