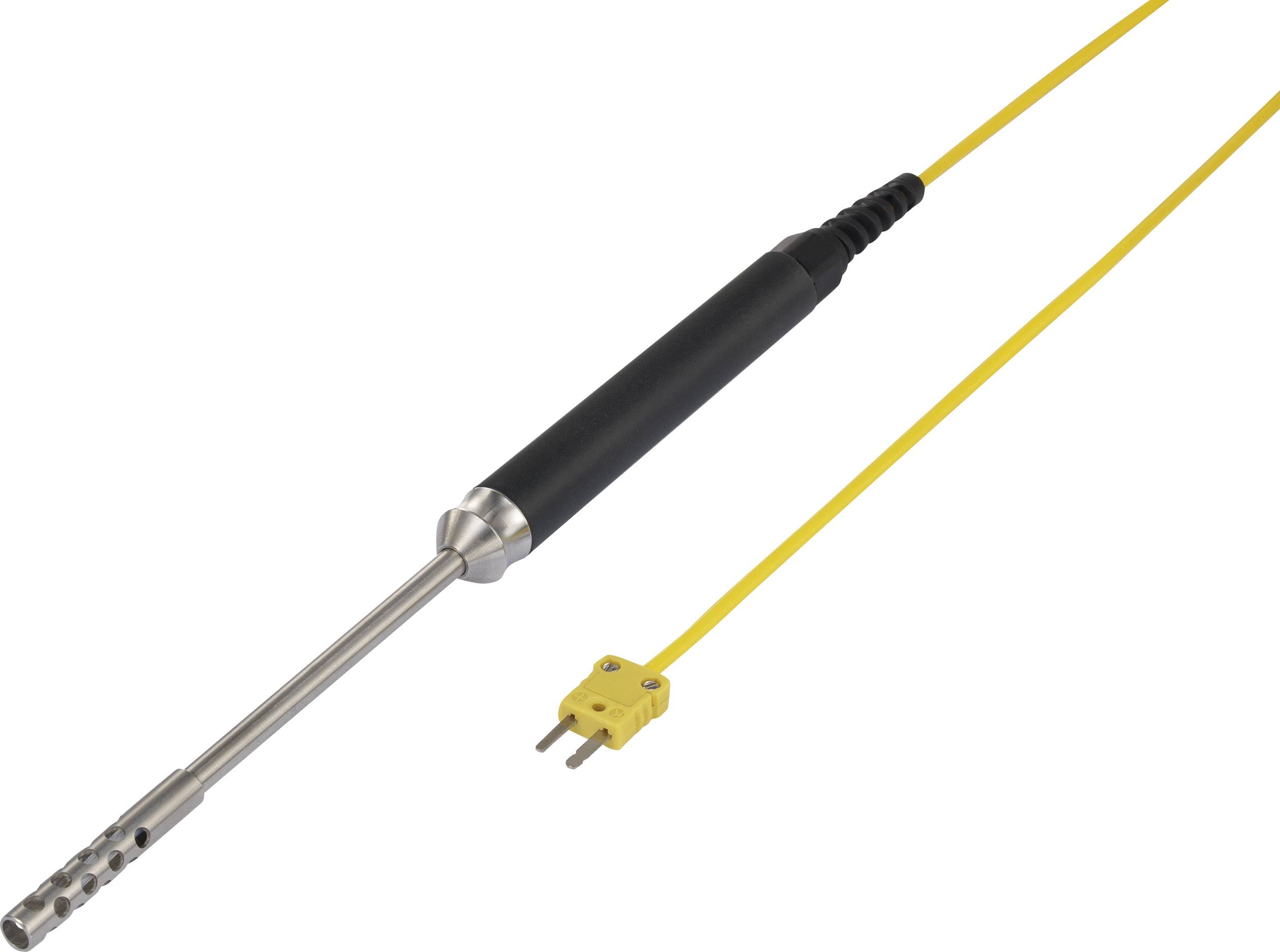

VOLTCRAFT TP-204 Air probe -100 up to 600 °C 1.00 m Sensor type K
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.08
3
4% = € 1.35
€ 29.73
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 31.08 / piece)
€ 32.76
-5 %
€ 31.08
plus VAT.
14-day return policy included
Highlights & Details
Air sensor K-type TP-204
Technical specifications
- Product type
Air probe
- Sensor type
K
- Temperature reading range (min.)
-100 °C
- Temperature reading range (max.)
600 °C
- Dim
(Ø) 6.4 mm
- Probe length
115 mm
Manufacturer's standards (no certificate)
- Connector
Heating element connector
- Weight
0.2 kg
- Cable length
1.00 m
- Temperature reading range
-100 up to 600 °C
- Temperature accuracy
2.5 °C
- (Ø)
6.4 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1661479 VOLTCRAFT TP-204 Air probe -100 up to 600 °C 1.00 m Sensor type K
Warranty Terms
Warranty Terms 1661479 VOLTCRAFT TP-204 Air probe -100 up to 600 °C 1.00 m Sensor type K
Description
The air sensor (type K) TP-204 from Voltcraft is particularly well suited for the temperature measurement of air and gases. The sensor can be -100 °C600 °C used for a temperature range of up to, making it suitable for common applications such as air conditioning, cooling, heating and ventilation, etc.
Features
- Tolerance class for thermocouple sensor IEC584
- Type K Class II.
- This text is machine translated.
Hints
With the K-type sensor element of class II a measurement up to +1200°C is possible. For safety reasons and for your protection during the measurement, however, only one application up to maximum 600 °C is recommended!
