VOLTCRAFT V-Charge 200 Duo Scale model multifunction charger 12 V, 230 V 10 A Lead-acid, NiMH, NiCd, LiPolymer, Li-ion,
EAN:
Part number:
Item no:
Highlights & Details
V-Charge 200 Duo Multifunction Charger
- 2 charging outputs
- Max. charging current: 10A
- Suitable for LiPo rechargeables
Technical specifications
- Operating voltage
11 - 18 V / DC
100 - 240 V / AC
- Max. charging capacity
200 W
- Charging current (max.)
10 A
- Max. discharge power
30 W
- Discharge current
5 A
- Charging slots
2
- Connector system
4 mm
- Balancer plug-in
XH
- Dim
(L x W x H) 170 x 205 x 56 mm
- Height
56 mm
- Length
170 mm
- Width
205 mm
- Matching rechargeable battery
Lead-acid
NiMH
NiCd
LiPolymer
Li-ion
LiHV
Lead-acid calcium
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (max.)
6
- Suitable for (No. of LiPo/LiIon/LiFe batteries) (min.)
1
- Suitable for (no. of NiCd/NiMH batteries) (max.)
15
- Suitable for (No. of NiCd/NiMH batteries) (min.)
1
- Suitable for lead-type rechargeables (max.)
20 V
- Suitable for lead-type rechargeables (min.)
2 V
- Manufacturer part #
1539603
- Operating voltage
12 V
230 V
- Weight
1300 g
- Plastic free packaging
Plastic-free packaging
- Product type
Scale model multifunction charger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1539603 VOLTCRAFT V-Charge 200 Duo Scale model multifunction charger 12 V, 230 V 10 A Lead-acid, NiMH, NiCd, LiPolymer, Li-ion,
Information
Information 1539603 VOLTCRAFT V-Charge 200 Duo Scale model multifunction charger 12 V, 230 V 10 A Lead-acid, NiMH, NiCd, LiPolymer, Li-ion,
Warranty Terms
Warranty Terms 1539603 VOLTCRAFT V-Charge 200 Duo Scale model multifunction charger 12 V, 230 V 10 A Lead-acid, NiMH, NiCd, LiPolymer, Li-ion,
Description

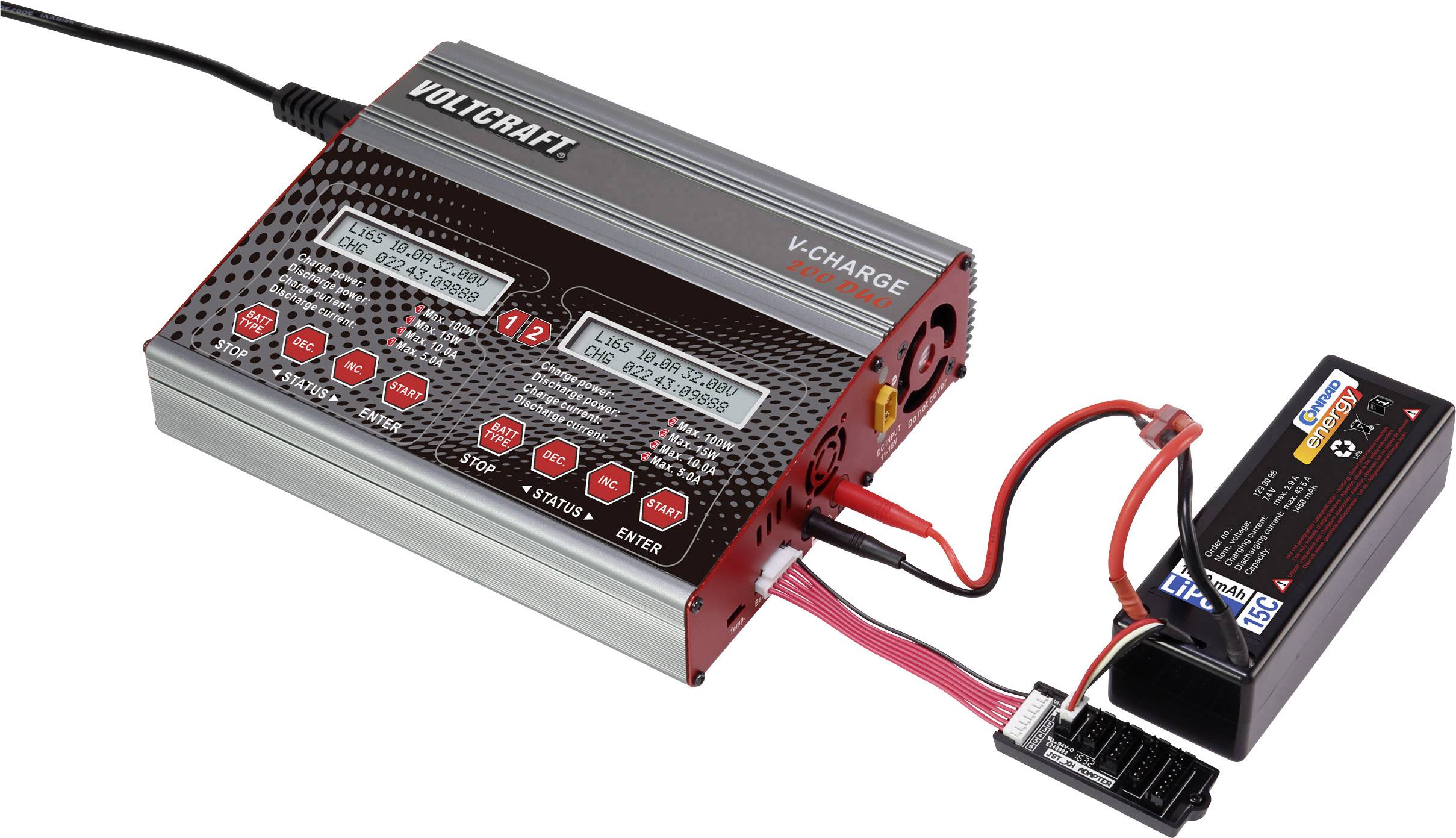

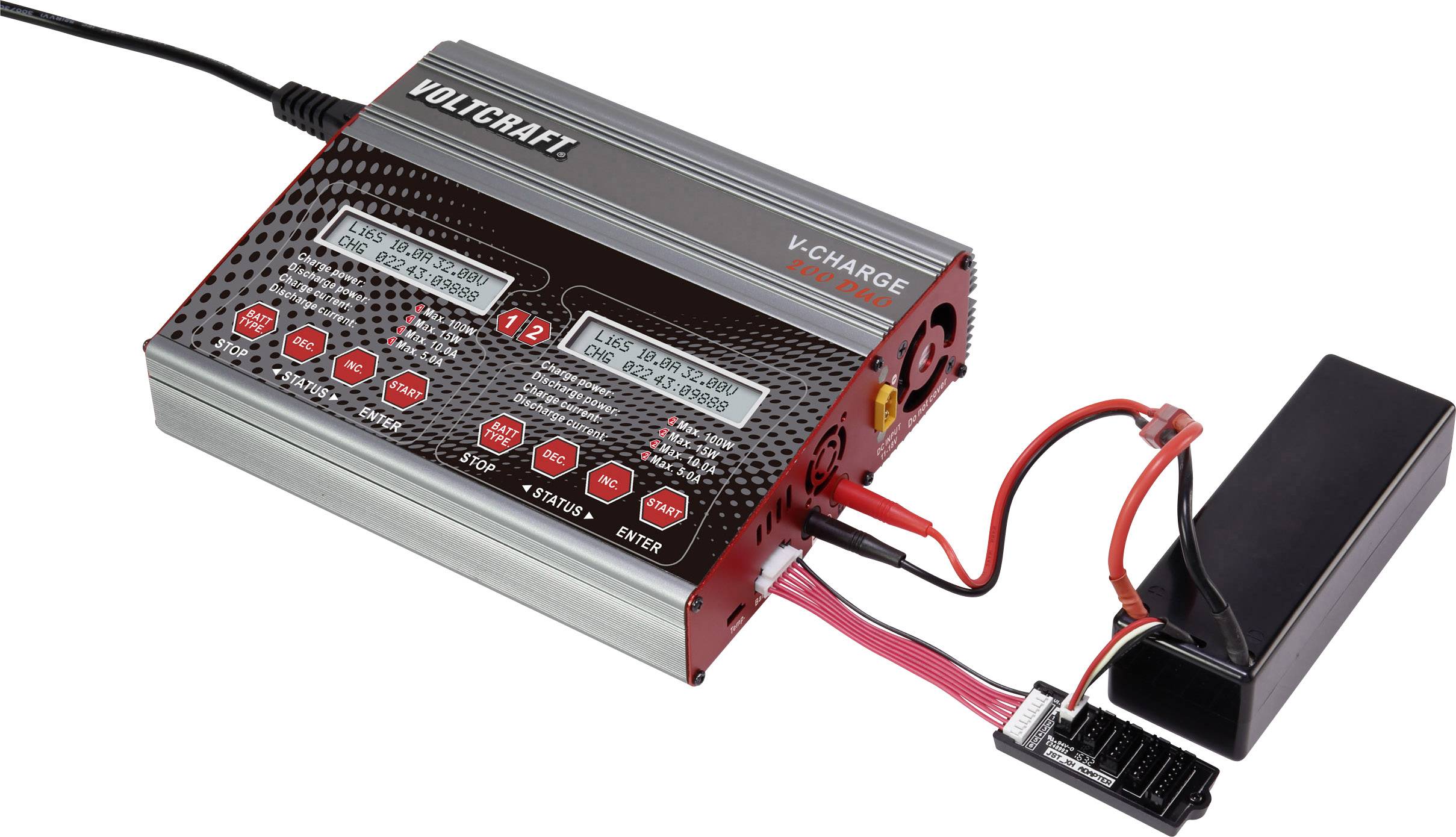

The V-Charge 200 Duo multifunction charger has been designed for a wide range of rechargeables, making it an ideal allrounder for all ambitious model makers. It allows charging 2 batteries at the same time. Which makes makes time-consuming charging of one battery after another a thing of the past. Also lets you select battery type and charging/discharging settings individually. The charger can be powered both by 11-18 V DC and by 100V-240V mains using the built-in power supply unit. At home, when travelling, or at the airport, V-Charge 200 Duo is always a perfect choice.
Features
- High-quality aluminium enclosure
- LC display
- Easy-to-operate user interface
- Soft-touch buttons
- Built-in fan
- Built-in balancers
- Variety of charging/discharging settings
- Also suitable for LiHV batteries
- LiPo meter
- Temperature probe jacks
Scope of delivery
- Battery charger
- Power cord
- DC cable
- 2x charging cables with T connectors
- 2x XH balancer adapter board
- User manual (CD).
