VOLTCRAFT VC-15D Clamp meter adapter A/AC reading range: 10000 A (max) Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Highlights & Details
VOLTCRAFT VC-15D Flex current clamp 10 mA - 10,000 A CAT IV 600 V CAT III 1000
- CAT IV 600 V / CAT III 1000 V
- 6000 counts
- 10 mA to 10000A
- Frequency response (ACA): 45 Hz - 500 Hz
- Opening range of current clamps 1100 mm
- Measurement types: AC/DC voltage, resistance, continuity, frequency, AC current, inrush
- True RMS
Technical specifications
- Opening range of current clamps
1100 mm
- Basic accuracy
2 %
- Power supply (details)
AAA x 3, 4.5 V
- Dim
(L x W x H) 145 x 58 x 33 mm
- Weight
258 g
- Current reading
AC
- Height
33 mm
- Length
145 mm
- Width
58 mm
- Max. frequency
30 kHz
Manufacturer's standards (no certificate)
- Features
Flexible
- Reading category
CAT III 1000 V
CAT IV 600 V
- Amperage reading range AC (max.)
10000 A
- Plastic free packaging
Plastic-free packaging
- Product type
Clamp meter adapter
Documents & Downloads
Datasheet
Datasheet 3500058 VOLTCRAFT VC-15D Clamp meter adapter A/AC reading range: 10000 A (max) Flexible
User & Safety Instructions
User & Safety Instructions 3500058 VOLTCRAFT VC-15D Clamp meter adapter A/AC reading range: 10000 A (max) Flexible
Warranty Terms
Warranty Terms 3500058 VOLTCRAFT VC-15D Clamp meter adapter A/AC reading range: 10000 A (max) Flexible
Description

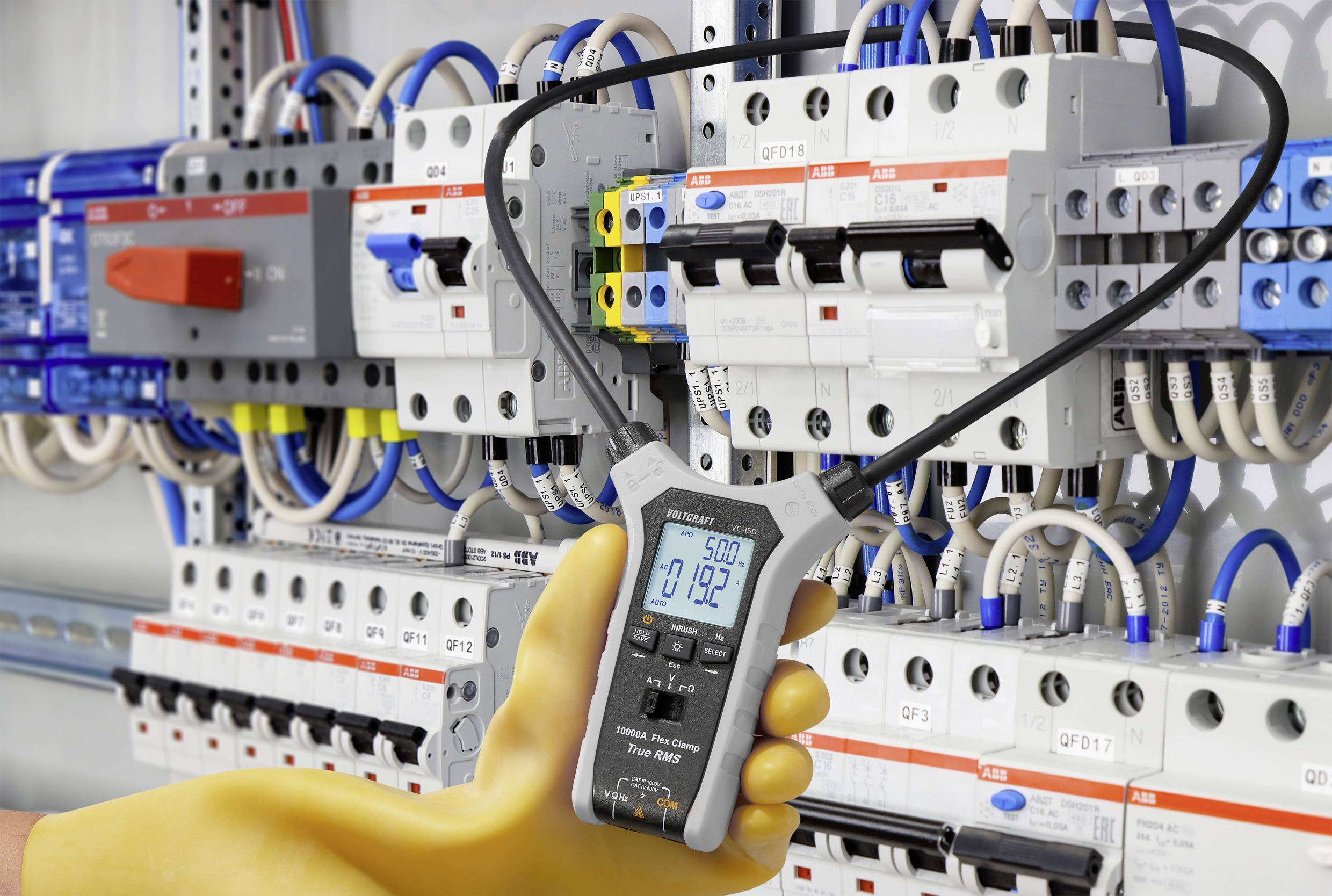

The clip-on ammeter VOLTCRAFT VC-15D Flex is not only useful for electricians, but also for electrical installers, who need to carry out frequent and fast electrical tests every day. The clamp enables AC and DC voltage measurements and resistance measurements and helps in the testing of circuit or diode continuity. The VX-15D Flex provides for safe and stable operation as well as reliability.
This text is machine translated.
This text is machine translated.
Features
- AC/DC voltage measurement: up to 1000 V
- Current range: up to 10000 A (auto ranging for each level)
- 6000 A inrush current measurement
- Capable of withstanding a 1000 V (30 KVA) energy impact
- Sampling rate: 3 times/s
- Data hold function
- Backlight

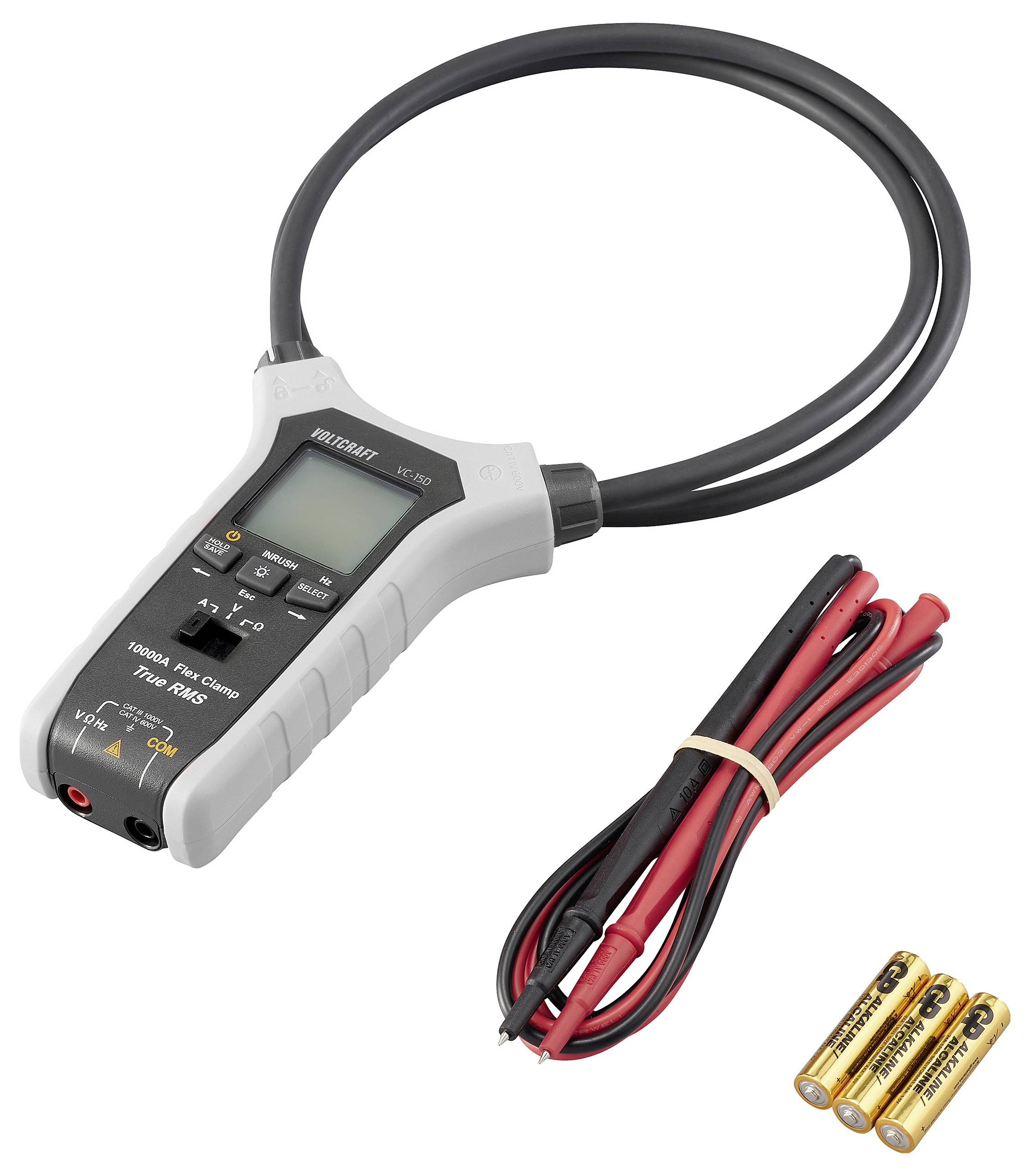

Scope of delivery
- Clamp meter
- 3x AAA batteries
- 1x test leads pair
- User manual
