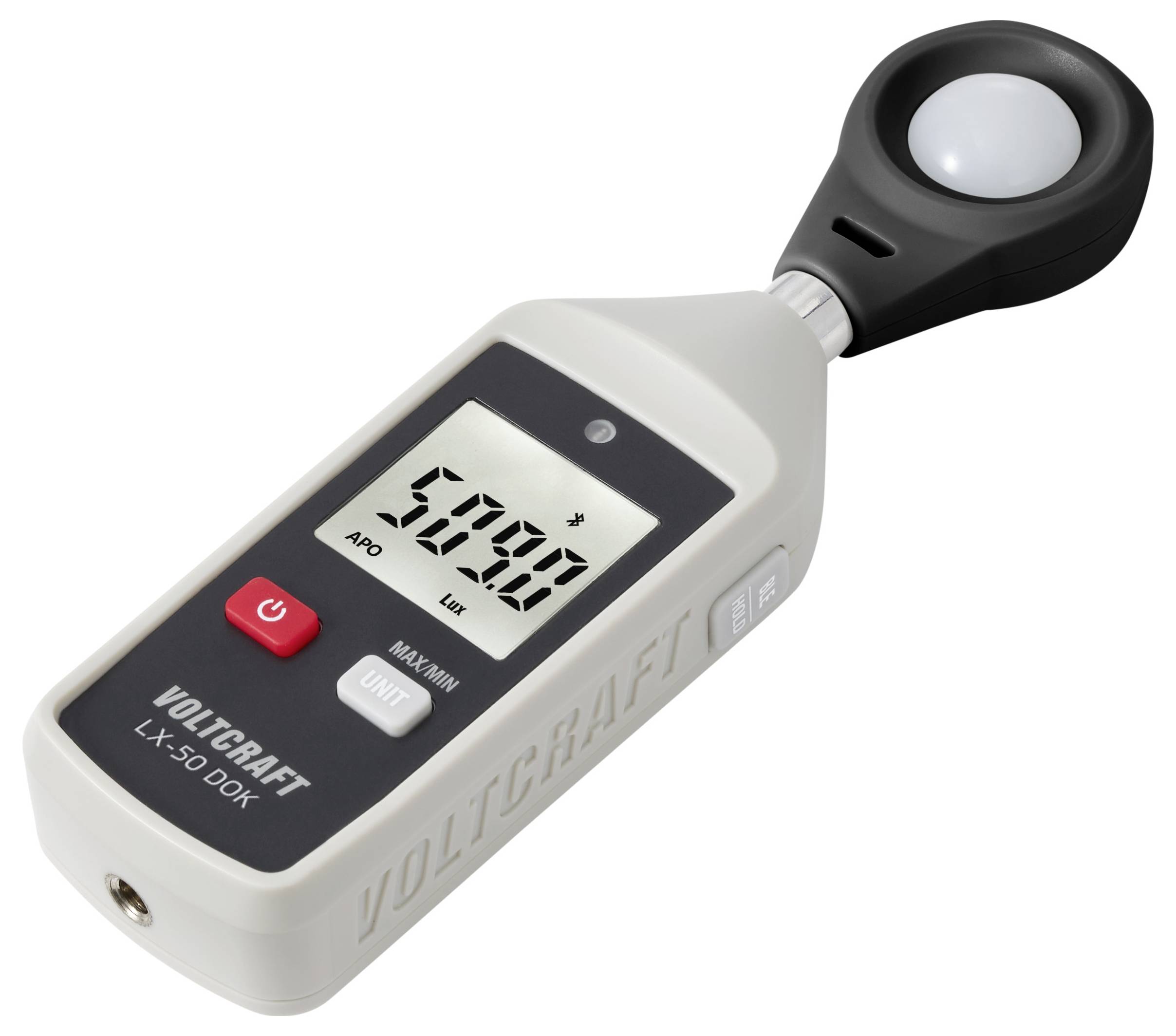

VOLTCRAFT VC-18702800 LX-50 DOK Lux meter 0 - 200000 lx
EAN:
Part number:
Item no:
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
14-day return policy included
Highlights & Details
VOLTCRAFT LX-50 DOK Light meter with reporting function
- Large LCD display
- Light measurement
- Lux/fc selection
- Bluetooth PDF data report
- Auto backlight on/off function
Technical specifications
- Light measurement range: 0 to 200,000 Lux / 0 to 20,000 fc
- Resolution: 0.1 Lux (< 1,000 Lux), 1 Lux (< 10,000 Lux), 10 Lux (< 100,000 Lux), 100 Lux (< 200,000 Lux)
- Accuracy: ±4 % ±8 rdg (< 10,000 Lux) / ±5 % ±10 rdg (> 10,000 Lux)

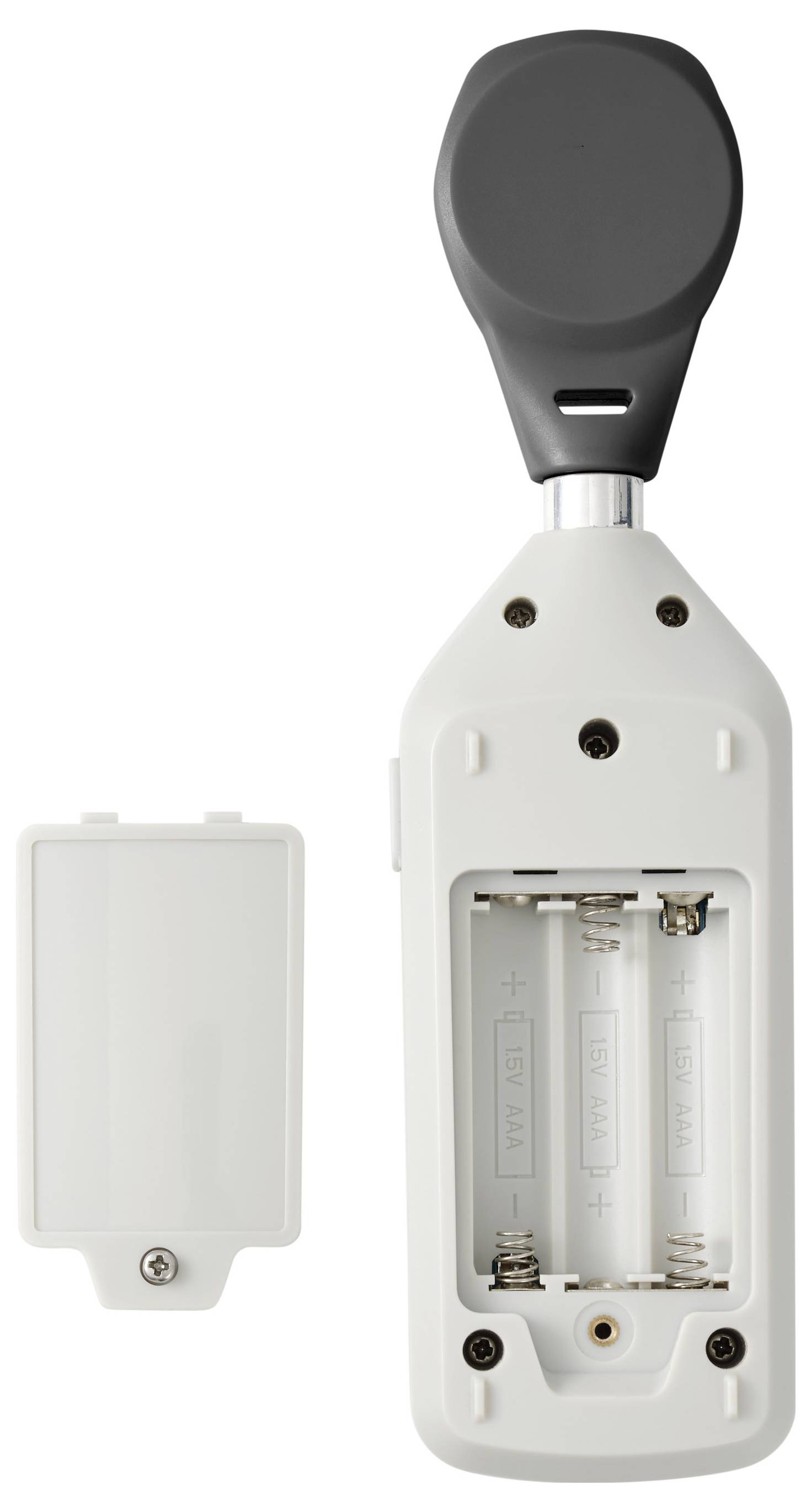

- Power: 3x 1.5 V AAA batteries
- LCD size: 32.4 x 29.4 mm
- Product type
Lux meter
- Reading type
Light intensity
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 183.8 x 30 x 50.9 mm
- Display
Digital
- Weight
107 g
- Illuminance reading range
0 - 200000 lx
- Illuminance reading range (max.)
200000 lx
- Illuminance reading range (min.)
0 lx
- Illuminance reading accuracy
4 %
- Width
30 mm
- Height
50.9 mm
- Length
183.8 mm
- Interfaces
Bluetooth®
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740560 VOLTCRAFT VC-18702800 LX-50 DOK Lux meter 0 - 200000 lx
Warranty Terms
Warranty Terms 3740560 VOLTCRAFT VC-18702800 LX-50 DOK Lux meter 0 - 200000 lx
Description
The VOLTCRAFT LX-50 DOK Luxmeter is a handy measurement device for capturing the illumination strengths in the commercial sector. It provides reliable measurements and supports documentation in facility management.
Wider measuring range
The device measures illumination strengths from 0 to 200,000 Lux with an accuracy of ±4 % (under 10,000 Lux). Users can switch flexibly between the units Lux and fc to evaluate lighting in different working environments and halls as required.

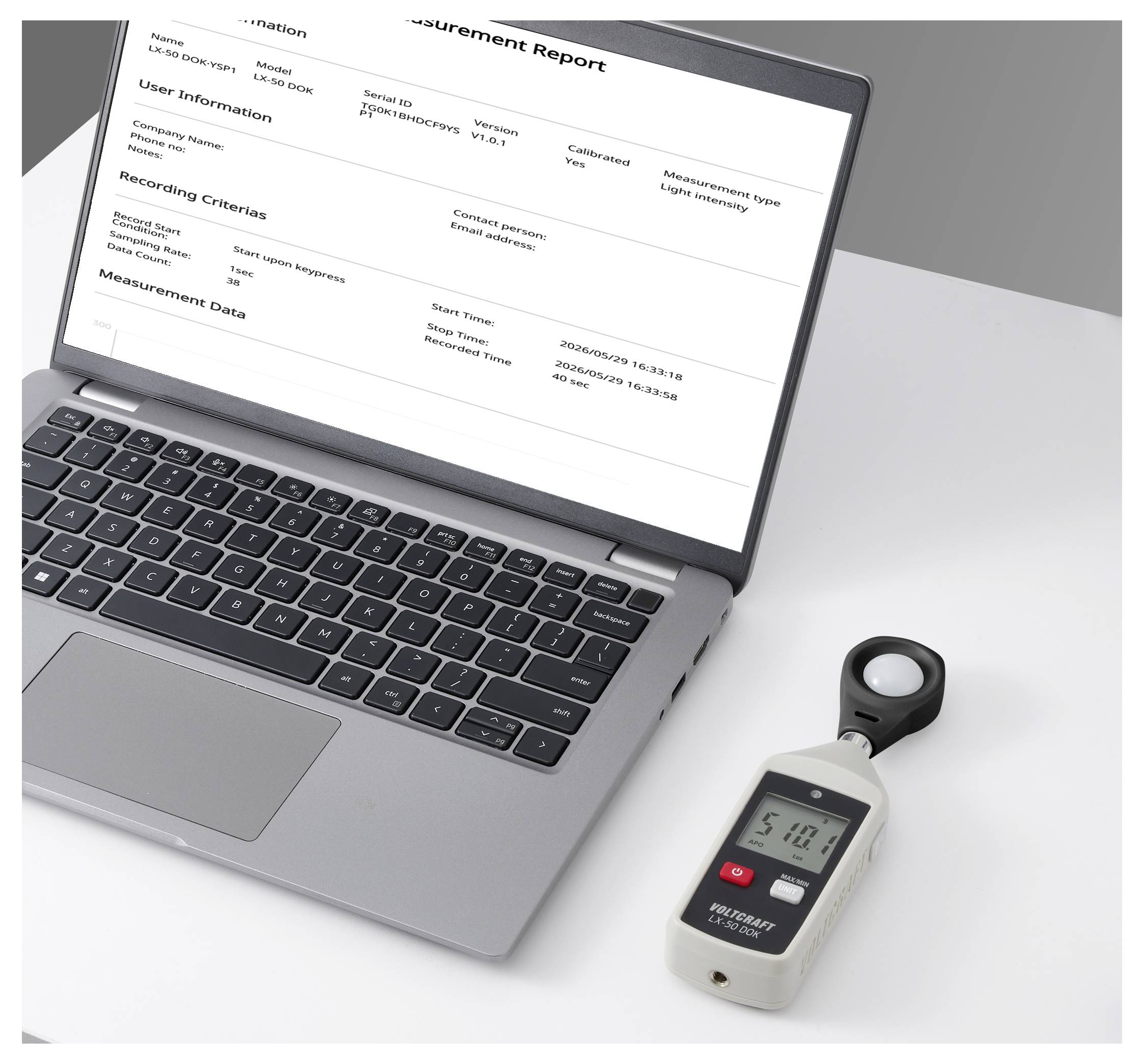

Creation of audit reports

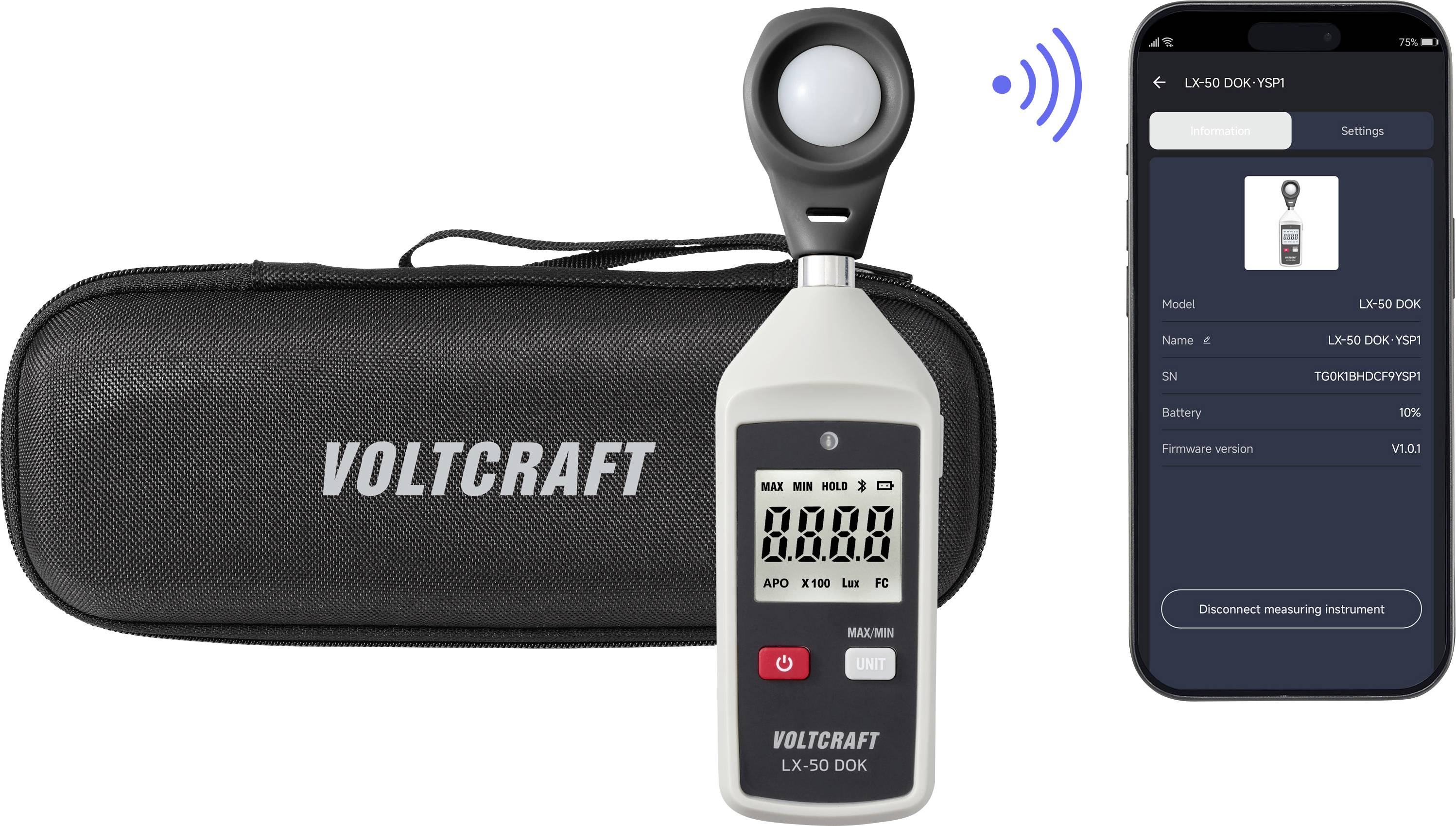

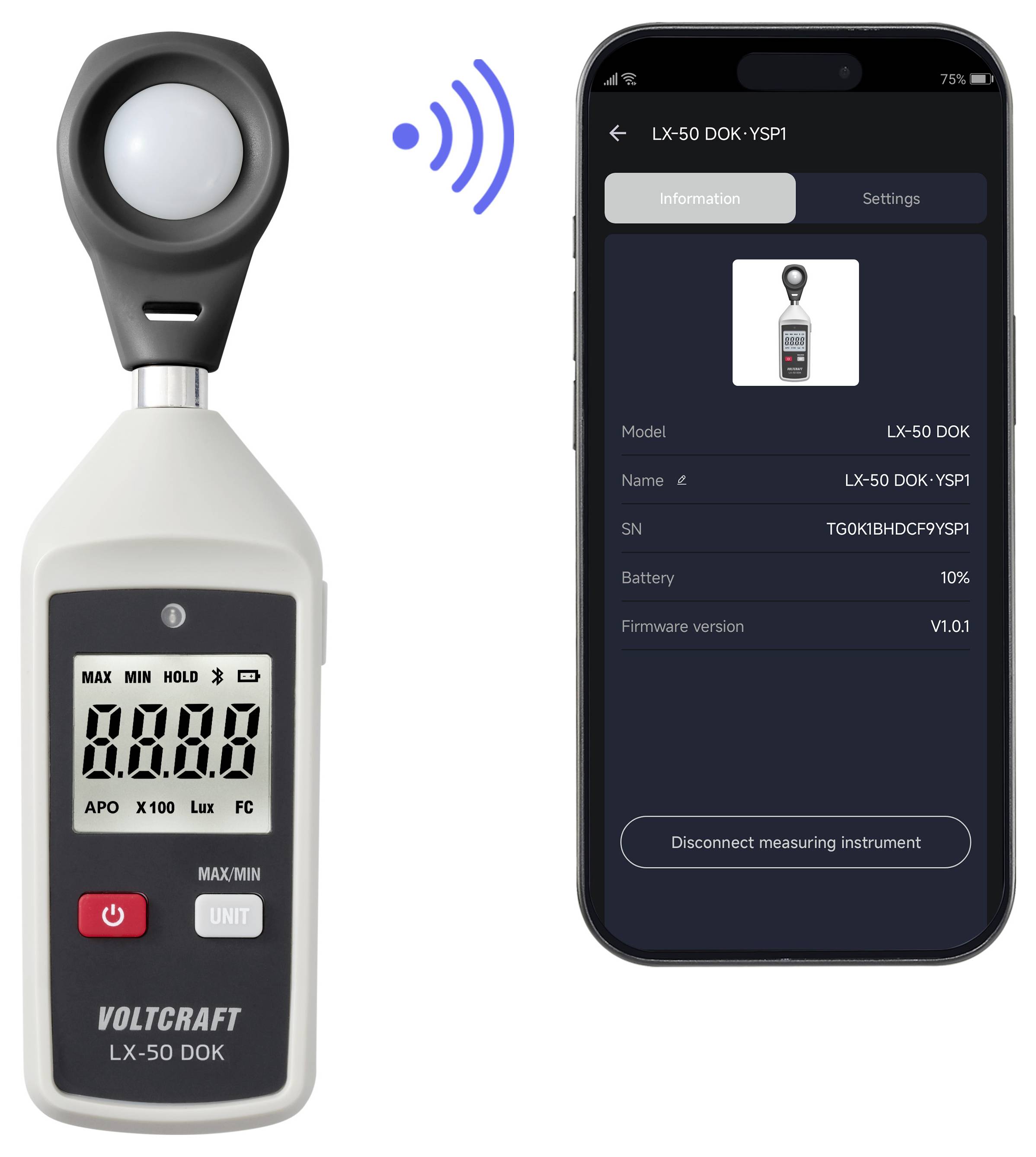

Built-in Bluetooth® technology allows the captured light values to be transmitted wirelessly to a APP. This generates PDF data logs and simplifies the documentation of workplace lighting.
Easy to use
The LCD display has an automatic backlight that can be switched on and off for good readability. The data-hold function, an automatic disconnection after approx. five minutes and the battery status display support the professional user in his measuring tasks.
Wider measuring range
The device measures illumination strengths from 0 to 200,000 Lux with an accuracy of ±4 % (under 10,000 Lux). Users can switch flexibly between the units Lux and fc to evaluate lighting in different working environments and halls as required.
Creation of audit reports
Built-in Bluetooth® technology allows the captured light values to be transmitted wirelessly to a APP. This generates PDF data logs and simplifies the documentation of workplace lighting.
Easy to use
The LCD display has an automatic backlight that can be switched on and off for good readability. The data-hold function, an automatic disconnection after approx. five minutes and the battery status display support the professional user in his measuring tasks.
Features
- Over range display: "OL"
- Data hold function
- Unit selection: Lux, fc
- Auto backlight on/off function
- Auto power off (approx. 5 mins)
- Low battery indication
- Bluetooth app for one-point PDF report generation

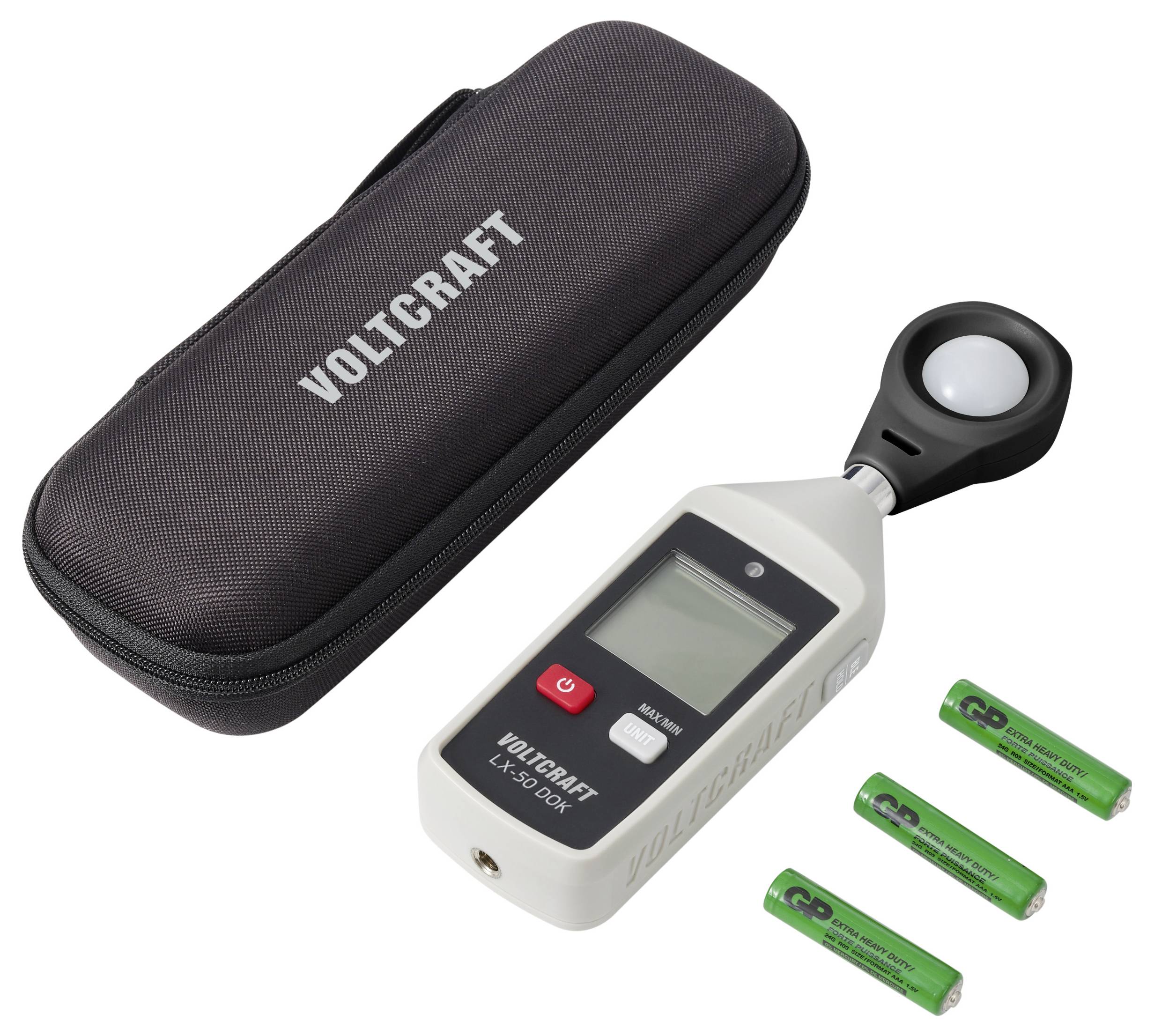

Scope of delivery
- Light meter
- User manual

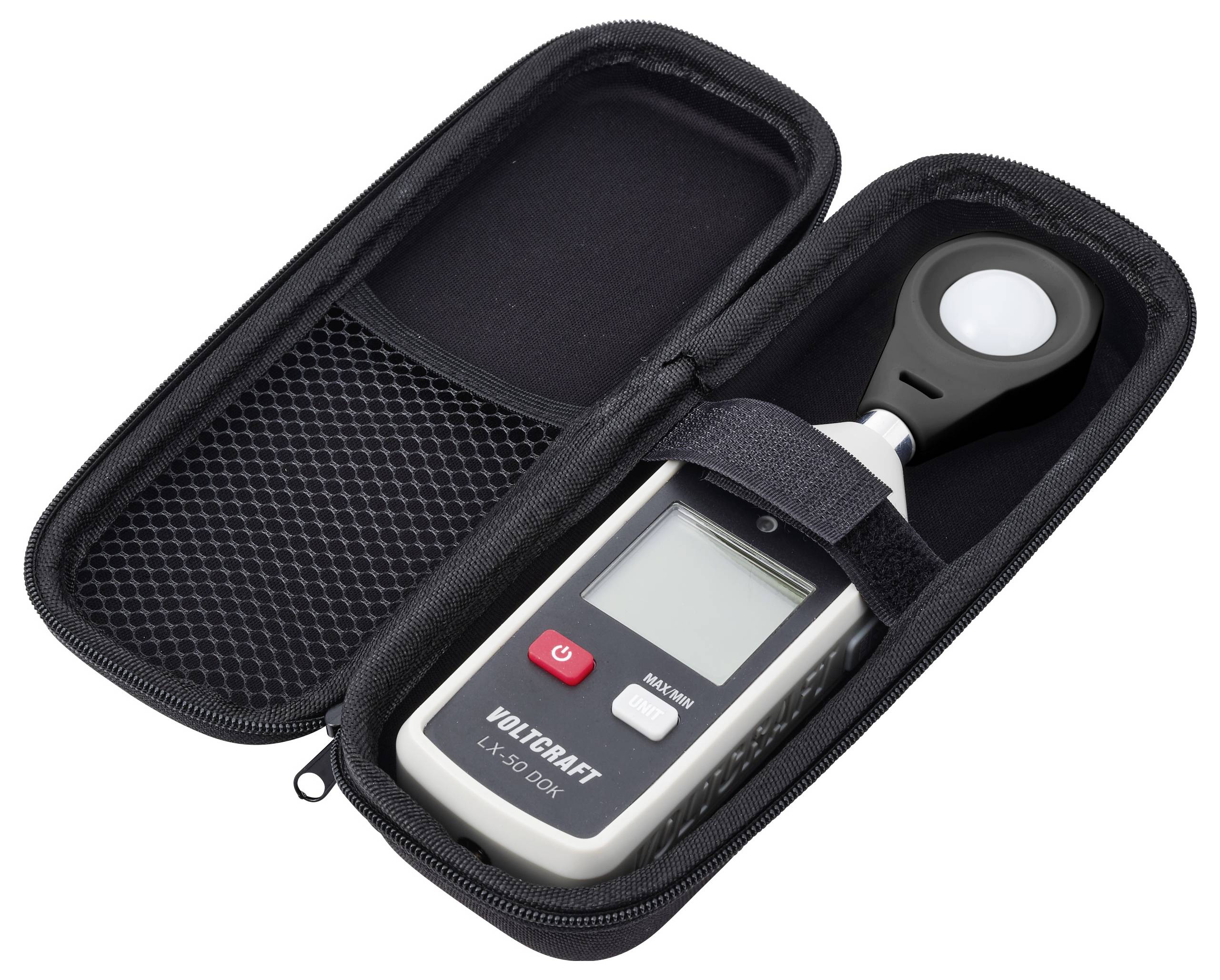

- Carrying bag
- 3x AAA batteries
