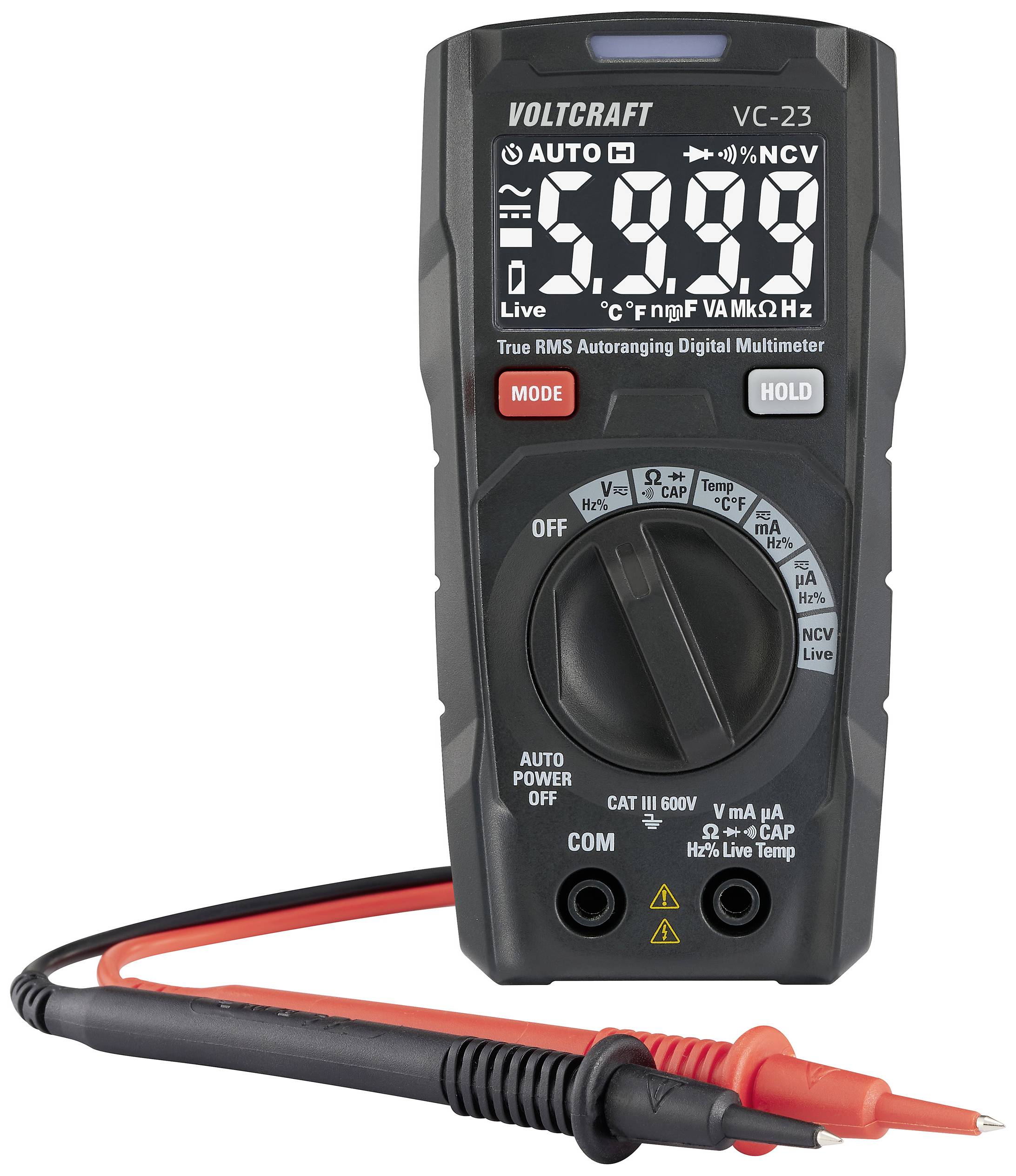

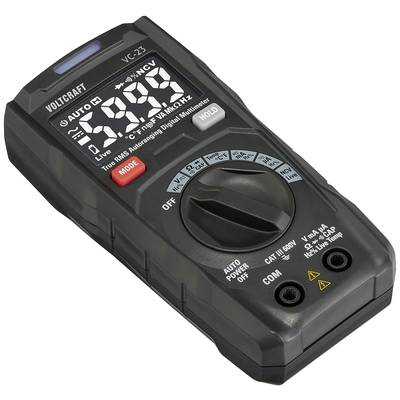

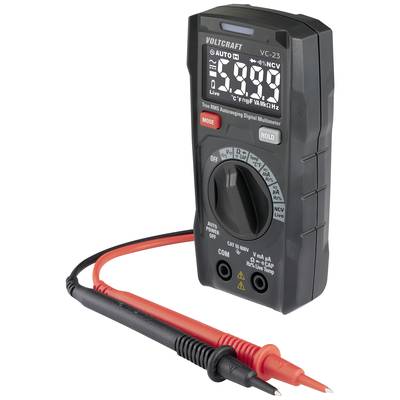

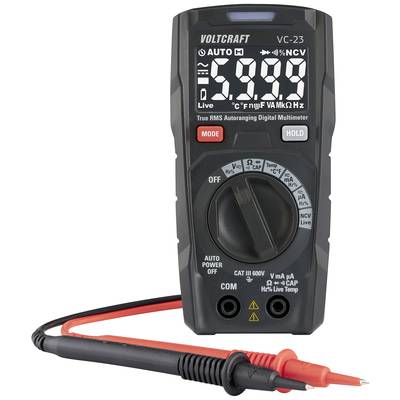

VOLTCRAFT VC-23 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Highlights & Details
VC-23
- CAT III 600 V, insulation class 2
- 6000 counts, negative LCD
- Real-time measurements
- True RMS
- Automatic range selection
- Non-contact voltage detection (NCV)
- ISO-calibrated
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
600 mA
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
600 mA
- Reading range - resistance
0 Ω to 60 MΩ
- Reading range - capacity
10 nF to 99 mF
- Frequency reading range
10 Hz to 100 kHz
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
50 Hz to 1 kHz (sine wave); 50 to 60 Hz (all waves) Hz
- Interfaces
none
- Power supply (details)

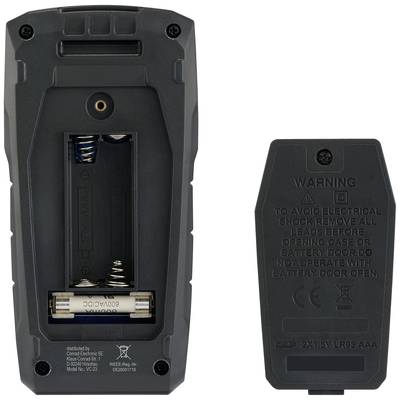

2x AAA battery
- Height
129 mm
- Width
32 mm
- Length
65 mm
- Weight
130 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC-23
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 65 x 32 x 129 mm
- Temperature reading range (max.)
760 °C
- Temperature reading range (min.)
20 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3394371 VOLTCRAFT VC-23 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
Warranty Terms
Warranty Terms 3394371 VOLTCRAFT VC-23 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
Description
The Voltcraft VC-23 SE handheld multimeter has been designed for use at home. The pocket-sized BT-22 can be held in one hand, and is well suited for a wide range of measurement tasks.
Intel intelligent contactless measurement of electrical fields (NCV)
The electrical field strength is shown in the traffic light principle. Green stands for weak fields, yellow for medium-strong fields and red for very high field strengths. At the same time an acoustic signal sounds.
This text is machine translated.
Intel intelligent contactless measurement of electrical fields (NCV)
The electrical field strength is shown in the traffic light principle. Green stands for weak fields, yellow for medium-strong fields and red for very high field strengths. At the same time an acoustic signal sounds.
This text is machine translated.
Features

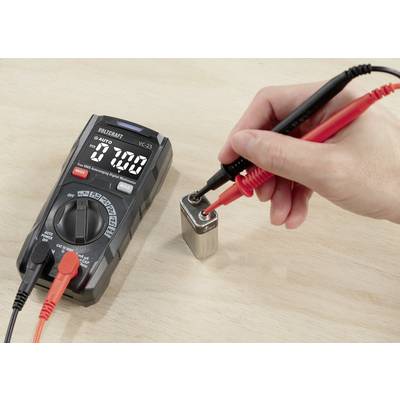

- Measurement of AC / DC voltages
- Measurement of alternating currents (frequency / cycle times)
- Measures DC currents
- Resistance measurements
- Capacity measurements
- Diode measurements
- Continuity testing

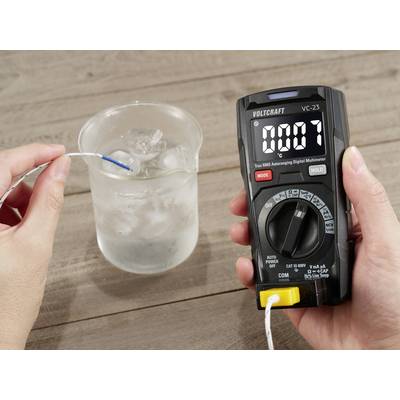

- Temperature measurements
- Data hold function
- Battery charge indicator
- Auto switch-off

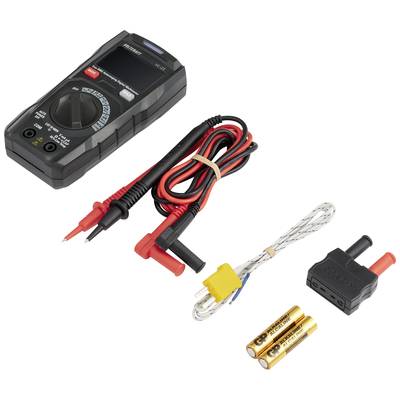

Scope of delivery
- Digital multimeter
- 2x AAA battery
- Test conductor (1 pair)
- Temperature sensor
- Temperature adapter
- User manual
Hints
Reliable readings thanks to ISO calibration
Diagnostics tools used in an environment that complies with ISO 9001 standards require ISO calibration. Moreover, most safety inspectors as well as accredited testing and certification bodies need to use ISO-certified equipment.
