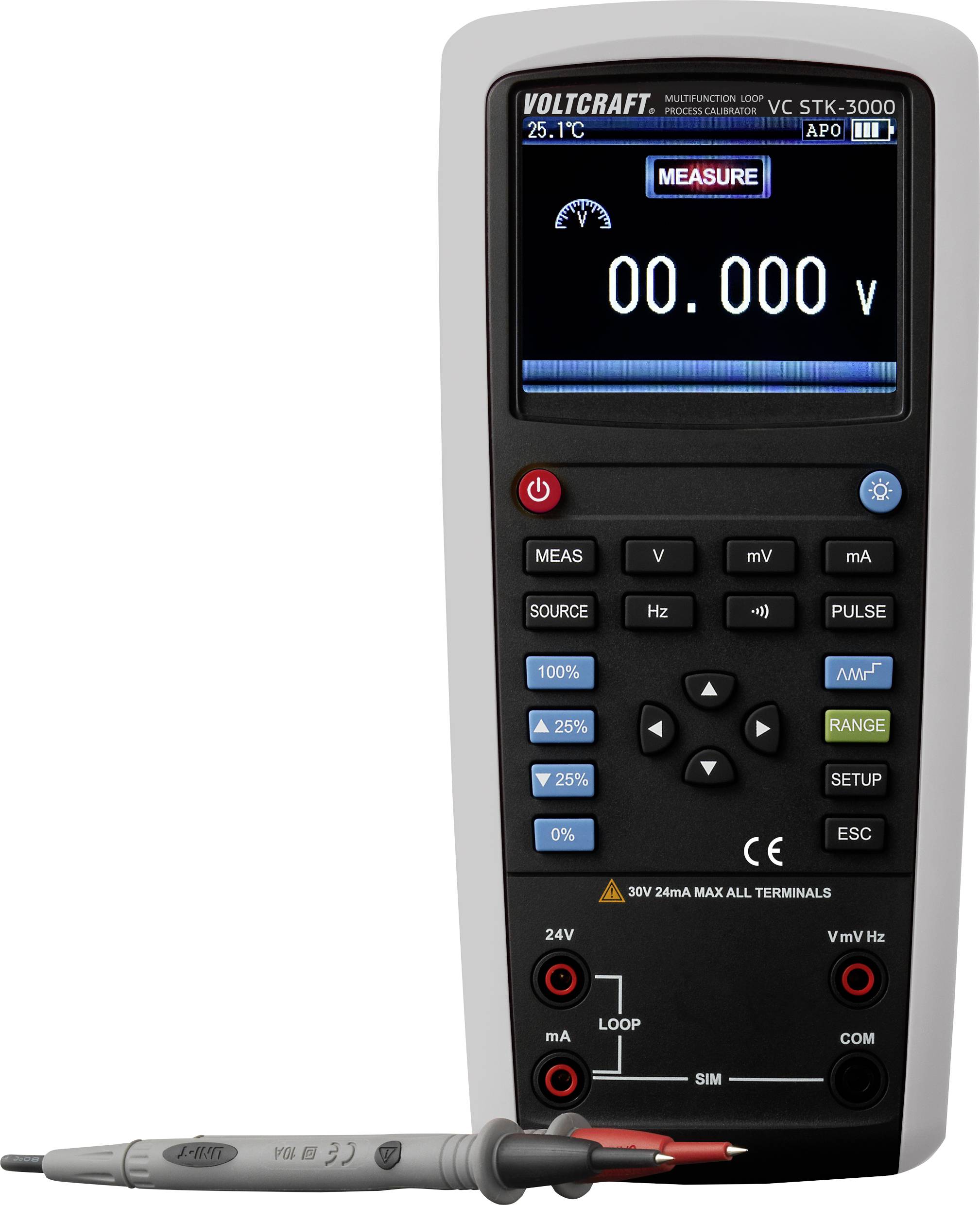

Multimeter in measurement mode displays '0.000 V'. Colourful buttons for control, rotary dial below. Accessory cable lies beside it.

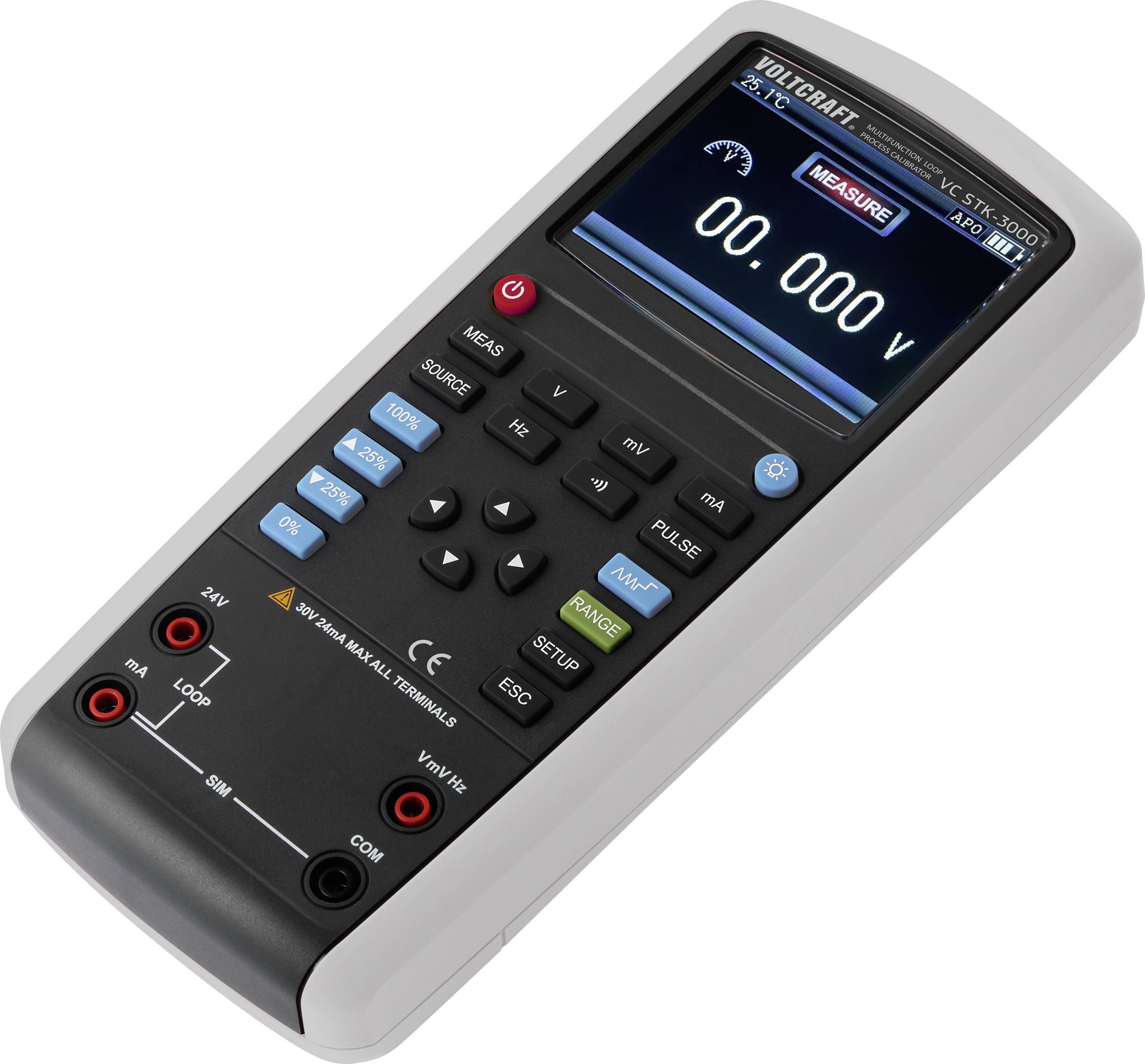

A handheld multimeter with a display shows '0.000 V' in blue text. Various control buttons are positioned underneath.

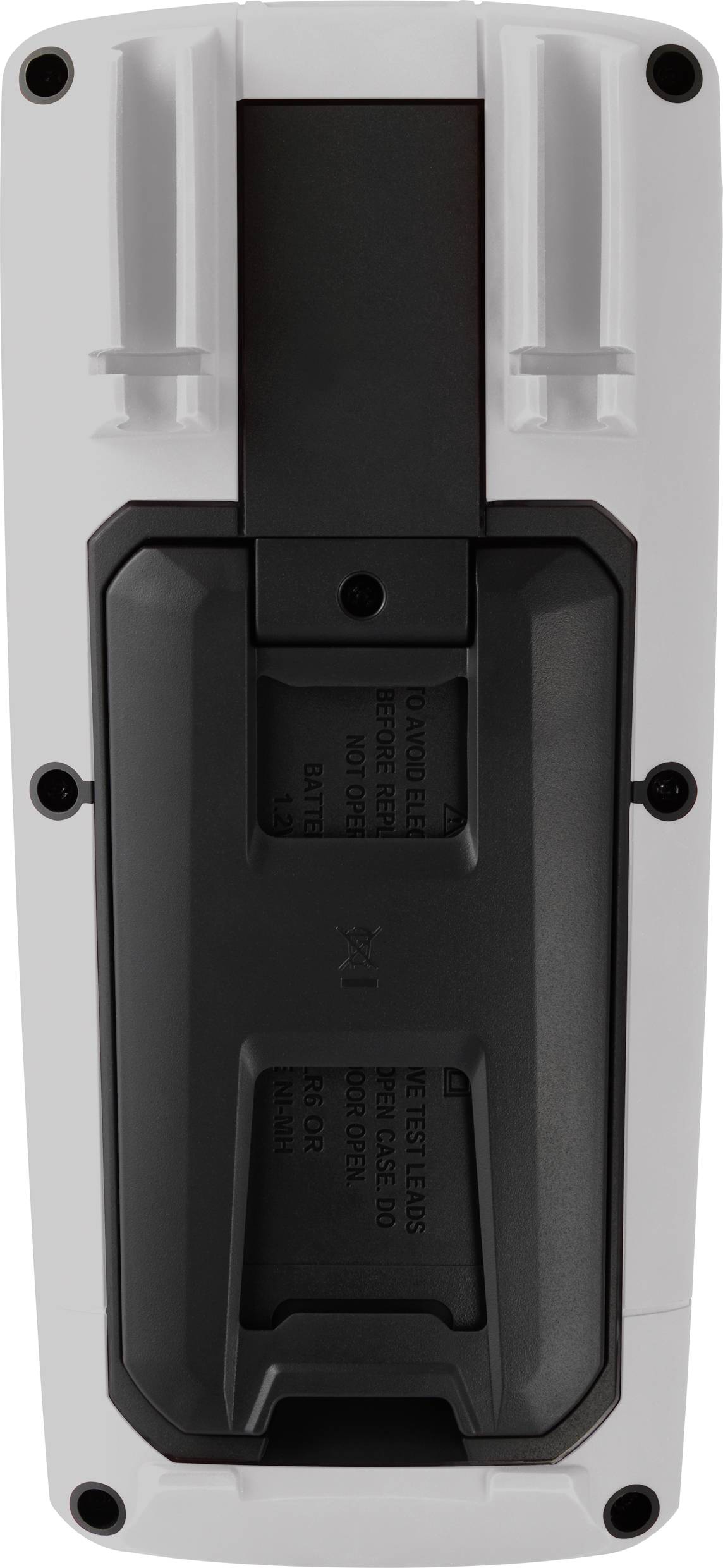

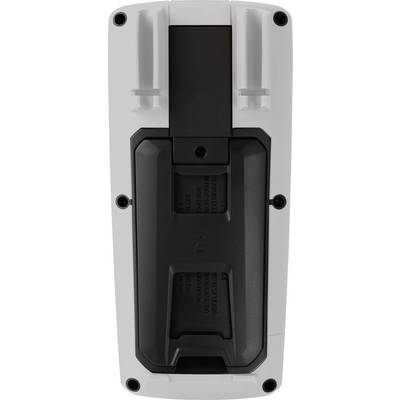

Back of a white electronic device with a black plastic compartment, likely for batteries or connections.

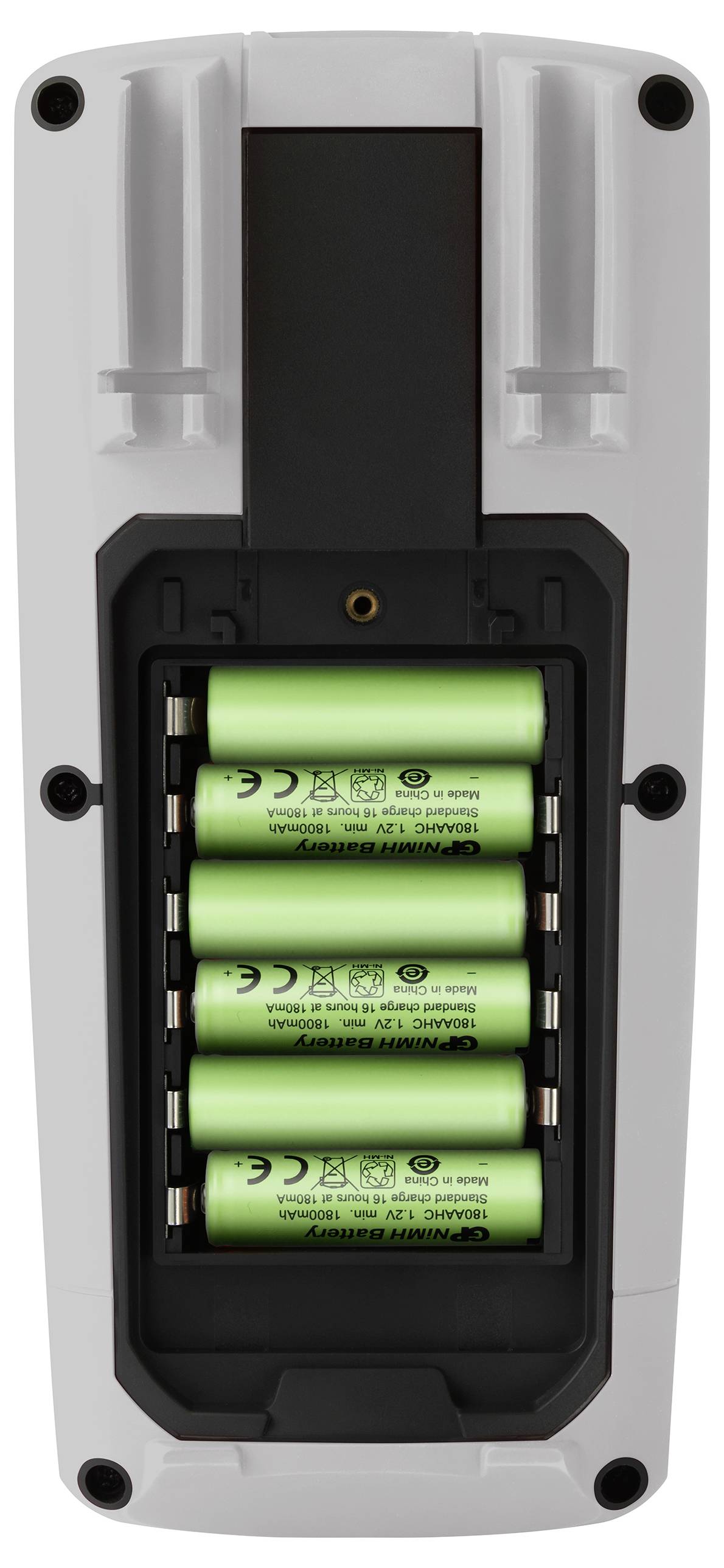

Back of a device with an open battery compartment containing four green AA batteries.

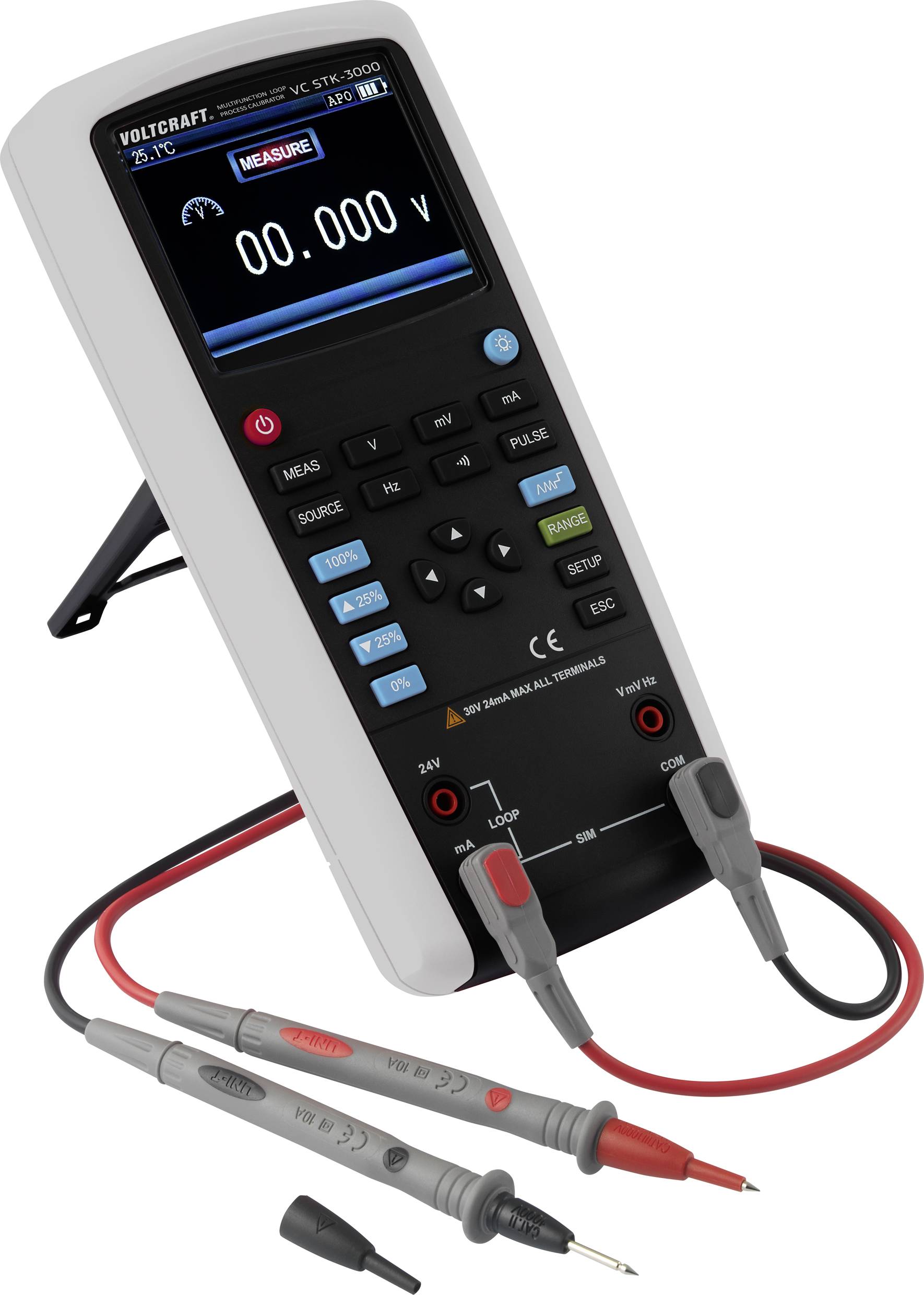

Multimeter with a digital display, showing '00.00 V'. Contains control buttons, cables with test probes and is connected to a holder.<br><br>Translation note: This is British English translation maintaining the original technical description.

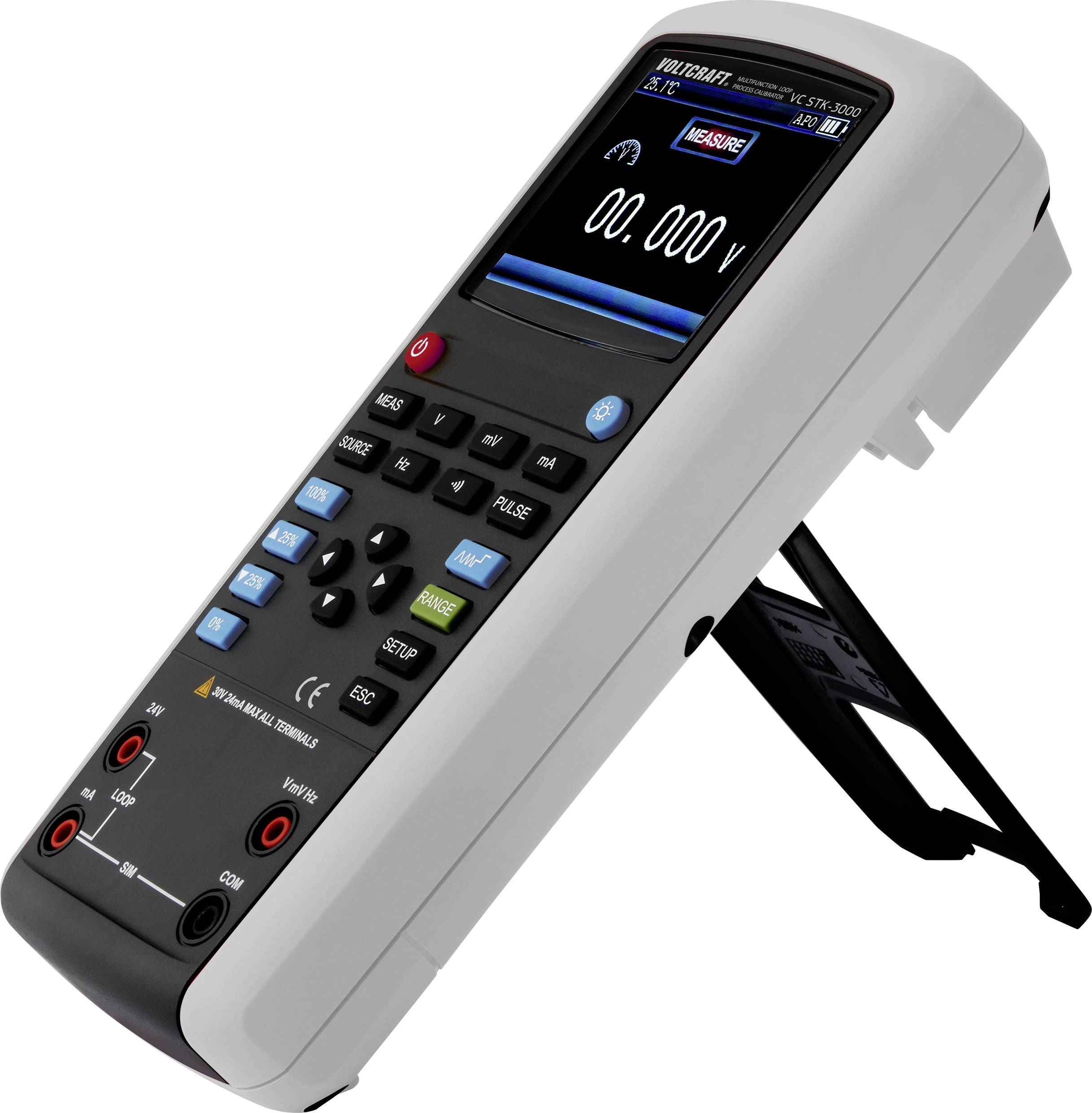

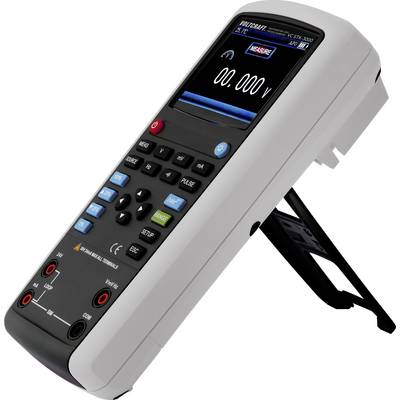

Portable measuring device with a colour display and multiple control buttons, displaying digital measurements. Positioned on a stand.

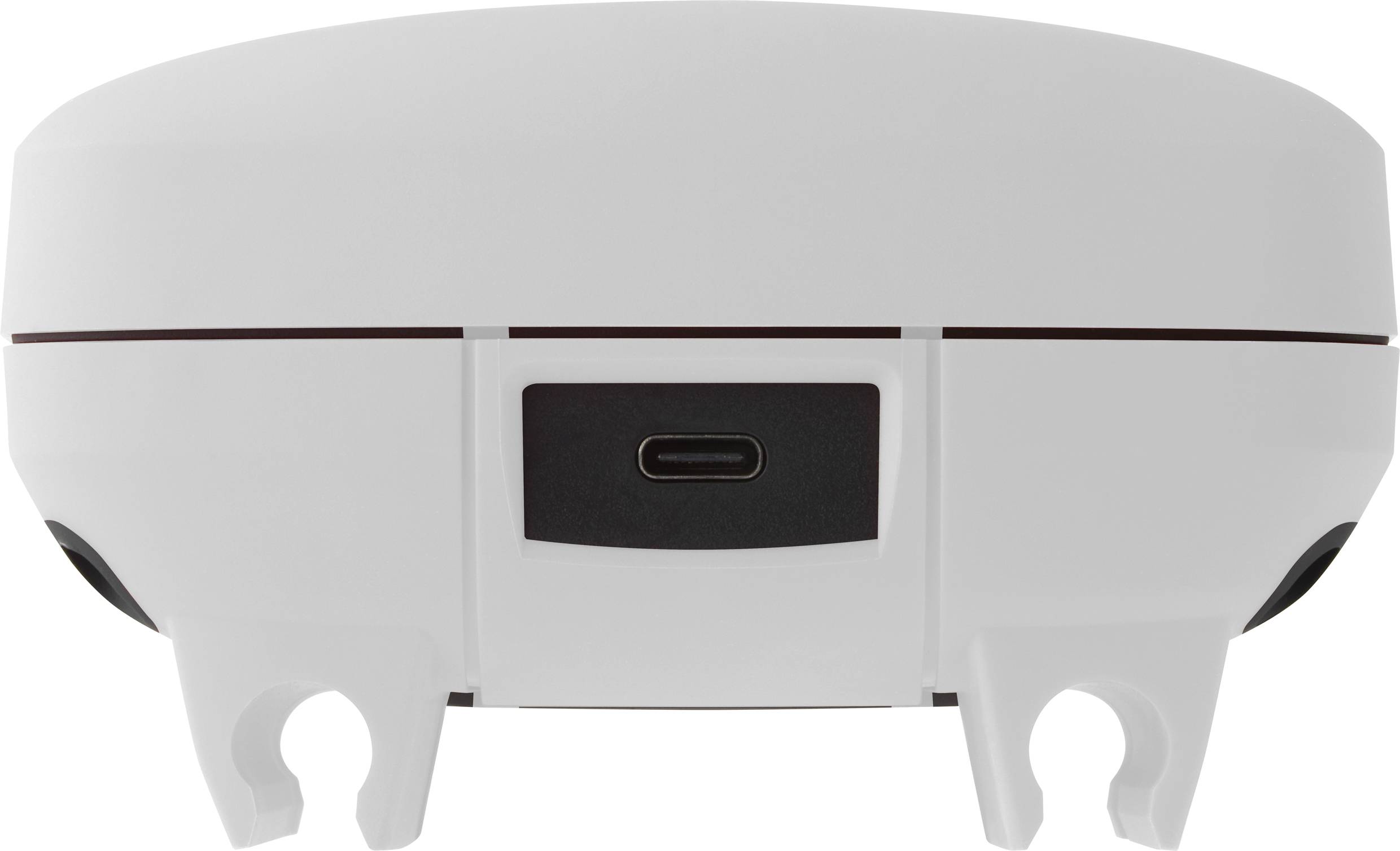

A white, circular technical device with a black USB-C port in the centre and two symmetrical mounting brackets at the bottom.

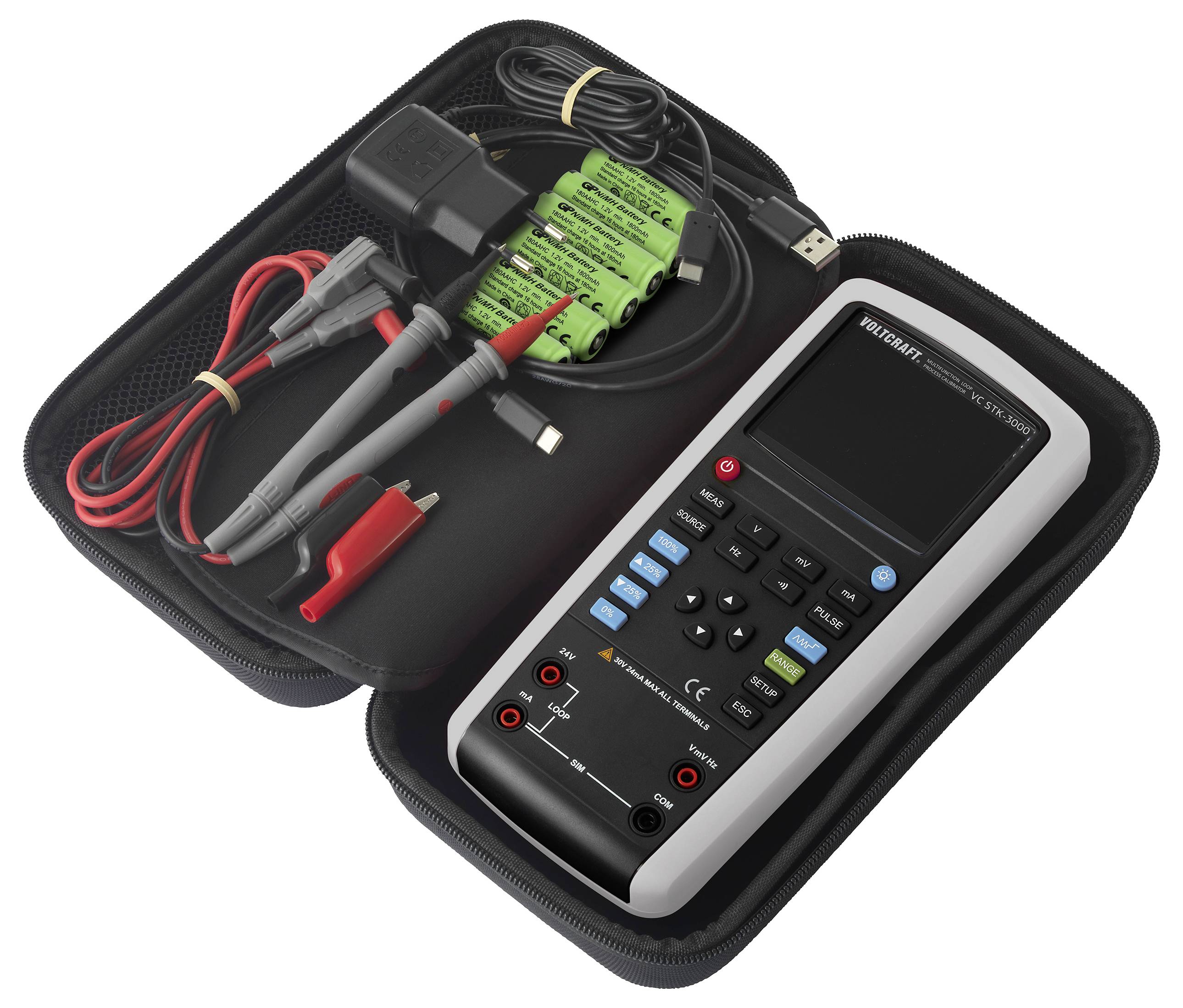

A portable multimeter with display and buttons, in an open protective case with cables and adapters.

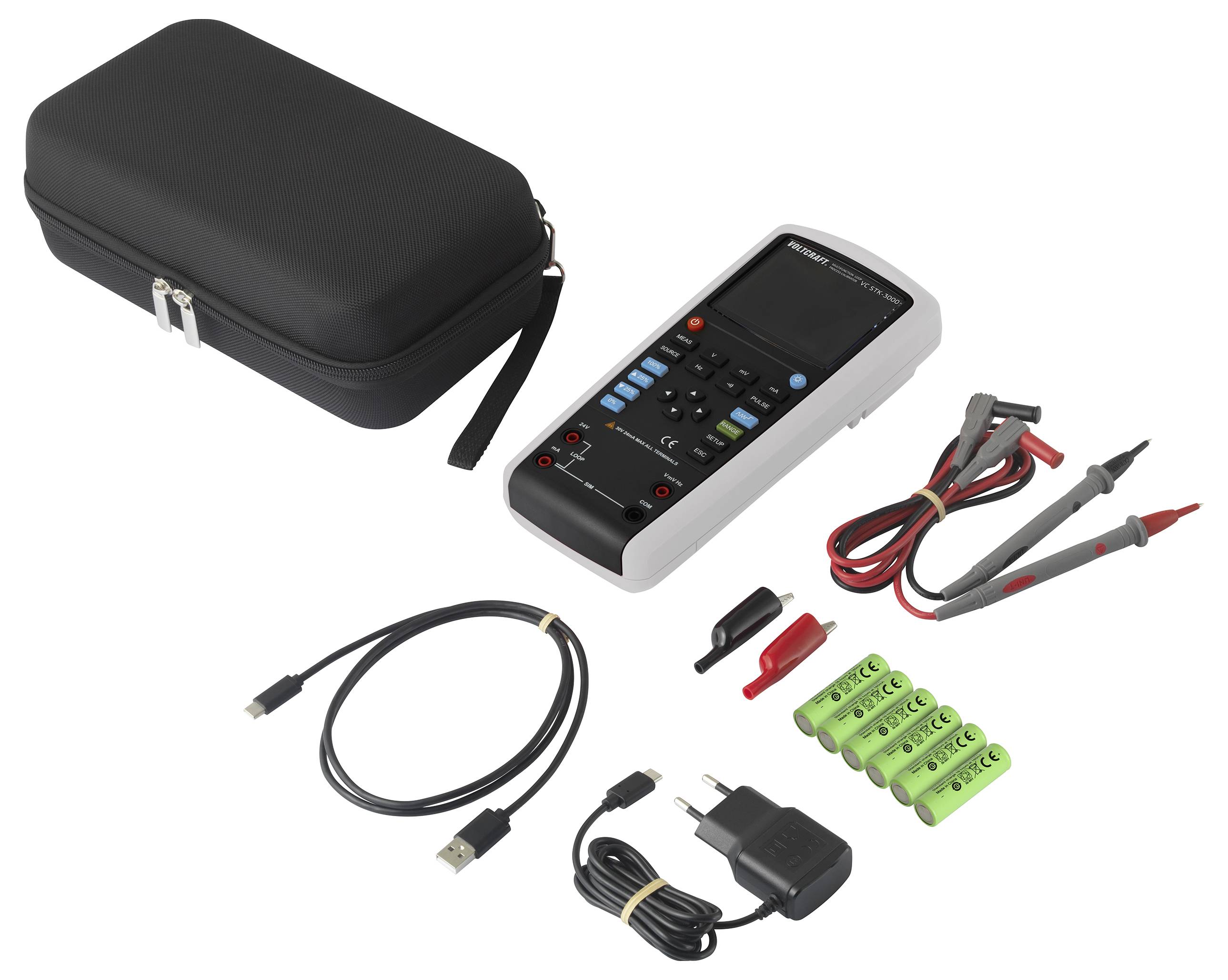

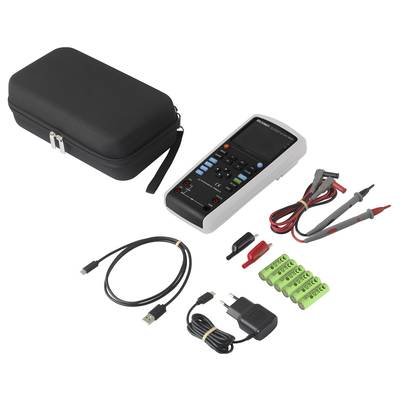

Digital Multimeter with Accessories: Storage Case, USB Cable, Test Leads, Battery Holders, Power Supply and Batteries.

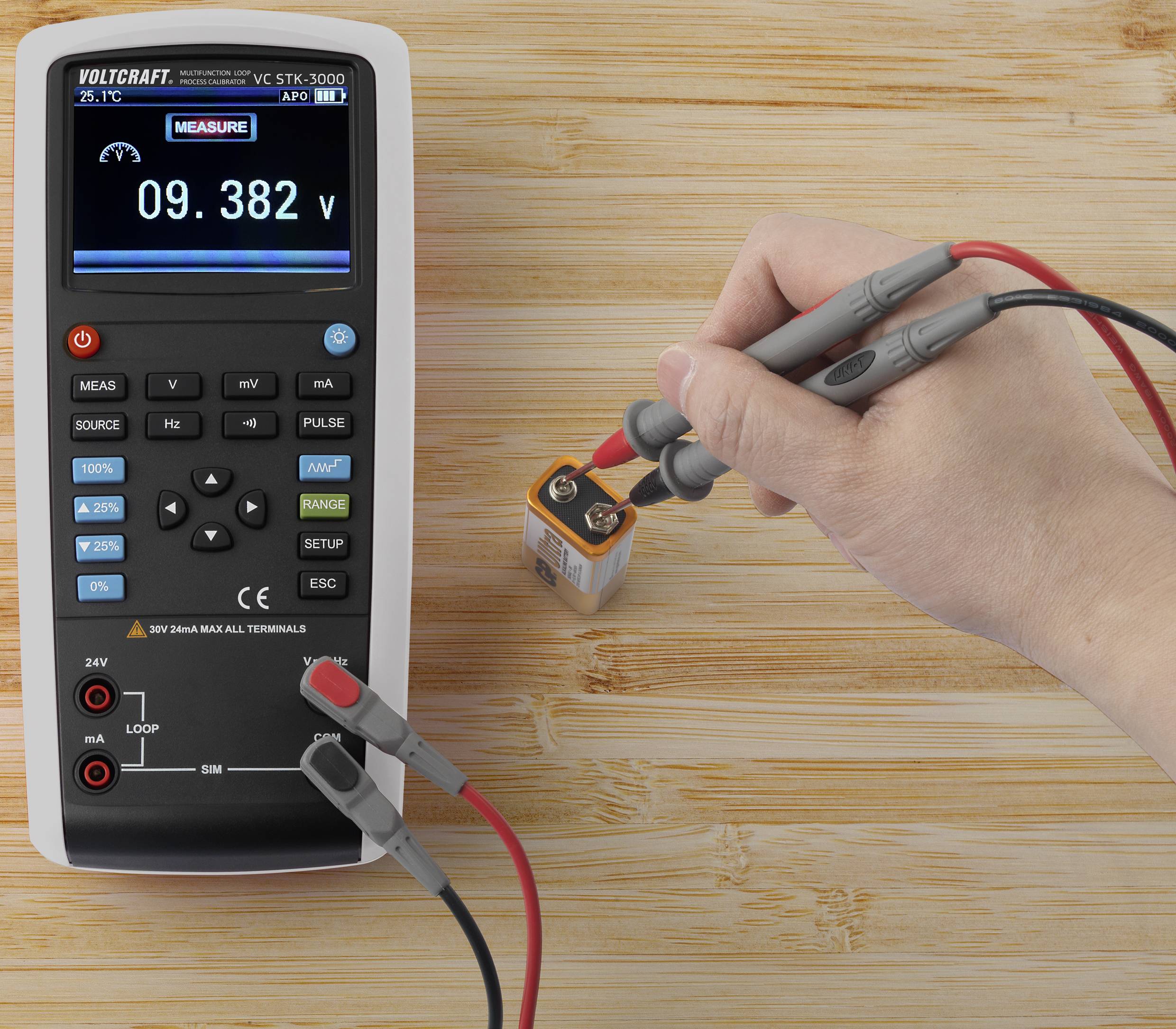

A multimeter displays '9.382 V' on the screen. A hand is measuring the voltage of a 9-volt battery using test probes.

1/10

Our service for you

Datasheet (PDF)

Unavailable

37 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

VOLTCRAFT VC STK-3000 MULTI CALIBRATOR

DC voltage range: 0.01 mV - 30 V/DC
DC current range: 0.001 mA - 24 mA
Frequency (Hz) range: 0.001 Hz - 100 kHz
Measure and source Volts DC, Current DC and resistance
Output and measurement accuracy of up to 0.02%
24 V loop supply with simultaneous current measurement
Automatic stepping and automatic sloping output

Technical specifications

DC voltage source, range: 0.01 mV - 10 V
DC current source, range: 0.001 mA - 24 mA
Frequency source, range: 0.001 Hz - 100 kHz

: Manufacturer's standards (no certificate)

Product type: Current loop calibrator

Unit of measurement: Voltage
Amperage
Frequency

Resolution: 0.001 mA

Dim: (L x W x H) 224 x 63 x 104 mm

Weight: 650 g

Operating voltage: 12 V DC

Width: 63 mm

Height: 104 mm

Length: 224 mm

Power supply: 6 x AA rechargeable battery (included)

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2389433 VOLTCRAFT VC STK-3000 Current loop calibrator Voltage, Amperage, Frequency

User & Safety Instructions

User & Safety Instructions 2389433 VOLTCRAFT VC STK-3000 Current loop calibrator Voltage, Amperage, Frequency

Warranty Terms

Warranty Terms 2389433 VOLTCRAFT VC STK-3000 Current loop calibrator Voltage, Amperage, Frequency

Download

Download 2389433 VOLTCRAFT VC STK-3000 Current loop calibrator Voltage, Amperage, Frequency

Description

Calibrate and measure in the DC range
Whether in manufacturing, research and teaching or in the trade - exact measured values are the prerequisite for correct findings and the following procedures. For this reason, measuring instruments should be calibrated at regular intervals to ensure that measured values are actually accurate. The Voltcraft VC STK-3000 works in the DC voltage range from 0.01 mV to 30 V and in the DC current range from 0.001 mA to 24 mA. The frequency range is between 0.001 Hz and 100 kHz. In addition, direct current, voltage and resistance measurements can be made and the calibrator can also be used as a source. 24V loop supply with simultaneous current measurement as well as automatic step or slope measurements are also possible. The output and measuring accuracy is up to 0.02 %.
Easy to use
The handy VC MFK-2000 is extremely user-friendly: The screen brightness can be adjusted individually and the measured data can be transferred via USB cable. In addition, frequently used working modes can be saved and thus called up again without much effort. Another clever feature: A battery level indicator warns of unwanted interruptions in work.
Wide range of accessories.
In addition to the calibrator, a pair of test leads, alligator clips and an AC/DC adapter as well as a USB cable and six AA NIMH batteries are included in the delivery. The package is rounded off by a user manual and a convenient carrying case.
