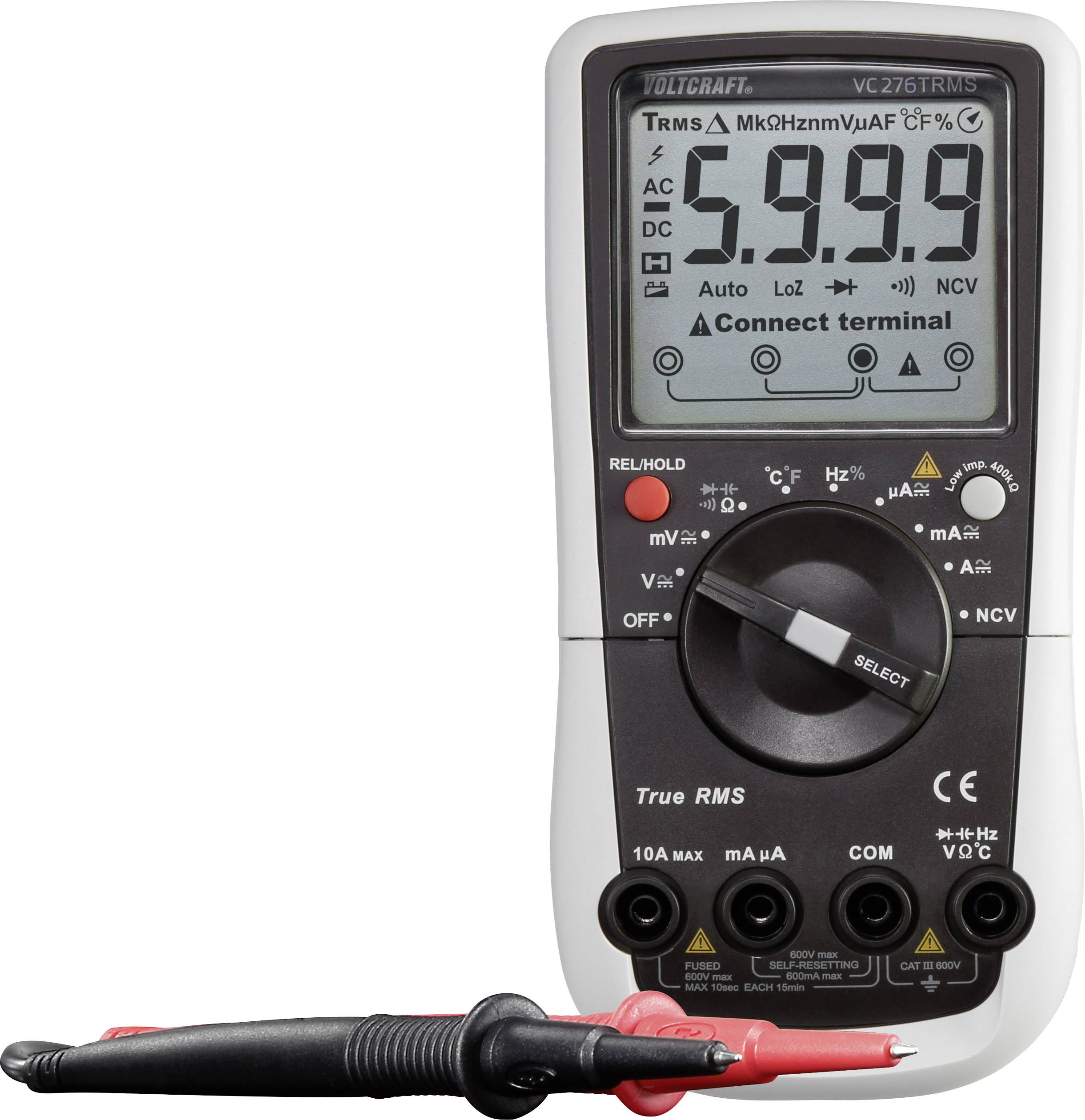

VOLTCRAFT VC276 (K) Handheld multimeter Calibrated to (ISO standards) CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Total (€ 138.65 / piece)
€ 147.06
-6 %
€ 138.65
plus VAT.
14-day return policy included
Highlights & Details
Voltcraft VC276 TRMS DMM ISO calibration
- CAT III 600V
- 6000 counts
- Auto range
- True RMS
- Acoustic warning signal
- Self-resetting mA-current fuse
- Temperature measuring function
- Contactless AC voltage tester
Technical specifications
- Voltage reading range DC (min.)
0.01 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.01 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
0,001 LF 60 mF
- Frequency reading range
1 MHz - 10 MHz
- Temperature
-40°C to +1000 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.9 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz -400 Hz
- Interfaces
none
- Power supply (details)
9 V battery
- Height
178 mm
- Width
85 mm
- Length
43 mm
- Weight
380 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC276 (K)
- Display (counts)
6000
- Dim
(L x W x H) 43 x 85 x 178 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1713865 VOLTCRAFT VC276 (K) Handheld multimeter Calibrated to (ISO standards) CAT III 600 V Display (counts): 6000
Warranty Terms
Warranty Terms 1713865 VOLTCRAFT VC276 (K) Handheld multimeter Calibrated to (ISO standards) CAT III 600 V Display (counts): 6000
Description
The entry-level class in the professional measurement technology. Due to the large LCD and displays the thick bushings assignment makes the model ideal for all professional applications up to 600 V. At a keystroke, the input resistance can be temporarily reduced from 10 MΩ kΩ to 400 in order to avoid measuring errors due to stray voltages. The device is protected with comprehensive safeguards against misuse. A backup and battery change can only be deducted in measuring leads.
This text is machine translated.
This text is machine translated.
Features
- True RMS
- V/DC, V/AC, A/DC standard reading range
- Resistance
- Diode testing
- Acoustic continuity tester
- Temperature:
- Capacitance
- Frequency
- Heart rate in %
- Impedance selector switch
- Relative function
- Auto range
- Low-battery indicator
- Robust casing with protective rubber coating.
- MA measuring range with self-reset of PTC-FUSE.
Scope of delivery
- 2x safety test lead
- Temperature sensor type K (-40 to +230 °C)
- 9 V battery
- User manual.
Hints
For the connection of standard type K thermocouples with mini connectors, the optional temperature adapter is required.
