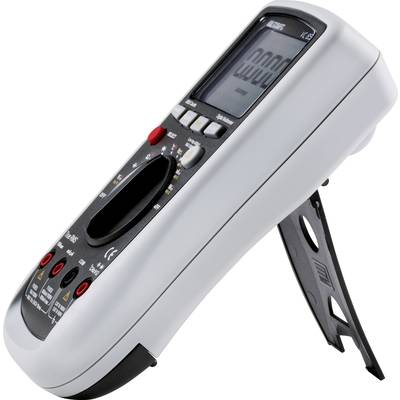

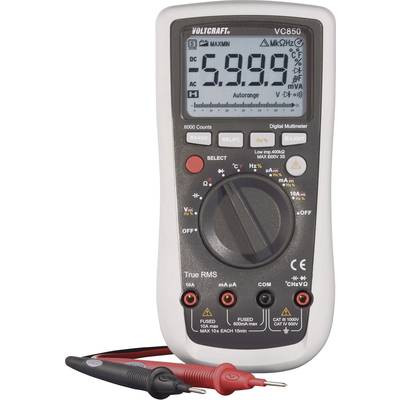

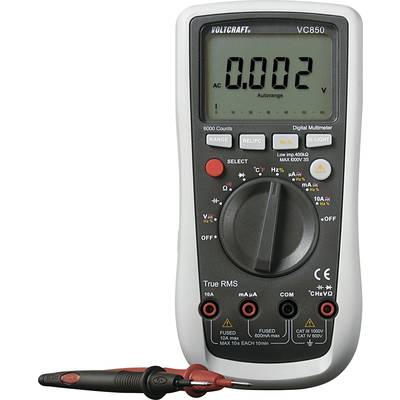

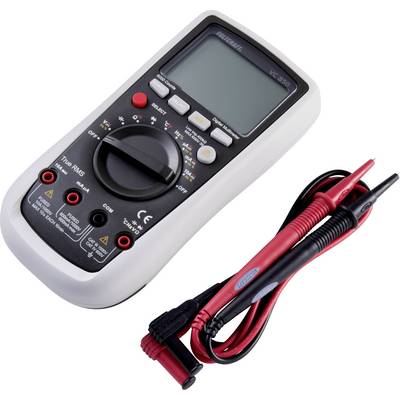

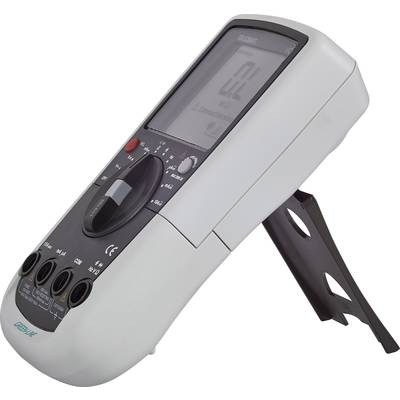

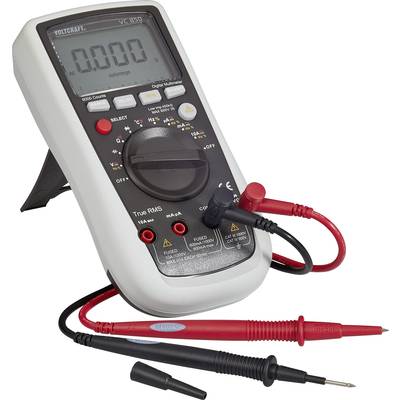

VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 109.24 / piece)
€ 113.45
€ 109.24
plus VAT.
Highlights & Details
Digital multimeter VC850
- CAT IV 600V
- 6000 counts
- Auto range
- True RMS measurement (Real effective value)
- Temperature measurement
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
0.01 nF - 4000 µF
- Frequency reading range
10 Hz -10 MHz
- Temperature
-40 to +1000 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.5 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 400 Hz Hz
- Interfaces
optical
- Power supply (details)
9 V battery
- Height
185 mm
- Width
91 mm
- Weight
380 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC850
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 91 mm x 185 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-40 °C
- Basic accuracy
±0.5 %
- Displays
6000 counts
Documents & Downloads
Datasheet
Datasheet 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
User & Safety Instructions 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Information
Information 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Conformity certificate
Conformity certificate 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Warranty Terms
Warranty Terms 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Download
Download 124602 VOLTCRAFT VC850 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Description

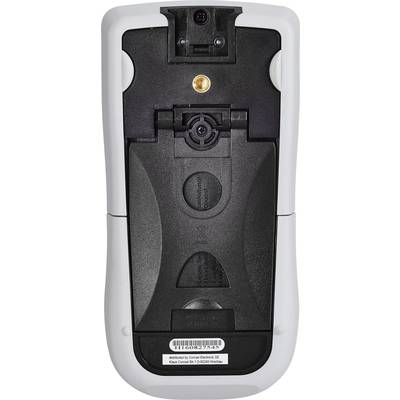

The new middle-class by Voltcraft Sturdy, reliable, accurate equipment, ergonomic shape, safe - these are the attribute, which describes this professional multimeter. Also in puncto safety, this multimeter sets the diagram. The patented casing construction allows you to open the casing for changing the battery and the fuses only when the device has been disconnected from all measuring leads. By input voltages > The warning sign appears at 30V in the display. The sturdy casing with sprayed soft-rubber protection, the 1000V high power fuses, the warning tone when the measurement lines are connected incorrectly as well as the impedance switchover, which reduces the input resistance by pressing the key to prevent erroneous measurement through stress-voltage, round-off the unique security concept. An optical electronic interface belongs to series designing. The device is approved for measuring over-voltage category CAT IV 600V and is tested according to EN-61010. Temperature measurement and real-effective value-measurement (True RMS) completes the design.
Features
- Standard Measuring area V, A, Ω, Frequency, capacity
- Auto-ranging
- Diode test
- Acoustic continuity tester
- Low Battery Function
- Data-hold
- REL
- Duty cycle
- Optical interface
- Impedance change over for stray voltage suppression

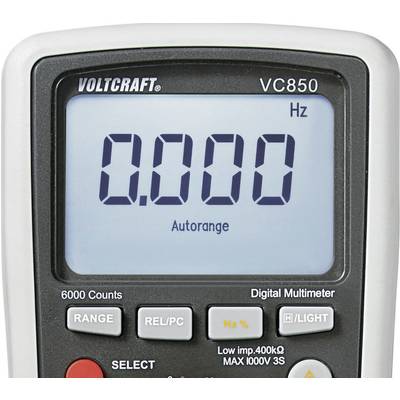

- Warning symbol in voltages > 30V
- CAT IV 600V, CAT III 1000V
- TLD®-Function
- Backlight
- Temperature measurement

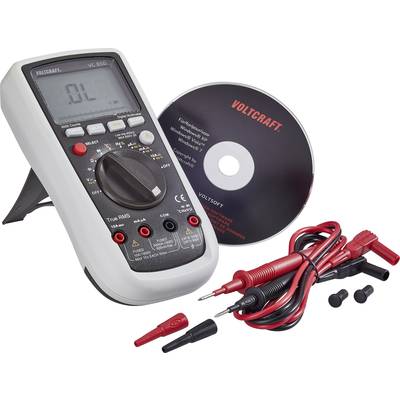

Scope of delivery
- battery
- Test leads
- User manual.
Hints
ISO-calibrated product available.
The fuses used have changed. Current devices use 600 mA fuses, older devices use 500 mA fuses. Please note this when ordering a replacement fuse.
Observe instructions, no auto power-off function available.
