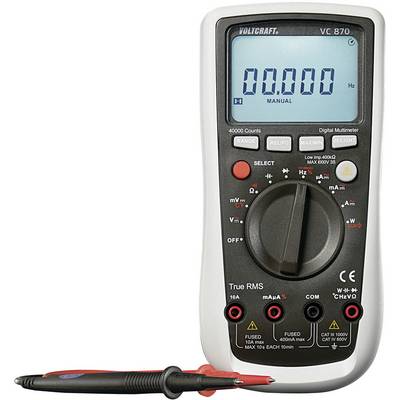

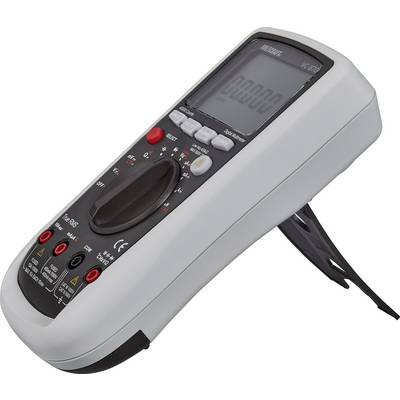

VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
EAN:
Part number:
Item no:
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Highlights & Details
VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
- CAT IV 600V
- 40 000 Counts
- Auto range
- True RMS measurement (Real effective value)
- Temperature measurement
- Power measurement 0.1 - 2500W
Technical specifications
- {Power} 0 W, 1 W, 2500 W
- cosphi 0.1 - 1
- Voltage reading range DC (min.)
0.01 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
750 V
- Amperage reading range DC (min.)
0.01 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.01 Ω - 40 MΩ
- Reading range - capacity
1 pF - 40 mF
- Frequency reading range
40 Hz -400 MHz
- Temperature
-40 to +400 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.1 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz - 1 kHz Hz
- Interfaces
optical
- Power supply (details)
9 V battery
- Height
185 mm
- Width
91 mm
- Weight
380 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC870
- Display
Digital
- Display (counts)
40000
- Dim
(W x H) 91 mm x 185 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-40 °C
- Basic accuracy
±0.1 %
- Displays
40 000 Counts
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Information
Information 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Conformity certificate
Conformity certificate 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Warranty Terms
Warranty Terms 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Download
Download 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Download 124603 VOLTCRAFT VC870 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Description

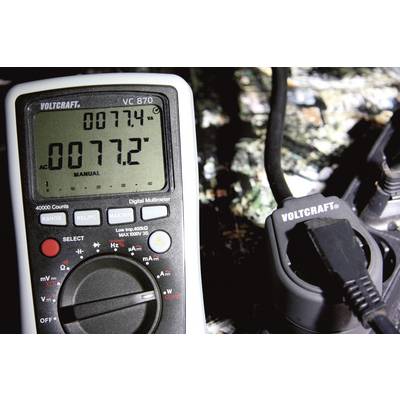

The new middle-class by Voltcraft Sturdy, reliable, practical equipment, ergonomic shape, safe - these are the attribute, which describes the professional multimeter. Also in puncto safety, this multimeter sets the diagram. The patented casing construction allows you to open the casing for changing the battery and the fuses only when the device has been disconnected from all measuring leads. By input voltages > The warning sign appears at 30V in the display. The unique safety concept is rounded off by the sturdy casing with sprayed soft-rubber protection, the 1000 V high-power fuses with a separation piwer of 30 kA as well as the impedance switchover, which reduces the input resistance upon pressing a button to avoid incorrect measurements through stray voltage. An optical electronic interface is included in the series equipment. The device is approved for measuring over-voltage category CAT IV 600V and is tested according to EN-61010. Temperature measurement and real-effective value-measurement (True RMS) completes the design. In VC870,an additional performance measuring function upto 2500 W for efficiency, loop power and cosphi is integrated by plug-adapter delivered along.
Features
- Standard Measuring area V, A, Ω, Frequency, capacity
- Auto-ranging
- Diode test
- Acoustic continuity tester
- Low Battery Function
- Data-hold
- REL
- Duty cycle
- Optical interface
- Impedance change over for stray voltage suppression
- Warning symbol in voltages > 30V
- CAT IV 600V, CAT III 1000V
- TLD®-Function

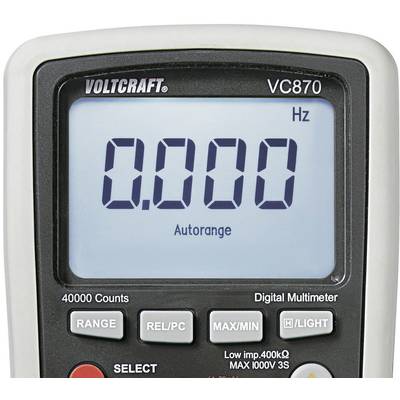

- Backlight
- Temperature measuring

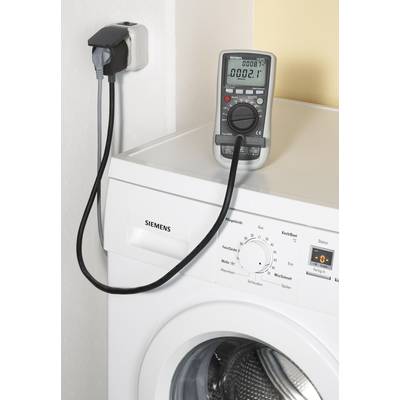

- Power measurement

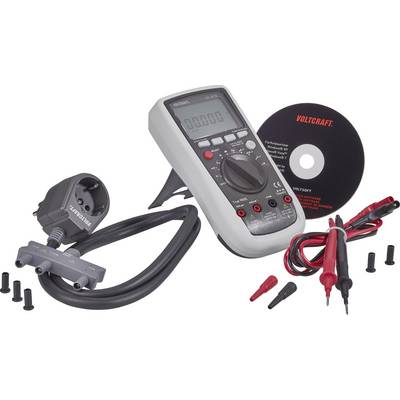

Scope of delivery
- battery
- Test leads

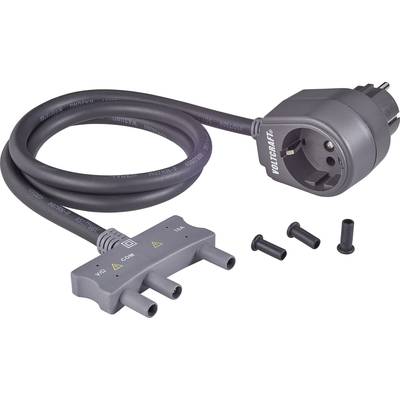

- Power meter adapter
- User manual.
Hints
ISO-calibrated product available.
The fuses have changed. Current devices use 400 mA fuses, older devices 500 mA fuses. Please observe this when your spare fuse order.
System requirements
- Windows® 98/2000/XP/Vista.
