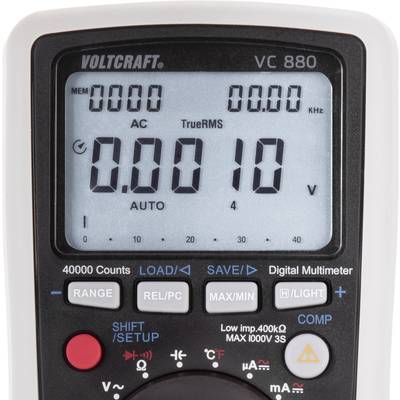

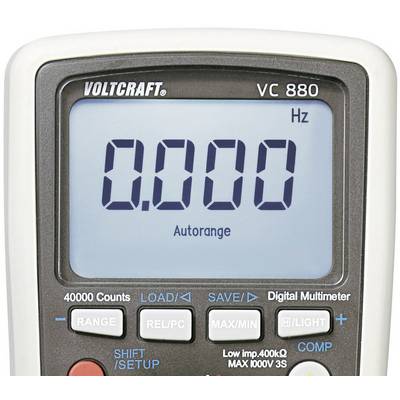

VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
VC880 digital multimeter
- CAT IV 600V
- 40 000 counts
- Auto range
- High accuracy of 0.025 %
- True RMS measurement AC + DC
- 1 KHz low pass filter
- Comparative measurements
- Duty cycle
- Temperature measurement
- With data logger function
- Internal memory for up to 1000 readings
Technical specifications
Technical specifications
- Recording function: 1 reading/second
- Low pass filter (1kHz)
- Voltage reading range DC (min.)
0.01 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.0001 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.01 µA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.01 Ω - 40 MΩ
- Reading range - capacity
1 pF - 40 mF
- Frequency reading range
10 Hz - 40 MHz
- Temperature
-40 to +1000 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.05 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz -100 kHz Hz
- Interfaces
optical
- Power supply (details)
9 V battery
- Height
185 mm
- Width
91 mm
- Weight
380 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC880
- Display
Digital
- Display (counts)
40000
- Dim
(W x H) 91 mm x 185 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-40 °C
- Features
Data logger
- Basic accuracy
±0,025 %
- Displays
40 000 counts
Documents & Downloads
Documents & Downloads
Datasheet
Datasheet 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
User & Safety Instructions
User & Safety Instructions 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Information
Information 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Conformity certificate
Conformity certificate 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Warranty Terms
Warranty Terms 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Download
Download 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Download 124609 VOLTCRAFT VC880 Handheld multimeter Digital Data logger CAT III 1000 V, CAT IV 600 V Display (counts): 40000
Description
Description
True RMS industrial multimeter from VOLTCRAFT®. Sturdy, reliable, well-equipment, ergonomic shape, safe - these are the attributes that describe this professional multimeter. It also has number of safety features. The patented casing only allows you to open it to change the battery and the fuse only when the device has been disconnected from all test leads. At input voltages of > 30 V a warning symbol appears in the display. The multimeter boasts a number of safety features: robust housing with soft rubber protection, 1000 V high-performance fuses, a warning sound when the test leads are connected incorrectly and impedance switching, which reduces input resistance at the touch of a button to avoid measurement errors caused by stray voltages. An optoelectronic interface is also included. The device is for approved measurements in overvoltage category CAT IV 600V and tested according to EN-61010. The internal memory can record up to 1000 measurements. Temperature, comparison and duty cycle measurements complete the specification.
Features
- Standard measurement ranges V, A, frequency, resistance, capacitance
- Auto ranging
- Diode tester
- Audible continuity tester
- 1 KHz low pass filter
- Reading comparison function
- Can store up to 1000 readings
- Min/Max/AVG function
- Data Hold
- REL (relative measurements)
- Duty cycle
- Visual interface
- Impedance switching for stray voltage suppression
- Warning symbol at voltages over > 30 V
- CAT IV 600V, CAT III 1000 V
- TLD® function
- Low battery function
- Backlit display
- Easier and safer battery and fuse change without completely opening the housing.
Scope of delivery
- Battery
- Test leads
- Voltsoft software
- Instructions for use.
Hints
ISO-calibrated product available.The fuses used have changed. Current devices use 400 mA fuses, older devices use 500 mA fuses. Please note this when ordering a replacement fuse.Please make sure you always use the latest VoltSoft PRO version. This is available in the download center for the respective product.
System requirements
- Windows® XP - SP2
- Windows Vista
- Windows 7
- .Net framework V2.0 or higher
