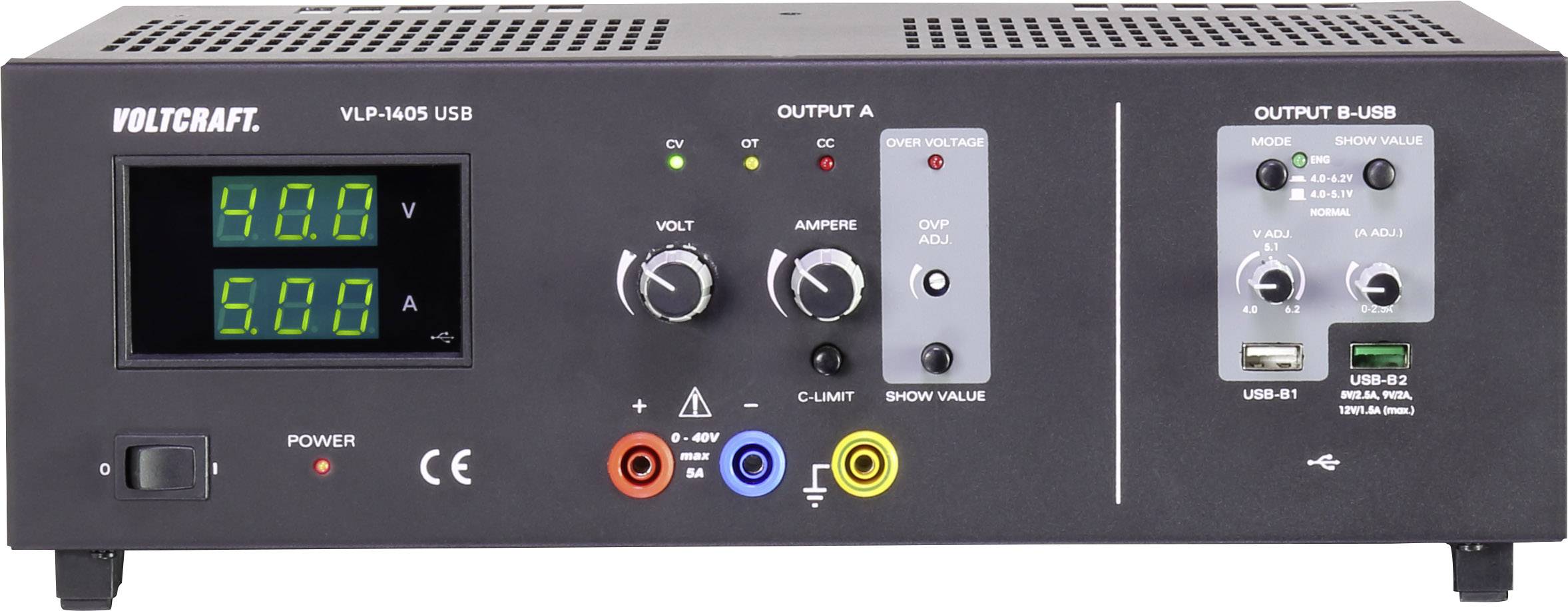

A laboratory power supply with a digital display shows 40.0 V and 5.0 A. Various controls and connections are visible on the front panel.

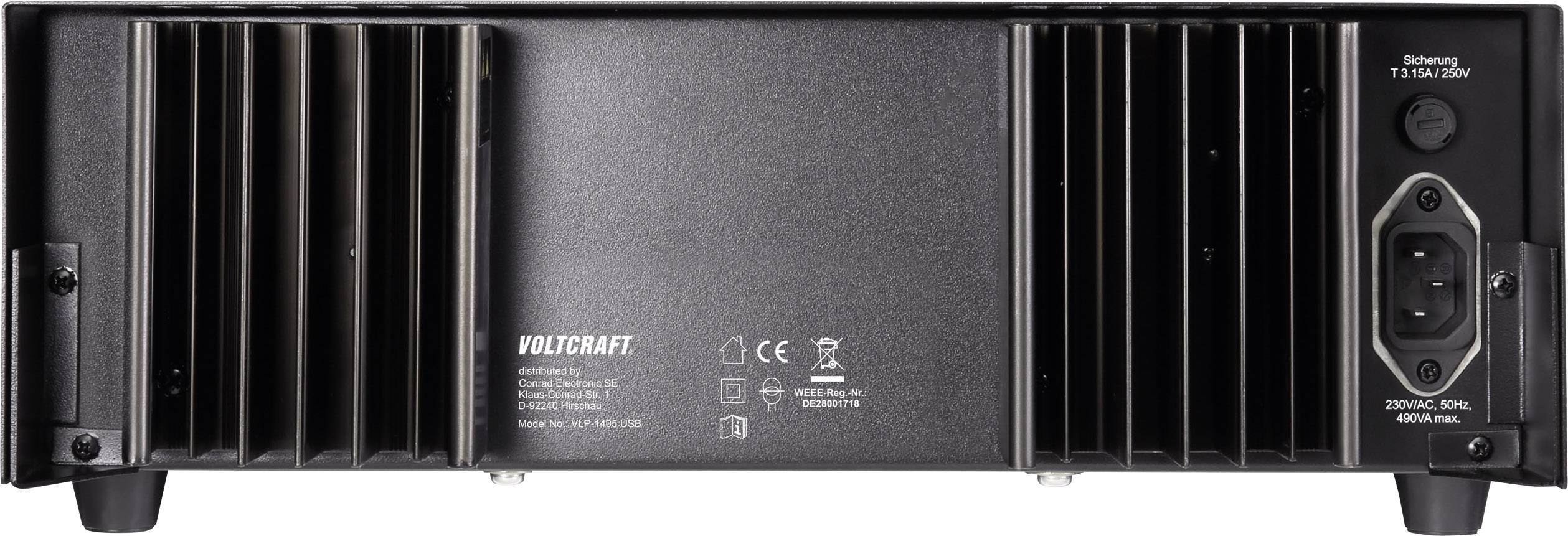

Rear view of a Voltcraft device. Ventilation slots are visible on the left and right, along with a power connection and labelling.

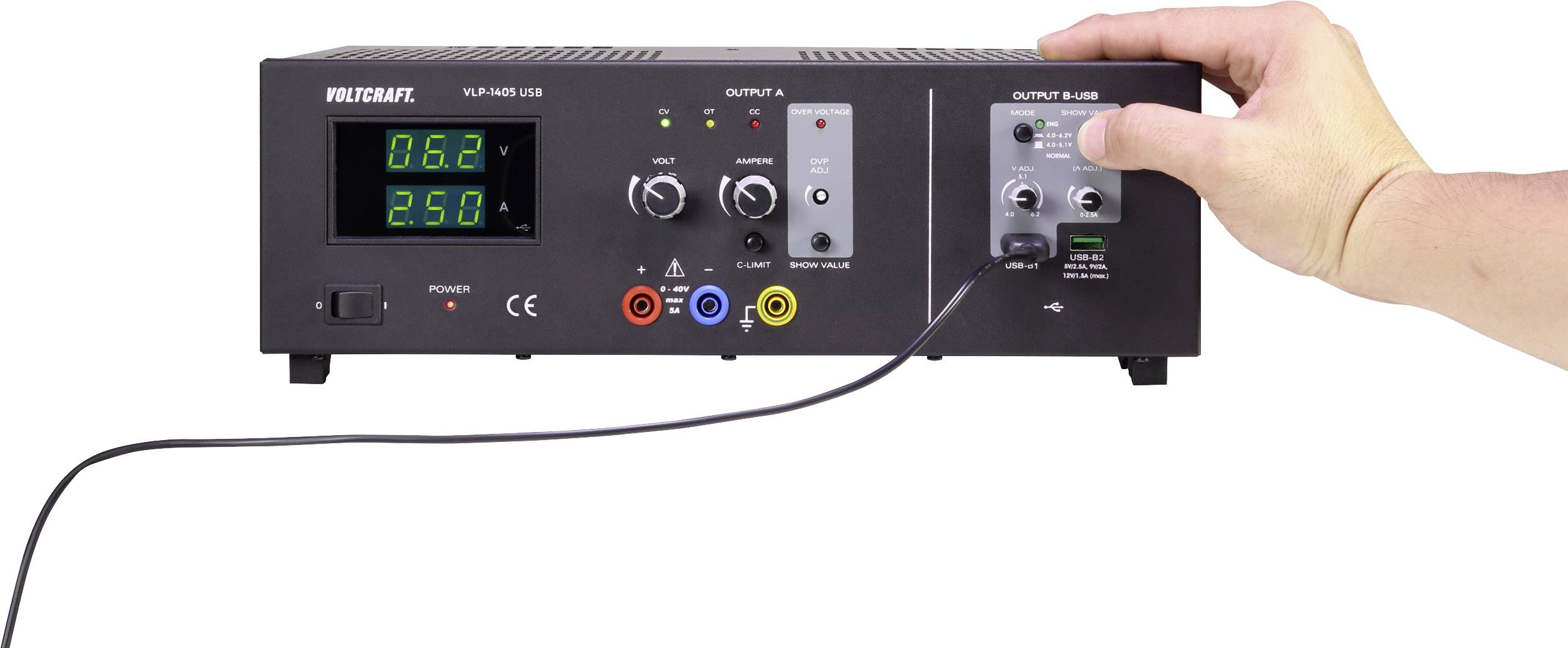

A hand is operating a laboratory power supply with a display showing '0.62' and '25.0'. Several connections are located underneath.

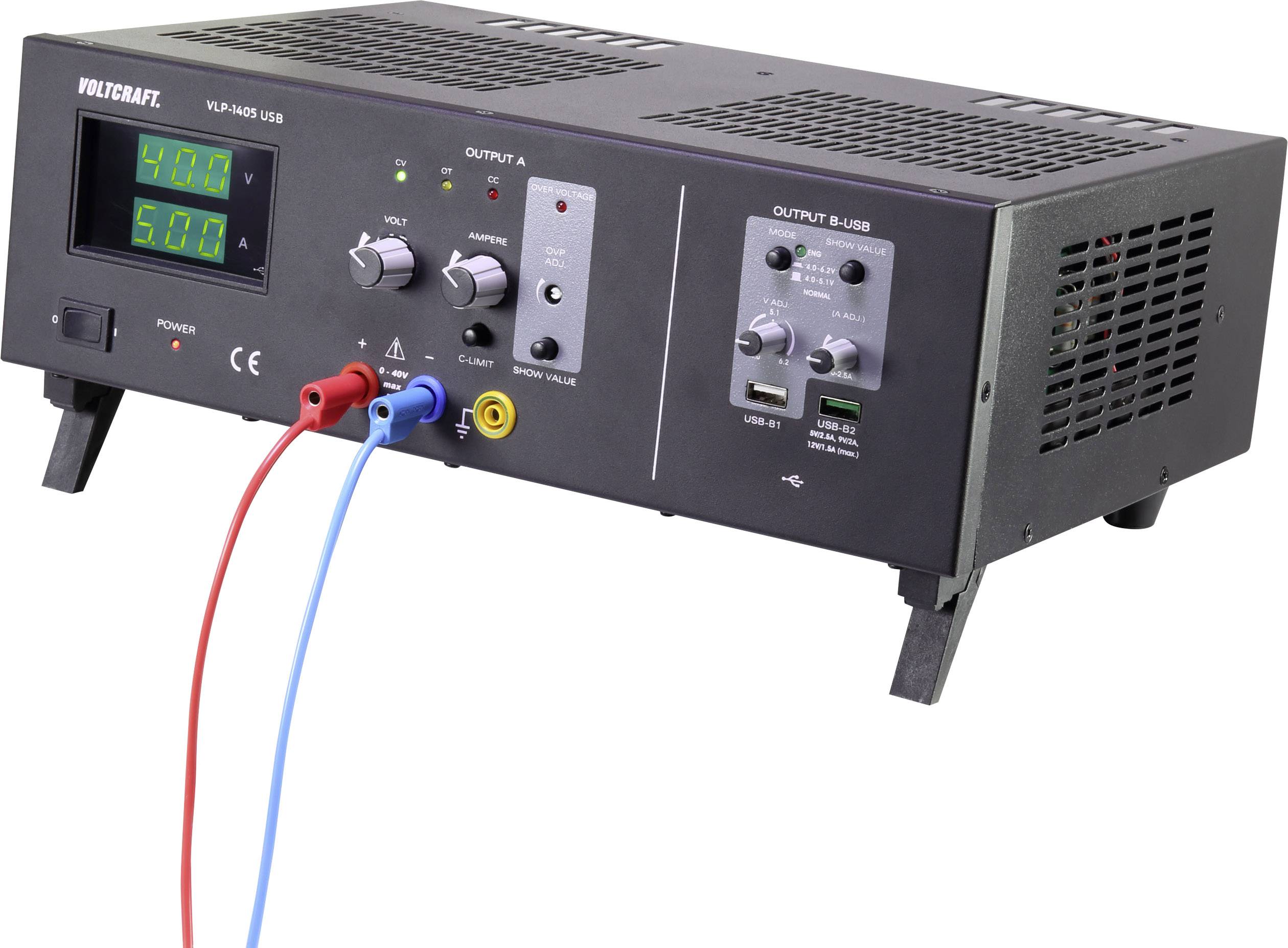

Power supply unit with digital displays. Two outputs: A with current regulation, B with selectable voltage. USB port available.

1/4

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

VOLTCRAFT VLP-1405 USB laboratory power supply

Linear regulated PSU (no harmonics)
3 outputs
Over voltage protection (OVP)
This text is machine translated.

Technical specifications

Type: VLP-1405 USB

Product type: Bench PSU (adjustable voltage)

No. of outputs: 3 x

: 233 W

Technology: Linear regulated PSU

Features: OVP

Dim: (L x W x H) 260 x 350 x 125 mm

: Manufacturer's standards (no certificate)

Input voltage: 230 V AC

Weight: 9 kg

Connections: 4 mm safety jacks (output 1)
USB test and development port (output 2)
USB charging port (output 3)

Output voltage (max.): 40 V

Output voltage (min.): 0 V

Output voltage 2 (max.): 6.2 V

Output voltage 2 (min.): 4 V

Output voltage 3 (max.): 12 V

Output voltage 3 (min.): 5 V

Max. output current: 5 A

Output current (min.): 0.01 A

Output current 2 (max.): 2.5 A

Output current 2 (min.): 0.01 A

Output current 3 (max.): 2.5 A

Output current 3 (min.): 0 A

Mains supply: IEC 320 C14

Type: Linear

Width: 350 mm

Height: 125 mm

Length: 260 mm

Residual ripple: 2-20 mV

Max. temperature: 40 °C

Min. temperature: 5 °C

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

No. of outputs

Output voltage 3 (range)

Output current

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:1629370

This article

233 W

Manufacturer's standards (no certificate)

0 - 40

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) 0 - 30 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:1629369

123 W

Manufacturer's standards (no certificate)

0 - 30

3 x

5 - 12 V

0.01 - 3 A

VOLTCRAFT VLP-1602 USB Bench PSU (adjustable voltage) 0 - 60 0.01 - 1.5 A 123 W OVP No. of outputs 3 x

Item no:1629371

123 W

Manufacturer's standards (no certificate)

0 - 60

3 x

5 - 12 V

0.01 - 1.5 A

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:1629372

273 W

Manufacturer's standards (no certificate)

0 - 40

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 30 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:2126819

123 W

DAkkS standards

0 - 30

3 x

5 - 12 V

0.01 - 3 A

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:2126820

233 W

ISO standards

0 - 40

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:2126821

233 W

DAkkS standards

0 - 40

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:2126857

273 W

ISO standards

0 - 40

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:2126858

273 W

DAkkS standards

0 - 40

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 30 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:2347160

123 W

ISO standards

0 - 30

3 x

5 - 12 V

0.01 - 3 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1629370 VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Warranty Terms

Warranty Terms 1629370 VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Description

The linear bench power supply unit eliminates voltage harmonics across the entire range of electrical loads and features separate USB ports for both R&D/QA and equipment charging. The device is suitable for any situation that involves pushing SMPS units to the limit. The VLP-USB is robust and comes with short circuit and overvoltage protection, and a thermal cutoff.

USB test and development port
With the VOLTCRAFT VLP-1405 USB can be a connected USB device "stressed out". The number of devices featuring USB host connectors is steadily on the rise. Those devices also need to operate with USB power supply not up to the required standards. The VLP-1405 USB, this test and development socket fitted.

USB current limiter
The built-in current limiter with variable settings simulates an USB port that supplies less than 500mA. This allows assessing whether e.g. USB flash drives work at low amperage levels.

USB under/overvoltage
The USB test port enables seamless voltage settings between 3.9 and 6.2V. The selector engages at 5.1V. For safety reason, overvoltage mode needs to be turned on separately. Undervoltage supply can be selected at any time.

Precise power settings
The 10-turn potentiometer facilitates the precisely required adjustment of output voltage of 0 - 40 V.

Silent cooling
Unlike SMPSs, linear power supply units require appropriate cooling. The VLP-1405 USB has over-dimensioned, passive heat sink. No fans required. Moreover, there's enough thermal headroom left to allow operating at maximum capacity levels.

QuickCharge USB 2.0 port
In addition to the USB test and development port, the unit comes with a USB charging port. This enables the supply of mobile devices and any USB-powered lab equipment.

This text is machine translated.

Features

Highly accurate multi-position selector knob
USB developer mode (4.0 to 6.2 V)
USB quick charging port (5V / 9V/ 12V).

Scope of delivery

Laboratory power supply VLP-1405 USB
Power cord
User manual.
