Buy VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

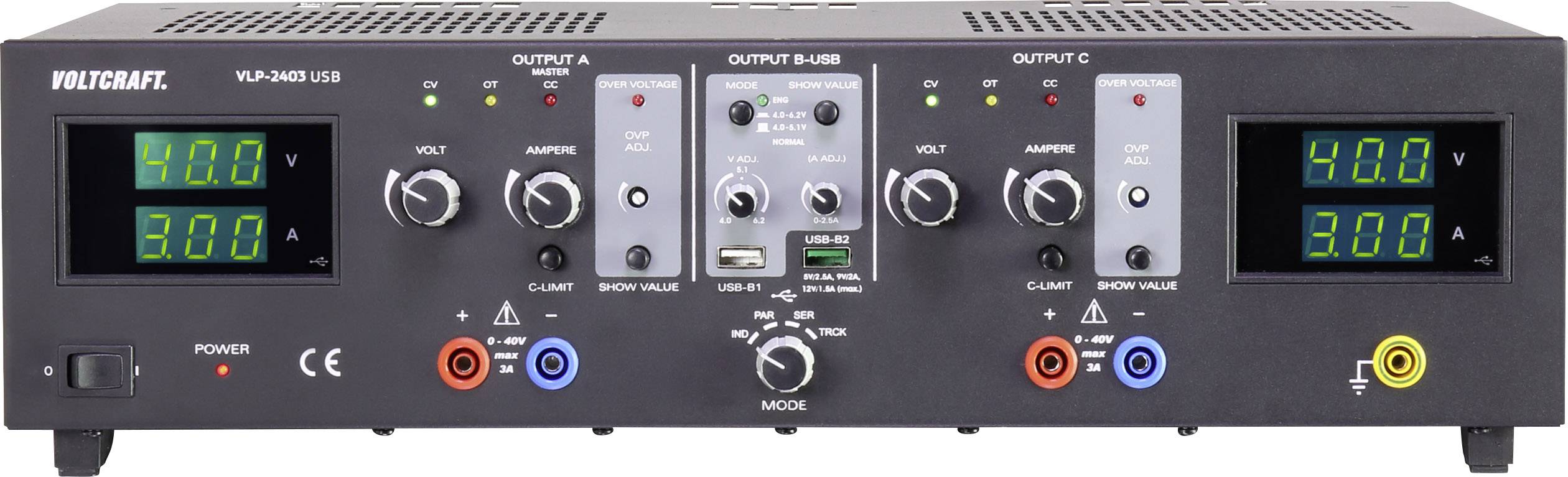

'VOLTCRAFT VLP-2403 USB' Laboratory Power Supply with three outputs and digital displays for voltage (V) and current (A).

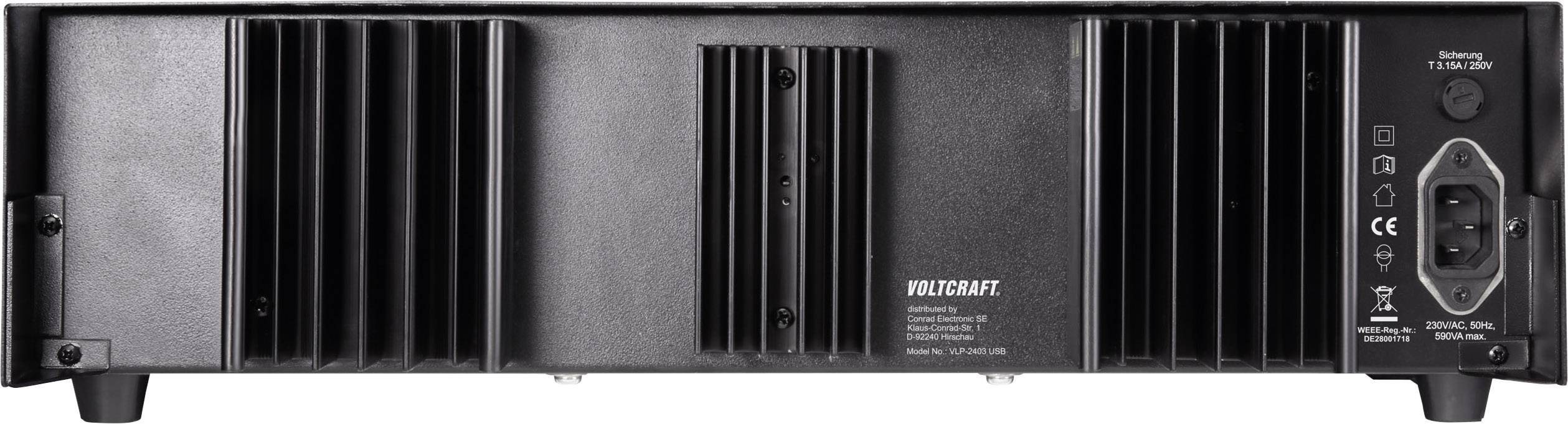

Black electronic voltage converter with multiple ventilation slots. Rear view shows various connections and technical specifications.

A hand is operating a black power supply with digital displays and rotary knobs. The displays show 0.62 amperes and 25.0 volts.

An electronic device with three outputs. Each output has a display for voltage and current, along with controls for adjustment.

1/4

Our service for you

Fast track dispatch on Mon, 14 Sep

33 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 432.77 / piece)

€ 432.77

plus VAT.

Report legal concerns

Highlights & Details

Voltcraft VLP 2403 USB Bench Power Supply Unit

Linear regulated PSU (no harmonics)
No. of outputs 4 x
Two separate lab jacks @ 0 - 40 ;0.01 - 3 A;273 W
Overvoltage protection (OVP)

Technical specifications

Type: VLP-2403 USB

Product type: Bench PSU (adjustable voltage)

No. of outputs: 4 x

: 273 W

Technology: Linear regulated PSU

Features: OVP

Dim: (L x W x H) 270 x 440 x 125 mm

: Manufacturer's standards (no certificate)

Input voltage: 230 V AC

Weight: 11 kg

Connections: 4 mm safety jacks (output 1)
4 mm safety jacks (output 2)
USB test and development port (output 3)
USB charging port (output 4)

Output voltage (max.): 40 V

Output voltage (min.): 0 V

Output voltage 2 (max.): 40 V

Output voltage 2 (min.): 0 V

Output voltage 3 (max.): 6.2 V

Output voltage 3 (min.): 3.8 V

Output voltage 4 (max.): 12 V

Output voltage 4 (min.): 5 V

Max. output current: 3 A

Output current (min.): 0.01 A

Output current 2 (max.): 3 A

Output current 2 (min.): 0.01 A

Output current 3 (max.): 2.5 A

Output current 3 (min.): 0.01 A

Output current 4 (max.): 2.5 A

Output current 4 (min.): 0 A

Mains supply: IEC 320 C14

Type: Linear

Width: 440 mm

Height: 125 mm

Length: 270 mm

Residual ripple: 2-20 mV

Max. temperature: 40 °C

Min. temperature: 5 °C

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

No. of outputs

Output voltage 3 (range)

Output current

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:1629372

This article

273 W

Manufacturer's standards (no certificate)

0 - 40

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) 0 - 30 V 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:1629369

123 W

Manufacturer's standards (no certificate)

0 - 30 V

3 x

5 - 12 V

0.01 - 3 A

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:1629370

233 W

Manufacturer's standards (no certificate)

0 - 40

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-1602 USB Bench PSU (adjustable voltage) 0 - 60 V 0.01 - 1.5 A 123 W OVP No. of outputs 3 x

Item no:1629371

123 W

Manufacturer's standards (no certificate)

0 - 60 V

3 x

5 - 12 V

0.01 - 1.5 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 30 V 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:2126819

123 W

DAkkS standards

0 - 30 V

3 x

5 - 12 V

0.01 - 3 A

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 40 V 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:2126820

233 W

ISO standards

0 - 40 V

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-1405 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 40 V 0.01 - 5 A 233 W OVP No. of outputs 3 x

Item no:2126821

233 W

DAkkS standards

0 - 40 V

3 x

5 - 12 V

0.01 - 5 A

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 40 V 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:2126857

273 W

ISO standards

0 - 40 V

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) Calibrated to (DAkkS standards) 0 - 40 V 0.01 - 3 A 273 W OVP No. of outputs 4 x

Item no:2126858

273 W

DAkkS standards

0 - 40 V

4 x

3.8 - 6.2 V

0.01 - 3 A

VOLTCRAFT VLP-1303 USB Bench PSU (adjustable voltage) Calibrated to (ISO standards) 0 - 30 V 0.01 - 3 A 123 W OVP No. of outputs 3 x

Item no:2347160

123 W

ISO standards

0 - 30 V

3 x

5 - 12 V

0.01 - 3 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1629372 VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Conformity certificate

Conformity certificate 1629372 VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Warranty Terms

Warranty Terms 1629372 VOLTCRAFT VLP-2403 USB Bench PSU (adjustable voltage) 0 - 40 0.01 - 3 A 273 W OVP No. of outputs 4 x

Description

The linear bench power supply unit eliminates voltage harmonics across the entire range of electrical loads and features separate USB ports for both R&D/QA and equipment charging. The device is suitable for any situation that involves pushing SMPS units to the limit. The VLP-USB is robust and comes with short circuit and overvoltage protection, and a thermal cutoff.

USB test and development port
The Voltcraft VLP-2403 USB allows stress-testing USB devices. The number of devices featuring USB host connectors is steadily on the rise. Those devices also need to operate with USB power supply not up to the required standards. The VLP-2403 USB comes with the appropriate test and development port.

USB current limiter
The built-in current limiter with variable settings simulates an USB port that supplies less than 500mA. This allows assessing whether e.g. USB flash drives work at low amperage levels.

USB under/overvoltage
The USB test port enables seamless voltage settings between 3.9 and 6.2V. The selector engages at 5.1V. For safety reason, overvoltage mode needs to be turned on separately. Undervoltage supply can be selected at any time.

Precise power settings
The 10-position selector knob helps set an output voltage of precisely 0 - 40 .

Silent cooling
Unlike SMPSs, linear power supply units require appropriate cooling. The VLP-2403 USB comes with oversized passive heat sinks. No fans required. Moreover, there's enough thermal headroom left to allow operating at maximum capacity levels.

QuickCharge USB 2.0 port
In addition to the USB test and development port, the unit comes with a USB charging port. This enables the supply of mobile devices and any USB-powered lab equipment.

Features

Highly accurate multi-position selector knob
USB developer mode (4.0 to 6.2 V)
USB quick charging port (5V / 9V/ 12V).

Scope of delivery

Bench power supply unit VLP-2403 USB
Power cord
User manual.
