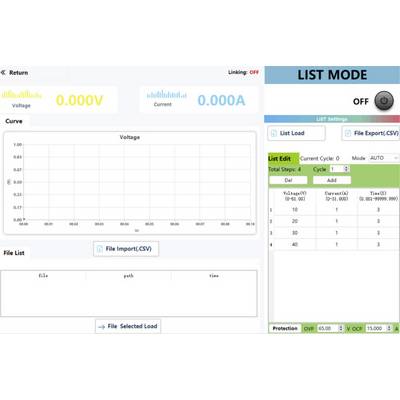

'List Mode' interface showing current settings: Voltage at 0.000V, Current at 0.000A. Lists and file import/export options are available.

'Graph displaying voltage over time in volts (V) and seconds (s), showing a slight drop. Readout shows 0.01V, 0.014A, with timer at 0:0/6.'

'List setup interface showing voltage, current, and time steps. Step 1: 10 V, 0.5 A, 1 s; up to Step 6: 20 V, 0.5 A, 1 s.'

'PARALLEL SETUP' screen with options: 'PARALLEL MODE: SERIES', 'MASTER/SLAVE: MASTER', 'PARALLEL CONTROL: DISABLE'.

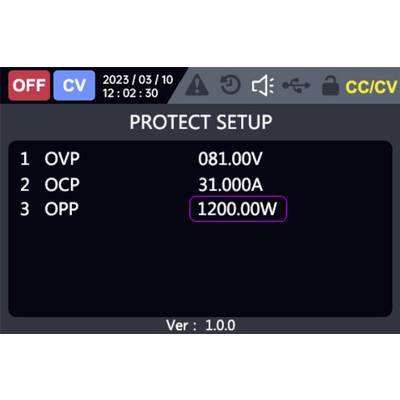

'PROTECT SETUP' screen showing OVP: 081.00V, OCP: 31.000A, OPP: 1200.00W. Date: 2023/03/10, time: 12:02:30, Version: 1.0.0.

The image shows a device screen titled 'Remote Setup' displaying two options: '1. Interface USB(RS232)' and '2. Baud Rate 115200'.

'System Setup' menu screen with options: 1. Display Setup, 2. Sound Setup, 3. Time Setup, 4. Restore Factory, 5. Calibration.

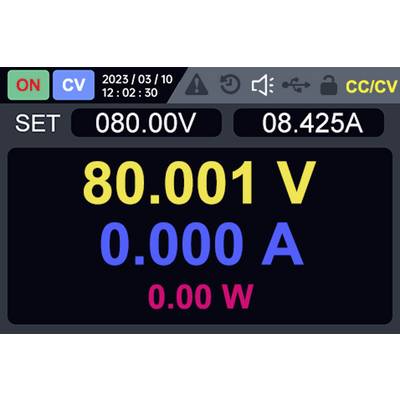

Display screen of a power supply showing voltage '80.001 V', current '0.000 A', and power '0.00 W'. Mode set to 'CV'.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

23 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,142.02 / piece)

€ 1,142.02

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-1208 Power supply 80 V 30 A 1200 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 80 V
Rated output current: 0 - 30 A
Max. output power: 1200 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Voltage accuracy: ≤0.05 % ± 20 mV
Current accuracy: ≤0.05 % ± 30 mA
Setting resolution: 10 mV, 1 mA

Type: VSPP-1208

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 1200 W

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215 x 453 x 88 mm

: Manufacturer's standards (no certificate)

Weight: 6.4 kg

Output voltage (max.): 80 V DC

Output voltage (min.): 0 V DC

Max. output current: 30 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Type: Bench

Width: 453 mm

Height: 88 mm

Length: 215 mm

Residual ripple: Voltage: ≤100 mVp-p, Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

This article

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3413736 VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote cont

User & Safety Instructions

User & Safety Instructions 3413736 VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote cont

Warranty Terms

Warranty Terms 3413736 VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote cont

Download

Download 3413736 VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote cont

Description

VOLTCRAFT VSPP-1208: Your power package for high current intensive lab applications!

Do you need a laboratory power supply that works precisely and reliably even at high currents? The VOLTCRAFT VSPP-1208 is developed especially for demanding applications, which require high power delivery capability at moderate voltages. It is the ideal choice for your projects in research, development and industrial tests.

Performance that convinces, precision that counts
The VSPP-1208 delivers a constant power of 1200 W and provides you with an impressive output range of 0 - 80 V/DC and 0 - 30 A. This configuration is perfect if you need to test powerful components or provide larger loads reliably.

With its 1/2 rack design (19 inch, 2 HU, 48 cm depth) the device can easily be integrated into standard laboratory cabinets, saving valuable space for you WAS. And thanks to the wide input voltage of 85 - 265 V the VSPP-1208 can be used worldwide – Ideal for global projects and flexible laboratory environments.

The VOLTCRAFT VSPP-1208 is your indispensable tool when your applications require high currents. It combines impressive performance, highest precision and the latest control options in a compact format.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 1200 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
