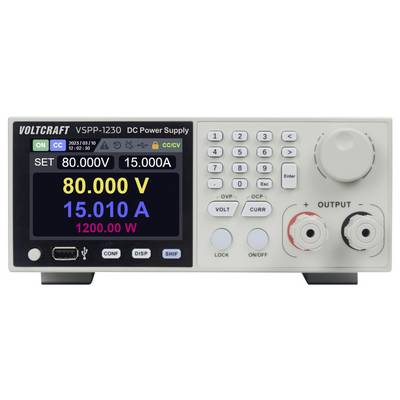

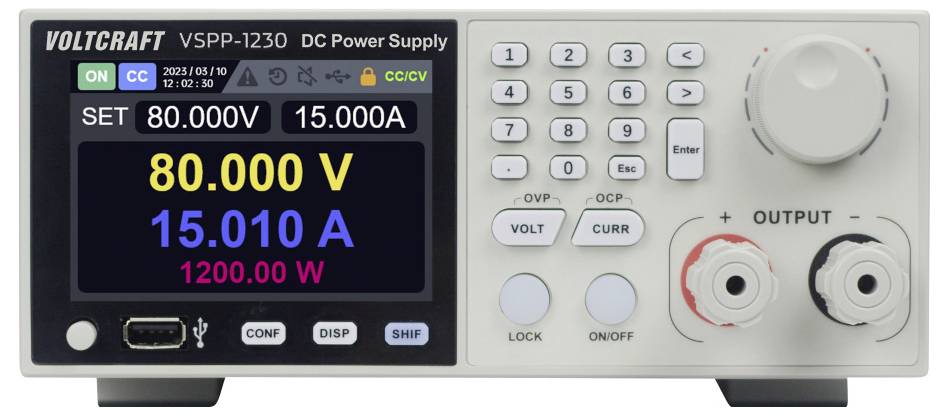

A digital DC power supply displays settings with '80.000 V', '15.010 A', and '1200.0 W'. Includes control buttons and a connection port.

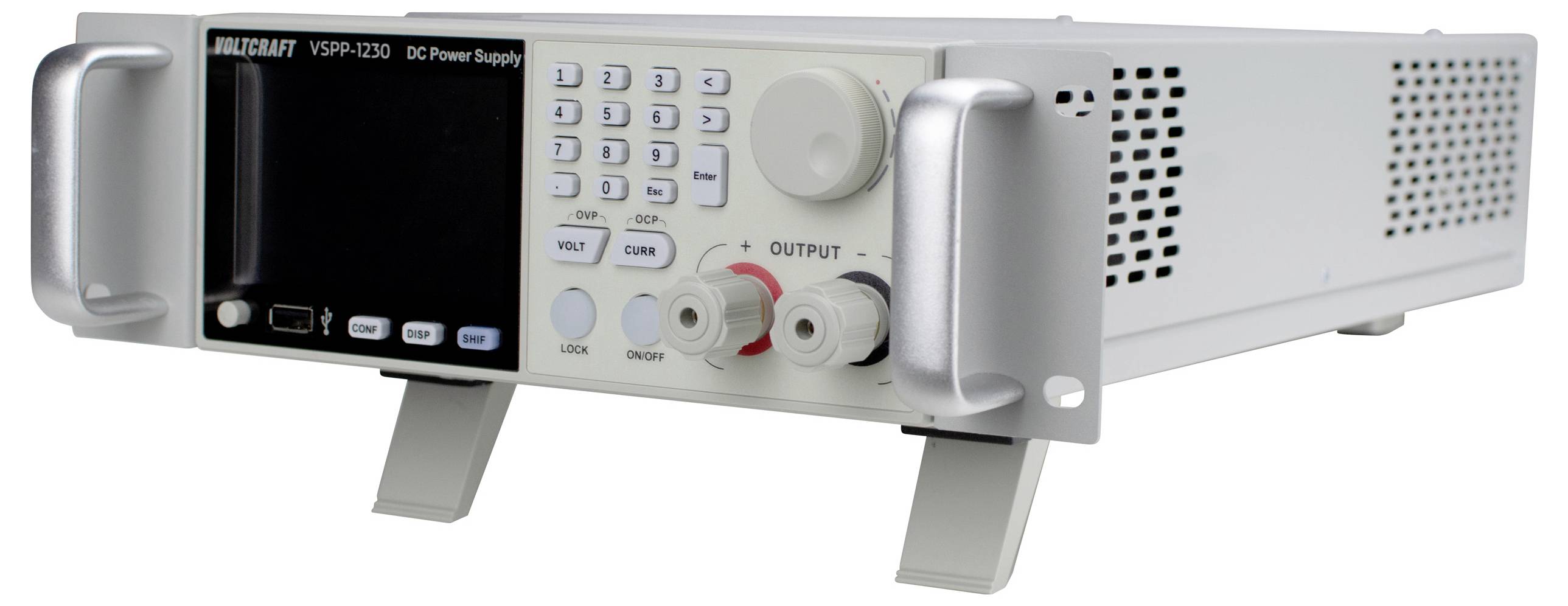

A 'VSP-120' DC power supply device with a digital display, control buttons, and two sturdy handles, used for precise voltage regulation.

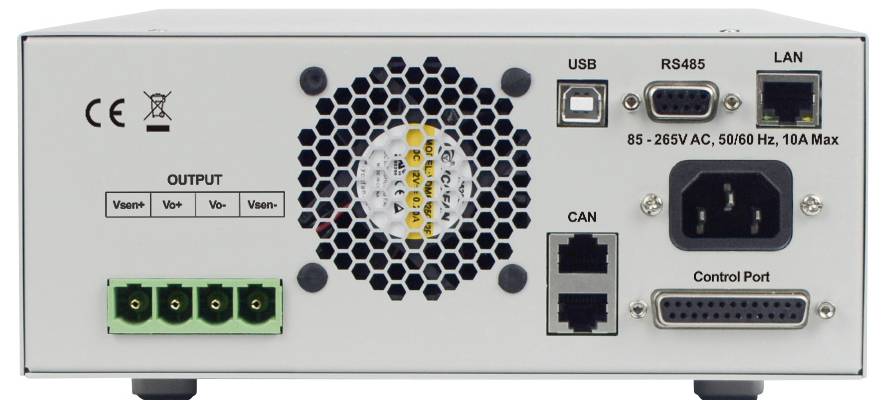

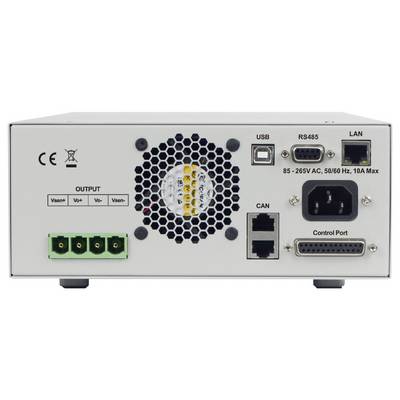

'Back view of a power supply unit with CE and recycling symbols, featuring USB, RS485, LAN ports, output terminals, and power input.'

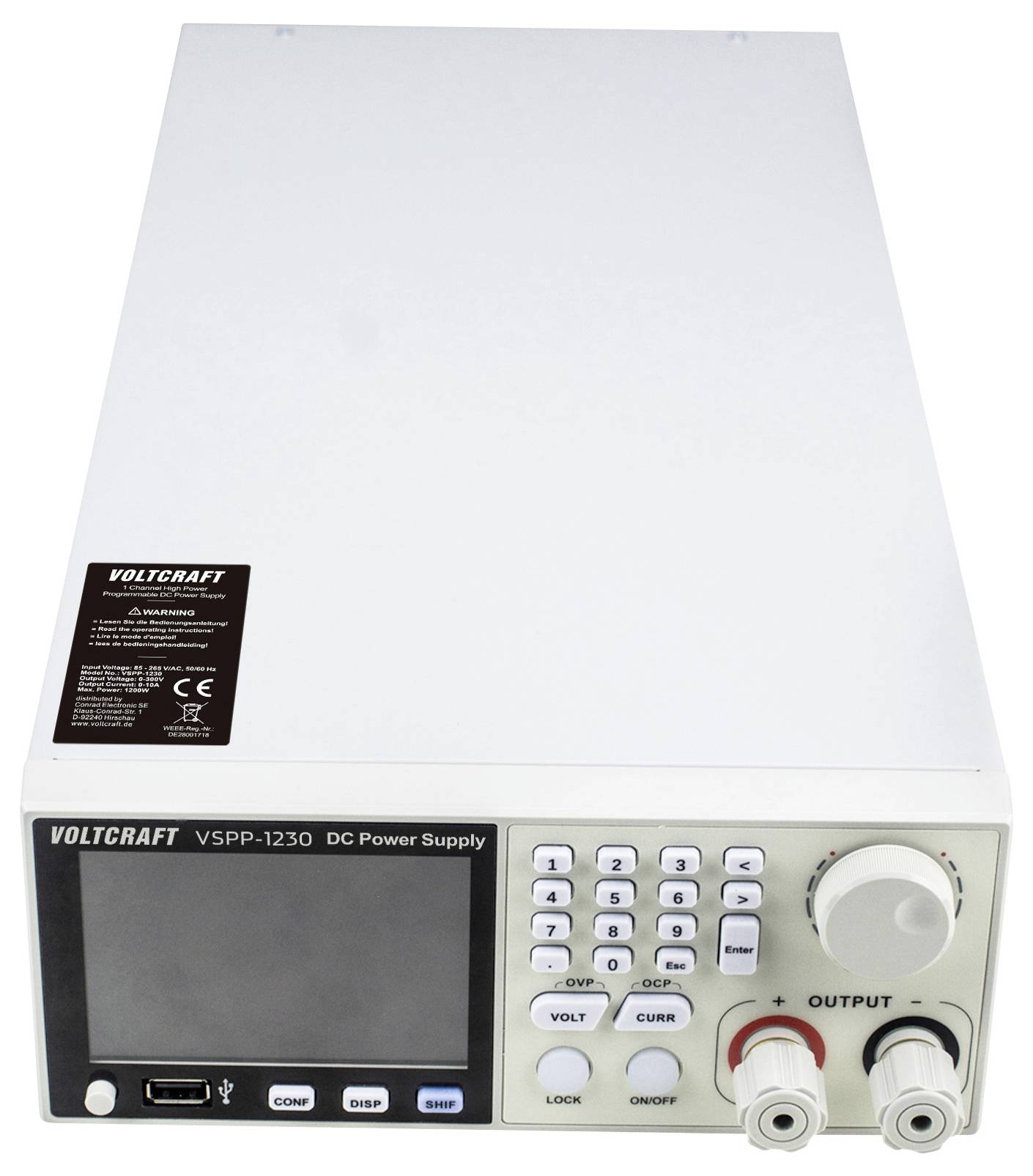

'Voltcraft VSPP-1230 DC Power Supply.' A front-facing view showing a digital display, control buttons, and output connections.

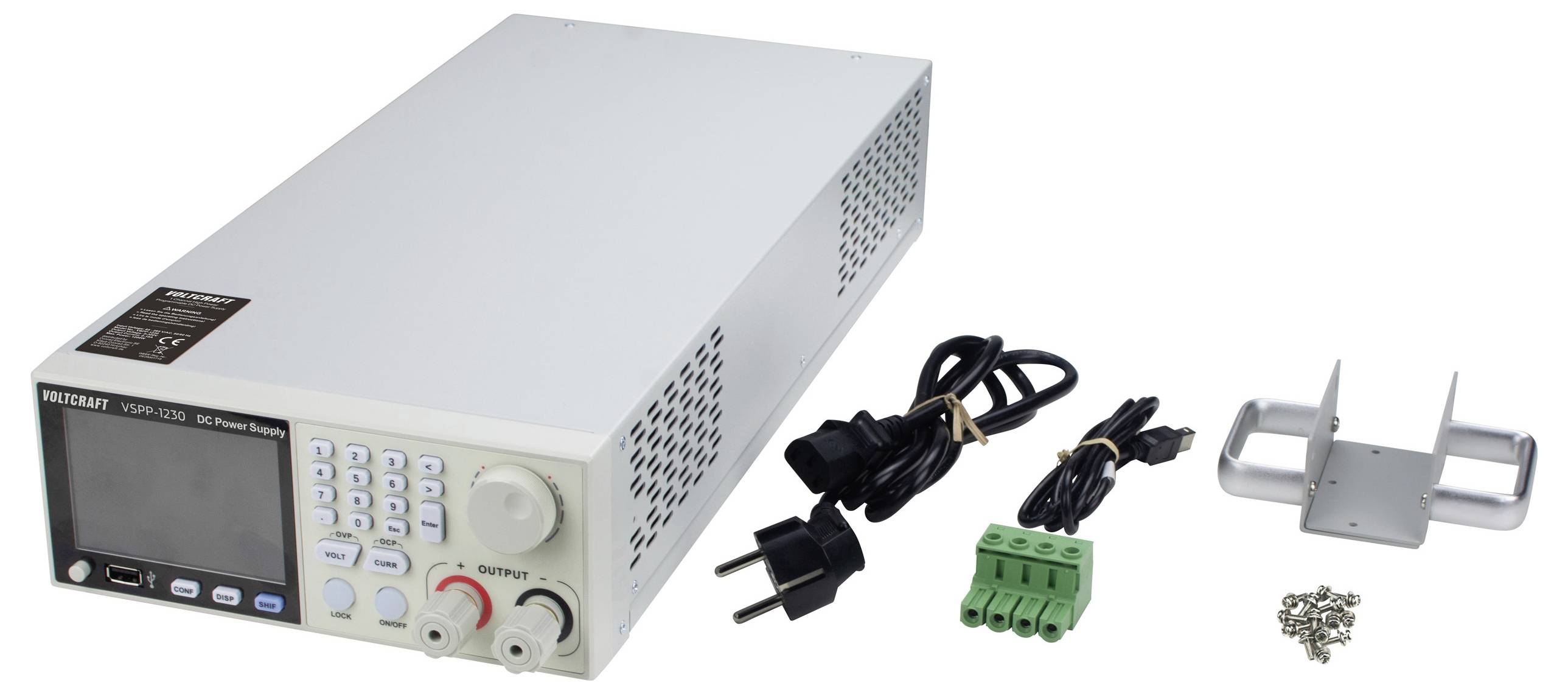

Bench power supply with display and control knobs, various power cables, a green terminal block, a metal bracket, and screws.

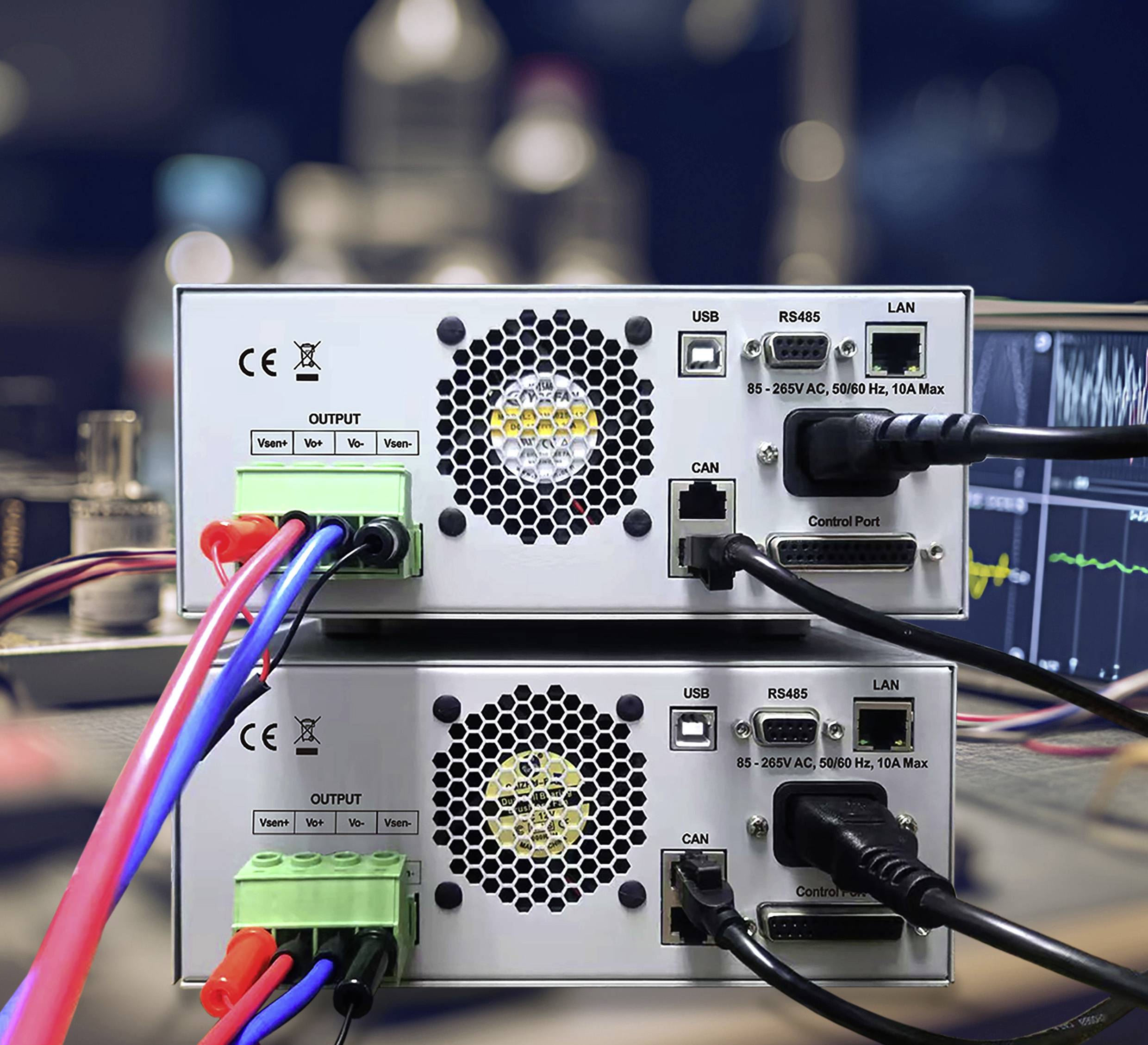

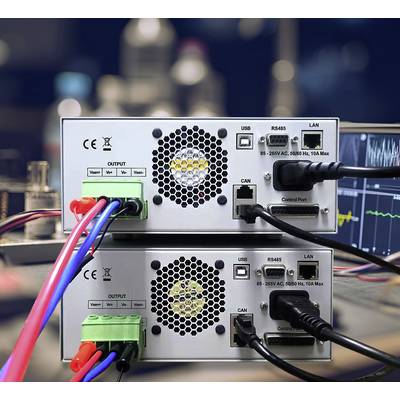

Two electronic devices stacked, featuring USB, RS485, LAN ports, and labeled input/output connections, with cables attached. Background shows a blurred control room.

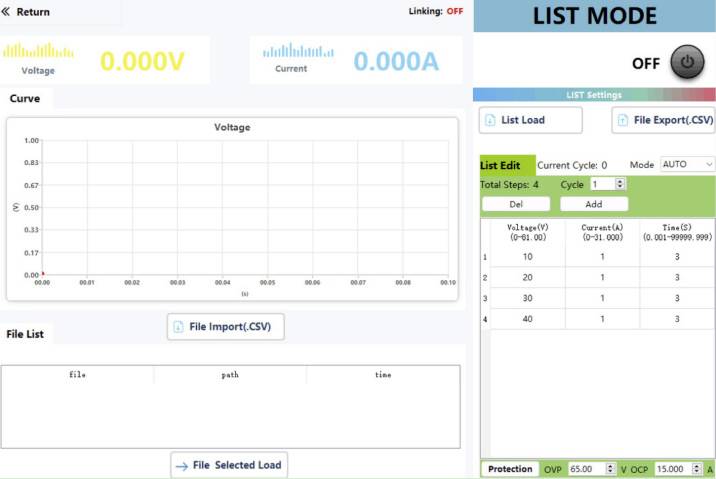

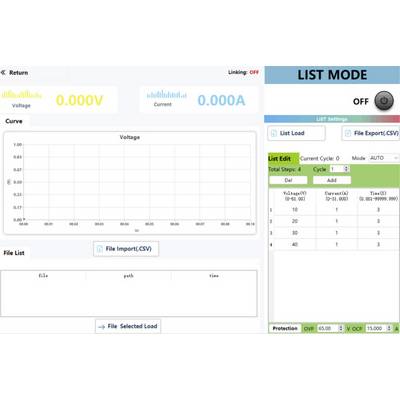

'Voltage 0.000V, Current 0.000A. LIST MODE OFF. Voltage graph area. No data in File List. Settings panel has steps for cycles and protection values.'

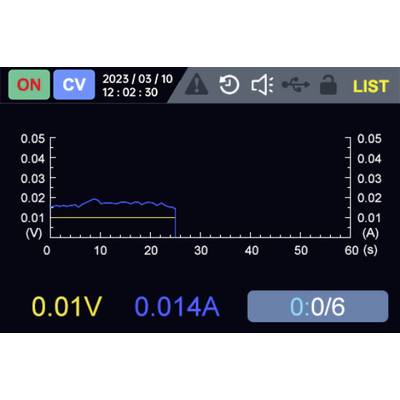

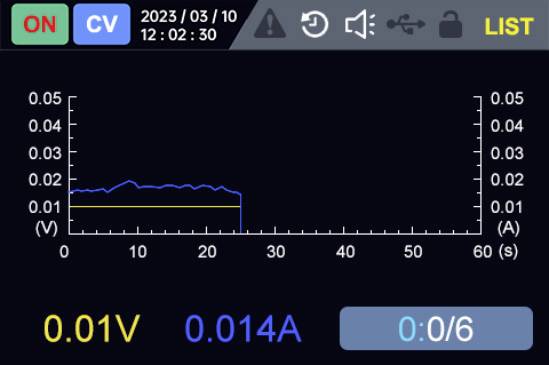

'Graph displaying voltage (V) and current (A) over time (s). Voltage starts at 0.01V, holds steady, then drops slightly. Current reads 0.014A.'

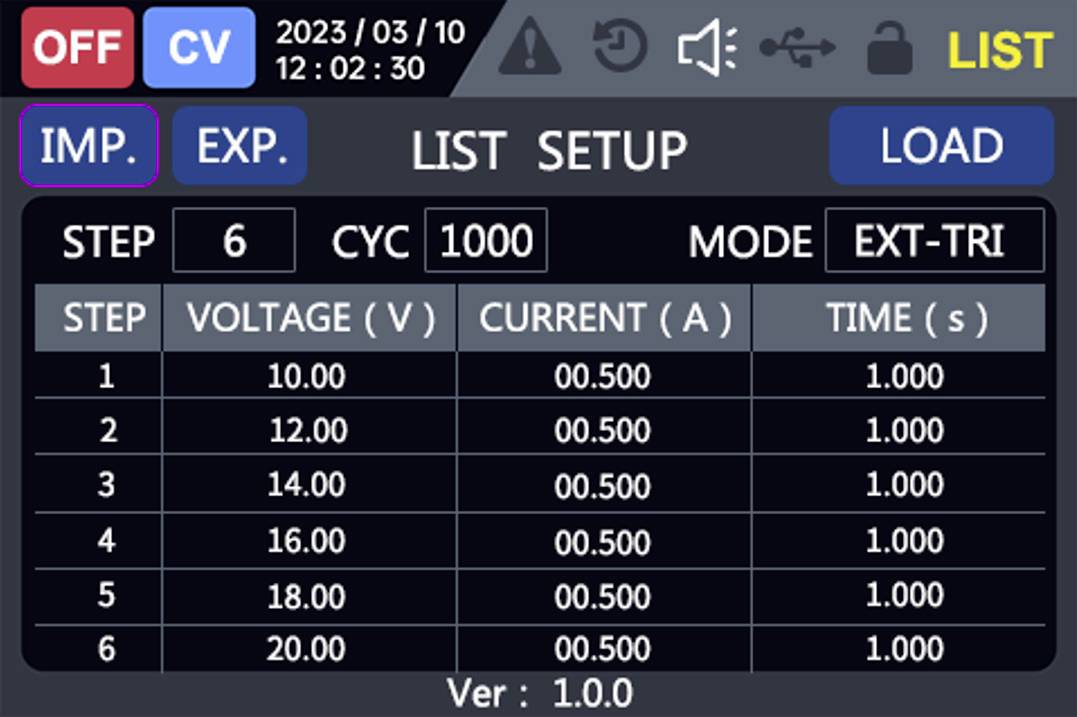

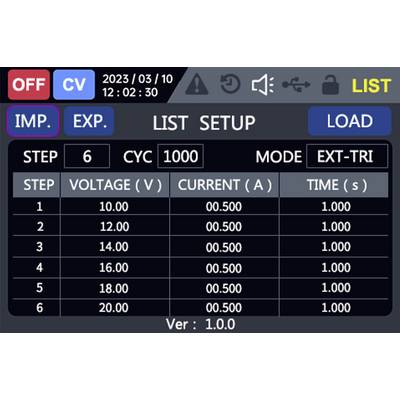

Device interface showing a setup list for steps 1 to 6, displaying voltage, current, and time settings. Step 1: 10V, 0.5A, 1s. Step 6: 20V, 0.5A, 1s.

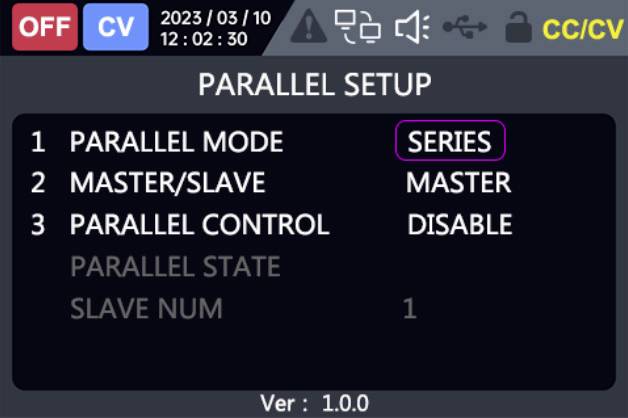

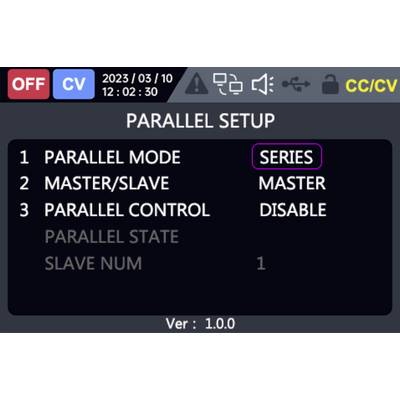

The image shows a "PARALLEL SETUP" screen with options for mode ('SERIES'), control ('DISABLE'), and master/slave ('MASTER'), version 1.0.0.

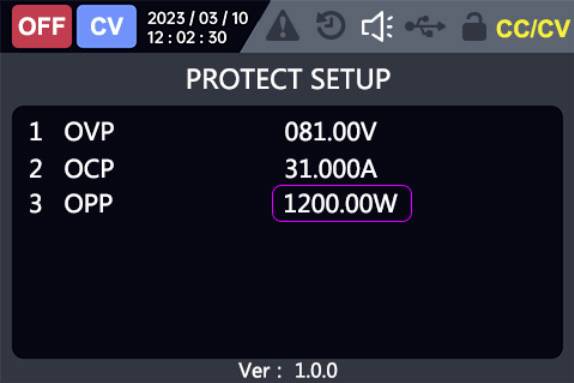

'PROTECT SETUP' screen showing values: OVP 081.00V, OCP 31.000A, OPP 1200.00W. Date is 2023/03/10; version 1.0.

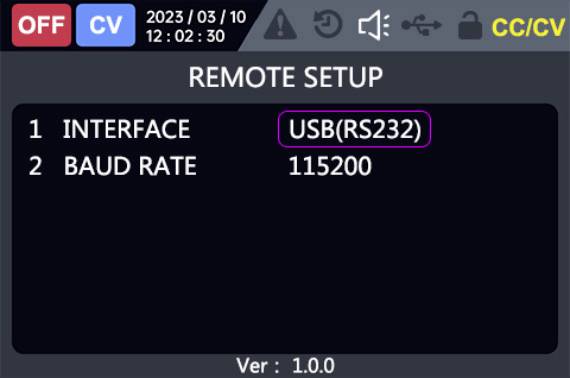

The image shows a remote setup screen with settings: Interface - USB(RS232) and Baud Rate - 115200, version 1.0. Timestamp 2023/03/10.

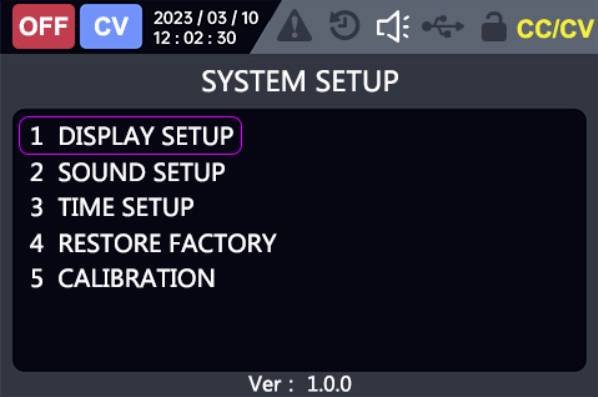

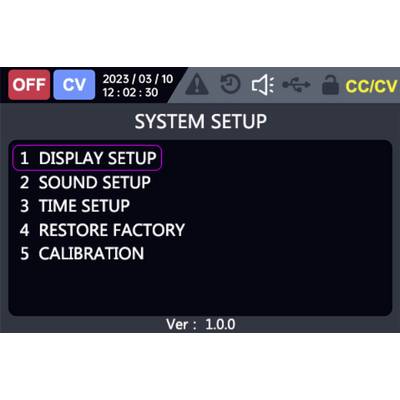

'System Setup' screen showing menu options: 1. Display Setup, 2. Sound Setup, 3. Time Setup, 4. Restore Factory, 5. Calibration.

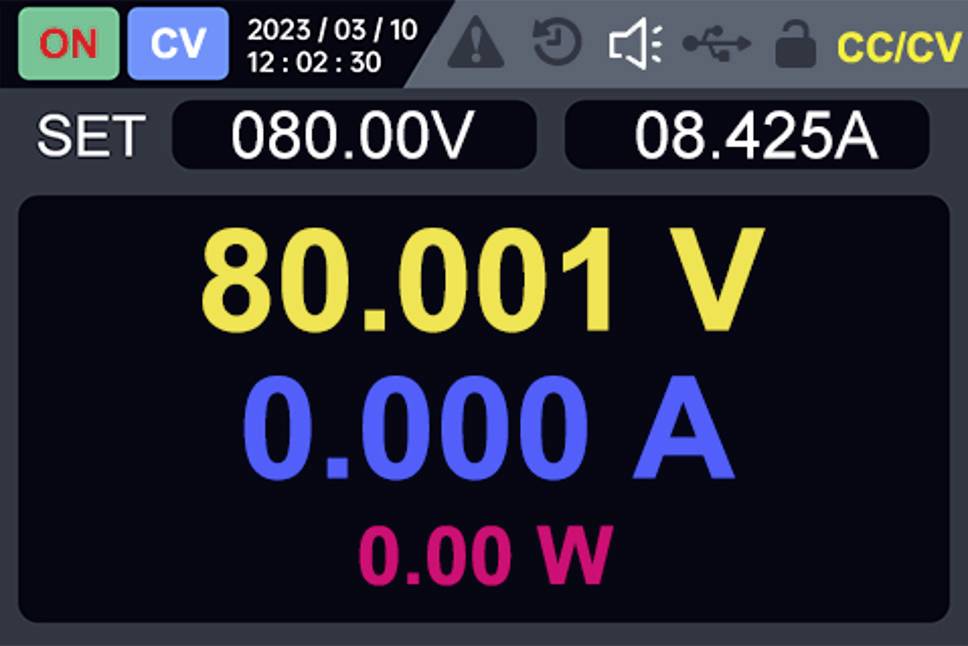

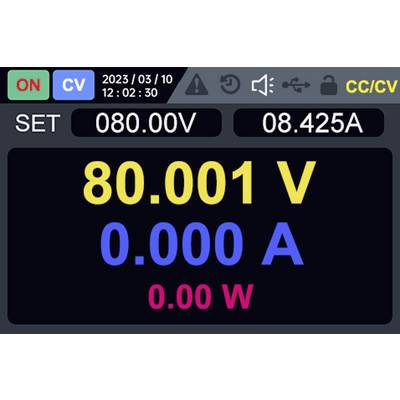

'Power supply display showing settings: 80V, 8.425A, and 0W. Indicators for constant voltage (CV) and set values are highlighted.'

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 973.95 / piece)

€ 973.95

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-1230 Power supply 300 V 10 A 1200 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 300 V
Rated output current: 0 - 10 A
Max. output power: 1200 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Voltage accuracy: ≤0.05 % ± 50 mV
Current accuracy: ≤0.05 % ± 30 mA
Setting resolution: 10 mV, 1 mA

Type: VSPP-1230

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 1200 W

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215 x 453 x 88 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 300 V DC

Output voltage (min.): 0 V DC

Max. output current: 10 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Type: Bench

Width: 453 mm

Height: 88 mm

Length: 215 mm

Residual ripple: Voltage: ≤250 mVp-p, Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

This article

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3413738 VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3413738 VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3413738 VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote con

Download

Download 3413738 VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote con

Description

VOLTCRAFT VSPP-1230: Precise performance for your lab - Discover now!

Are you looking for a reliable and precise laboratory power supply that fits seamlessly into your test environment? The VOLTCRAFT VSPP-1230 is the ideal solution for demanding applications in research, development and industry. With its impressive performance and versatile functions it is the perfect partner for your projects.

Compact, powerful, can be used worldwide
The VSPP-1230 delivers a constant power of 1200 W and offers you a flexible output range of 0 - 300 V/DC and 0 - 10 A. Whether you need precise voltages for sensitive circuits or higher currents for performance tests, this device covers a wide range.

Thanks to its 1/2 rack design (19-inch, 2-U, 48-cm depth), the VSPP-1230 can easily be integrated into existing racks and saves valuable space in your laboratory. And best of all, the wide input voltage of 85 - 265 V enables worldwide use – Ideal for international projects or distributed laboratories.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 1200 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
