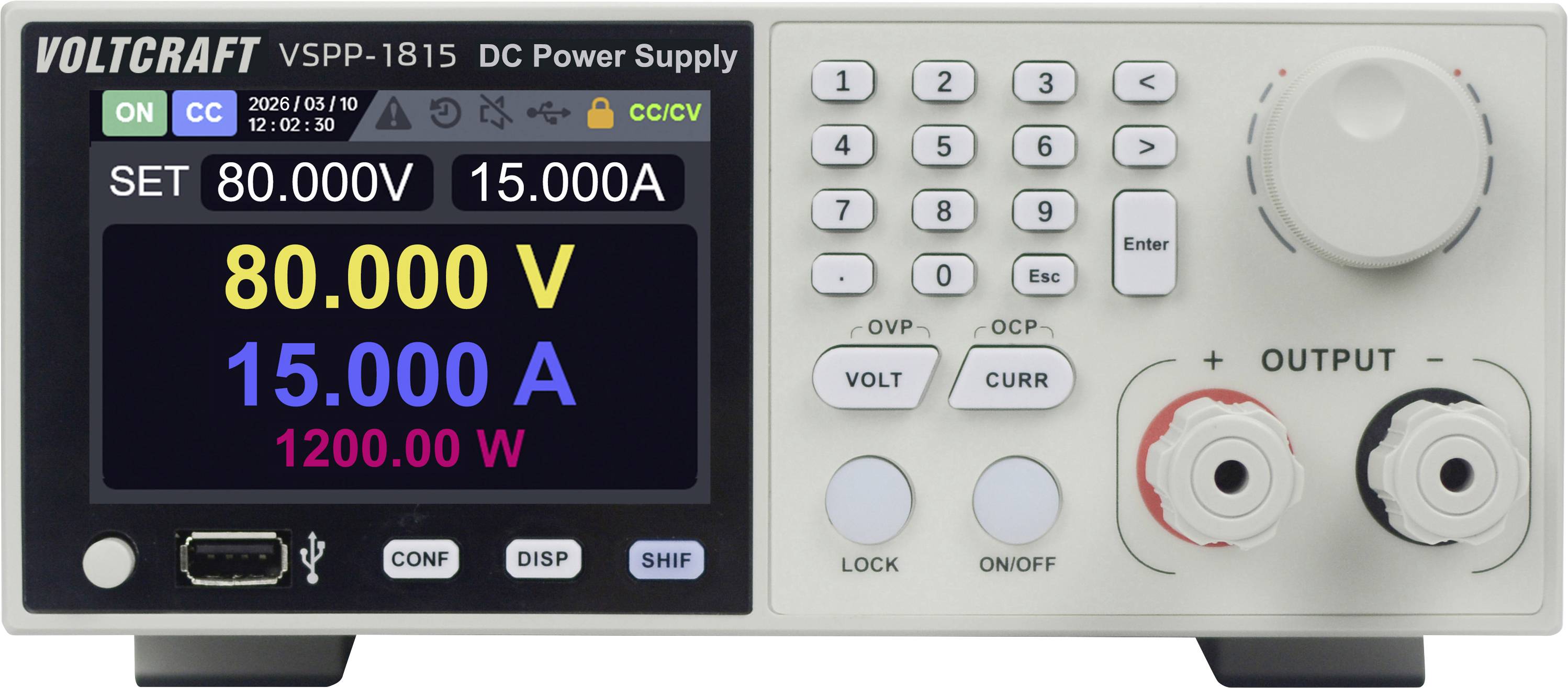

Voltcraft VSPP-1815 DC power supply front panel showing set output 80.000 V, 15.000 A, 1200.00 W, with keypad, dial, and output terminals.

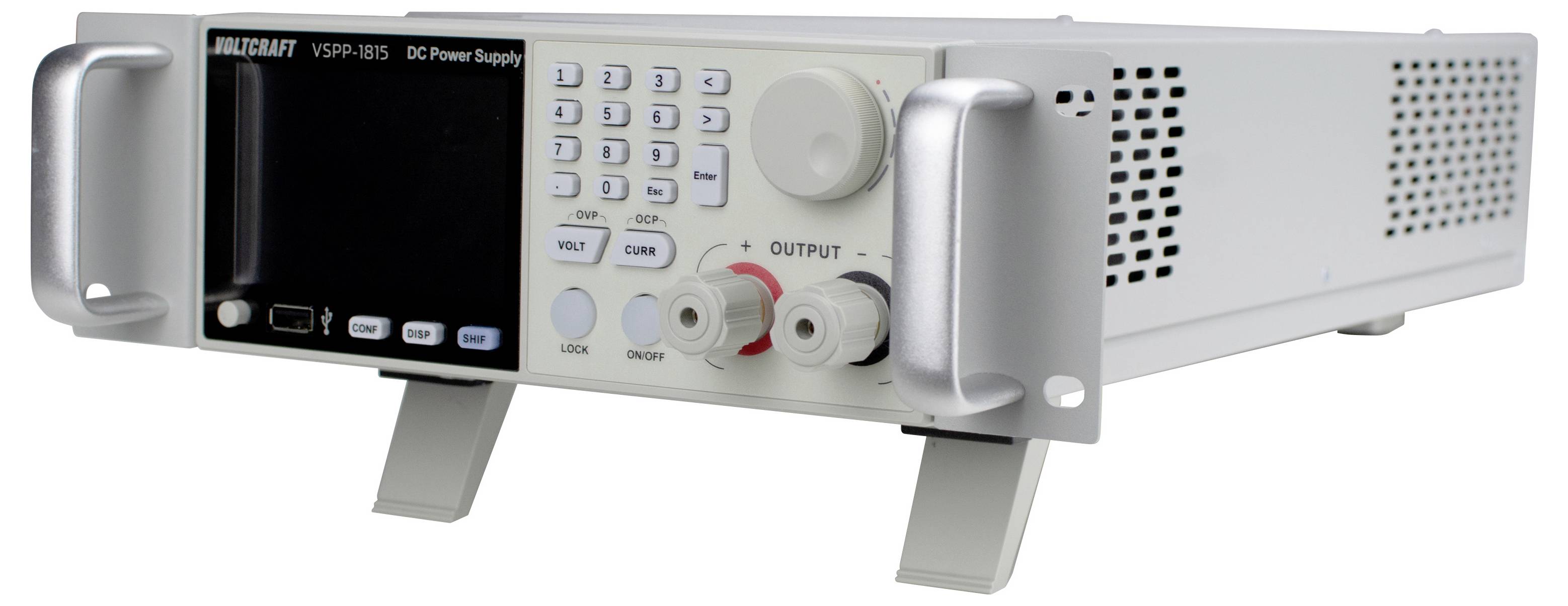

Front view of a dual-handle DC power supply with digital display, control knobs, output terminals, and ventilation holes on the side.

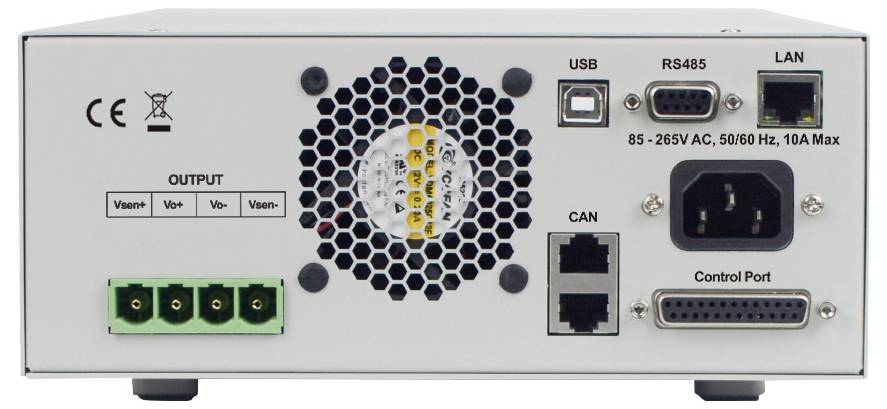

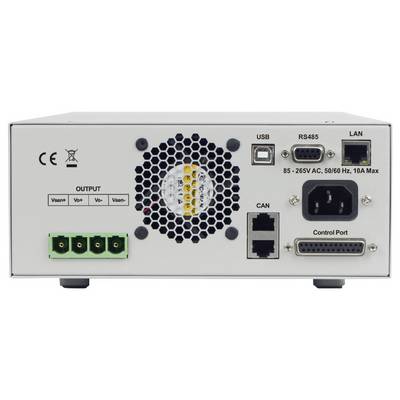

Front panel of an industrial power supply with labeled outputs, cooling fan, USB, RS485, LAN, CAN, AC input, and control ports.

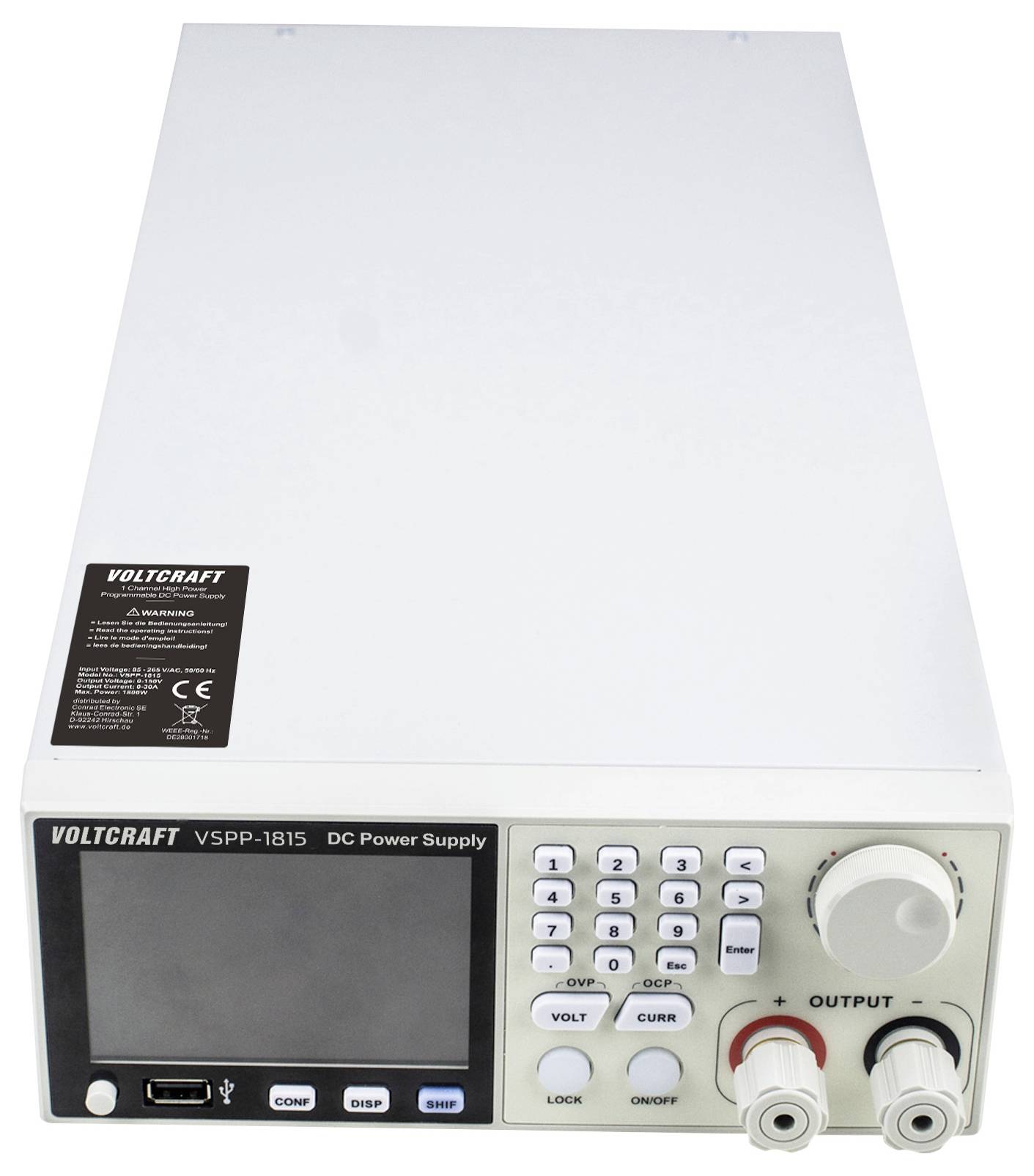

Front view of a Voltcraft VSPP-1815 DC power supply with display, keypad, control knob, and output terminals.

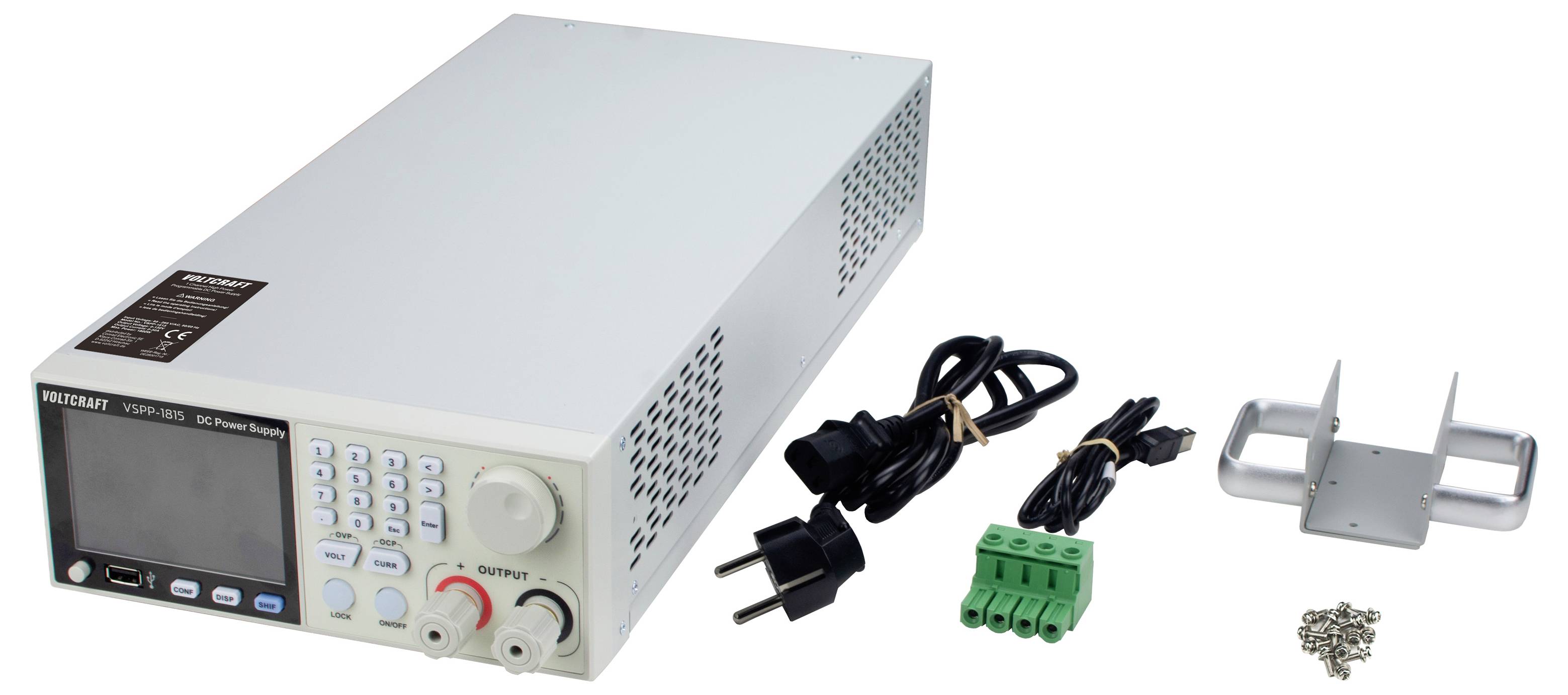

Bench DC power supply with display, keypad and control knob, shown with power cords, screw terminal connector, mounting bracket and screws.

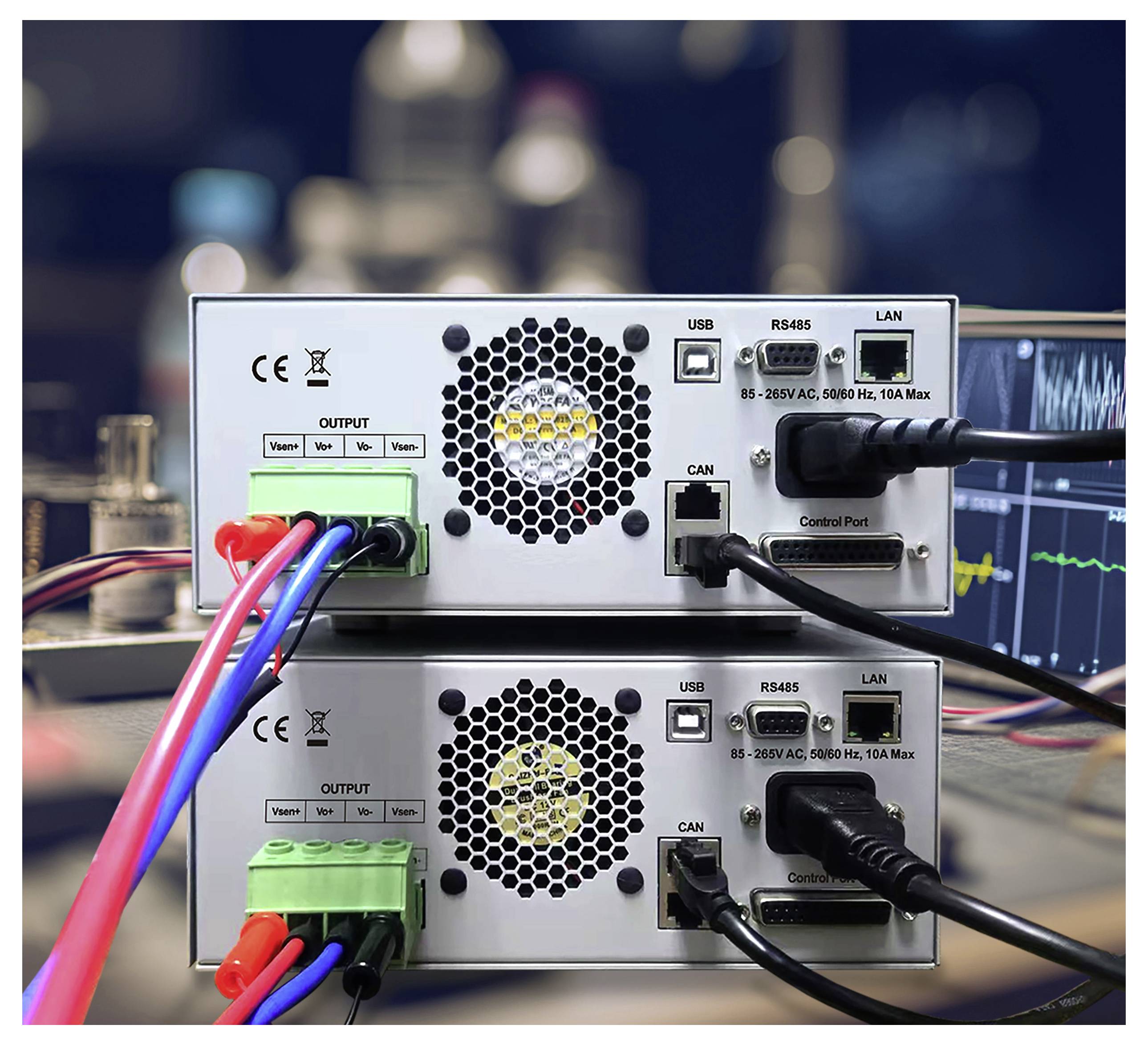

Two stacked electronic control units with cooling fans, power/output connectors, and USB, RS485, LAN, CAN, and control ports connected by cables.

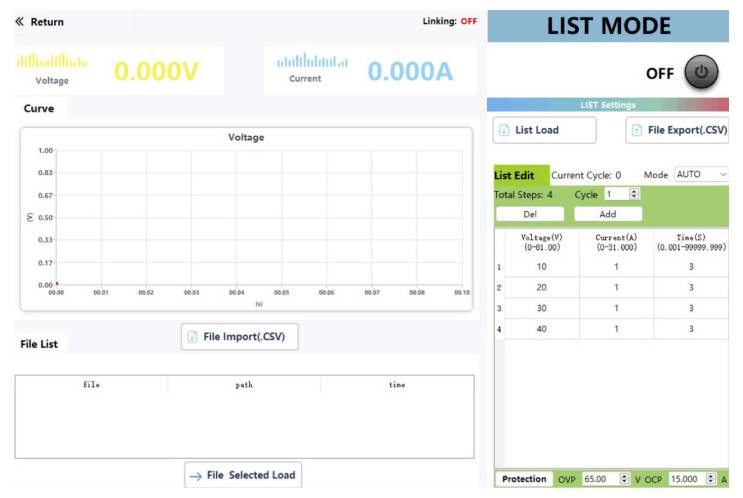

A list-mode control screen for a power supply/load, showing 0.000V and 0.000A, an empty voltage curve graph, file list/import-export controls, and a 4-step voltage/current/time sequence table.

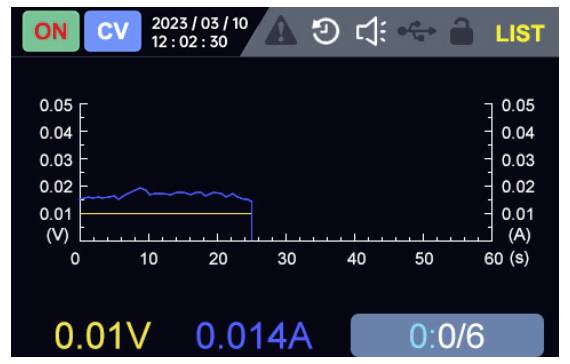

Digital meter display showing voltage and current over time: 0.01V and 0.014A, with a graph of voltage staying near 0.015V then dropping to zero around 25 seconds.<br>

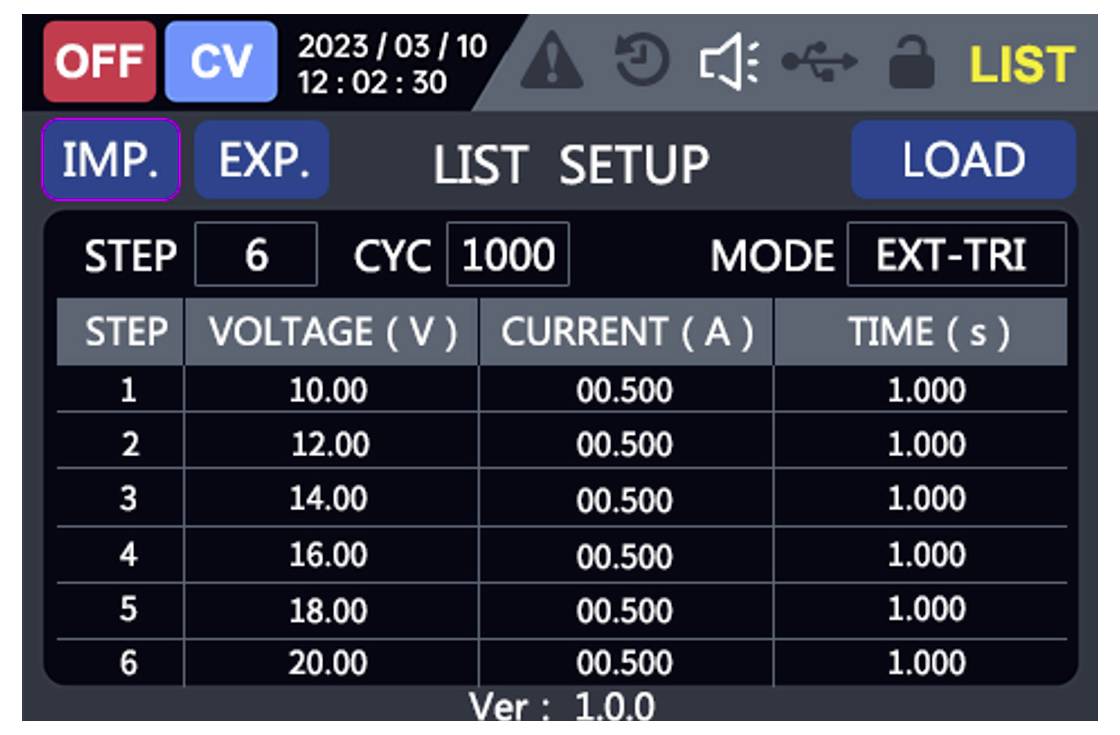

Battery tester setup screen showing list mode: 6 steps, cycle 1000, external trigger; voltages from 10.00V to 20.00V at 0.500A for 1.000s each.

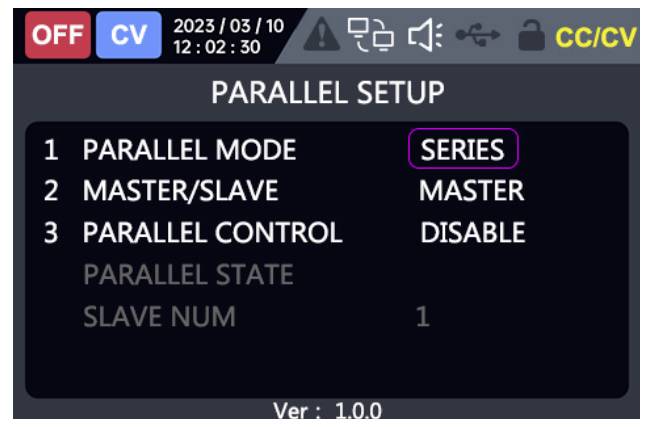

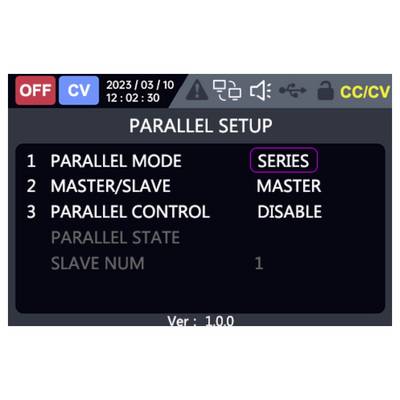

Display settings screen titled 'PARALLEL SETUP' showing Parallel Mode set to 'SERIES', Master/Slave to 'MASTER', and Parallel Control disabled.

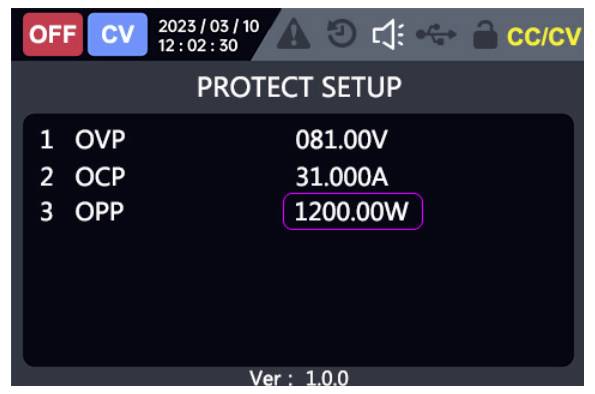

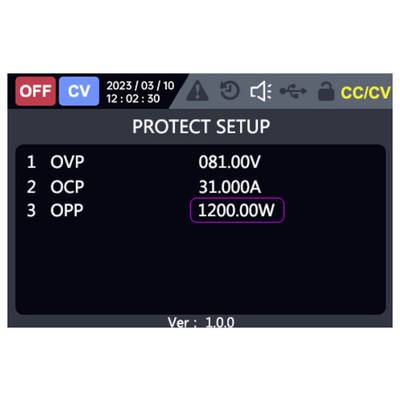

Power supply 'PROTECT SETUP' screen showing OVP 081.00V, OCP 31.000A, and OPP 1200.00W in CV mode.

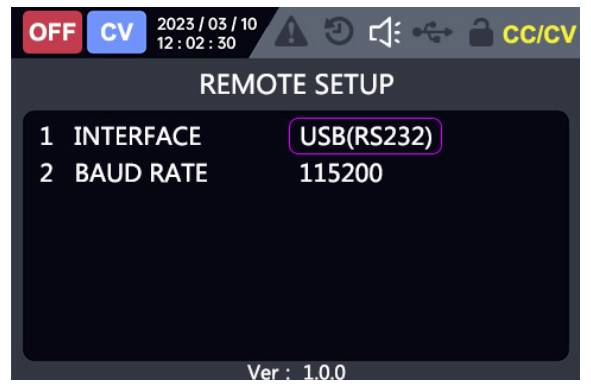

Remote setup menu showing interface set to USB(RS232) and baud rate 115200, with OFF/CV status and version 1.00 displayed.

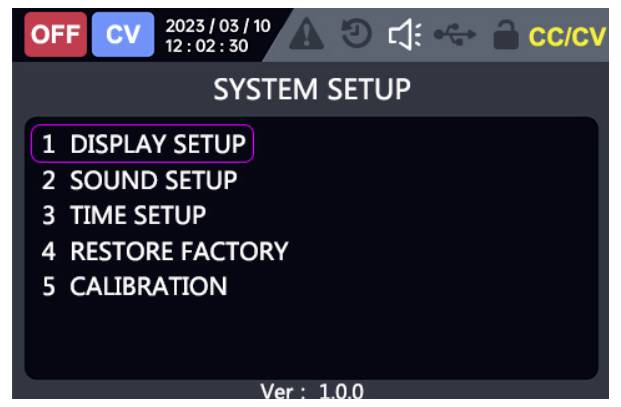

Camera system setup menu with options for display, sound, time, factory restore, and calibration; 'Display Setup' is selected.

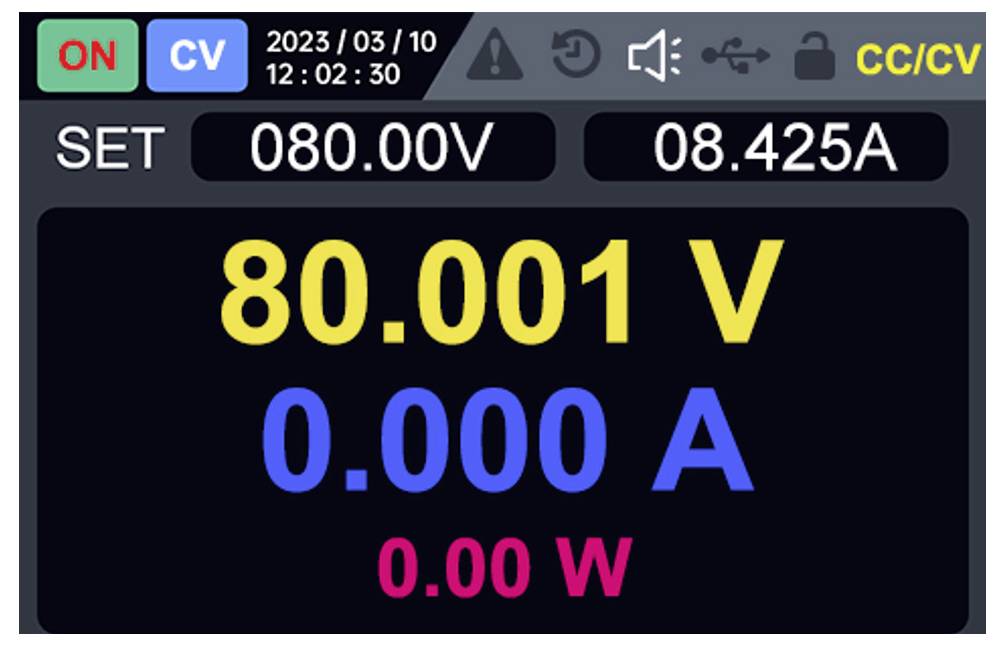

Digital power supply display showing 80.001 V, 0.000 A, 0.00 W, with set values 080.00V and 08.425A in CC/CV mode.<br>

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,755.46 / piece)

€ 1,755.46

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-1815 Power Supply 150 V 30 A 1800 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 150 V
Rated output current: 0 - 30 A
Max. output power: 1800 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Input: 85 - 265 VAC; 50 - 60 Hz, 10A max.
Resolution || Accuracy:
Voltage: 10 mV || ≤0.05% ±50mV
Current: 1 mA || ≤0.05% ±20mA

Type: VSPP-1815

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 1800 W

Technology: SMPSU

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215.2 x 519.1 x 99.8 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 150 V DC

Output voltage (min.): 0 V DC

Max. output current: 30 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Width: 519.1 mm

Height: 99.8 mm

Length: 215.2 mm

Residual ripple: Voltage: ≤100 mVp-p
Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

This article

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3734640 VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3734640 VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3734640 VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote con

Download

Download 3734640 VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote con

Description

The VOLTCRAFT VSPP-1815 is designed as a compact 1/2 rack design and delivers a precise output power of 1800 W. It is intended for commercial users looking for a reliable and space saving solution for installation in 48 cm (19") cabinet systems.

Efficient rack integration
The housing design in 2 U (rack units) and the included handles make it easy to integrate the device into professional racks. This ensures order and clarity in the laboratory setup.

Global application area
The mains adapter supports input voltages from 85 V to 265 V AC. This enables operation in different countries and on different power grids without any additional adjustments.

Integrated discharging switching
The circuit integrated in the output provides for a controlled discharge after switching off. This increases the efficiency in changing test set-ups and protects the connected peripherals.

Precise control
Thanks to the high output resolution of 10 mV and 1 mA, exact values can be set which can be checked at any time via the clear color display.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 1800 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
