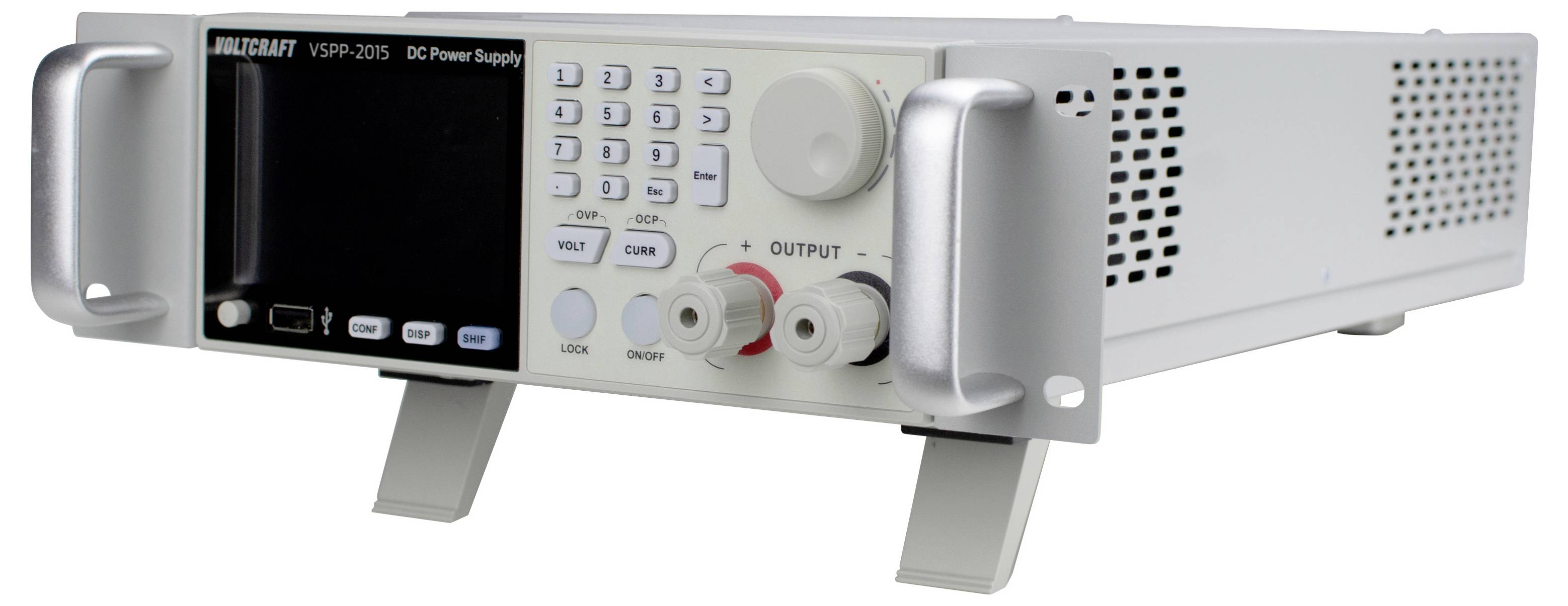

Benchtop DC power supply with digital display, keypad, output knobs, and front handles for lab use.

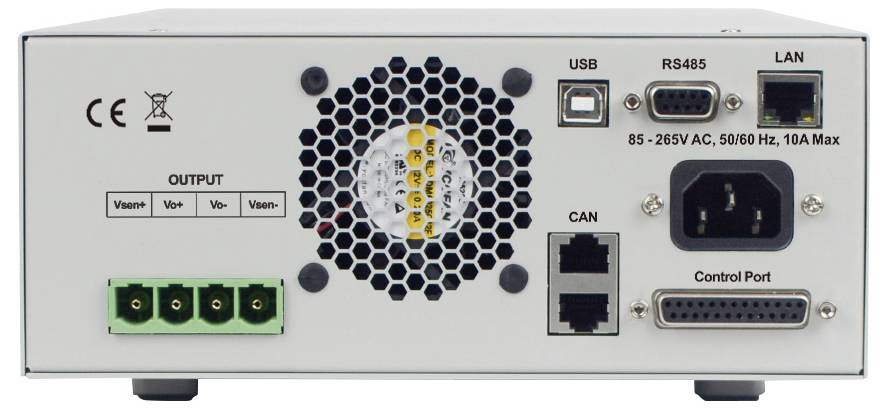

Front view of a metal power supply/control unit with labeled outputs, fan grille, USB, RS485, LAN, CAN, and control ports.

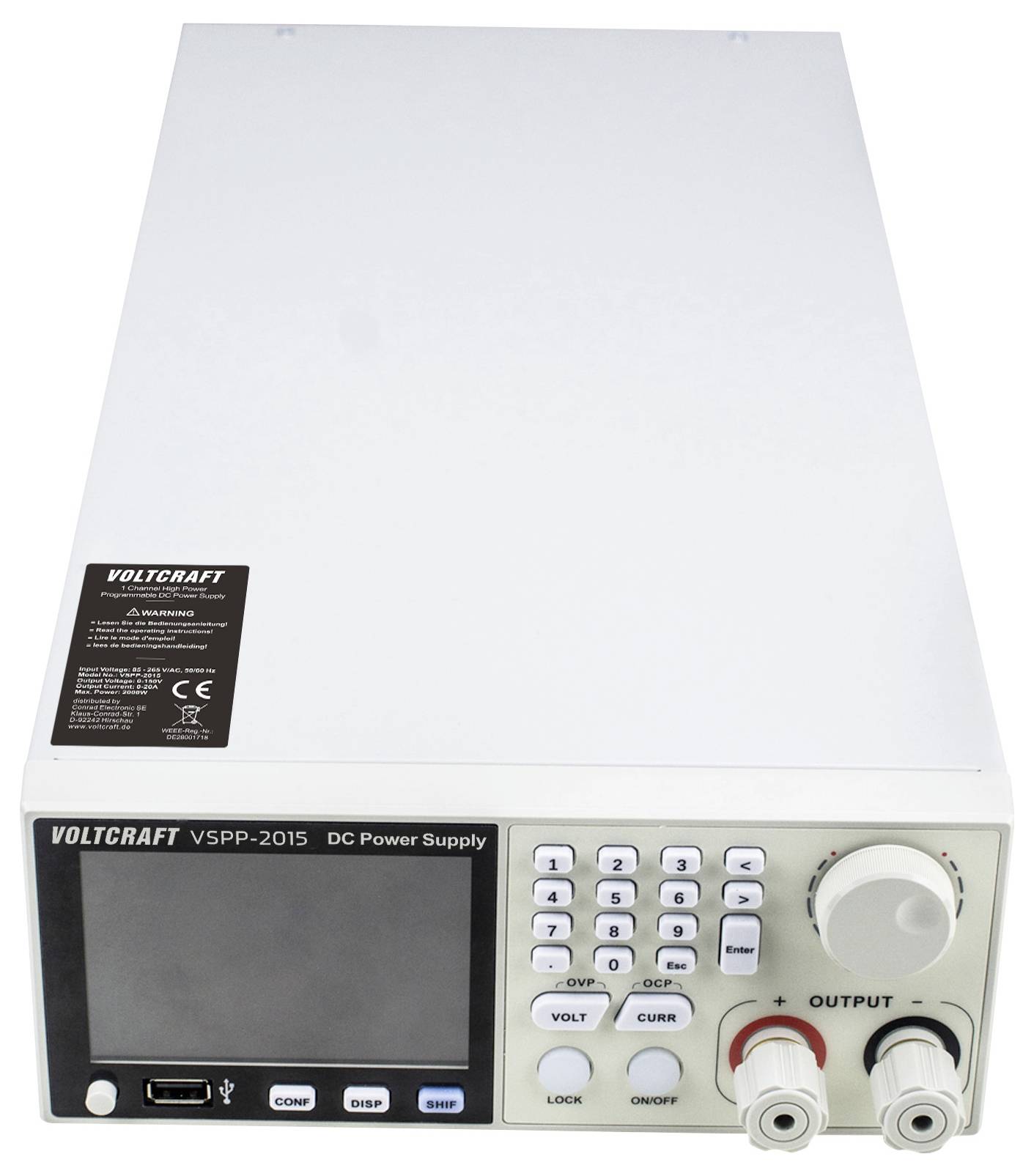

Front view of a Voltcraft VSPP-2015 DC power supply with blank display, keypad, control knob, and output terminals.

Bench power supply unit with display, keypad, and output knobs, shown with power cords, terminal block, mounting bracket, and screws.

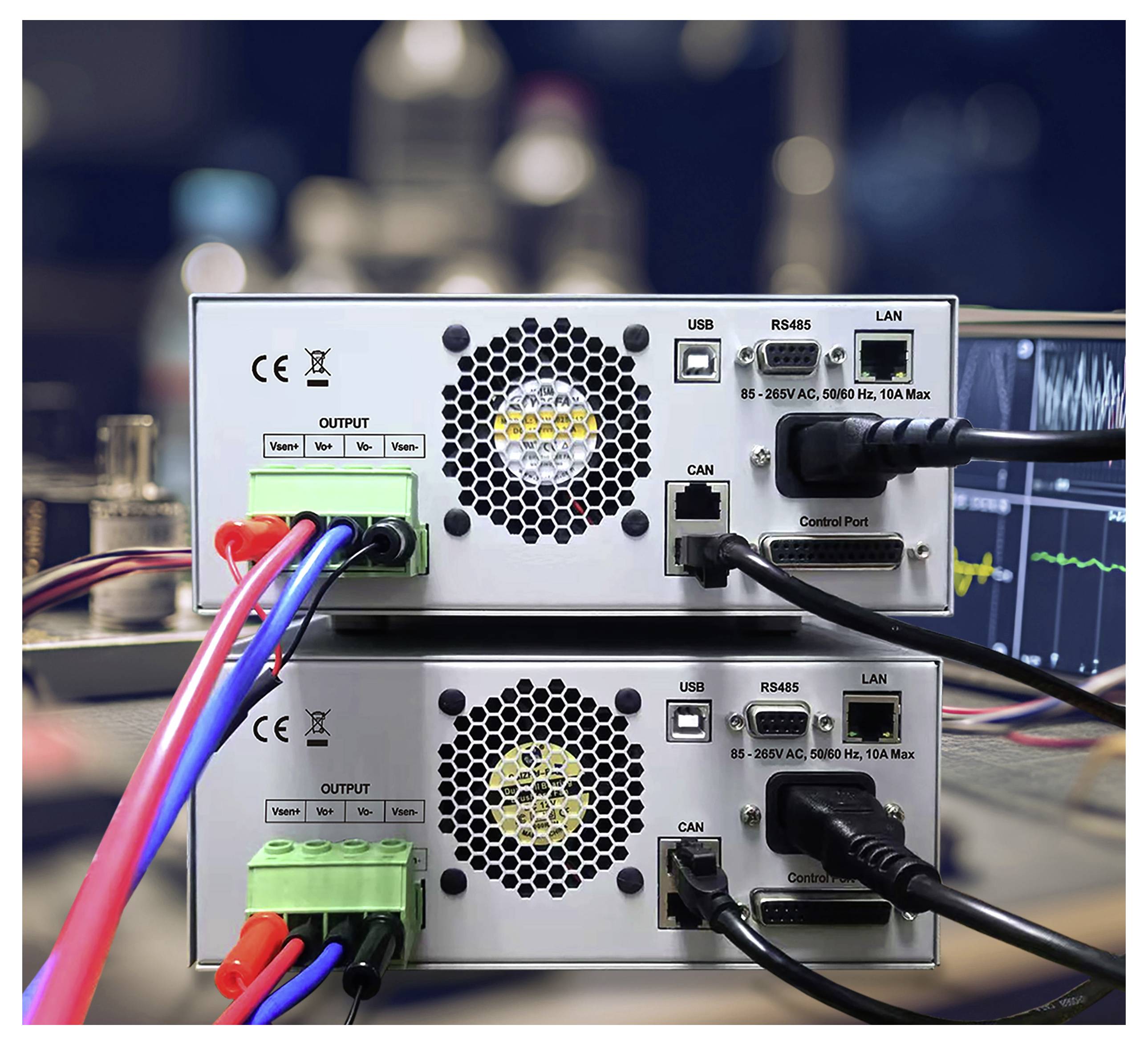

Two stacked power supply units with cooling fans, output terminals, USB/RS485/LAN ports, and connected cables on a workbench.

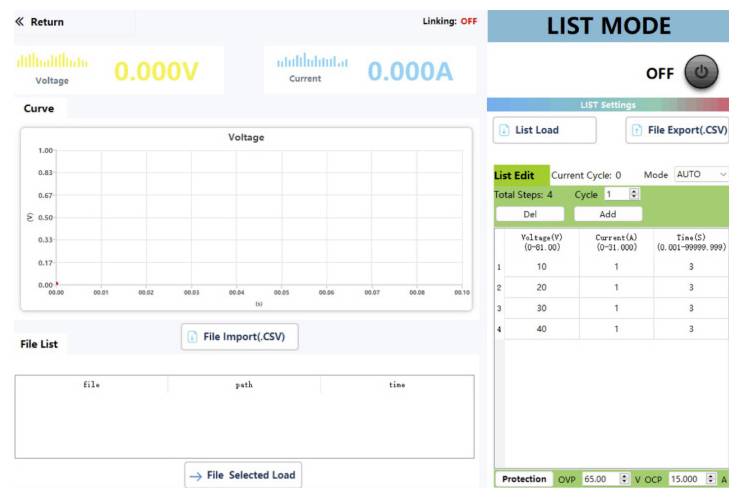

A battery test/control interface in 'LIST MODE' showing 0.000V and 0.000A, an empty voltage curve, and a load list table with file import/export controls.

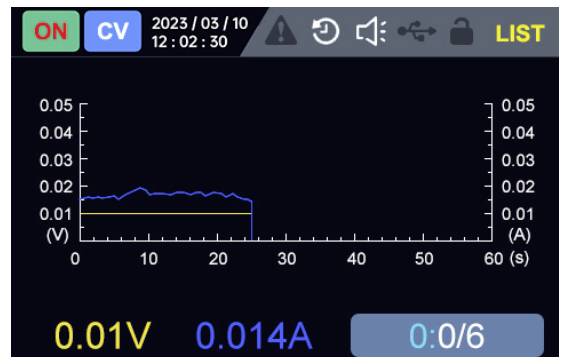

Device display showing voltage and current graph over 60 seconds, with 0.01V and 0.014A readings and a timer/status bar at the top.

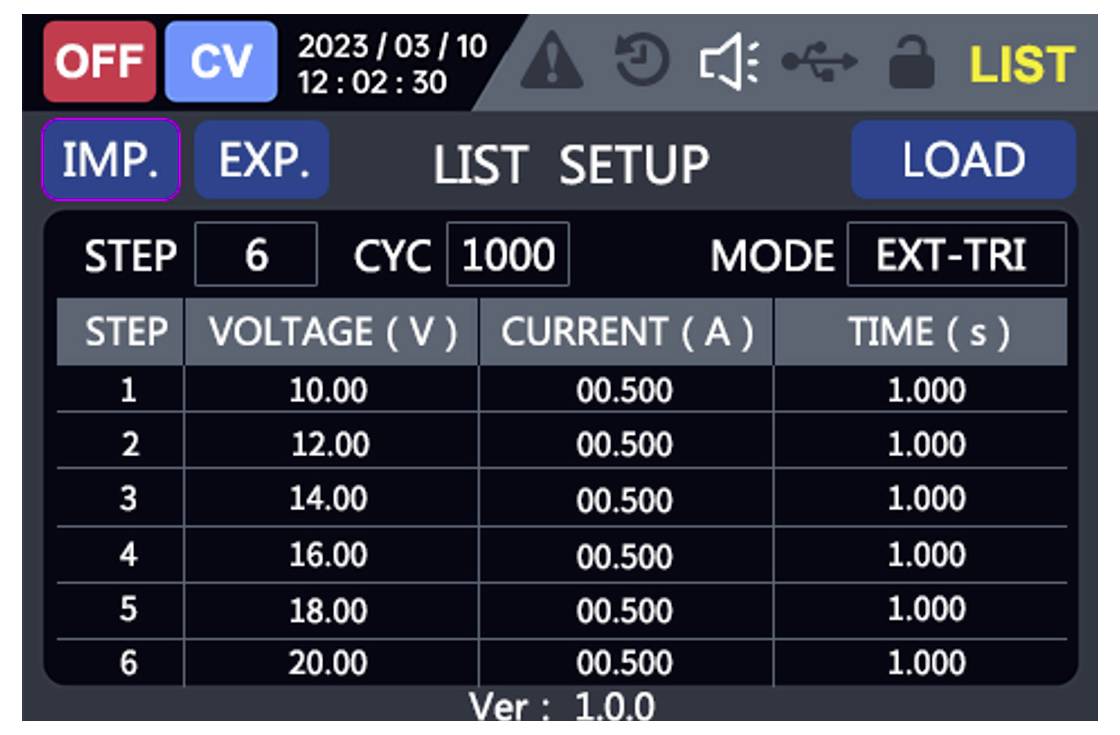

Industrial touchscreen displaying a test list setup: 6 steps, cycle 1000, mode EXT-TRI, with voltage increasing 10.00 to 20.00 V at 0.500 A for 1.000 s each.<br>

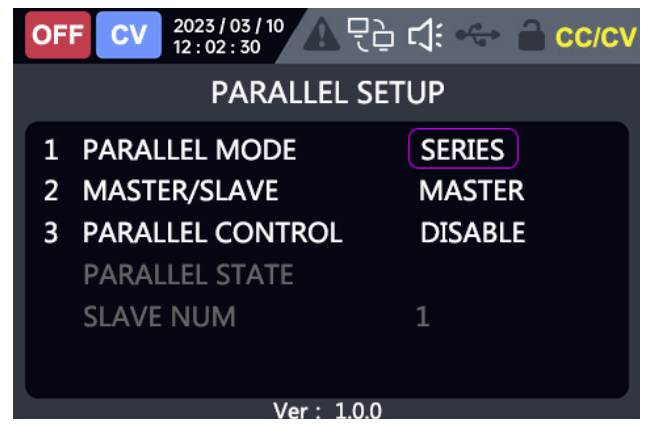

Camera menu screen showing 'PARALLEL SETUP' with Parallel Mode set to 'SERIES', Master/Slave to 'MASTER', and Parallel Control 'DISABLE'.

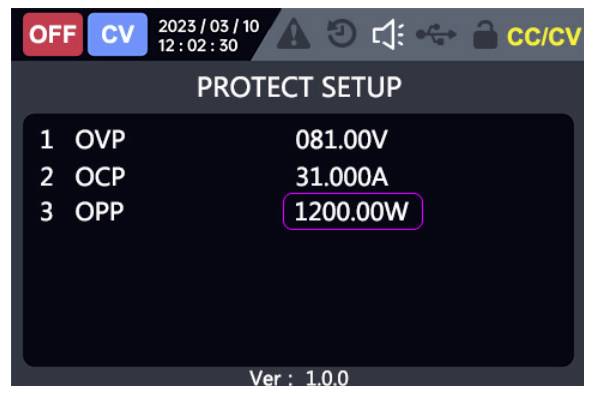

Power supply 'PROTECT SETUP' screen showing OVP 081.00V, OCP 31.000A, and OPP 1200.00W in CV mode, with output off.

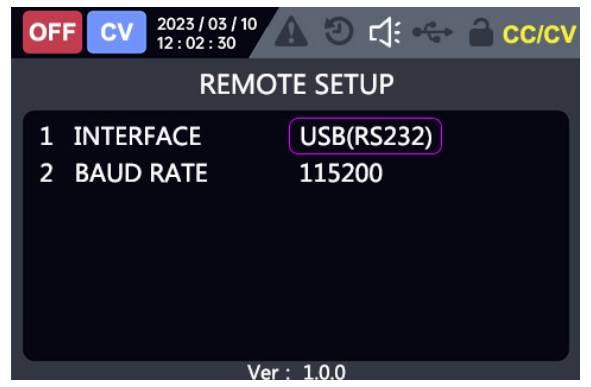

Camera 'Remote Setup' menu showing Interface set to 'USB(RS232)' and Baud Rate set to 115200, with OFF/CV status indicators.

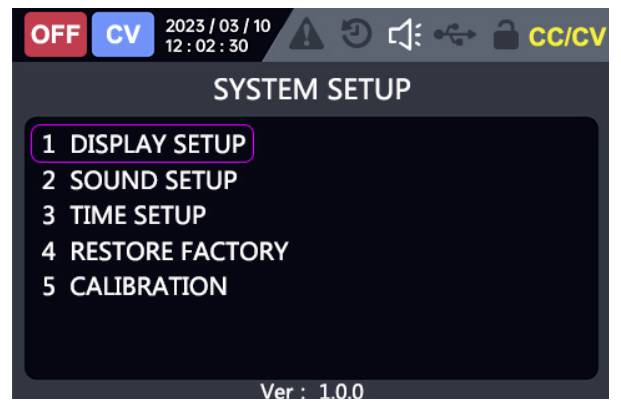

Camera system setup menu showing options for display, sound, time, factory reset, and calibration, with 'Display Setup' selected.

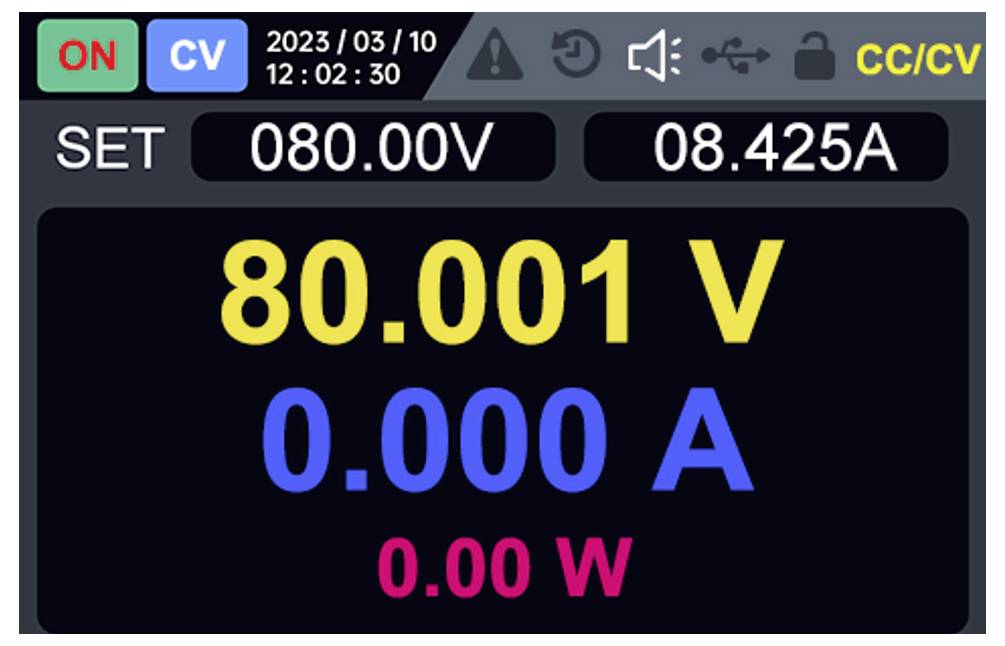

Digital power supply display in CC/CV mode showing set voltage 080.00V, set current 08.425A, and output 80.001V, 0.000A, 0.00W.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,755.46 / piece)

€ 1,755.46

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-2015 Power Supply 150 V 20 A 2000 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 150 V
Rated output current: 0 - 20 A
Max. output power: 2000 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Input: 85 - 265 VAC; 50 - 60 Hz, 10A max.
Resolution || Accuracy:
Voltage: 10 mV || ≤0.05% ±50mV
Current: 1 mA || ≤0.05% ±20mA

Type: VSPP-2015

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 2000 W

Technology: SMPSU

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215.2 x 519.1 x 99.8 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 150 V DC

Output voltage (min.): 0 V DC

Max. output current: 20 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Width: 519.1 mm

Height: 99.8 mm

Length: 215.2 mm

Residual ripple: Voltage: ≤100 mVp-p
Current: ≤30 mArms

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

This article

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3734641 VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3734641 VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3734641 VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote con

Download

Download 3734641 VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote con

Description

This programmable laboratory power supply provides a constant power of 2000 W at voltages up to 150 V/DC. It combines digital precision with a robust design and is optimized for everyday use in development and quality assurance.

Digital accuracy
With a resolution of 10 mV and 1 mA, the VSPP-2015 enables a very fine adjustment of the output values. This is a decisive advantage for professional users, especially for sensitive test series.

Versatile connectivity
In addition to the digital interfaces (USB, RS-485, LAN), the device also has analogue inputs and outputs and potential-free contacts. This provides maximum compatibility for system integration.

Remote compensation for precise results
The output terminal with remote compensation included in the delivery makes it possible to compensate for voltage drops in the cables, so that the exact voltage arrives directly at the consumer.

Clear monitoring
The integrated TFT-LCD visualizes performance data in real time. The display of the voltage and current curves helps to identify and document load changes immediately.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 2000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

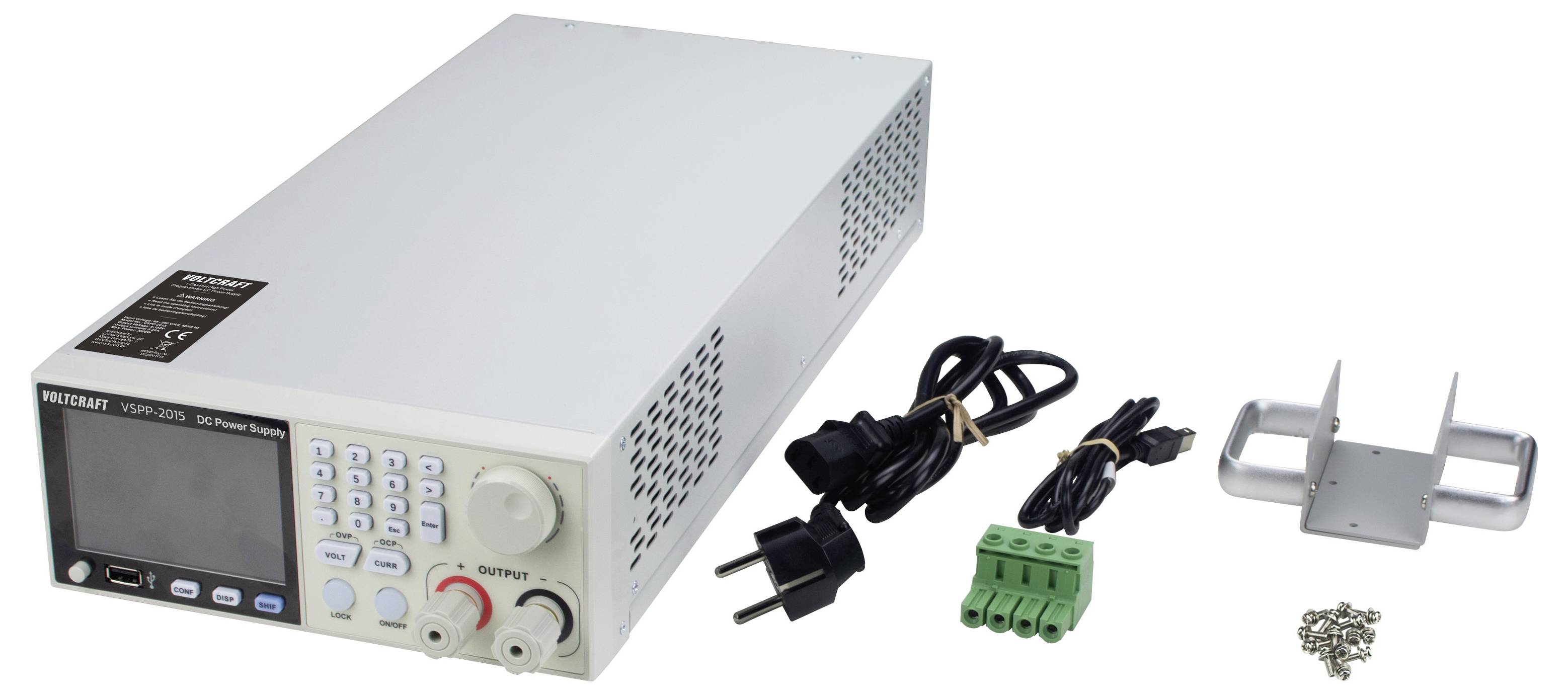

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
