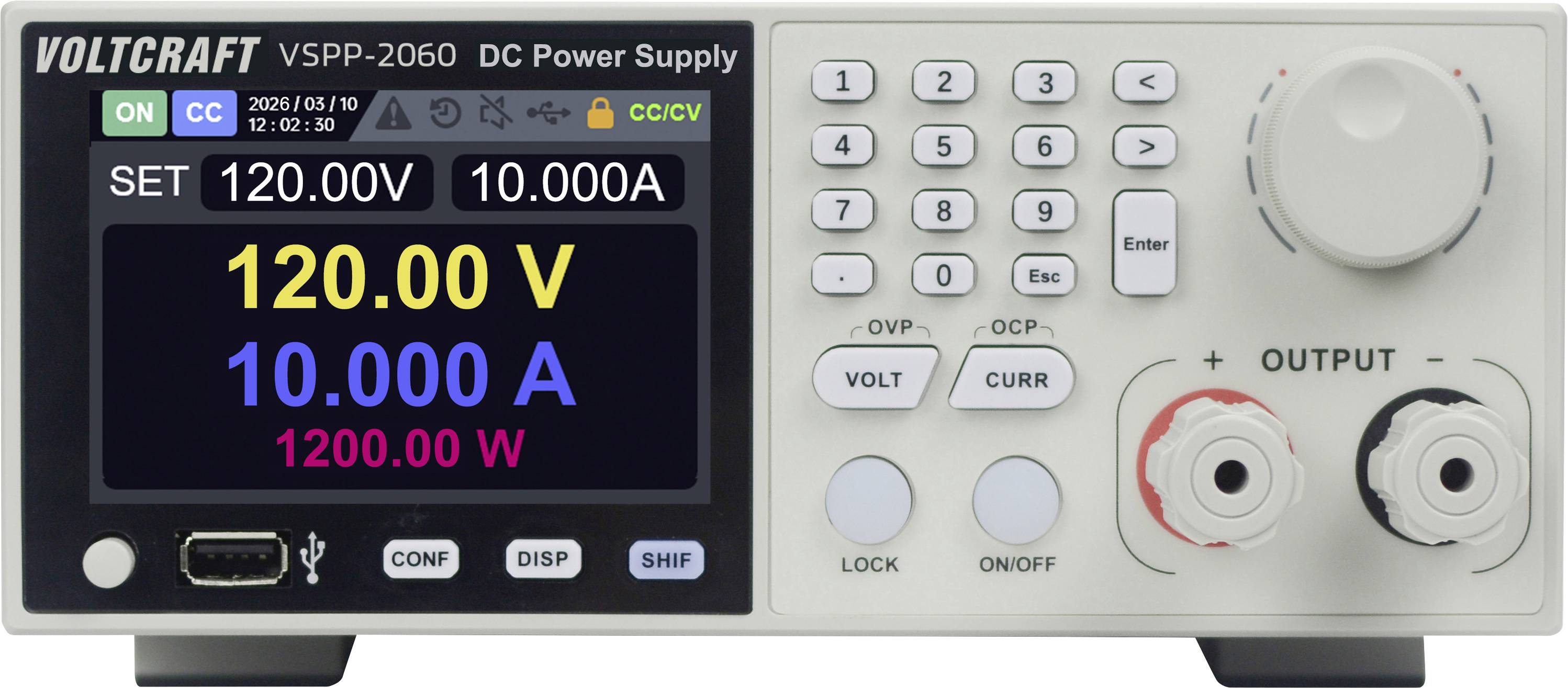

Front panel of a VOLTCRAFT VSPP-2060 DC power supply showing set outputs of 120.00 V, 10.000 A, and 1200.00 W, with keypad, control knob, and output terminals.

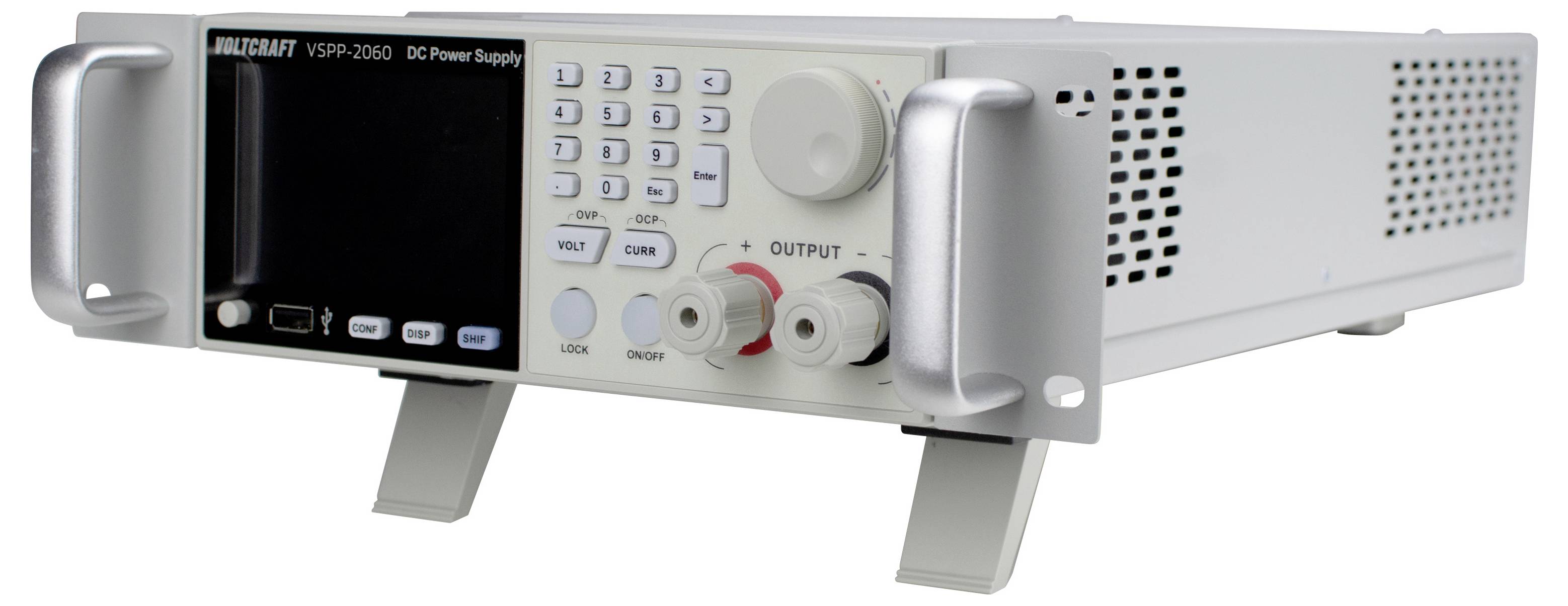

Front view of a Triad VSP-2060 DC power supply unit with display, control buttons, output terminals, and carrying handles on a bench<br>

Front view of a power supply unit showing output terminals, cooling fan, and communication/control ports labeled USB, RS485, LAN, CAN, and Control Port.

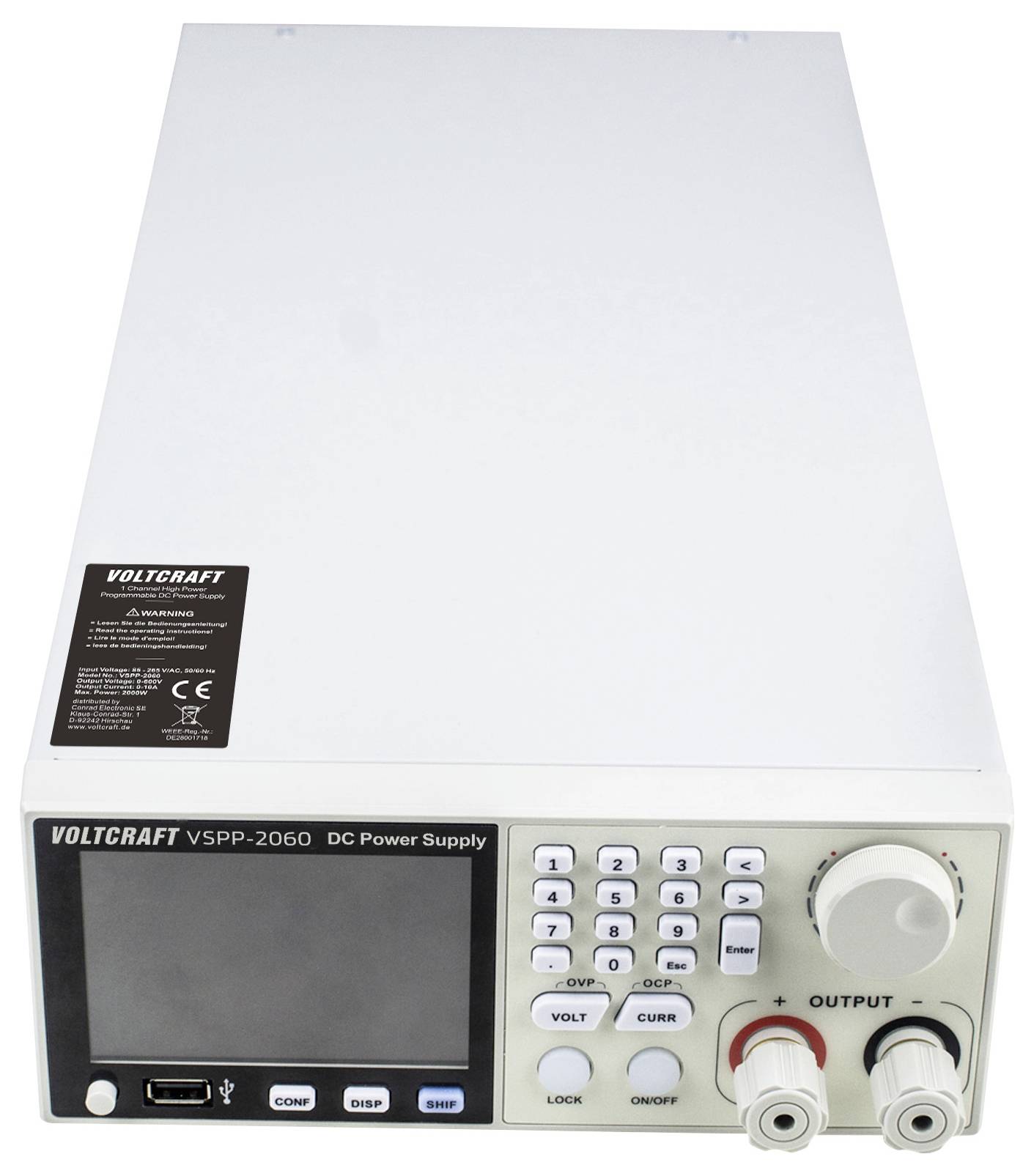

VOLTCRAFT DC power supply unit with large display, numeric keypad, control knob, and positive/negative output terminals.

Bench DC power supply shown with power cords, green terminal block, mounting brackets, and screws included.

Two stacked electronic control units with cooling fans and labeled ports, connected by red, blue, and black cables.

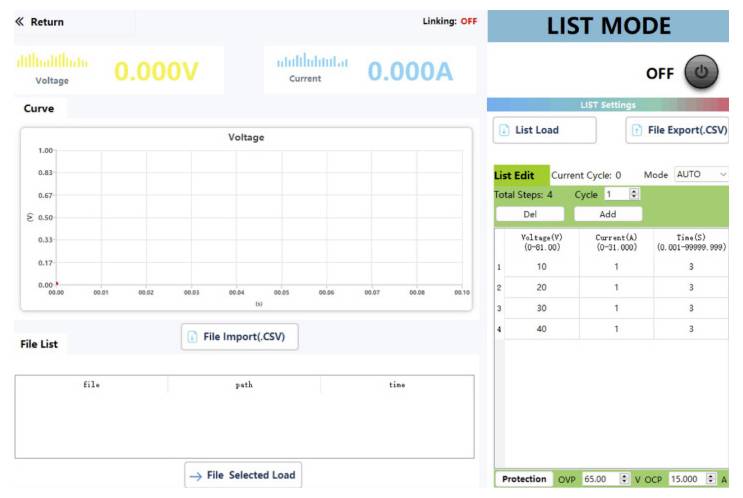

A power supply control screen in 'LIST MODE' showing 0.000V and 0.000A, an empty voltage curve, and a list editor with four steps for voltage/current/time and load options.

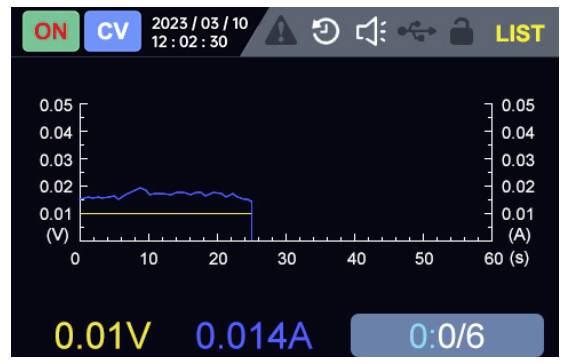

Digital measurement display showing a voltage graph over 60 seconds, with current and battery status readouts: 0.01V, 0.014A, and 0:0/6.

Device touchscreen showing 'LIST SETUP' for a 6-step external trigger test: cycle 1000, 0.500 A for 1.000 s, voltage steps 10.00 to 20.00 V.

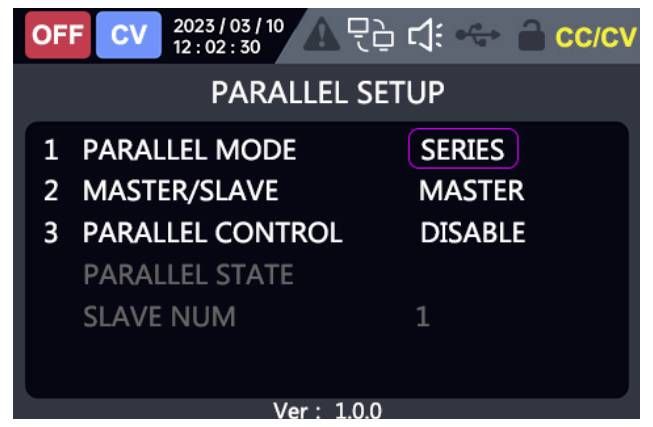

Device settings screen titled 'PARALLEL SETUP' showing Parallel Mode set to 'SERIES', Master/Slave set to 'MASTER', and Parallel Control disabled.

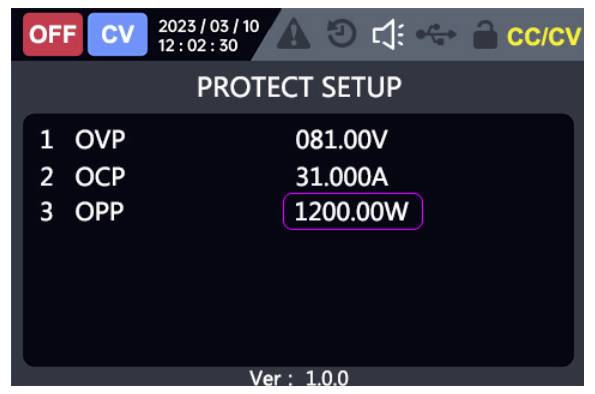

Power supply 'PROTECT SETUP' screen showing OVP 81.00V, OCP 31.000A, and OPP 1200.00W, with output OFF and CV mode.<br>

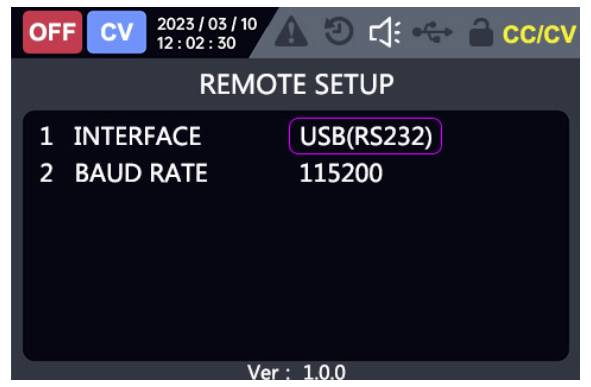

Camera remote setup screen showing interface set to USB(RS232) and baud rate 115200.

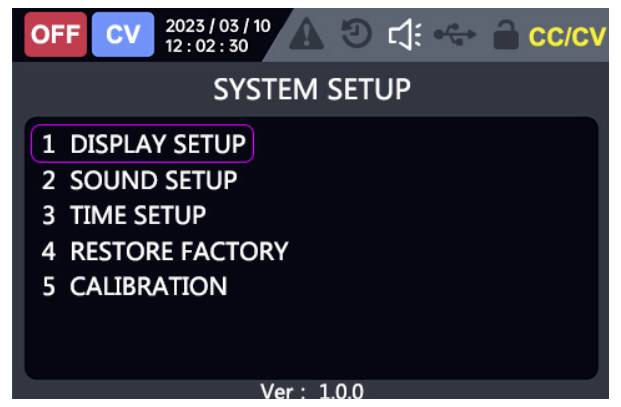

Camera system setup menu showing options: Display Setup, Sound Setup, Time Setup, Restore Factory, and Calibration, with 'Display Setup' selected.

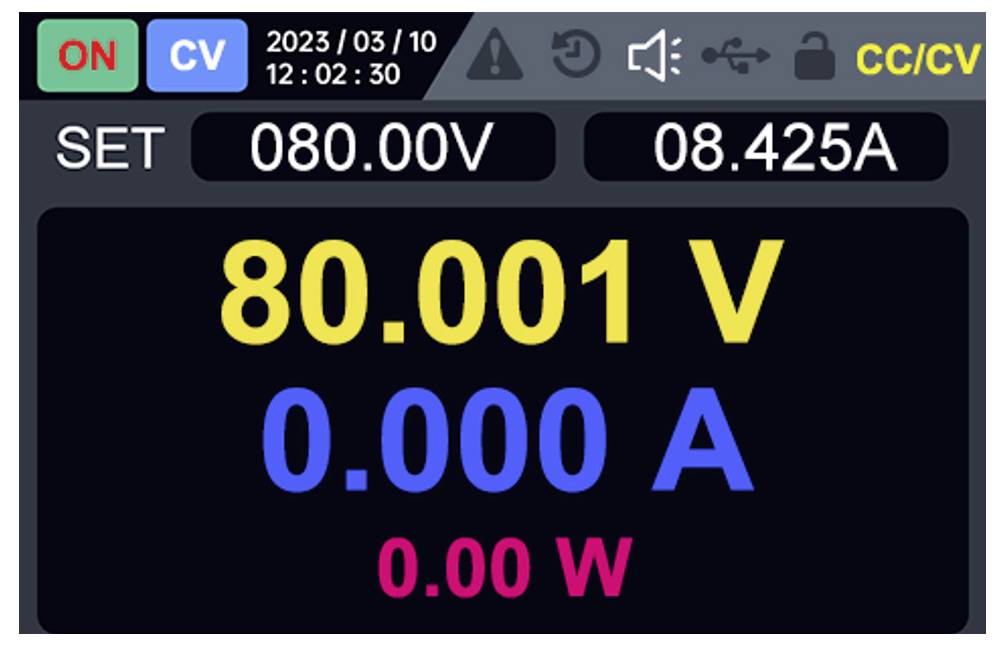

Digital power supply display in CC/CV mode showing set 080.00V and 08.425A, with current output 80.001 V, 0.000 A, and 0.00 W.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,192.44 / piece)

€ 2,192.44

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-2060 Power Supply 600 V 10 A 2000 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 600 V
Rated output current: 0 - 10 A
Max. output power: 2000 W
Output resolution: 10 mV / 1 mA

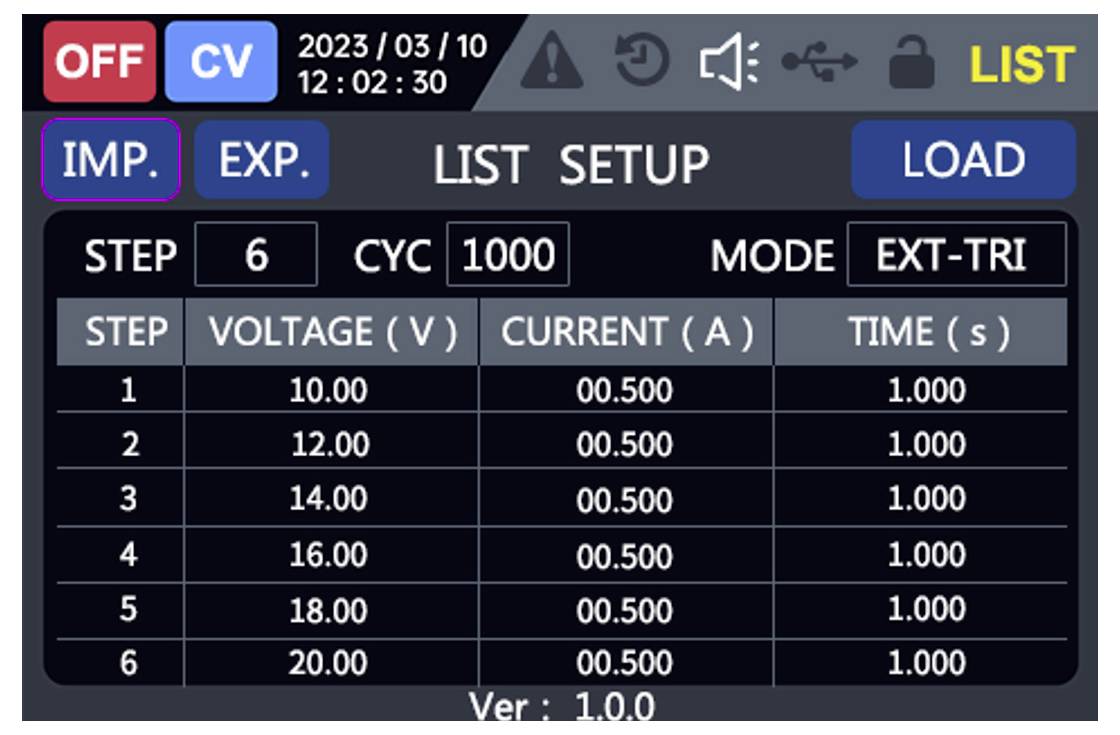

Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Input: 85 - 265 VAC; 50 - 60 Hz, 10A max.
Resolution || Accuracy:
Voltage: 10 mV || ≤0.05% ±300mV
Current: 1 mA || ≤0.05% ±20mA

Type: VSPP-2060

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 2000 W

Technology: SMPSU

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 519.1 x 215.2 x 99.8 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output: USB

Output voltage (max.): 600 V DC

Output voltage (min.): 0 V DC

Max. output current: 10 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Width: 215.2 mm

Height: 99.8 mm

Length: 519.1 mm

Residual ripple: Voltage: ≤500 mVp-p
Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

This article

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3734643 VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3734643 VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3734643 VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote con

Download

Download 3734643 VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote con

Description

The VOLTCRAFT VSPP-2060 is a special device for high-voltage applications within the VSPP-series and provides a controllable output voltage of up to 600 V/DC. With a power of 2000 W and comprehensive monitoring functions, it is the ideal tool for specialized electrical laboratories as well as industrial test environments.

Specialized high voltage
The wide range of control from 0 to 600 V/DC allows the examination of components under high-voltage conditions. The values can be precisely adjusted in 10 mV steps at any time to ensure precise testing conditions.

Professional remote control capability
Thanks to the support of SCPI commands and the LAN, RS-485 as well as USB interfaces, the device can be integrated completely in complex, computer-supported test systems. This allows efficient automation of series of measurements.

Real-time graphical analysis
The 9.9 cm (3.9") TFT-LCD shows not only the numerical instantaneous values, but also enables voltage, current and power curves in real time. This permits a detailed analysis of the behavior of the connected test object directly on the device.

Controlled mode priority
The selectable CV/CC priority allows the priority to be set to a constant voltage or current. Switch-on current peaks can be effectively avoided and sensitive loads can be protected together with the adjustable rise and fall times.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 2000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

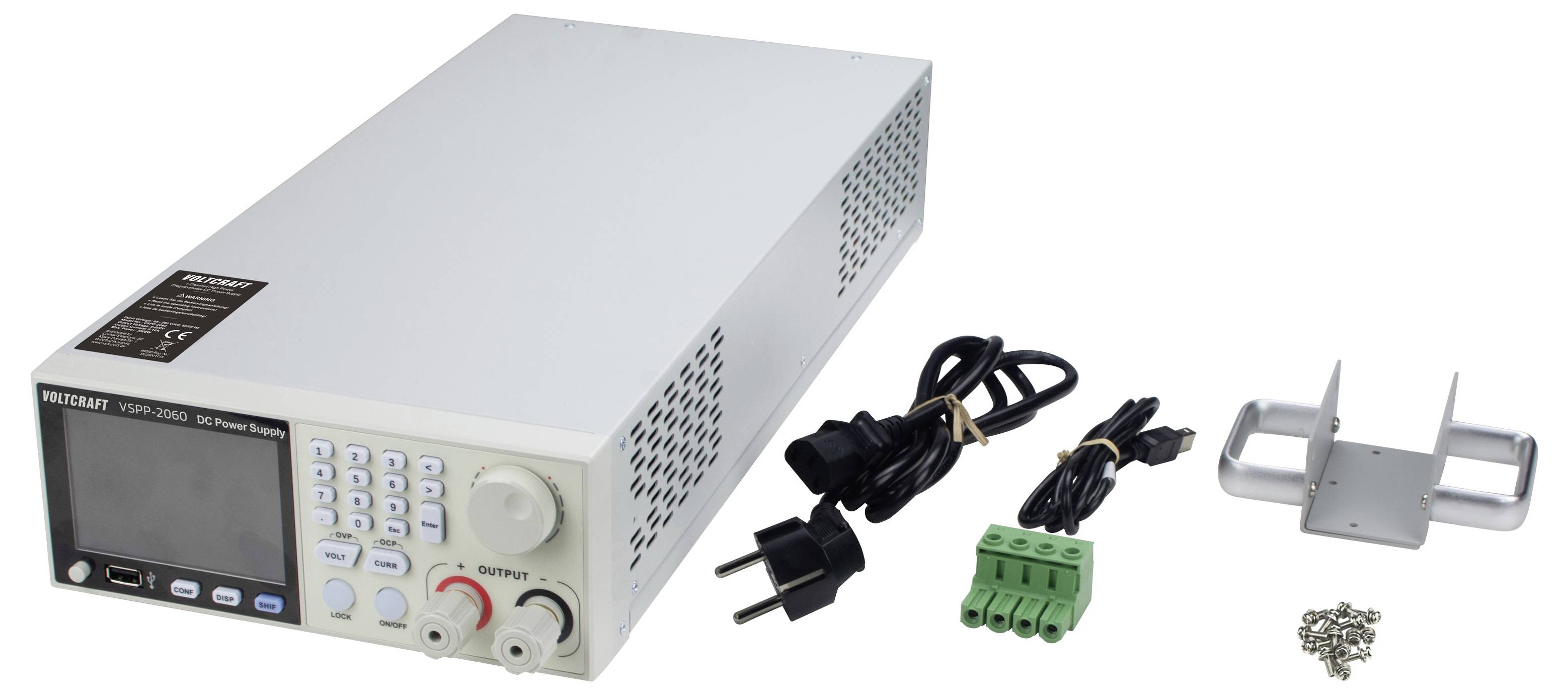

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
