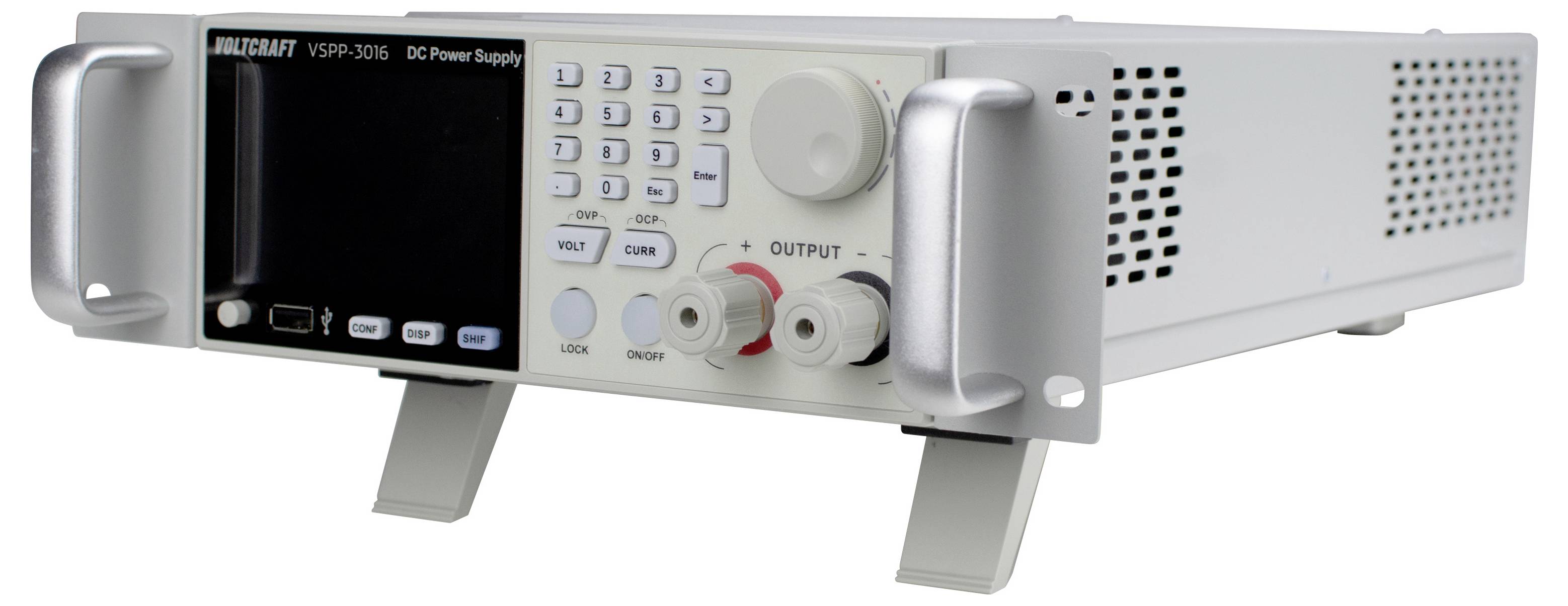

Front view of a white DC power supply unit with digital display, control knobs, output terminals, handles, and ventilation holes.

Rear panel of a power supply or inverter with output terminals, cooling fan, USB, RS485, LAN, CAN, and control ports, plus AC input socket.

Front view of a VOLTCRAFT VSPP-3016 DC power supply with display, keypad, control knob, and output terminals.

Benchtop DC power supply with display, keypad and adjustment knob, shown with power cords, terminal connector, mounting bracket and screws.<br>

Two stacked power supply units with connected output wires, network and control ports, and cooling fans on a workbench.

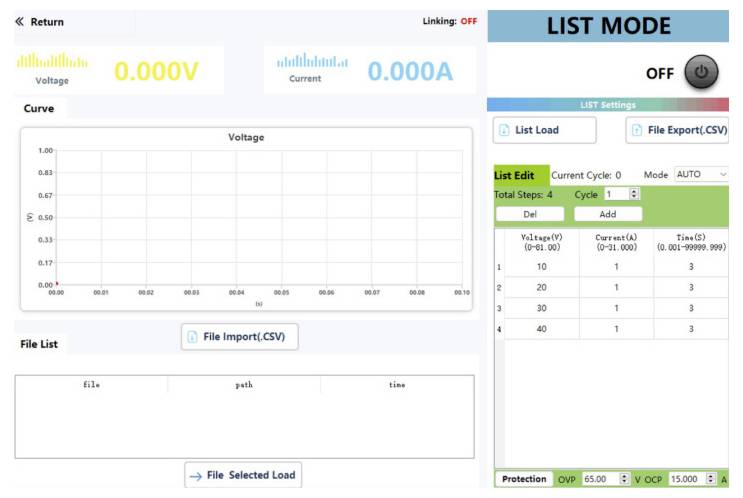

Interface for 'LIST MODE' showing 0.000V and 0.000A, a voltage curve graph, and a load list editor with CSV import/export and protection settings.

Device display showing a voltage/current graph over 60 seconds, with voltage steady around 0.015 V then dropping to 0 at about 26 s; readouts show 0.01 V, 0.014 A, and 0:0/6.

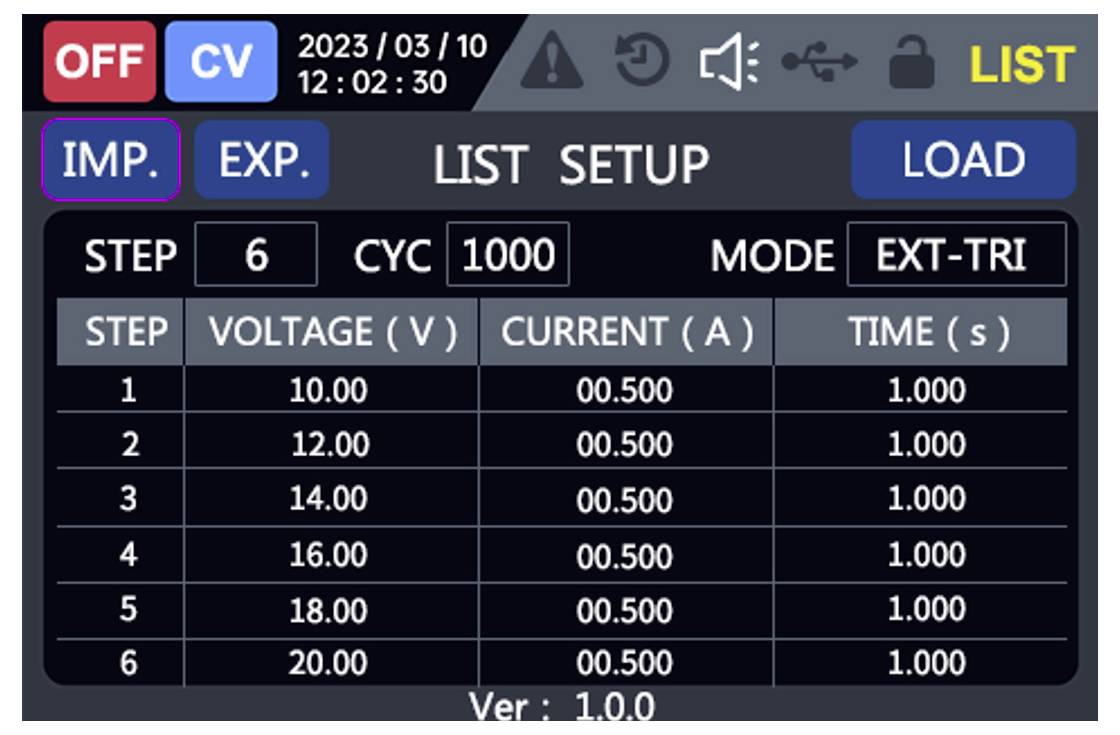

Industrial control touchscreen showing LIST SETUP screen: 6 steps, cycle 1000, mode EXT-TRI, with a table of voltages from 10.00 to 20.00 V at 0.500 A for 1.000 s each.

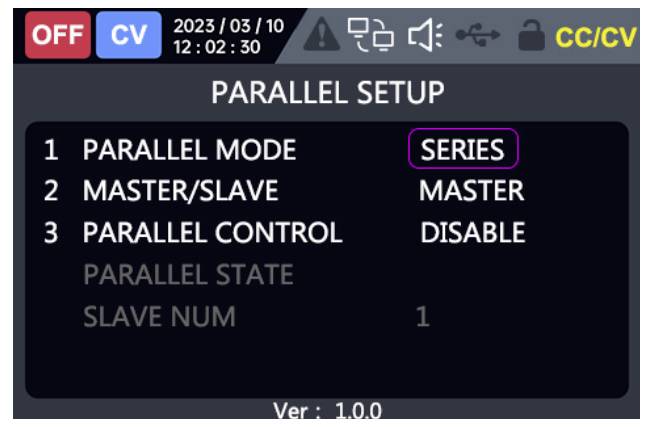

Device settings screen titled 'PARALLEL SETUP' with Parallel Mode set to 'SERIES', Master/Slave set to 'MASTER', and Parallel Control set to 'DISABLE'.<br>

Power supply 'PROTECT SETUP' screen showing OVP 081.00V, OCP 31.000A, and OPP 1200.00W; output is OFF in CV mode.

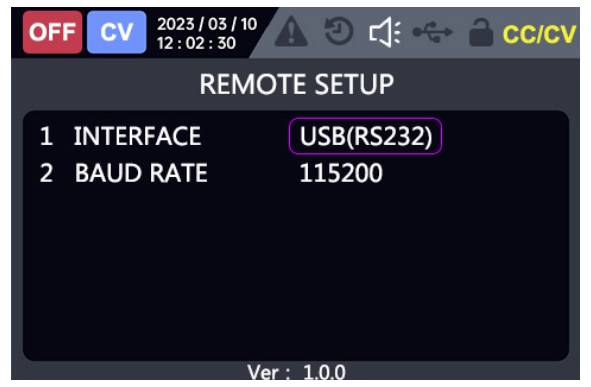

Camera remote setup menu showing interface set to USB(RS232) and baud rate 115200, with OFF and CV status indicators.

Camera system setup menu with 'DISPLAY SETUP' selected; other options are sound setup, time setup, restore factory, and calibration.

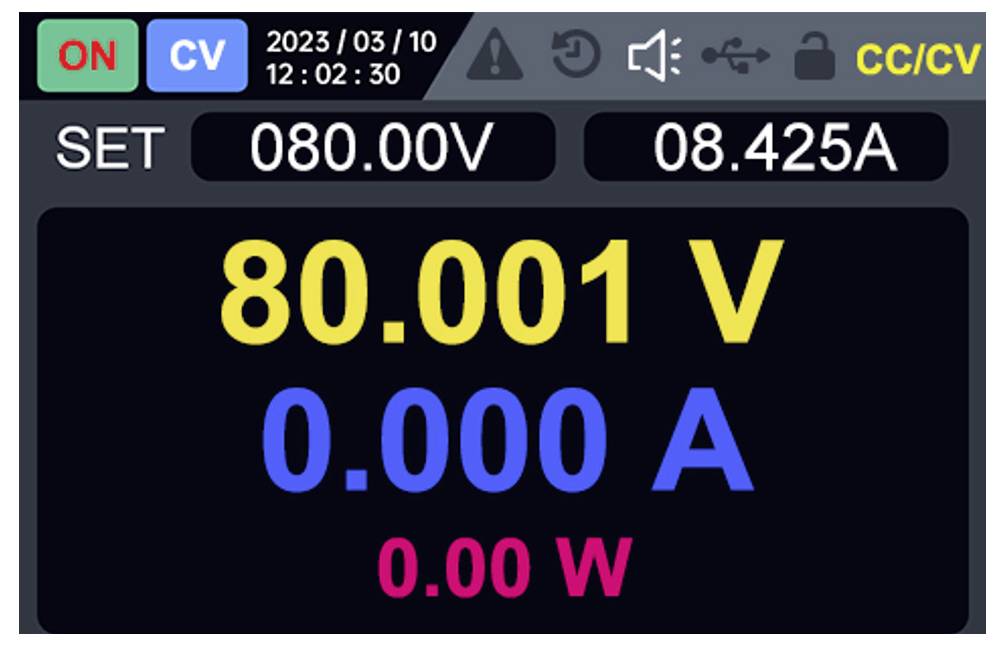

Digital power supply display showing output set to 080.00V and 08.425A, with current readings 80.001 V, 0.000 A, and 0.00 W in CC/CV mode.<br>

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,197.48 / piece)

€ 2,197.48

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

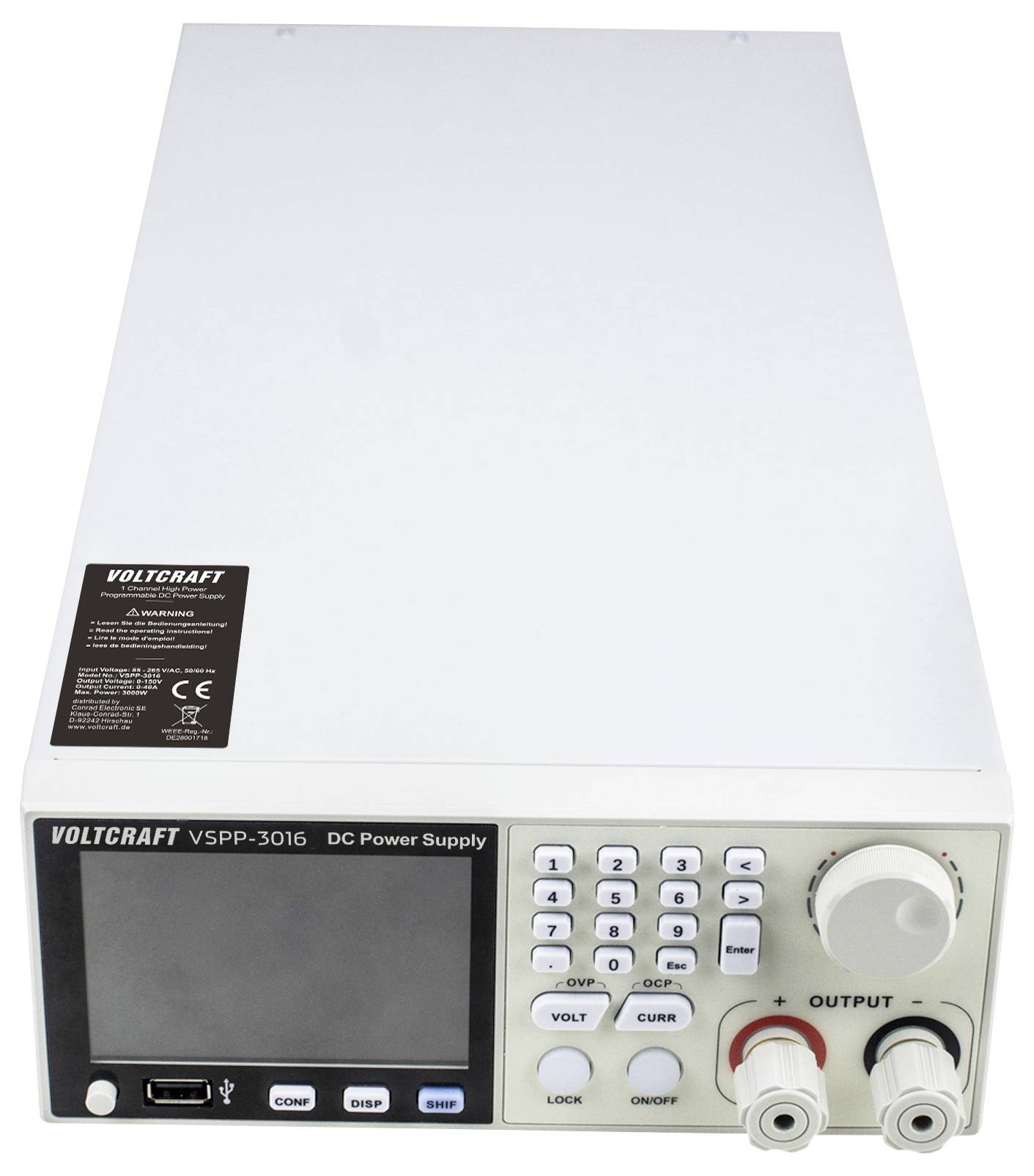

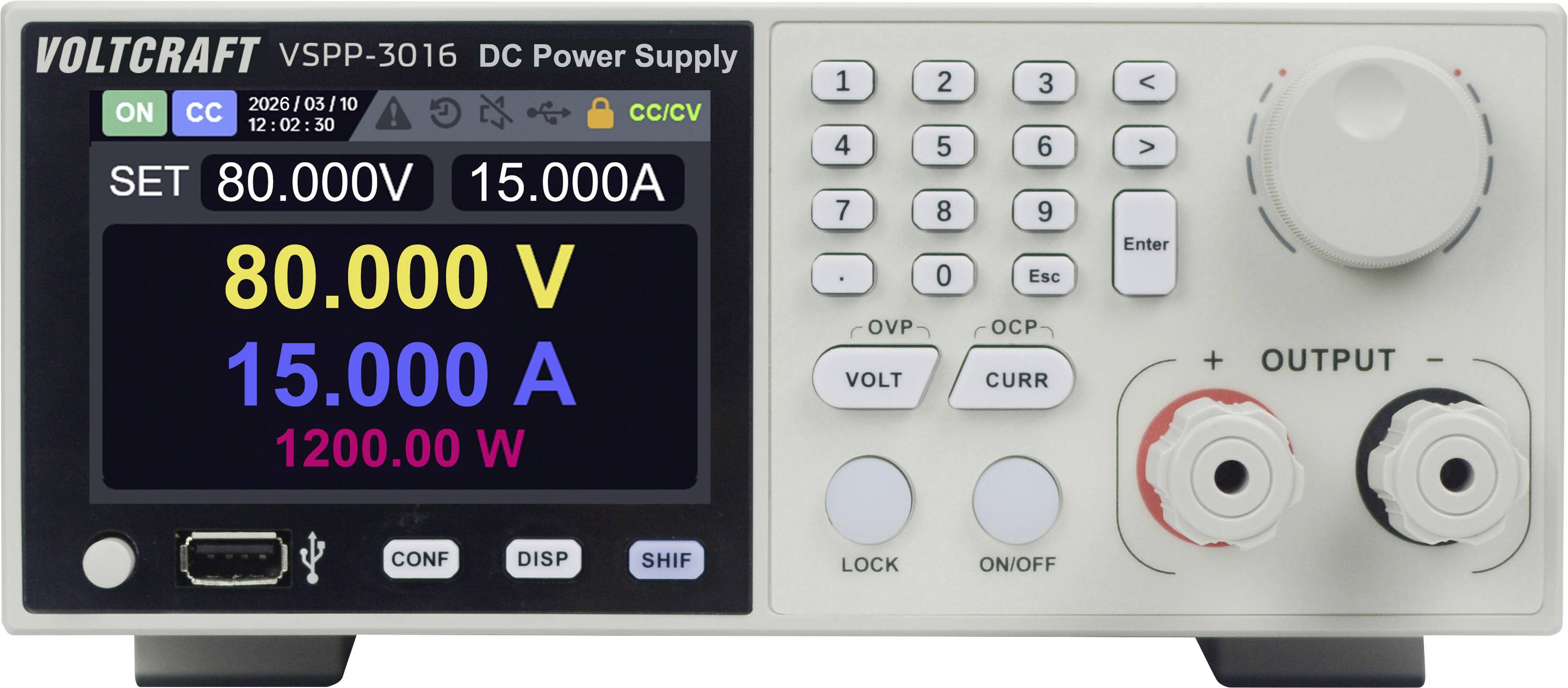

VOLTCRAFT VSPP-3016 Power Supply 150 V 40 A 3000 W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 150 V
Rated output current: 0 - 40 A
Max. output power: 3000 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Input: 85 - 265 VAC; 50 - 60 Hz, 16A max.
Resolution || Accuracy:
Voltage: 10 mV || ≤0.05% ±50mV
Current: 1 mA || ≤0.1% ±40mA

Type: VSPP-3016

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 3000 W

Technology: SMPSU

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215.2 x 519.1 x 99.8 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 150 V DC

Output voltage (min.): 0 V DC

Max. output current: 40 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Width: 519.1 mm

Height: 99.8 mm

Length: 215.2 mm

Residual ripple: Voltage: ≤150 mVp-p
Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

This article

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3734639 VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3734639 VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3734639 VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote con

Download

Download 3734639 VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote con

Description

The VOLTCRAFT VSPP-3016 is a high-performance laboratory power supply for professional use, which enables a precise DC power supply with an output of up to 3000 W. The combination of high power density and versatile control options makes it ideal for demanding applications in industry and research.

Flexible power output
The device provides a constant power output of 3000 W within a wide voltage and current range (up to 150 V/DC and 40 A). This allows the user a high flexibility with different load requirements.

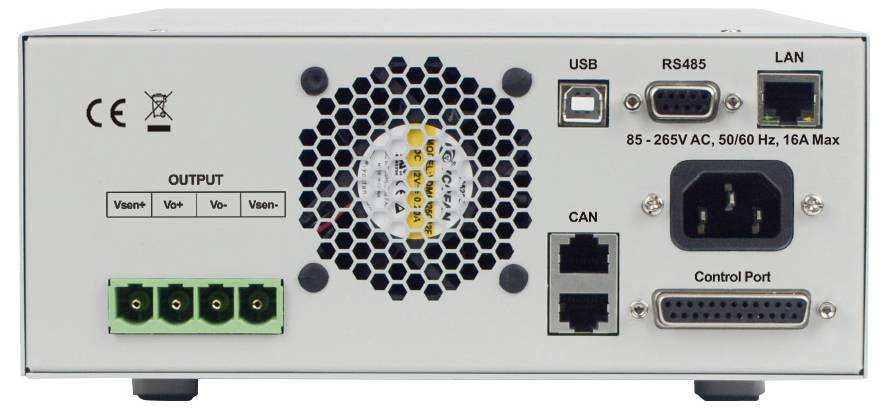

Extensive remote control
The mains adapter can be completely remote-controlled via the integrated USB, RS-485 and LAN interfaces as well as the support of SCPI commands. This enables seamless integration into automated test environments.

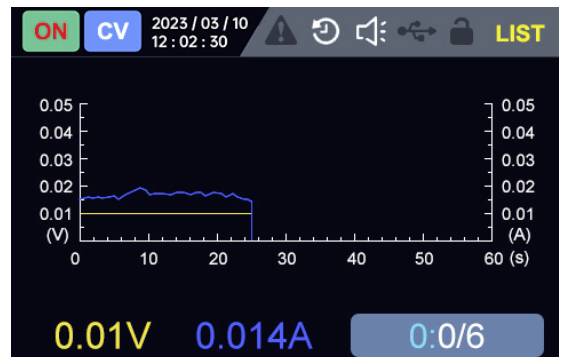

Real-time data visualization
The 9.9 cm (3.9") large TFT-LCD displays voltage, current and performance graphs directly at the device. Users thus keep an eye on the dynamics of their test sequences without external measuring devices.

Programmable signal sequence
With the 100-step LIST-function individual output signals can be programmed. The adjustable CV/CC priority also protects sensitive components through controlled rise and fall times.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 3000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality

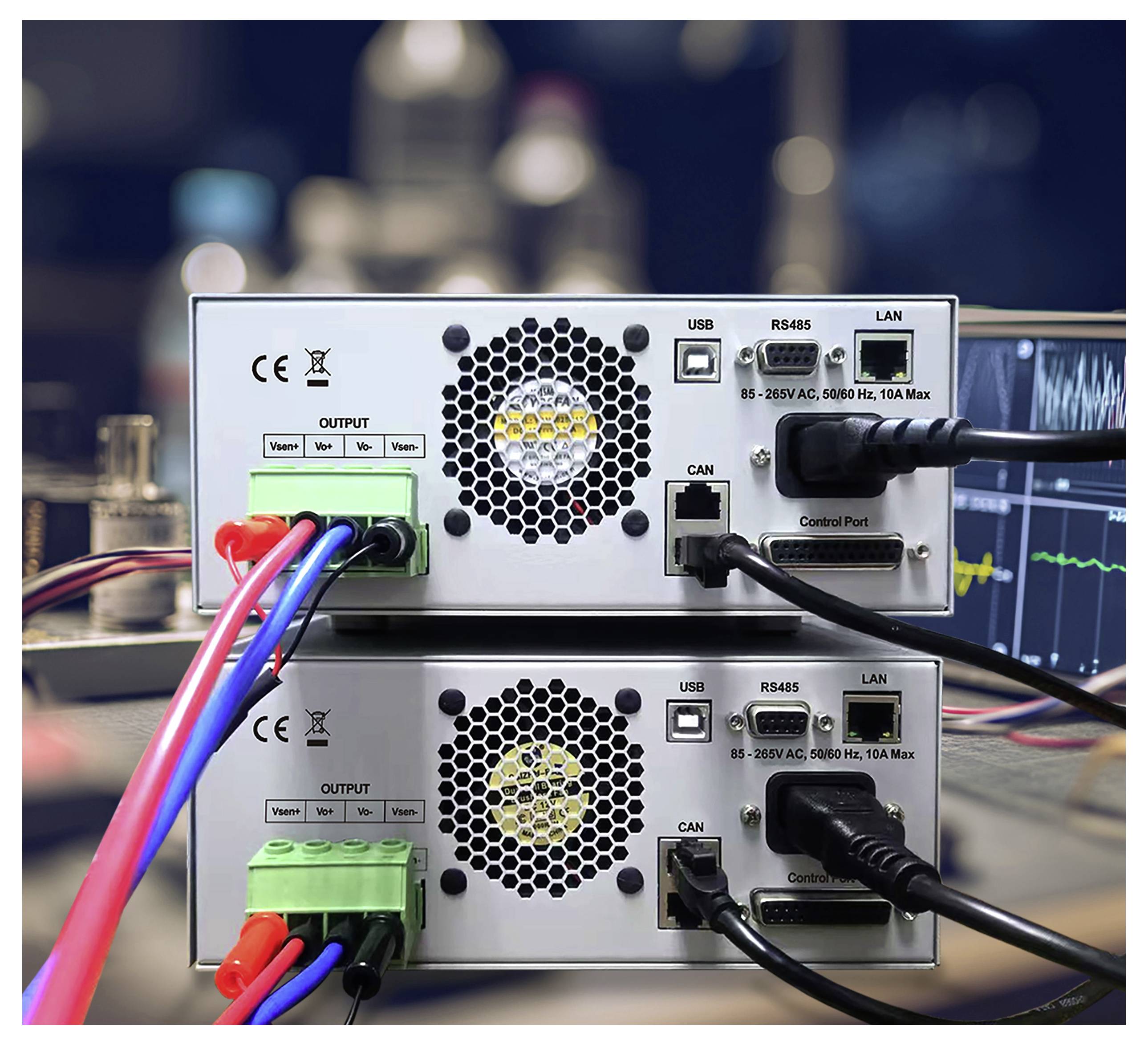

Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

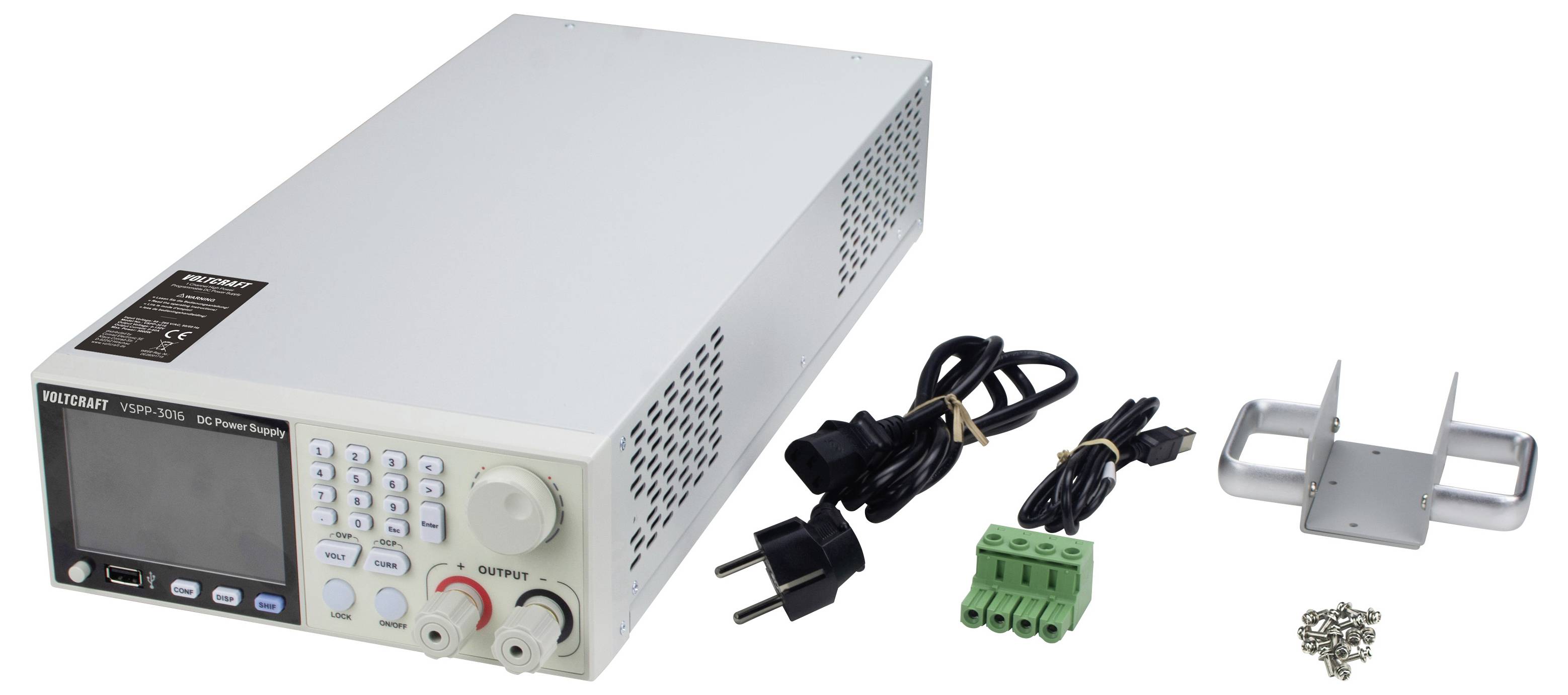

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
