Buy VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote con

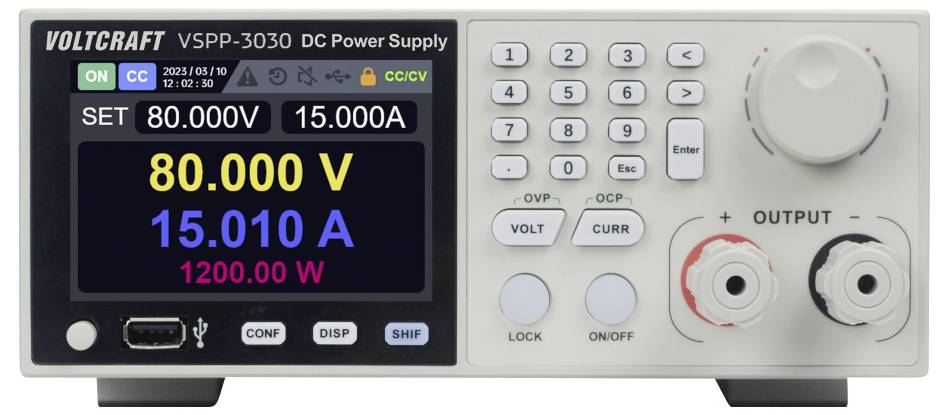

'Voltcraft VSPP-3030 DC Power Supply' display shows '80.000 V', '15.010 A', and '1200.0 W'. Controls include knobs and buttons.

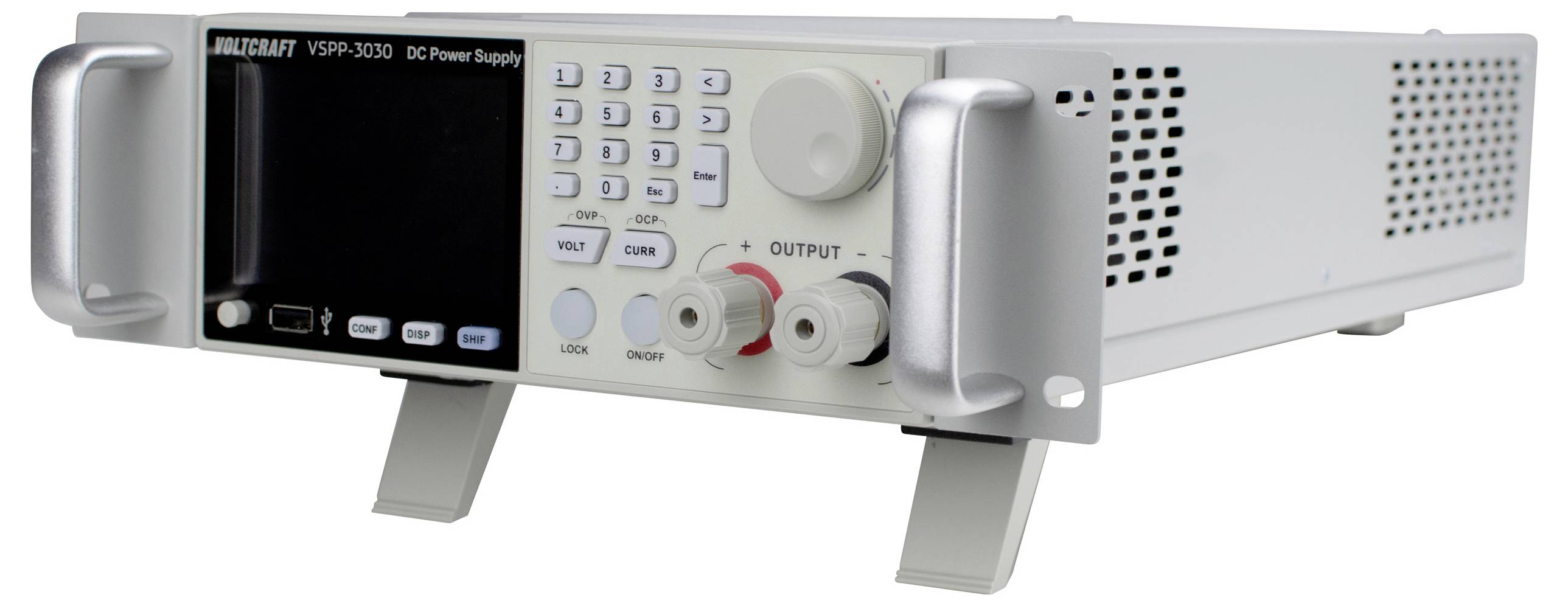

A gray DC power supply unit with a digital display, multiple control buttons, and connectors on the front panel, designed for electronic testing.

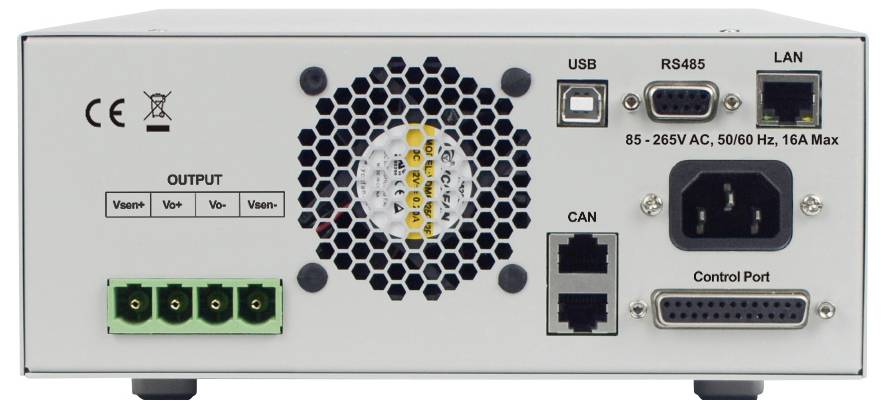

Power supply unit back panel showing output ports, USB, RS485, LAN, CAN, and control port connections with fan vent in center.

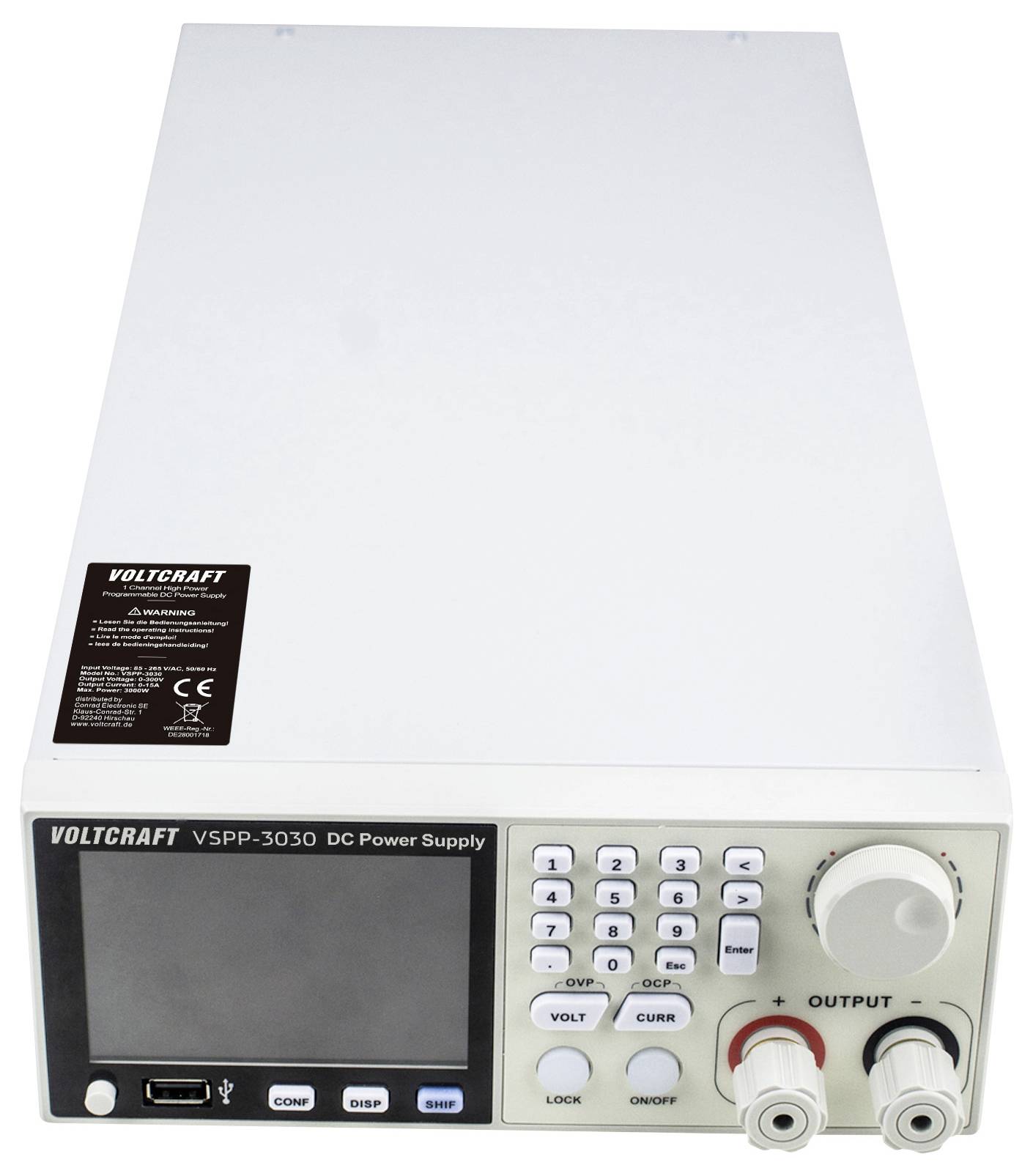

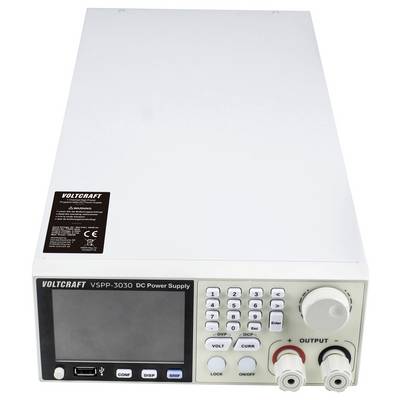

'Voltcraft VSPP-3030 DC Power Supply' front view showing display, keypad, and output terminals.

A digital power supply unit with various connectors, power cables, green terminal block, mounting bracket, and screws displayed beside it.

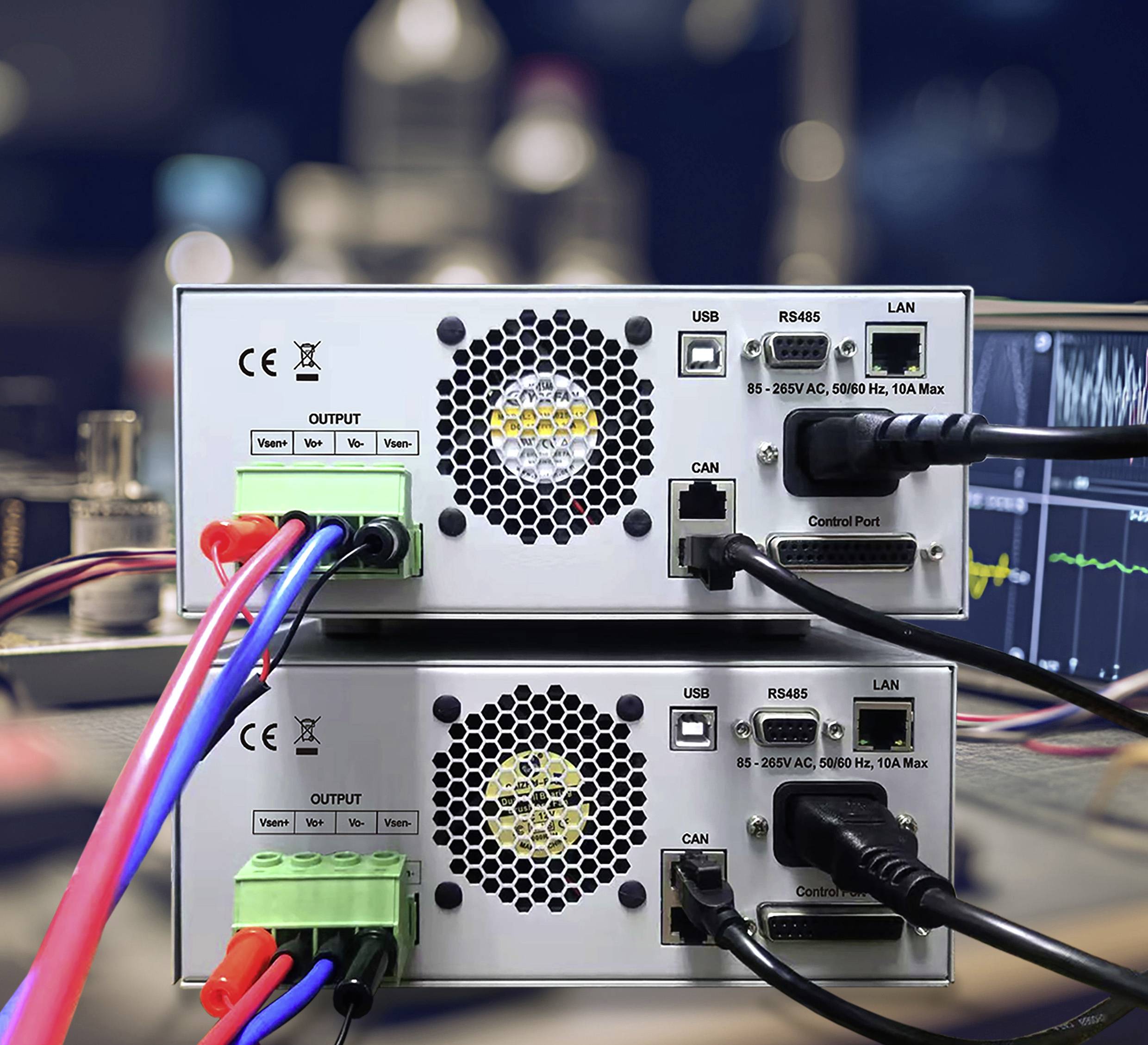

'Two industrial power supplies with connected cables, displaying USB, RS485 ports, and control panels; background shows blurred electronics lab.'

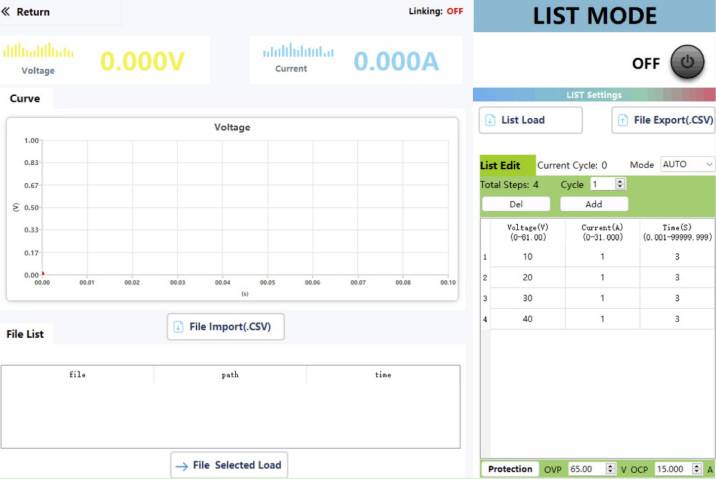

'List Mode' interface showing voltage and current settings, curve adjustments, file list and import/export options, with 'Protection' settings.

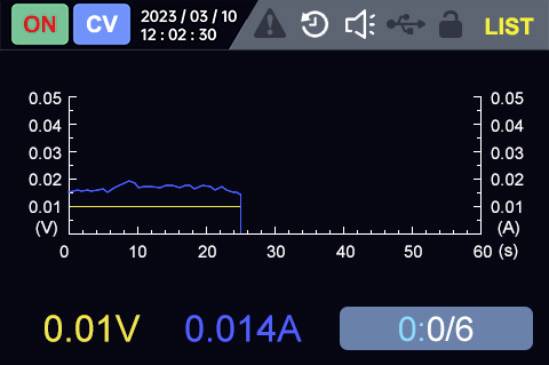

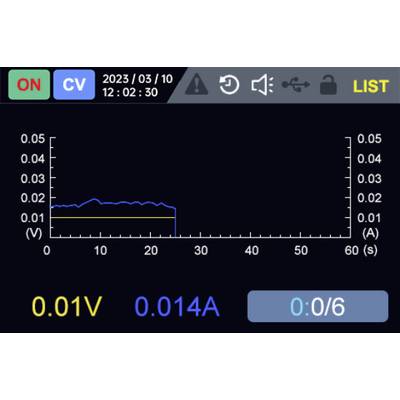

Graph showing voltage and current over 60 seconds. Voltage (yellow) remains at 0.01V, current (blue) starts at 0.02A and drops to 0.00A.

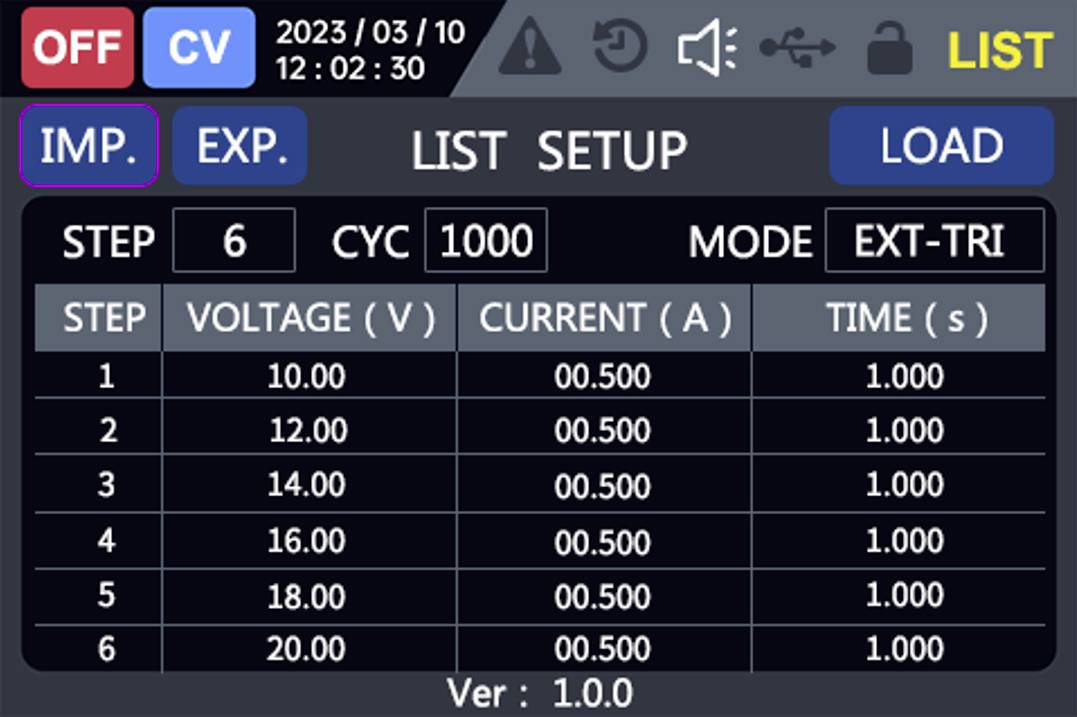

'LIST SETUP' screen showing settings for a test: 6 steps, 1000 cycles, EXT-TRI mode. Voltage ranges from 10V to 20V, current at 0.500A, time at 1.000s per step.

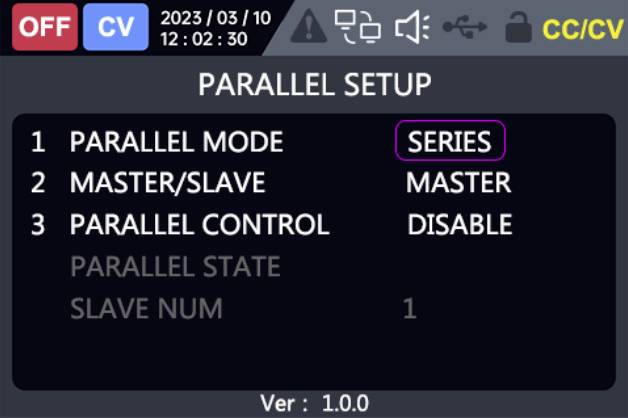

'Parallel Setup' screen showing settings: Mode set to 'SERIES', Master/Slave set to 'MASTER', Parallel Control set to 'DISABLE'.

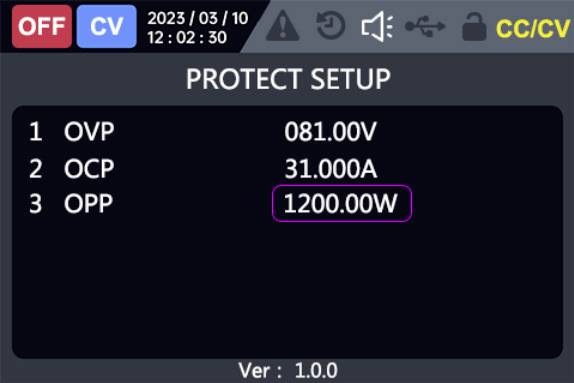

'PROTECT SETUP' screen showing: 1. OVP 081.00V, 2. OCP 31.000A, 3. OPP 1200.00W. Date and time displayed at the top-left.

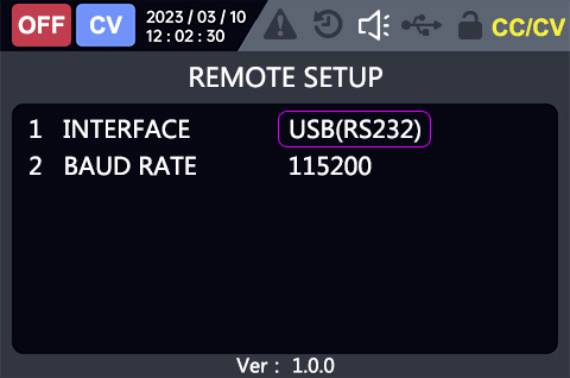

Remote setup screen showing: 1. Interface set to 'USB(RS232)', 2. Baud rate at 115200. Version 1.0.0, date 2023/03/10.

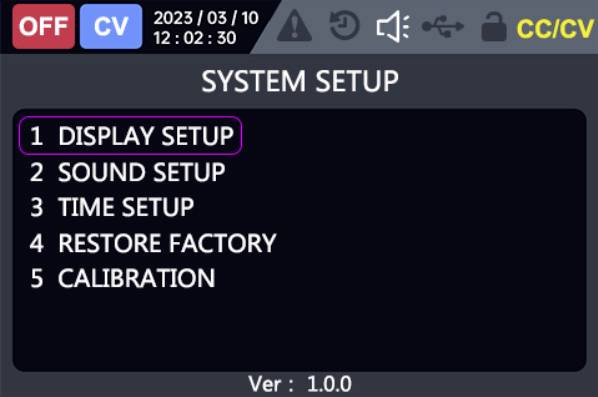

The image shows a 'System Setup' menu on a device screen highlighting 'Display Setup'. Other options include Sound, Time, Restore, and Calibration.

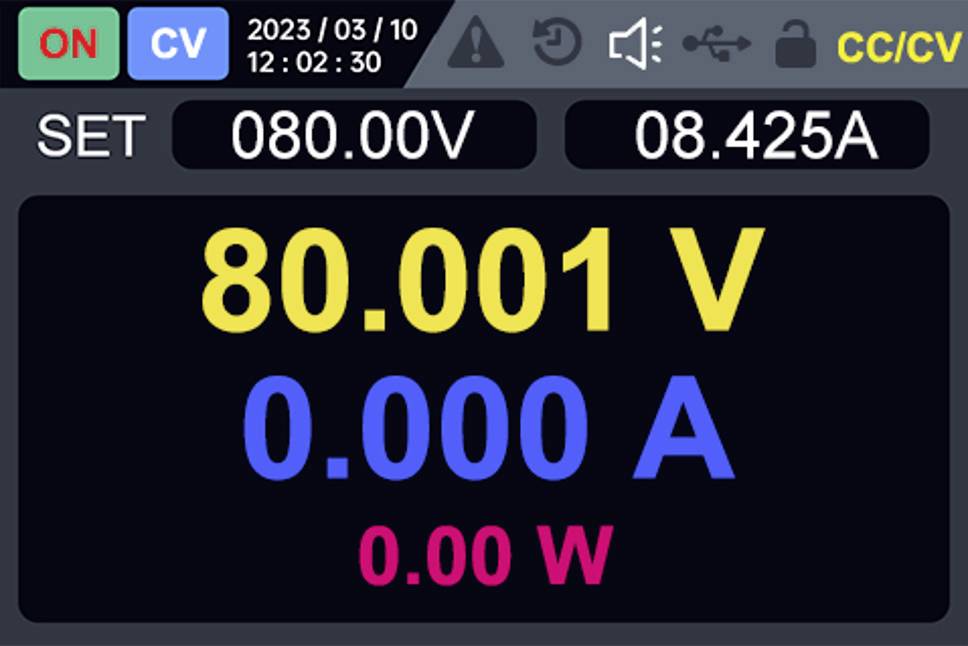

Digital display showing voltage as '80.001 V', current as '0.000 A', and power as '0.00 W'. Upper sections show '080.00V' and '08.425A'.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,192.44 / piece)

€ 2,192.44

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-3030 Power supply 300 V 15 A 3000W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 300 V
Rated output current: 0 - 15 A
Max. output power: 3000 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Voltage accuracy: ≤0.05 % ± 50 mV
Current accuracy: ≤0.05 % ± 20 mA
Setting resolution: 10 mV, 1 mA

Type: VSPP-3030

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 3000 W

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215 x 453 x 88 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 300 V DC

Output voltage (min.): 0 V DC

Max. output current: 15 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Type: Bench

Width: 453 mm

Height: 88 mm

Length: 215 mm

Residual ripple: Voltage: ≤250 mVp-p, Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

This article

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3413740 VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3413740 VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3413740 VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote con

Download

Download 3413740 VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote con

Description

VOLTCRAFT VSPP-3030: The precision that your research deserves

The VOLTCRAFT VSPP-3030 is not only a power supply unit – it is a power package of precision and versatility, developed for the highest demands in research, development and industrial applications. With its impressive power of 3000 W and a flexible output range of 0 - 300 V/DC and 0 - 15 A, it offers the necessary Power for a wide range of test scenarios.

Compact Power, worldwide operational readiness
Thanks to its 1/2 rack design (19-inch, 2-U, 48-cm depth), the VSPP-3030 can be seamlessly integrated into existing system environments. And best of all: With its wide input voltage of 85 - 265 V it can be used worldwide - perfect for international projects and laboratories.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 3000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

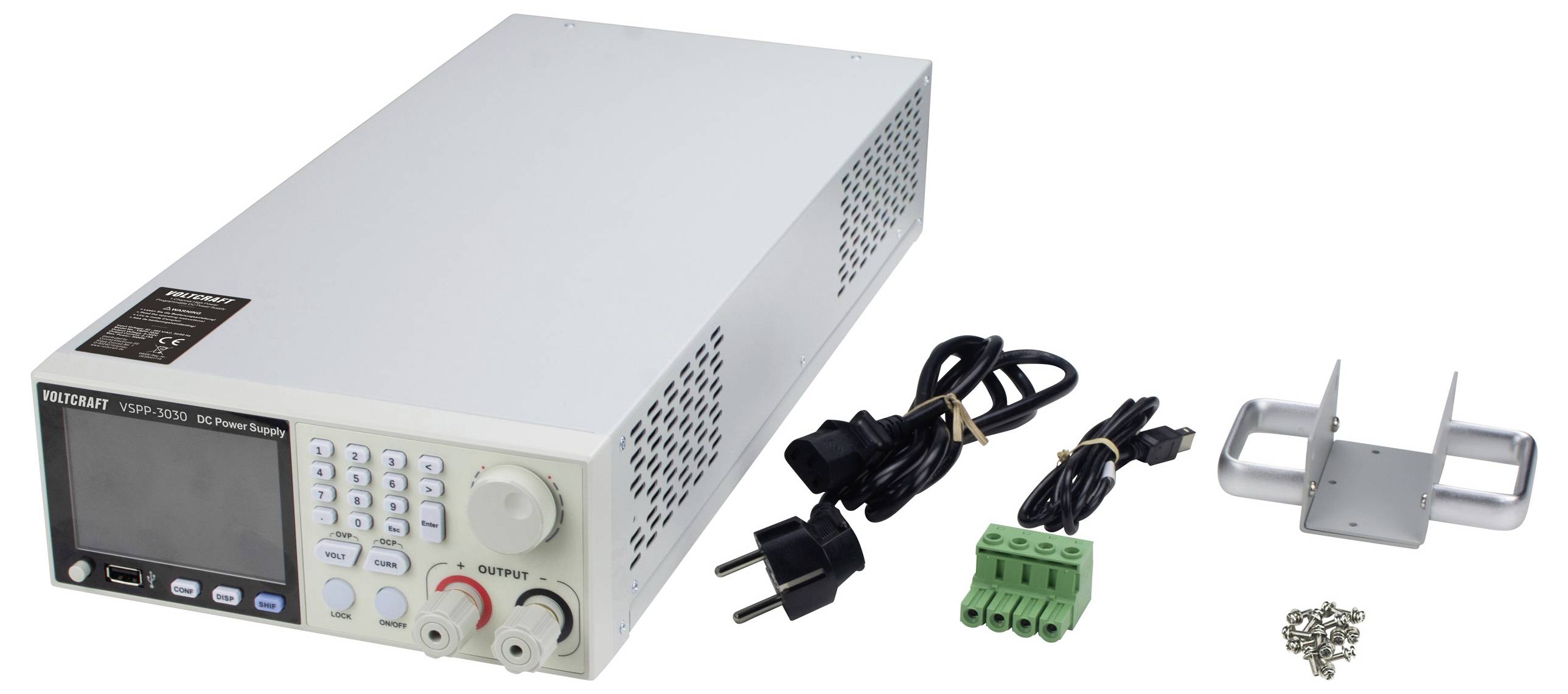

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
