Buy VOLTCRAFT VSPP-3060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 3000 W USB , RS485, LAN programmable, remote con

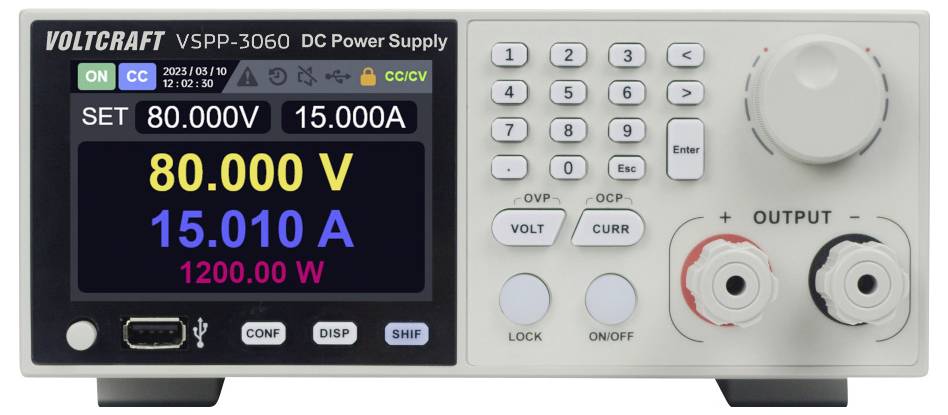

'Voltcraft VSPP-3060 DC Power Supply' with digital display showing 80.000V, 15.010A, 1200.0W. Control buttons and output terminals visible.

A DC power supply with a digital display, numeric keypad, and control buttons, used for adjusting voltage and current outputs in testing environments.

'Power supply unit back view with a fan in the center, multiple output ports labeled Vsense+ to Vo-, USB, RS485, LAN, and CAN ports.'

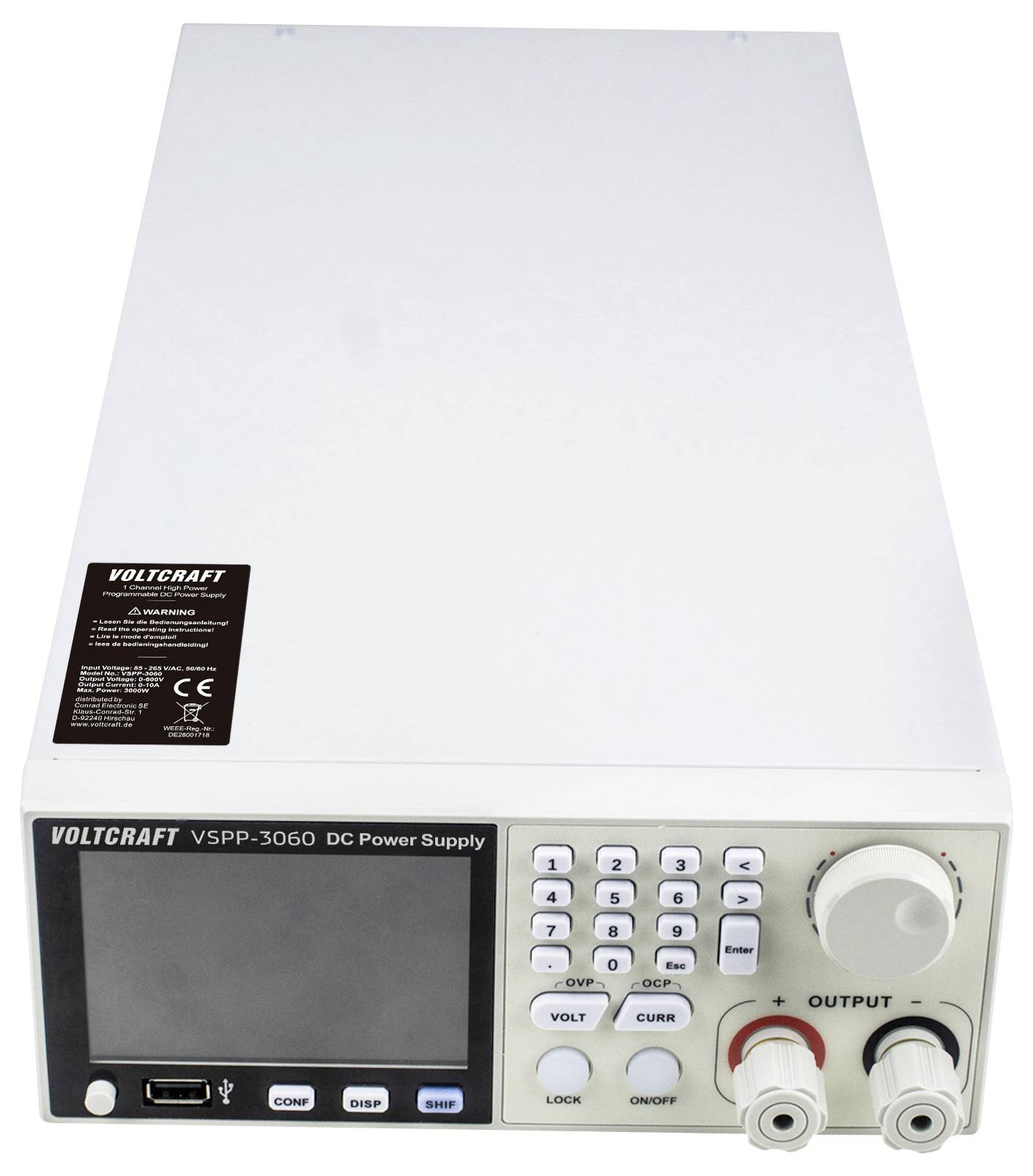

A rectangular white DC power supply with a digital display, control buttons, two knobs, and output terminals on the right side.

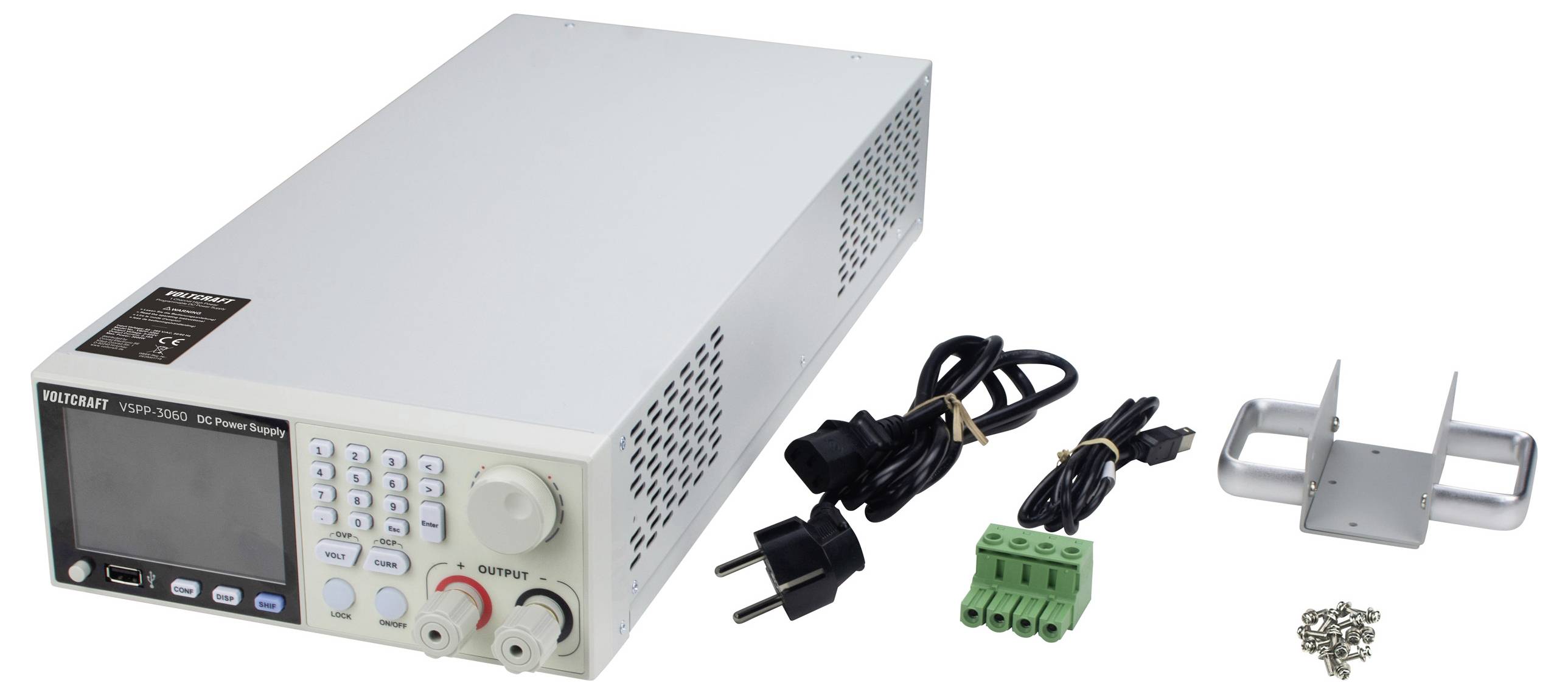

A power supply unit with display and control buttons, accompanied by cables, connectors, a mounting bracket, and screws.

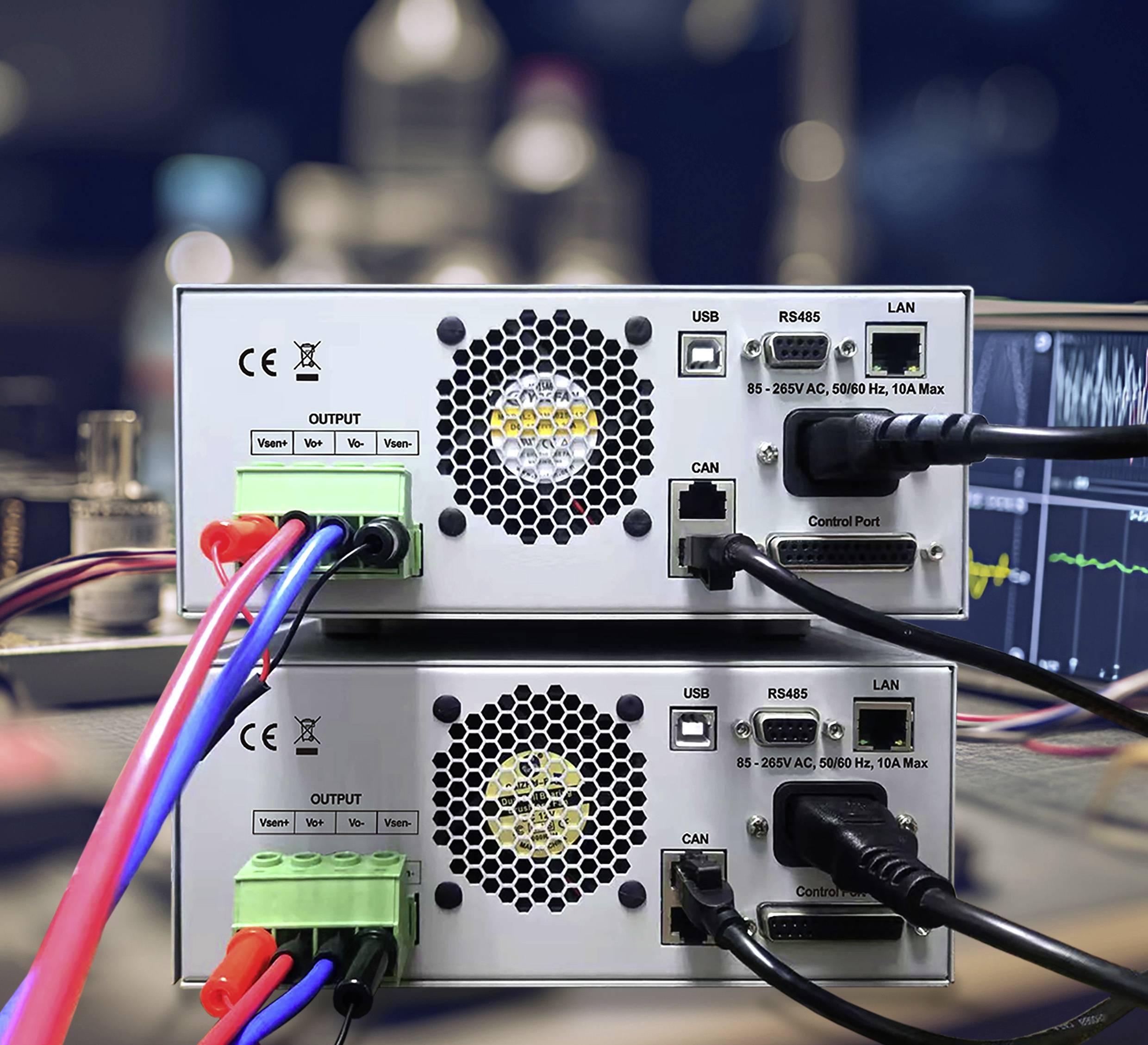

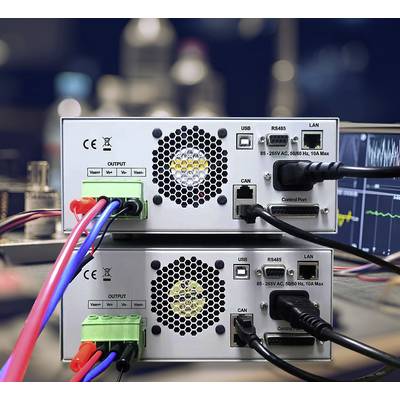

Two power supply units with various cables connected, featuring control ports and indicators, set against a blurred lab equipment background.

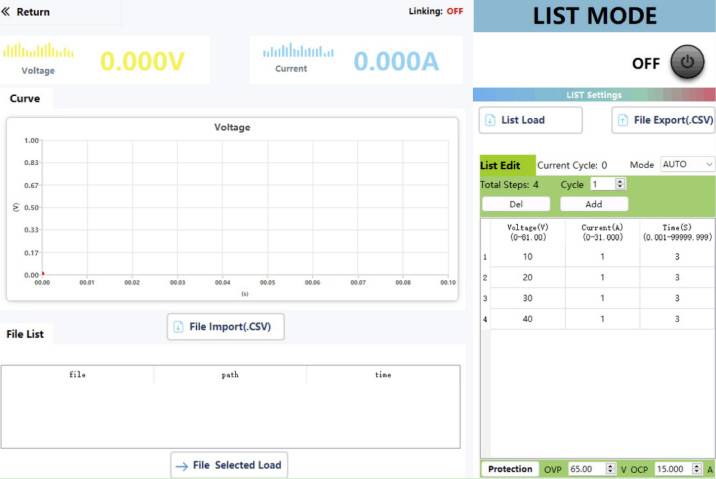

'Measurement interface showing voltage at 0.000V and current at 0.000A. Options include file import/export and list editing in List Mode.'

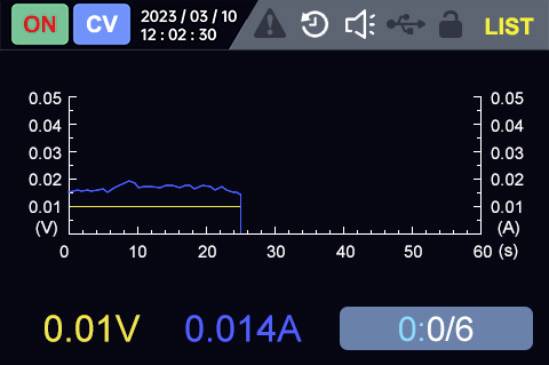

Graph displaying voltage and current. Voltage (V) on left y-axis ranges 0-0.05. Current (A) on right y-axis. Time (s) on x-axis 0-60. Values: 0.01V, 0.014A.

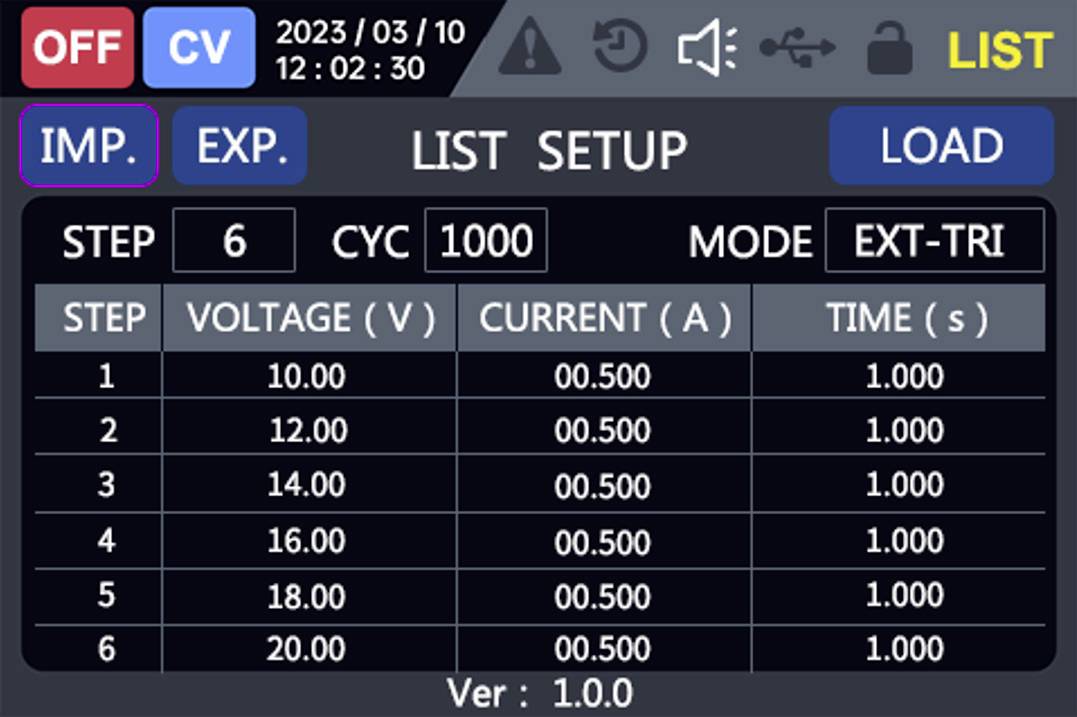

A digital interface displaying a list setup with steps for voltage, current, and time. Settings show step as '6', cycle '1000', and mode 'EXT-TRI'.

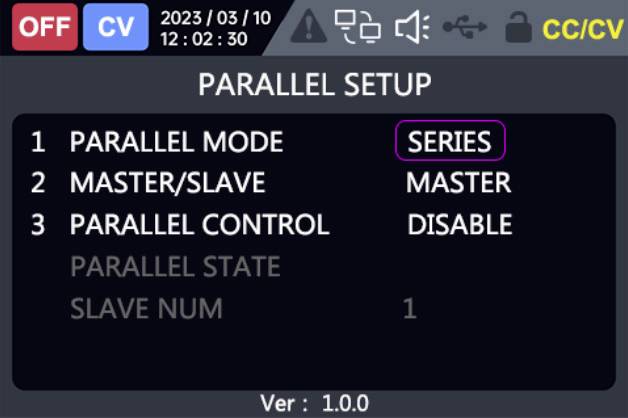

'PARALLEL SETUP' screen showing: Parallel Mode set to 'SERIES', Master/Slave to 'MASTER', Parallel Control to 'DISABLE'. Version 1.0.0.

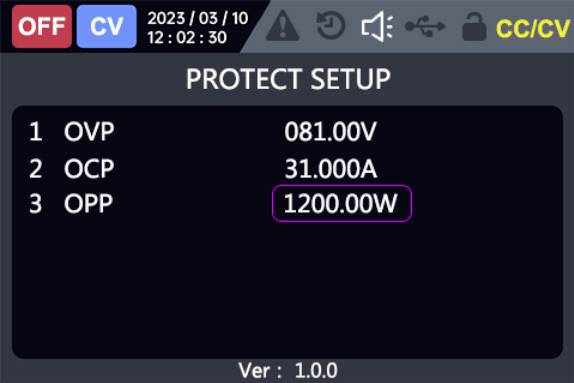

'PROTECT SETUP' screen showing OVP: 081.00V, OCP: 31.000A, OPP: 1200.00W. Display indicates CC/CV mode, date 2023/03/10, time 12:02:30.

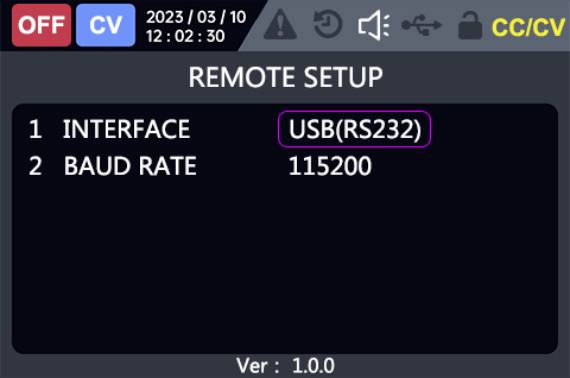

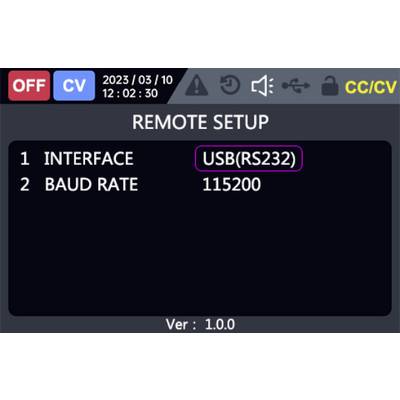

'REMOTE SETUP' menu shows options for 'INTERFACE: USB(RS232)' and 'BAUD RATE: 115200'. Version 1.0.0 is displayed at the bottom.

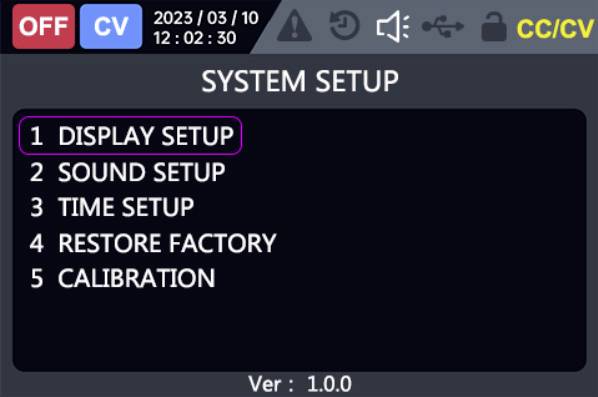

'System Setup' menu screen showing options: 1. Display Setup, 2. Sound Setup, 3. Time Setup, 4. Restore Factory, 5. Calibration. Version 1.0.0.

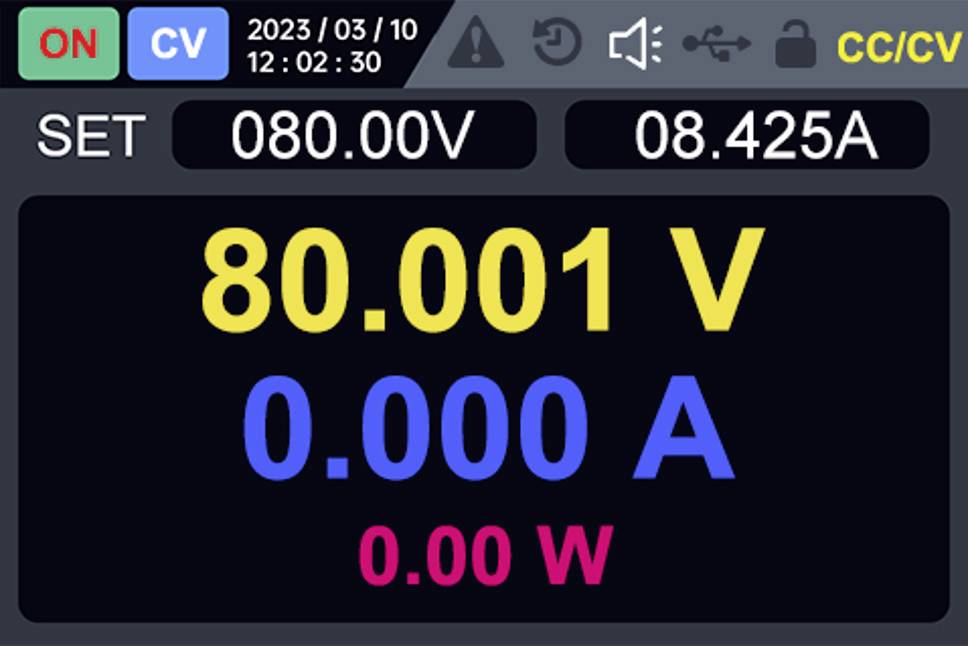

Display screen showing voltage '80.001 V', current '0.000 A', and power '0.00 W' with labels SET, CV mode, and timestamp '2023/03/10 12:02:30'.

1/14

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,205.88 / piece)

€ 2,205.88

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VSPP-3060 Power supply 600 V 10 A 3000W

Input voltage: 85 - 265 V AC
Rated output voltage: 0 - 600 V
Rated output current: 0 - 10 A
Max. output power: 3000 W
Output resolution: 10 mV / 1 mA
Programmable output: 100-step LIST waveform sequencing
Mode priority: CV / CC priority with adjustable rise and fall time
Display: 9.9 cm (3.9") TFT LCD

Technical specifications

Voltage accuracy: ≤0.05 % ± 50 mV
Current accuracy: ≤0.05 % ± 20 mA
Setting resolution: 10 mV, 1 mA

Type: VSPP-3060

Product type: 19" bench PSU (adjustable voltage)

No. of outputs: 1 x

: 3000 W

Interfaces: USB
RS485
LAN

Features: programmable
remote controlled

Dim: (L x W x H) 215 x 453 x 88 mm

: Manufacturer's standards (no certificate)

Weight: 6.8 kg

Output voltage (max.): 600 V DC

Output voltage (min.): 0 V DC

Max. output current: 10 A

Output current (min.): 0 A

Inputs: 85-265 V/AC, 50-60 Hz

Type: Bench

Width: 453 mm

Height: 88 mm

Length: 215 mm

Residual ripple: Voltage: ≤500 mVp-p, Current: ≤50 mArms

Plastic free packaging: Plastic-free packaging

Variants(All information is without VAT, plus shipping costs)

Power

Calibrated to

Output voltage

Output current

VOLTCRAFT VSPP-1208 19" bench PSU (adjustable voltage) 0 - 80 0 - 30 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413736

1200 W

Manufacturer's standards (no certificate)

0 - 80

0 - 30 A

VOLTCRAFT VSPP-1215 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413737

1200 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-1230 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 1200 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413738

1200 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-3015 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413739

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-3030 19" bench PSU (adjustable voltage) 0 - 300 0 - 15 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3413740

3000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 15 A

VOLTCRAFT VSPP-3016 19" bench PSU (adjustable voltage) 0 - 150 0 - 40 A 3000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734639

3000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 40 A

VOLTCRAFT VSPP-1815 19" bench PSU (adjustable voltage) 0 - 150 0 - 30 A 1800 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734640

1800 W

Manufacturer's standards (no certificate)

0 - 150

0 - 30 A

VOLTCRAFT VSPP-2015 19" bench PSU (adjustable voltage) 0 - 150 0 - 20 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734641

2000 W

Manufacturer's standards (no certificate)

0 - 150

0 - 20 A

VOLTCRAFT VSPP-2030 19" bench PSU (adjustable voltage) 0 - 300 0 - 10 A 2000 W USB , RS485, LAN remote controlled, programmable No. of outputs 1 x

Item no:3734642

2000 W

Manufacturer's standards (no certificate)

0 - 300

0 - 10 A

VOLTCRAFT VSPP-2060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 2000 W USB , RS485, LAN programmable, remote controlled No. of outputs 1 x

Item no:3734643

2000 W

Manufacturer's standards (no certificate)

0 - 600

0 - 10 A

Documents & Downloads

Datasheet

Datasheet 3413741 VOLTCRAFT VSPP-3060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 3000 W USB , RS485, LAN programmable, remote con

User & Safety Instructions

User & Safety Instructions 3413741 VOLTCRAFT VSPP-3060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 3000 W USB , RS485, LAN programmable, remote con

Warranty Terms

Warranty Terms 3413741 VOLTCRAFT VSPP-3060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 3000 W USB , RS485, LAN programmable, remote con

Download

Download 3413741 VOLTCRAFT VSPP-3060 19" bench PSU (adjustable voltage) 0 - 600 0 - 10 A 3000 W USB , RS485, LAN programmable, remote con

Description

Discover the VOLTCRAFT VSPP-3060: Your precision laboratory power supply for the most demanding requirements!
Are you looking for a powerful and reliable laboratory power supply that can handle the most demanding tasks? The VOLTCRAFT VSPP-3060 is the ideal choice for research, development, training and industrial applications. With its impressive performance, it gives you the precision and stability you need for your projects.

This text is machine translated.

Features

1/2 2U standard 48 cm (19 inch) rack
Supports wide range of voltage inputs (85 V-265 V) for different countries
High precision constant power output of 3000 W with wide output voltage/current range
Built-in discharge circuit for output
Supports SCPI, USB serial communication for remote control
Supports analog input and output as well as dry contact functionality
Parallel operation is allowed for same model only.
Data visuallization: real time voltage, current, and power curves display
Analog input and output
Dry contact functionality

Scope of delivery

DC power supply
Power cord (1.5 m)
USB cable (1.08 m)
Handles
Output terminal with remote compensation
Screw set
User manual
Safety hint sheet

Hints

Parallel operation is only permitted for an identical model.
