Votronic S 1250 Battery monitoring

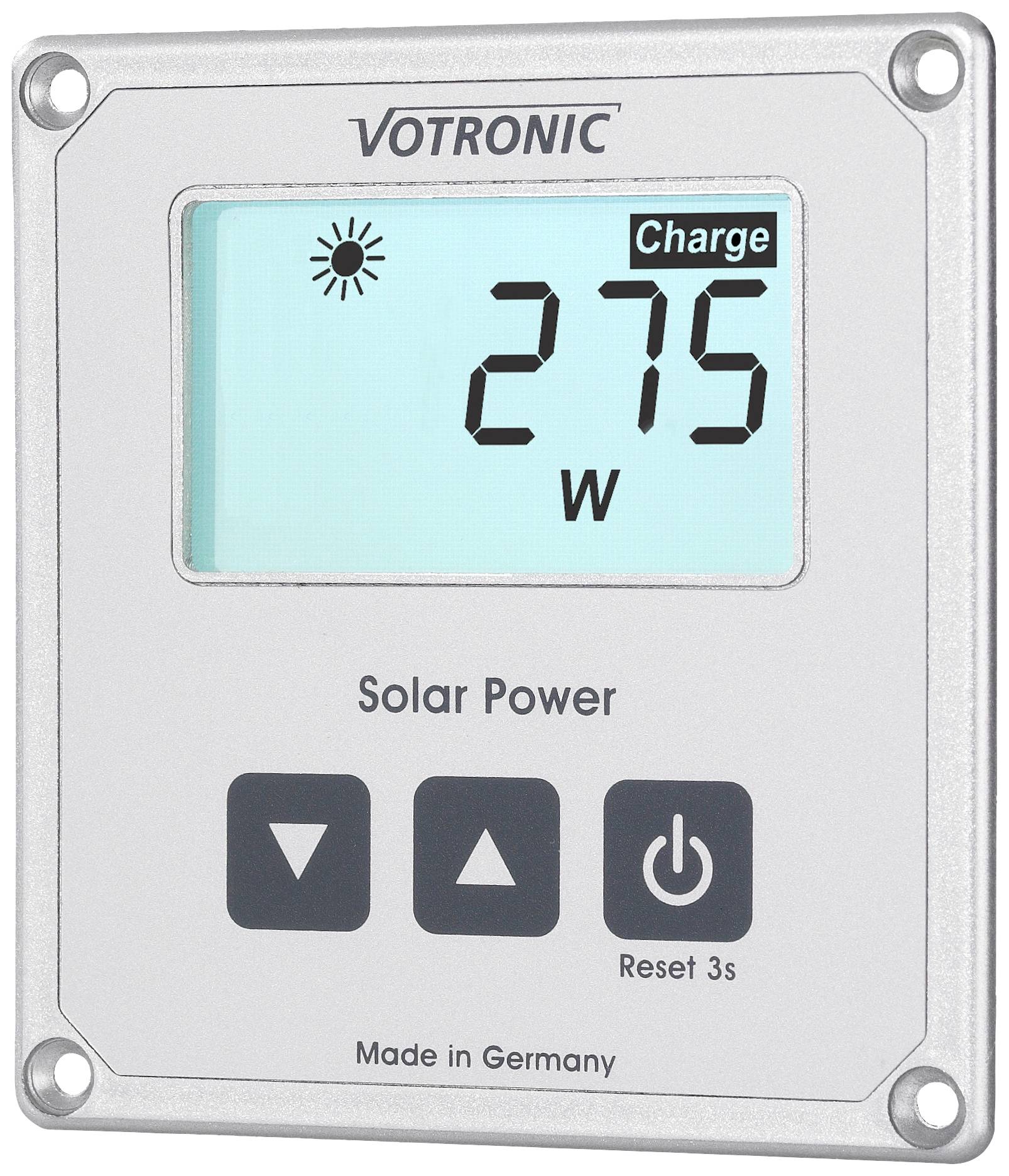

How much energy does my solar system actually supply? Is the on-board battery fully charged? Are the solar modules shaded, dirty and do they work properly? Does the power of the solar module match the specifications of the manufacturer or does the system provide completely different values? All these questions can be answered directly and conveniently with the LCD-Solar-Computer S. The S series solar LCD computer is simply connected to the SR and MPP series Votronic solar charge controllers via the 5 m long control cable supplied with the product via plug and play and immediately provides the required information. Suitable for the Votronic module system (height unit 85 mm) the LCD solar computer S is designed as a panel version and can be connected optically as well as mechanically to the other display modules. Small front panel dimensions and especially low installation depth of just 22 mm permit the mounting at almost any position. The measuring values are shown on the display with a keystroke. The display is illuminated (switchable) and also very well readable from bigger distances as well as in all lighting conditions. The current solar power (W) is shown as a bar display and is always in sight, while for example the current battery voltage (V) or the currently flowing solar current (A) is monitored. Influences due to weather, partial shadow or sun alignment can be quickly detected. A separate sun symbol indicates the operating state of the solar charge controller and flashes if the solar current is limited due to full battery. The generated solar energy (Wh) and the charge (Ah) are calculated and displayed by pressing a button. They can be used for your own statistical purposes, even over days and weeks. Both display values can be reset to "zero" at any time.

This text is machine translated.
