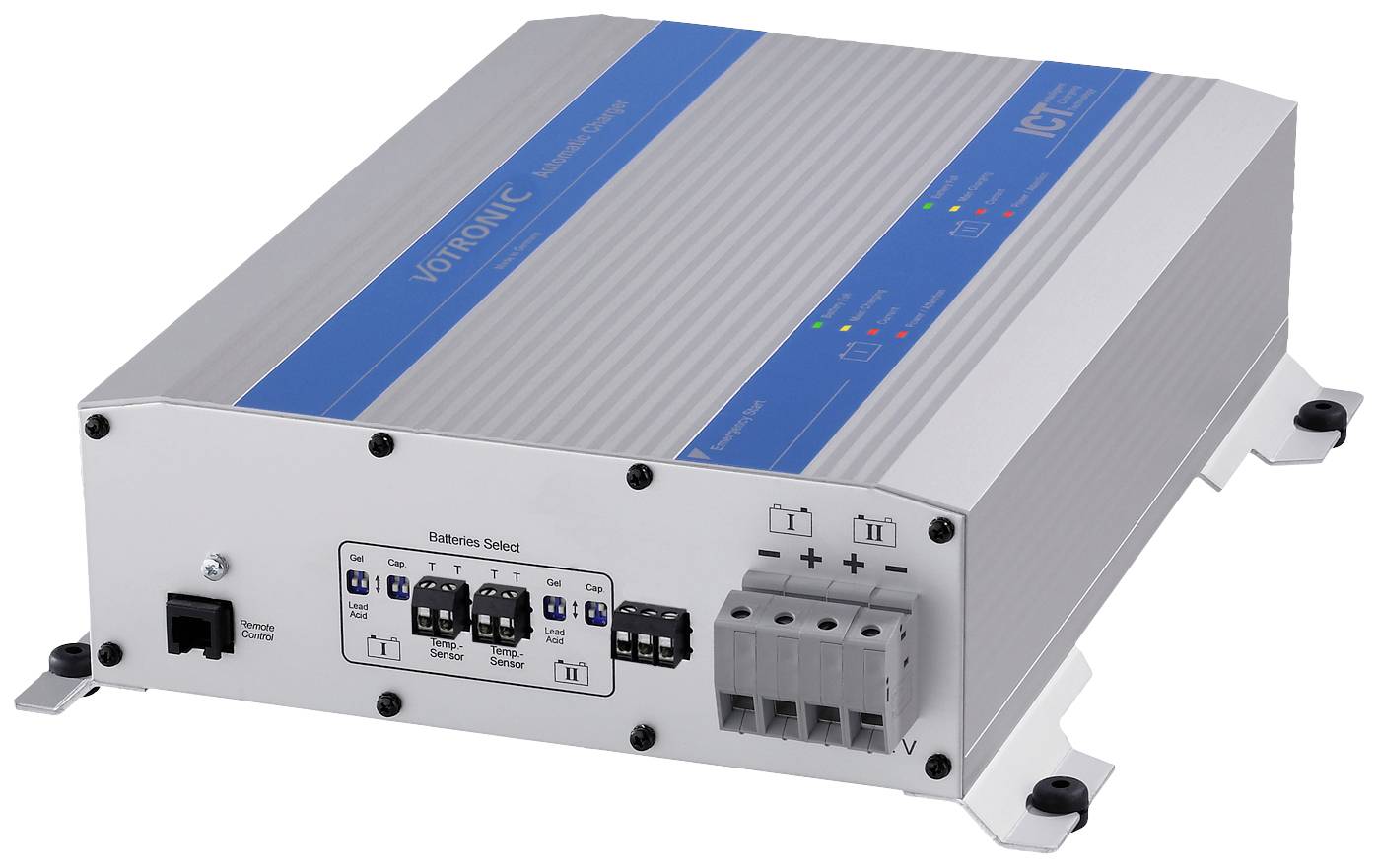

Votronic VRLA charger VAC 1220/30 Duo Charging current (max.) 40 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Power consumption: 890 W
- Charging capacity in [V]/[A] 12 / 20 / 30, 230V
- Operating voltage range (AC) in [V] 190 - 265 (full charge capacity)
- Nominal battery voltage 12V DC
- Charging program 1,2,3,5 / 1,2,3,5
- Product type
VRLA charger
- Matching rechargeable battery
Lead-acid calcium
SLA
Lead-acid
Lead acid membrane
- Recommended battery capacity (min.)
36 Ah
- Recommended battery capacity (max.)
480 Ah
- Charging slots
2
- Operating voltage
230 V / AC
- Charging current (max.)
40 A
- Length
353 mm
- Width
262 mm
- Height
92 mm
- Weight
3750 g
- Dim
(L x W x H) 353 x 262 x 92 mm
Documents & Downloads
Datasheet
Datasheet 3062537 Votronic VRLA charger VAC 1220/30 Duo Charging current (max.) 40 A
User & Safety Instructions
User & Safety Instructions 3062537 Votronic VRLA charger VAC 1220/30 Duo Charging current (max.) 40 A
Description
It is not uncommon for two independent battery circuits or two different types of batteries to require special power chargers with a correspondingly different charging power. This usually means that an additional device for the special on-board battery must be installed for the "normal" battery charger for the starter battery – with all its accompanying features: Additional costs for the device, additional expenditure for installation and double space requirement in the vehicle.
A solution is found in the VAC-DUO charger series, in which two independent charging parts working independently of each other are combined in one unit to save space. Each charging part can be set exactly to its battery with respect to the type of battery, charging program and battery capacity. This means that the starter battery is also equipped with a full-fledged charger.
As with all chargers of the VAC series, the electronics are protected against moisture and the temperature sensors 825 are included in the delivery. The +86 signal output is also available to prevent the motor from starting when the vehicle is connected to the mains.
As further special features, devices with integrated battery bridging function 200 A are available for an engine emergency start. This function can also be operated via a simple push-button switch, e.g. from the dashboard.
This text is machine translated.
A solution is found in the VAC-DUO charger series, in which two independent charging parts working independently of each other are combined in one unit to save space. Each charging part can be set exactly to its battery with respect to the type of battery, charging program and battery capacity. This means that the starter battery is also equipped with a full-fledged charger.
As with all chargers of the VAC series, the electronics are protected against moisture and the temperature sensors 825 are included in the delivery. The +86 signal output is also available to prevent the motor from starting when the vehicle is connected to the mains.
As further special features, devices with integrated battery bridging function 200 A are available for an engine emergency start. This function can also be operated via a simple push-button switch, e.g. from the dashboard.
This text is machine translated.
Features
- Built-in power battery charger specially designed for rescue vehicle
- Two completely independent, independent charging parts
- Optimised 6-stage charging characteristics for acid, gel and AGM batteries
- Battery type and capacity adjustable for each battery
- 2 temperature sensors 825 supplied
- Automatic battery regeneration
- Message output for motor start lock
- Electronics moisture-proof
- Optionally with emergency-start function 200
Scope of delivery
- VAC 1220/30 Duo
- 2 temperature sensors 825
- Power cable;
- User manual.
