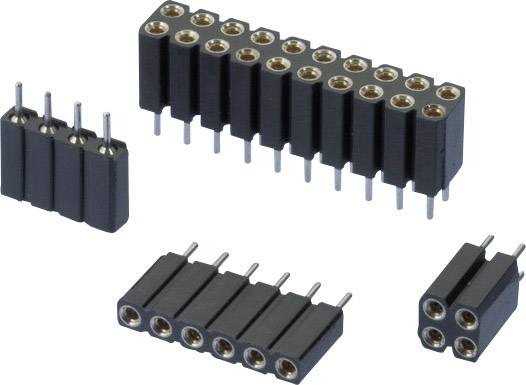

W & P Products SIL socket (precision) No. of rows: 1 Pins per row: 50 153-050-1-50-00 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Power strip, straight
No. of rows
1
Total number of pins
50
CS
2.54 mm
Product type
SIL socket (precision)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Socket terminal strip RM 2.54 mm
- Content 1 pc(s)
- No. of rows 1
- Pins per row 50
Our service for you
Technical specifications
- Connector type
Power strip, straight
- No. of rows
1
- Pins per row
50
- Total number of pins
50
- CS
2.54 mm
- Connection
Print
- Factory colour
Black
- Nominal voltage
150 V DC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Contact material
Brass
- Case material
Thermoplastic material
- Pin Ø
0.60 mm
- Pin length (PCB)
3 mm
- Separable
Yes
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
153-050-1-50-00
- Content
1 pc(s)
- Height
2.54 mm
- Length
10.00 mm
- Industrial packaging
No
- Type
153-050-1-50-00
- Socket depth
5.80 mm
- RoHS-compliant
Yes
- Max. temperature
+125 °C
- Min. temperature
-55 °C
- Product type
SIL socket (precision)
Documents & Downloads
Datasheet
Datasheet 1403359 W & P Products SIL socket (precision) No. of rows: 1 Pins per row: 50 153-050-1-50-00 1 pc(s)
Description
Round pin diameter 0.65 – 0.85 mm or square pin 0.635 mm.
