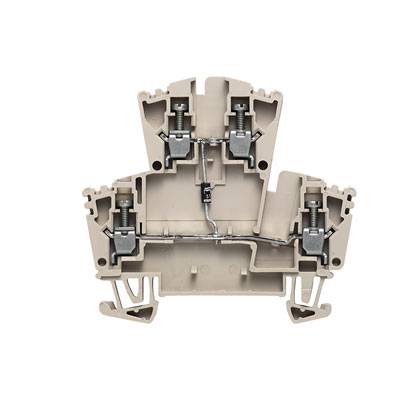

W-Series, Component terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
W-Series, Component terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
- WDK 2.5 1D A.1
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Dark beige
- Manufacturer part #
1023400000
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
WDK 2.5 1D A.1
- Dim
(L x W x H) 69 x 5.1 x 62.5 mm
- Width
5.1 mm
- Height
62.5 mm
- Length
69 mm
- RoHS-compliant
Yes
- Weight
12.11 g
- Type
WDK 2.5 1D A.1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 280985 W-Series, Component terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
User & Safety Instructions
User & Safety Instructions 280985 W-Series, Component terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
Description
The versatile and extensive range of products - from 0.05 mm² to 300 mm² - means that you have diverse options for your applications at your disposal.
Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.
