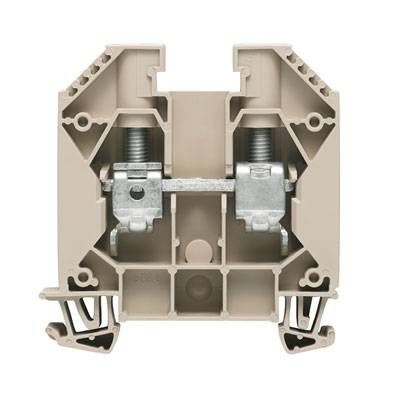

W-Series, Feed-through terminal, Rated cross-section: 16 mm², Screw connection, Direct mounting
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (max.)
16 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
W-Series, Feed-through terminal, Rated cross-section: 16 mm², Screw connection, Direct mounting
Our service for you
Technical specifications
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Factory colour
Dark beige
- Manufacturer part #
1028900000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WDU 16/ZA
- Dim
(L x W x H) 60 x 11.9 x 62.5 mm
- Width
11.9 mm
- Height
62.5 mm
- Length
60 mm
- RoHS-compliant
Yes
- Weight
29.22 g
- Connector colour
Dark beige
- Type
WDU16/ZA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 281193 W-Series, Feed-through terminal, Rated cross-section: 16 mm², Screw connection, Direct mounting
User & Safety Instructions
User & Safety Instructions 281193 W-Series, Feed-through terminal, Rated cross-section: 16 mm², Screw connection, Direct mounting
Description
The versatile and extensive range of products - from 0.05 mm² to 300 mm² - means that you have diverse options for your applications at your disposal.
Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.
Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.
