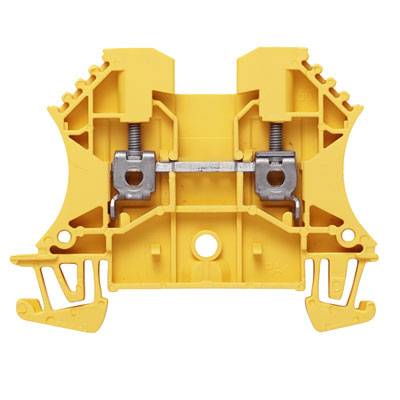

W-Series, Feed-through terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
W-Series, Feed-through terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
Our service for you
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Yellow
- Manufacturer part #
1020020000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
WDU 2.5 GE
- Dim
(L x W x H) 60 x 5.1 x 46.5 mm
- Width
5.1 mm
- Height
46.5 mm
- Length
60 mm
- RoHS-compliant
Yes
- Weight
7.46 g
- Connector colour
Yellow
- Type
WDU 2.5 GE
DIN rail (top hat rail) 35 mm
Yellow
5.1
60 mm
46.5 mm
800 V
-60-130 °C
V0
TRUE
Screw connection
Screw connection
1
2
FALSE
0.5-4 mm²
0.5-2.5 mm²
0.5-4 mm²
1.5-4 mm²
Thermoplastic
24 A
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 280885 W-Series, Feed-through terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
User & Safety Instructions
User & Safety Instructions 280885 W-Series, Feed-through terminal, Rated cross-section: 2,5 mm², Screw connection, Direct mounting
Description
The versatile and extensive range of products - from 0.05 mm² to 300 mm² - means that you have diverse options for your applications at your disposal.
Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.
Hardened steel for mechanical strength and high-quality tinned copper for optimum conductivity. All materials comply with RoHS requirements and have been tested to current environment guidelines.
