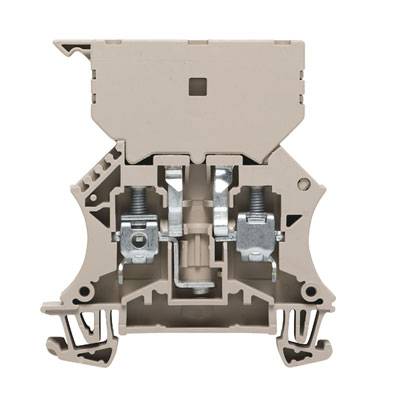

W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection,
EAN:
Part number:
Item no:
Product type
Fuse serial terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection,
- WSI 6/2 GZ/DEF63
Our service for you
Technical specifications
- Product type
Fuse serial terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Dark beige
- Manufacturer part #
1014000000
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
WSI 6/2 GZ/DEF63
- Dim
(L x W x H) 60 x 11.9 x 66.5 mm
- Width
11.9 mm
- Height
66.5 mm
- Length
60 mm
- RoHS-compliant
Yes
- Weight
23.94 g
- Connector colour
Dark beige
- Type
WSI 6/2 GZ/DEF 63
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 280487 W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection,
User & Safety Instructions
User & Safety Instructions 280487 W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection,
Description
The fuse terminals of the Weidmüller W Series are available in two different forms:
Fuse terminal with pivoting retaining leverFuse terminal with plug-in SIHA fuse holder
Fuse terminal with pivoting retaining leverFuse terminal with plug-in SIHA fuse holder
