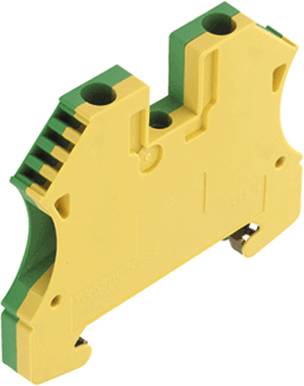

W-Series, PE terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
EAN:
Part number:
Item no:
Product type
Earth clamp
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
100 pc(s)
Datasheet (PDF)
Highlights & Details
W-Series, PE terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
- WPE 4
Our service for you
Technical specifications
- Product type
Earth clamp
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- Factory colour
Green-yellow
- Manufacturer part #
1010100000-100
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
WPE 4
- Dim
(L x W x H) 56 x 6.1 x 46.5 mm
- Width
6.1 mm
- Height
46.5 mm
- Length
56 mm
- RoHS-compliant
Yes
- Weight
18.5 g
- Type
WPE 4
Documents & Downloads
Datasheet
Datasheet 280294 W-Series, PE terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
User & Safety Instructions
User & Safety Instructions 280294 W-Series, PE terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
Description
The PE terminals are available in two designs: standard and compact (N), with rated cross-section from 1.5 mm² to 150 mm² (e.g. 2.5 mm² – WPE 2.5 or 4 mm² – WPE 4N).
