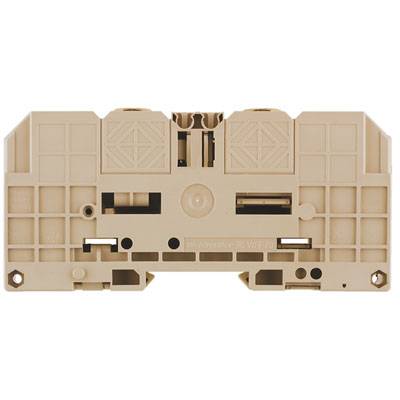

W-series terminal with clamping yoke connection, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud conne
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Serial continuity
Connection
Bolt fixings
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (max.)
95 mm²
Datasheet (PDF)
Highlights & Details
W-series terminal with clamping yoke connection, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud connection,
- WFF 70
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Bolt fixings
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
95 mm²
- Factory colour
Dark beige
- Manufacturer part #
1028400000
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
WFF 70
- Dim
(L x W x H) 132 x 32 x 61 mm
- Width
32 mm
- Height
61 mm
- Length
132 mm
- RoHS-compliant
Yes
- Weight
158.5 g
- Flammability rating
UL 94 V0
- Connector colour
Dark beige
- Type
WFF 70
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 281162 W-series terminal with clamping yoke connection, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud
User & Safety Instructions
User & Safety Instructions 281162 W-series terminal with clamping yoke connection, Feed-through terminal, Rated cross-section: 70 mm², Threaded stud
Description
The comprehensive range of bolt-type screw terminals offers secure connections for all power transmission applications.
Connections from 10 mm² to 300 mm² are possible. The conductors are attached to the terminals using crimped cable lugs and each connection secured by tightening the hexagonal nut.
Bolt-type screw terminals with threads from M5 to M16 can be used depending on the conductor cross-section.
A low voltage drop and the use of a self-extinguishing material with a V-0 (UL 94) flammability rating guarantee maximum safety.
All bolt-type screw terminals have been tested according to international railway standards (EN 50343, EN 50155, NF F61-017, NF16-101; Ria 20) and comply with the requirements of those standards.
Connections from 10 mm² to 300 mm² are possible. The conductors are attached to the terminals using crimped cable lugs and each connection secured by tightening the hexagonal nut.
Bolt-type screw terminals with threads from M5 to M16 can be used depending on the conductor cross-section.
A low voltage drop and the use of a self-extinguishing material with a V-0 (UL 94) flammability rating guarantee maximum safety.
All bolt-type screw terminals have been tested according to international railway standards (EN 50343, EN 50155, NF F61-017, NF16-101; Ria 20) and comply with the requirements of those standards.
