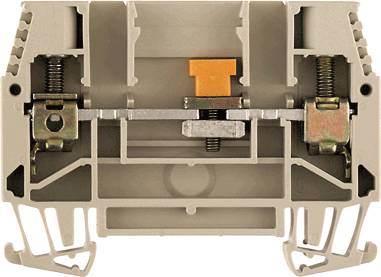

W-Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection
EAN:
Part number:
Item no:
Product type
Serial test terminal
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
W-Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection
- WTL 6/1
Our service for you
Technical specifications
- Product type
Serial test terminal
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- Factory colour
Dark beige
- Manufacturer part #
1016700000
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
WTL 6/1
- Dim
(L x W x H) 65 x 7.9 x 216 mm
- Width
7.9 mm
- Height
216 mm
- Length
65 mm
- RoHS-compliant
Yes
- Weight
19.78 g
- Type
WTL 6/1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 280730 W-Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection
User & Safety Instructions
User & Safety Instructions 280730 W-Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection
Description
Special instruments are required for measuring electrical energy. One wrong connection during maintenance work is enough to ruin a current transformer! Disconnect test terminals represent a reliable way of solving this problem. As a leading supplier of line connectors, Weidmüller has developed special disconnect test terminals in close cooperation with users. These modular terminals ensure optimum realisation of all important circuits for the measurement of current, voltage and energy. Different current transformer circuits, e.g. for replacing measuring instruments or electricity meters, can be implemented.
Besides disconnect test terminals with screw or tension clamp connections, Weidmüller also has a comprehensive range of accessories, including test adapters, cross-connections and markers for the testing of 3-phase and AC circuits as well as voltages.
