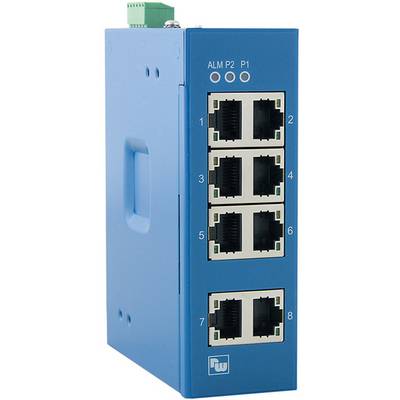

Wachendorff ETHSWG8C1 ETHSWG8C1 Industrial Ethernet switch 1000 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
14-day return policy included
Ethernet switch, 8 ports, Gigabit - ETHSWG8C1
Highlights & Details
- Unmanaged / Plug and Play
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x.
- IEEE 802.1p: COS, 4 queues per port
- Supports Jumbo Frames up to 9000 bytes
- Broadcast and multicast flooding storm control
- Redundant voltage input / trouble-signal relay output
- Protection class IP30
Technical specifications
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
8
- No. of 100 Mbps/1Gbps/10Gbps ports
0 x
- 10/100 Mbps ports
8 x
- 10/100/1000 Mbps ports
8 x
- Jumbo frames
Yes
- Weight
439 g
- Width
39 mm
- Height
117.8 mm
- Depth
96.9 mm
- Type
ETHSWG8C1
- Interfaces
RJ45
- Operating voltage
12 V DC
24 V DC
36 V DC
48 V DC
58 V DC
- Current consumption
55 mA
- Max. ambient temperature
75 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 1930614 Wachendorff ETHSWG8C1 ETHSWG8C1 Industrial Ethernet switch 1000 MBit/s
User & Safety Instructions
User & Safety Instructions 1930614 Wachendorff ETHSWG8C1 ETHSWG8C1 Industrial Ethernet switch 1000 MBit/s
Description
The ETHSWG8C1 is a very compact and robust Industrial Ethernet switch with 8x 10/100/1000BaseT(X). In addition to IEEE 802.3, IEEE802.3u, IEEE 802.3ab and IEEE802.3x, CoS are also supported according to IEEE 802.1p. There are 4 queues (priority classes) for this
Per port. The compact enclosure, certified to IP30 degree of protection, has been designed for use in harsh and demanding industrial environments, in which larger temperature differences and physical loads are known.
The ETHSWG8C1 is an unmanaged and plug and play capable switch with a non-blocking/wire-respected Layer 2 switching engine. Safe transfer is ensured by the execution in the operating mode Store and Forward. The flooding storm control function can be switched on and off to protect against unwanted allocation of the available transmission rate by means of Broad or Multicast data frames.
The switch has a redundant voltage input and a fault signaling relay for signaling a fault. This ensures trouble-free operation and direct fault detection in the event of a power supply failure or power supply failure.
This text is machine translated.
