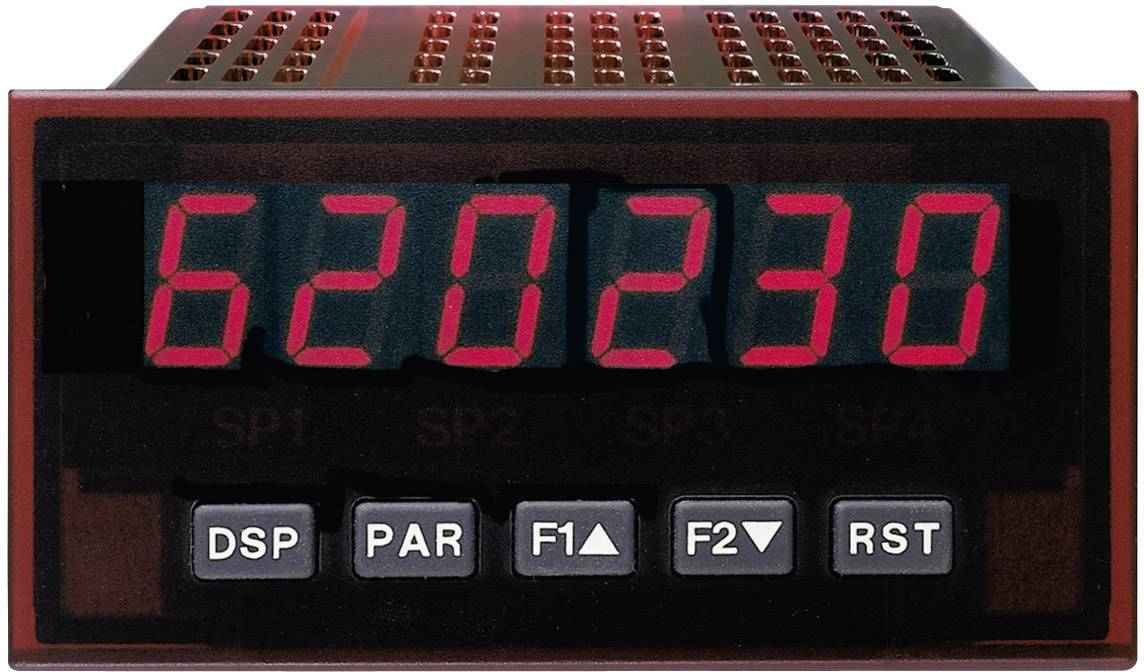

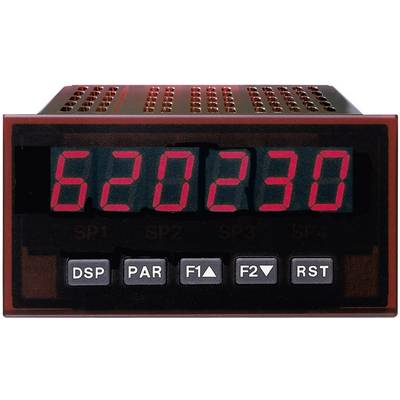

Wachendorff PAXI DC Tachometer: 0.01 Hz - 20 kHz / Counter : 0 - 34 k Hz
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 542.02 / piece)
€ 542.02
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Counter/Tachometer PAXI DC
- Input frequency up to 34 kHz
- 6-digit display
Technical specifications
- Reading type
Frequency
- Reading range (min.)
0.01 Hz
- Type
PAXI DC
- Display technology
LED
IP65 (on front)
- Display (counts)
6
- Dim
(W x H x D) 96 x 50 x 104 mm
- Display lighting
red
- Width
96 mm
- Height
50 mm
- Digit height
14 mm
- Depth
104 mm
- Digits
9999999
- Display (details)
LED
- Assembly dimensions
92 x 45 mm
- Power supply (details)
11 - 36 V DC
- Counter range
-99999 bis 999999
- Reset
Electrically/Button
- Reading range
Tachometer: 0.01 Hz - 20 kHz / Counter : 0 - 34 k Hz
- Input voltage
11 - 36 V DC
Documents & Downloads
Datasheet
Datasheet 128922 Wachendorff PAXI DC Tachometer: 0.01 Hz - 20 kHz / Counter : 0 - 34 k Hz
User & Safety Instructions
User & Safety Instructions 128922 Wachendorff PAXI DC Tachometer: 0.01 Hz - 20 kHz / Counter : 0 - 34 k Hz
Description
Intelligent Counter / Tachometer / Slave Select PAXI independent with 2 points, 1 display for sum / difference, and a tachometer Input frequency max. 34 kHz, depending on the mode of operation. Almost all commercially available sensors are adaptable. Easy programming at the unit or via PC using software. 6-digit, 14 mm high red and dimmable LED display. Phase-to 4-fold resolution. Tachometer with period measurement and 10-step linearization. freely programmable user inputs. Front side protection IP65.
