Wachendorff PAXLCR00 0.01 Hz - 25 k Hz
EAN:
Part number:
Item no:
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
14-day return policy included
Highlights & Details
Counter/Tachometer PAXLCR
- Input frequency up to 25 kHz
- 6-digit display
Technical specifications
- Reading type
Frequency
- Reading range (min.)
0.01 Hz
- Type
PAXLCR00
- Display technology
LED
IP65 (on front)
- Display (counts)
6
- Dim
(W x H x D) 96 x 50 x 104 mm
- Width
96 mm
- Height
50 mm
- Digit height
14 mm
- Depth
104 mm
- Digits
999999
- Display (details)
LED
- Assembly dimensions
92 x 45 mm
- Power supply (details)
50 - 250 V (V/AC) / 21.6 - 250 V DC
- Counter range
-99999 bis 999999
- Reset
Electrically/Button
- Reading range
0.01 Hz - 25 k Hz
- Input voltage
50 - 250 V (V/AC) / 21.6 - 250 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 128790 Wachendorff PAXLCR00 0.01 Hz - 25 k Hz
Description

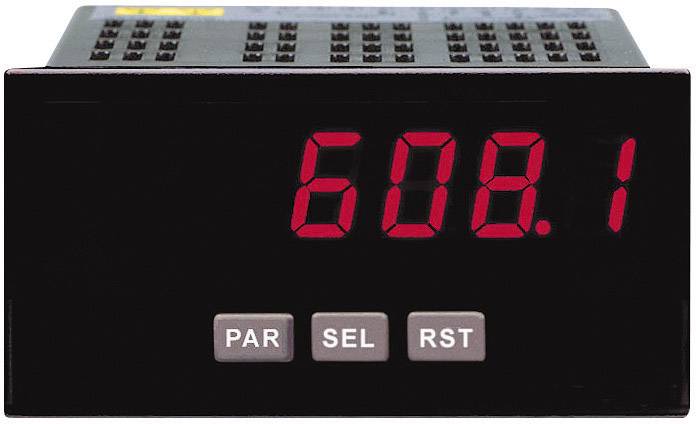

The counter/Tachometer PAXLCR is a digital indicator for impulse signals It is designed with the robust plastic housing for the rough industrial applications Input frequency max. 25 kHz fits all commercial sensors Free scalable and simple programming via front keys Meter function with phase discriminator/batch counter and Tachometer with measurement of period duration, 14 mm with six digits highly brilliant dim-able LED display. 2 free programmable user inputs The device is quickly and safely projected directly via 3 keys
