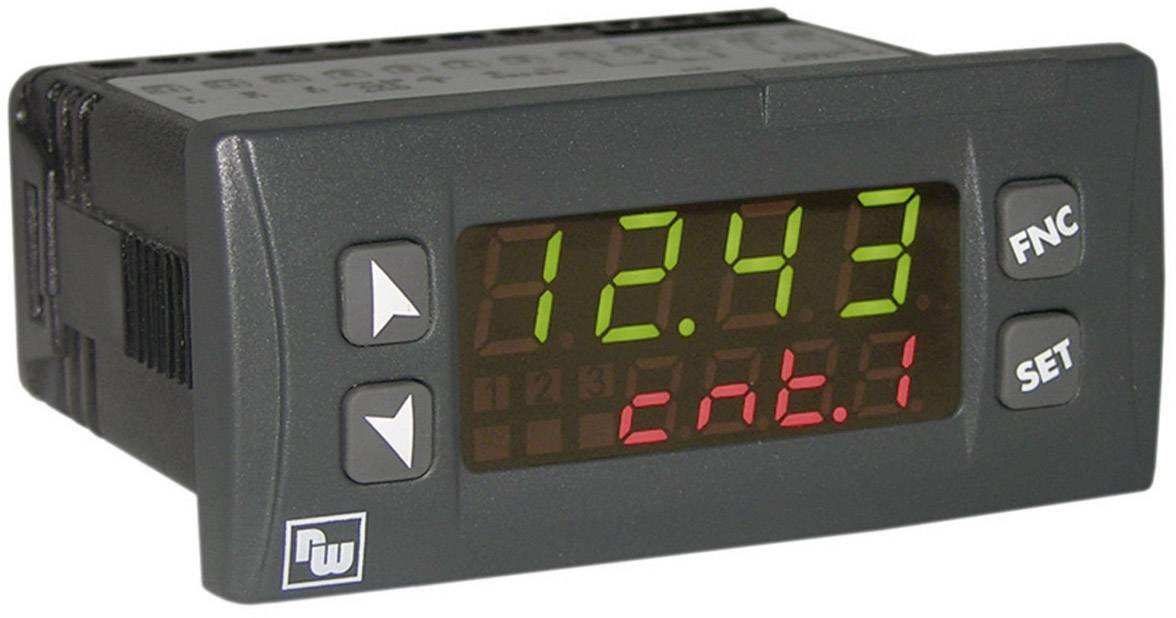

Wachendorff ZD327401 Preset counter
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 126.04 / piece)
€ 172.27
-27 %
€ 126.04
plus VAT.
14-day return policy included
Highlights & Details
Pre-selection counter/frequency display ZD 327401
- Pre-selection counter/frequency display in the 48 mm x 48 mm or 32 mm x 74 mm format
- Universal AC and DC power supply
- Input frequency up to 100 kHz
- 2-line LED display
- Easy programming via keyboard or software
- Two switching outputs as a relay
Technical specifications
- Product type
Preset counter
- Reading type
Frequency
- Type
ZD327401
- Display technology
LED
IP65 (on front)/IP20 (on back)
- Dim
(W x H x D) 48 x 48 x 107 mm
- Weight
350 g
- Width
48 mm
- Height
48 mm
- Depth
107 mm
- Display (details)
2-line LED display
- Assembly dimensions
48 x 48 mm
- Power supply (details)
24 V AC/DC up to 230 V AC/DC
Documents & Downloads
Datasheet
Datasheet 409449 Wachendorff ZD327401 Preset counter
User & Safety Instructions
User & Safety Instructions 409449 Wachendorff ZD327401 Preset counter
Conformity certificate
Conformity certificate 409449 Wachendorff ZD327401 Preset counter
Description
The compact preset counter can be used as a preset counter as well as the frequency display. Over three function inputs (NPN/PNP/TTL), almost all commercially available pulse sensors can be connected. Through the internal phase discriminator or the corresponding circuit of the function inputs, the count direction determined and displayed. A function input can also be connected via a potentiometer for specification of the setpoint high protection class IP65 from the front page
This text is machine translated.
This text is machine translated.
Scope of delivery
- Mounting material
- Gasket
- User manual.
